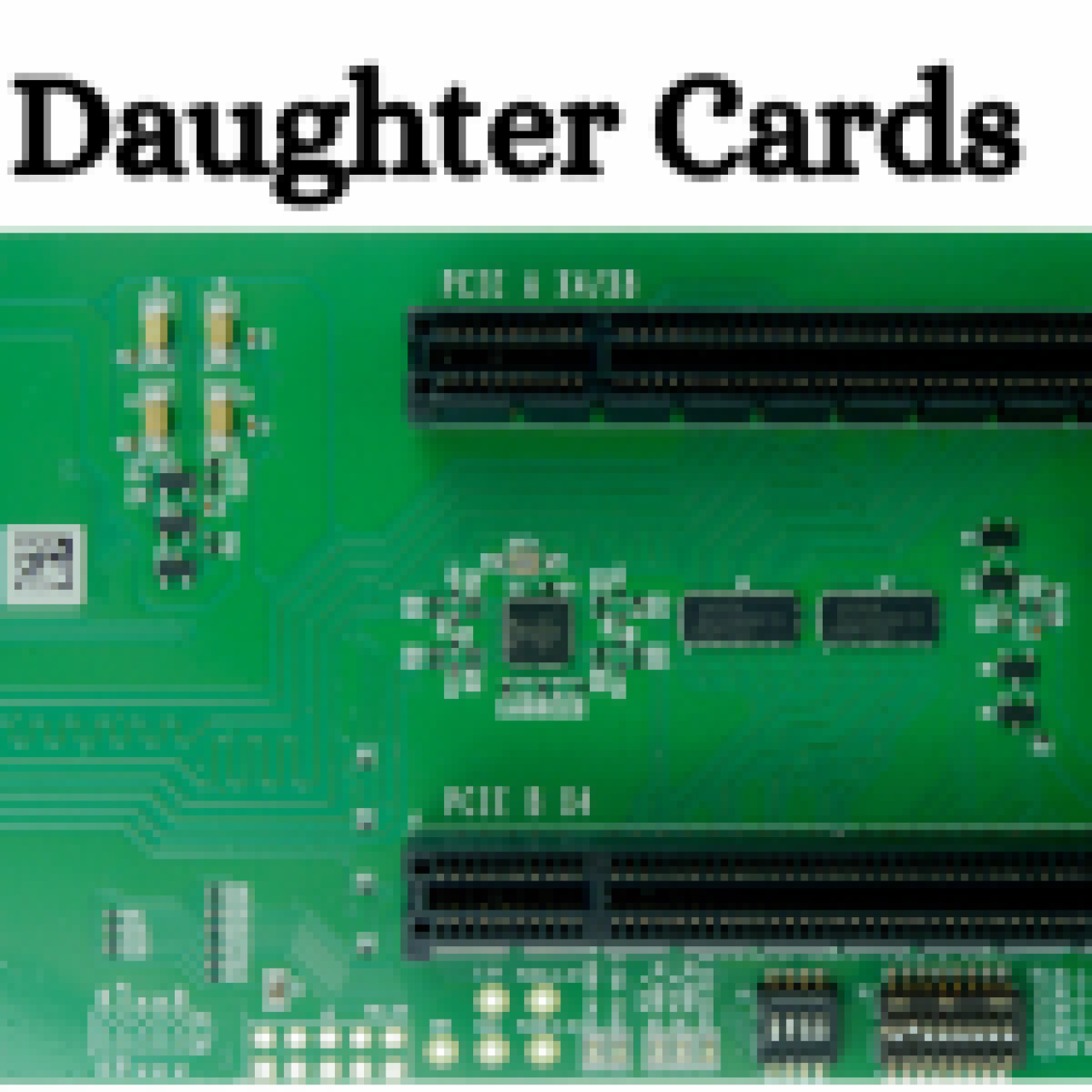

Daughter Cards: Expanding the Horizons of Your Computer
Daughter cards, also known as daughterboards or expansion cards, graft small circuit boards onto the computer’s motherboard, thereby expanding or enhancing its functionalities. They provide a user-friendly solution to upgrade your laptop in terms of hardware and price without purchasing the whole motherboard. Be it a gamer, a professional, or just a person who wants to enhance the computer’s capabilities, daughter cards open the door to all the possibilities.
Types and Applications: A World of Possibilities
Daughter cards come in various forms, each serving a specific purpose:
- Memory Expansion: Upgrading with RAM sticks (DIMMs) is a standard procedure to boost your PC’s memory capacity and enhance its speed and responsiveness, especially if you are dealing with many tasks and applications that require more resources. On the other hand, moving up to high-speed DDR5 RAM can produce prompt performance of video editing software or 3D rendering applications.
- Storage Solutions: M.2 SSD daughter boards offer solutions for high-speed storage, resulting in faster loading times for the operating system, applications, and files. The Samsung 980 PRO NVMe SSDs provide tremendous read and write speeds and are ideal for gamers and professionals who need lightning-fast access to large files.
- Graphics Cards: Furthermore, graphics cards are vital for gamers and professionals needing optimized visual graphics. These cards ensure the correct output is achieved and performance is enhanced; they take care of smoother gaming and faster rendering. Additionally, the NVIDIA GeForce RTX 4090 is the best high-end graphics card to provide fantastic picture quality in modern video games.
- Network Interface Cards (NICs): The NICs provide the network with additional network interfaces, and thus, you can connect the machine to the wired network and the internet. Different speeds and models are available, from 100 Mbit/s for ordinary home users to 10 Gb/s 10 GbE for high-performance workstations and servers. The Intel Ethernet Converged Network Adapter X710-DA4 is a fine example of this class of network interface cards, supporting four ports of 10 Gigabit Ethernet for environments that require high performance.
Connectivity and Compatibility: Ensuring a Perfect Fit
![image6 NetworkUstad Various daughter cards and connectors arranged neatly on a white background](https://networkustad.com/wp-content/uploads/2024/05/image-6.png)
Daughter cards utilize different connectors depending on their function and the capabilities of the motherboard:
- PCI Express (PCIe): A bus of high-speed serial transmission often adopted for graphics cards, network cards, and storage devices in various versions with different performance levels. Nowadays, PCIe 4.0 widely uses the specification and brings significant bandwidth enhancements compared to earlier iterations. However, PCIe 5.0, the most recent specification, is starting to offer much faster data transfer rates for the most demanding applications, including virtual reality and 3D modelling.
- M.2: Small SSDs and other devices are compactly designed, and the connection to both SATA and PCIe interfaces is possible, which makes compatibility verification extremely important. Ensure that your motherboard has an M.2 slot, which supports the type of interface and the size of the SSD you will use.
Please make sure that there is an available slot for the daughter card on your motherboard and that it supports the required interfaces and power supply before you buy one.
Network Daughter Cards (NDCs): Powering Advanced Networking
NDCs (Network Daughter Cards) serve critical roles in server networks to improve network connectivity and data transfer rates. This flexible and scalable solution allows administrators to adapt to network needs without interfering with motherboard PCIe slots. NDCs help establish network virtualization, security protocols, and high availability configuration, thus making them a perfect fit for data centres, cloud computing, and HPC applications.
Case Study: A data center with an extensive infrastructure uses NDCs to provide fast network connectivity for its servers, thus making the data passing and communication process among multiple systems efficient. The NDCs will support a solution of network virtualization. The data center will be able to create its on-demand virtual networks, which will help improve resource utilization and flexibility.
Advantages of Using Daughter Cards: A Wise Investment
- Customization: Adjust your computer system to meet your exact requirements and replace only those components you want to replace without requiring changing the motherboard.
- Performance Enhancement: Upgrade your computer performance, responsiveness, and graphics to get a more efficient and improved user experience.
- Cost-Effectiveness: Many times, the less expensive way to obtain a computer with the correct specifications is to buy a new one with the exact specifications.
- Future-Proofing: Follow the advancement of technology and adjust your configuration to meet your changing needs; keep your computer current and efficient.
Daughter Cards in Action: Real-World Applications
- Gaming & Multimedia: High-end graphics cards, video capture cards, and sound cards are the key factors that make the game more exciting and professional-level content creation possible. For example, a streamer could use a capture card to record and stream gameplay footage with excellent quality without any noticeable effect on their gaming performance.
- Professional Workstations: High-end dedicated graphics cards for CAD and 3D modelling, specific cards optimized for sci-fi computing and data analysis, and specialized AI accelerators for machine learning. A data scientist may use a daughter card with an outstanding GPU or artificial intelligence accelerator to train complex machine-learning models more quickly.
- Industrial & Embedded Systems: Data acquisition, control, programmable cards, networking, and communication modules, as well as speciality cards designed for specific functions. In an industrial automation system, the daughter cards may be used for data acquisition from sensors, operating motors, and communication with other devices utilizing industrial protocols.
- Retro Computing & DIY Projects: Making family-mode systems and designing daughter cards with FPGAs or open-source hardware resources. Moreover, a hobbyist could develop a custom daughter card with an FPGA to implement exceptional functionality on the old computer.
Looking Ahead: Emerging Technologies and Considerations
The world of daughter cards continues to evolve with advancements like:
- PCIe 5.0: PCIe 5.0 is the newest version of PCIe; it uses PCIe 4.0 to increase data transfer rates up to twice as fast for some advanced applications such as high-performance computing and AI.
- NVMe over Fabrics: In this way, NVMF technology expands the range of high-speed NVMe devices over the network fabric and enables remote access and shared data storage resources in data centers and cloud environments.
- Computational Storage: This new technology is embedded into the storage devices, enabling data processing close to where data is stored, lessening data movements and providing efficiency for some workloads.
On the other hand, it is necessary to consider issues like power consumption, heat management, electromagnetic compatibility, and driver support while choosing and putting in daughter cards. The most crucial part is responsible e-waste recycling and energy-efficient designs, which should be used to reduce negative environmental impact.
Conclusion: A Legacy of Expansion and Innovation
Daughter cards have been one of the most notable tools of computing technology’s progress, providing a flexible and powerful way to enlarge and design computer systems. Moreover, from enriching gaming to supporting research in cutting-edge technologies, daughter cards will always lead to new computing horizons and help shape the future of computing. With the pace of technological advancement, we can foresee further improvements in daughter card design and performance, allowing computer users to blur the line between possible and impossible.
