Which IPv4 address range is reserved for loopback testing?

The 127.0.0.0/8 range is reserved for loopback testing. This range allows devices to send network packets to themselves for testing TCP/IP stack functionality without requiring physical network connectivity.

What is the primary purpose of IPv6 Unique Local Addresses (ULA)?

IPv6 Unique Local Addresses (fc00::/7) serve as private internal network addresses, similar to IPv4's private ranges defined in RFC 1918. They are designed for local communication within an organization and are not routable on the global internet.

Which command assigns a static IP address to a Cisco router interface?

The 'ip address [IP] [subnet mask]' command configures static IP addresses on Cisco devices. For example: 'ip address 192.168.1.1 255.255.255.0' assigns that specific IP and subnet mask to an interface.

Which IPv4 ranges are reserved for private networks?

Three private IPv4 ranges defined by RFC 1918: 10.0.0.0/8 (16 million addresses), 172.16.0.0/12 (1 million addresses), and 192.168.0.0/16 (65,000 addresses). These are used for internal networks and require NAT for internet access.

What happens when DHCP fails in IPv4?

Devices automatically self-assign an APIPA address (169.254.0.0/16) through RFC 3927. This allows local network communication but prevents internet access, helping identify DHCP configuration issues.

What is the IPv6 equivalent of IPv4's 127.0.0.1?

The IPv6 loopback address is ::1/128. Like 127.0.0.1 in IPv4, it enables testing of local network stack functionality by routing packets back to the originating device.

Which RFC defines IPv4 link-local addresses?

RFC 3927 specifically defines the 169.254.0.0/16 range for Automatic Private IP Addressing (APIPA), used when DHCP servers are unavailable.

What percentage of internet traffic uses IPv6 in 2025?

Industry projections estimate over 70% of global internet traffic will use IPv6 by 2025, driven by IPv4 address exhaustion and growing IoT device adoption.

How do IPv6 multicast addresses differ from IPv4?

IPv6 multicast uses the ff00::/8 range with predefined scopes (link-local, site-local, global). Unlike IPv4 broadcast, it enables efficient group communication for applications like video streaming and service discovery.

What are TEST-NET addresses used for?

The 192.0.2.0/24 (TEST-NET-1), 198.51.100.0/24 (TEST-NET-2), and 203.0.113.0/24 (TEST-NET-3) ranges are reserved for documentation examples and network testing without conflicting with real-world addresses.

Why are link-local addresses mandatory in IPv6?

fe80::/10 link-local addresses are required for IPv6 neighbor discovery and automatic address configuration (SLAAC). They enable basic network communication even without global addresses or DHCP.

How can I test loopback functionality?

Use ping commands: 'ping 127.0.0.1' for IPv4 or 'ping ::1' for IPv6. Successful replies verify the local TCP/IP stack is functioning properly.

What security risks exist with private IP ranges?

Main risks include accidental exposure through VPN leaks or misconfigured NAT, potentially allowing unauthorized access to internal network resources from external sources.

How does IPv6 multicast benefit smart cities?

Enables efficient group communication for IoT devices (sensors, traffic systems) while conserving bandwidth. ff02::1 addresses all nodes on a local network segment for coordinated operations.

What's the difference between ULA and global unicast IPv6 addresses?

Unique Local Addresses (fc00::/7) are for private networks, while global unicast addresses (2000::/3) are publicly routable. ULAs require NAT for internet access similar to IPv4 private ranges.

When an IPv6 interface is enabled on Cisco router, which three multicast groups does it inherently join by default?

When an IPv6 interface is enabled on a Cisco router, it joins ff02::1 (all nodes), ff02::2 (all routers, if IPv6 routing is enabled), and a solicited-node group (ff02::1:ffxx:xxxx, derived from its IPv6 address). Other groups like ff02::3/5/7 are protocol-specific and not joined by default.

Which command assigns an IP address to an interface?

The command ip address <IP> <subnet> (e.g., ip address 192.168.1.1 255.255.255.0) assigns an IP address to an interface in Cisco IOS.

What does show ip interface brief display?

The show ip interface brief command displays IP addresses assigned to interfaces and the operational status (up/down) of each interface. It provides a concise overview of layer-3 configuration and interface availability.

Which interface type is physical?

GigabitEthernet interfaces are hardware ports used to connect to networks. Configure with interface GigabitEthernet0/0 and activate using no shutdown .

Which interface type is used for link aggregation?

EtherChannel uses Port-channel interfaces (e.g., interface Port-channel1 ) to bundle physical links using LACP/PAgP.

What is the purpose of description in interface configuration?

Interface descriptions add human-readable labels using description TEXT command to prevent configuration errors.

What does five exclamation marks (!!!!!) in ping output indicate?

Five exclamation marks indicate 100% successful ICMP echo replies received.

How to secure an unused interface?

Use shutdown command to administratively disable unused interfaces.

How to resolve 'administratively down' interface status?

Use no shutdown in interface configuration mode to activate the interface.

Which command shows detailed interface statistics?

show interfaces displays detailed counters, errors, and status information.

How to assign an IPv6 address?

Use ipv6 address 2001:db8::1/64 in interface configuration mode.

How to configure DHCP client on an interface?

Use ip address dhcp in interface config mode: Router(config-if)# ip address dhcp

How to backup configurations to TFTP?

Use copy running-config tftp: to initiate TFTP backup process.

Why can’t different IP networks communicate directly without a router?

Routers operate at Layer 3 (Network layer) and use IP addresses to forward packets between different networks.

Which mode allows interface configuration changes on a Cisco router?

Access interface config mode with: configure terminal → interface [name]

What command changes a router’s hostname to "NU-Router"?

Use hostname NU-Router in global configuration mode.

To secure the console port, which command sequence is correct?

Correct sequence: line console 0 → set password → enable login

How many VTY lines are typically enabled by default?

Cisco routers have 5 VTY lines (0-4) by default.

Why is enable secret preferred over enable password?

enable secret uses SHA-256 encryption vs enable password's weak Type 7.

What does service password-encryption do?

Encrypts passwords using Type 7 (weak) encryption.

When is a MOTD banner displayed?

MOTD appears immediately after connection.

How to disable automatic DNS lookup?

Prevents CLI delays from failed DNS queries.

What command maps hostname to IP?

Syntax: ip host networkustad 192.168.1.1

Critical step when assigning IP to interface?

Interfaces are shutdown by default.

Misspelled command in User EXEC mode?

Disable with no ip domain-lookup

Which command encrypts VTY passwords?

Encrypts using Type 7 encryption.

Telnet without VTY password shows?

Requires password configuration on VTY lines.

Command for post-login banner?

MOTD banner shows after authentication.

Purpose of login command under VTY?

Requires password for remote access.

What does 'do' command allow?

Example: do show running-config

Command shows interface status?

Concise interface status overview.

Why can’t different IP networks communicate directly without a router?

Routers operate at Layer 3 (Network layer) and use IP addresses to forward packets between different networks.

Which mode allows interface configuration changes on a Cisco router?

Access interface config mode with: configure terminal → interface [name]

What command changes a router’s hostname to "NU-Router"?

Use hostname NU-Router in global configuration mode.

Quiz Test Types of Physical Media and Networking Cables

Asad Ijaz / CCNA, CCNA Practice Quiz Tests /

May 24, 2025

Ready to test your networking knowledge? Take the Quiz Test – Types of Physical Media and Networking Cables now and see how well you know your cables and Media! Challenge yourself, learn something new, and share your score with friends. Click here to start: Take the Quiz! #NetworkingNinja #TechQuiz

Loading Bar Example

.

CCNA Practice Exam

Quiz Test What is IPv6 and Why We Need It? for Self-Assessment

Asad Ijaz / CCNA, CCNA Practice Quiz Tests /

April 6, 2025

Ready to test your knowledge about IPv6? Dive into our interactive quiz and explore why IPv6 is shaping the future of networking. Challenge yourself, learn something new, and boost your understanding today! 🚀 Start the Quiz Now!

Loading Bar Example

.

CCNA Practice Exam

Special-Purpose IP Addresses Quiz Test for Self-Assessment

Asad Ijaz / CCNA, CCNA Practice Quiz Tests /

April 4, 2025

Test your knowledge with our Special-Purpose IP Addresses Quiz! Assess IPv4 & IPv6 skills with 20 MCQs on loopback, private ranges, and more in this 2025 self-assessment guide.

Loading Bar Example

.

CCNA Practice Exam

Introduction to IP address and Subnetting, Unicast, Multicast and Broadcast Communication Quiz Test

Asad Ijaz / CCNA, CCNA Practice Quiz Tests /

April 3, 2025

🚀 Ready to Test Your Networking Knowledge? 🚀

📢 Take the “Introduction to IP Addresses, Subnetting, and Communication Types” Quiz Now!

Are you confident in your understanding of IP addressing, subnetting, and the differences between unicast, multicast, and broadcast communication? Prove your skills and challenge yourself with this quick, interactive quiz!

✅ What’s in it for you?

Test your grasp of IPv4/IPv6 basics.
Master subnetting techniques like a pro.
Clarify how unicast, multicast, and broadcast work in real-world networks.
Instant feedback to boost your confidence or highlight areas to improve!

🔥 Why Wait?
Whether you’re prepping for a certification, a networking newbie, or a pro brushing up on fundamentals, this quiz is your chance to shine.

⏱️ Quick, Fun, and Insightful!
Only 10 questions stand between you and networking mastery. Can you score 100%?

👉Each reload shows 20 random questions from our bank of 50+ (and growing!) 👈

Challenge yourself today—see where you stand in the world of networking! 🌐

P.S. Share your score and tag a friend to beat your result! Let’s make learning networking fun and competitive. 💻📡

Loading Bar Example

.

CCNA Practice Exam

Cisco Router Interface Configuration Quiz Test

Asad Ijaz / CCNA, CCNA Practice Quiz Tests /

March 20, 2025

Test your Cisco router interface configuration skills with this comprehensive quiz! Assess your knowledge of CLI commands, subnetting, and interface settings to boost your networking expertise. Perfect for CCNA aspirants and IT pros!

Cisco Router Interface Configuration Quiz

✅ Challenge Yourself: 13 questions (6 Minutes Read) to sharpen your expertise.
✅ Instant Feedback: Review answers and provide instant results.
✅ Explanation of Each Question: After submitting the exam, you can instantly see an explanation under each question.
✅ Perfect for CCNA Prep: If you have read the interface configuration chapter on NetAcad, this quiz will further boost your confidence for exams!
✅Perfect for CCNA Passed: Test that you are still prepared or have forgotten something.

CCNA Practice Exam

Cisco Router Configuration Quiz Test 2025

Asad Ijaz / CCNA, CCNA Practice Quiz Tests /

March 16, 2025

Challenge yourself with the ultimate Cisco Router Configuration Quiz Test 2025! Perfect for students, IT professionals, and networking enthusiasts, this quiz is designed to test your expertise and sharpen your skills.

✅ Explore real-world scenarios. ✅ Assess your knowledge with in-depth questions.✅ Explanation of Each Question will be available after submitting the Quiz Test ✅ Gear up for certification or ace your networking goals!

Start the Quiz below to take the challenge and show off your skills now. 💻✨”

CCNA Practice Exam

How does this sound? Let me know if you’d like to tweak the tone or include specific elements! 🚀

Cisco IOS Command Modes Quiz Test: User EXEC, Privileged EXEC, and Global Configuration Modes

Asad Ijaz / CCNA, CCNA Practice Quiz Tests /

March 16, 2025

Test your expertise with Cisco IOS command Modes using this interactive quiz! It’s perfect for CCNA aspirants and network engineers to gauge their skills and master CLI navigation. Dive into our interactive quiz now! Challenge yourself, track your progress, and uncover insights that will supercharge your preparation. Don’t wait—click below and get started today!

CCNA Practice Exam

How to Access a Cisco Router Quiz Test for Self-Assessment

Mudassir K / CCNA, CCNA Practice Quiz Tests /

March 9, 2025

Assess your Cisco networking prowess with our interactive self-assessment—How to Access a Cisco Router Quiz Test for Self-Assessment. Challenge your skills and identify strengths and areas for improvement with real-world troubleshooting scenarios.

CCNA Router Connection Exam

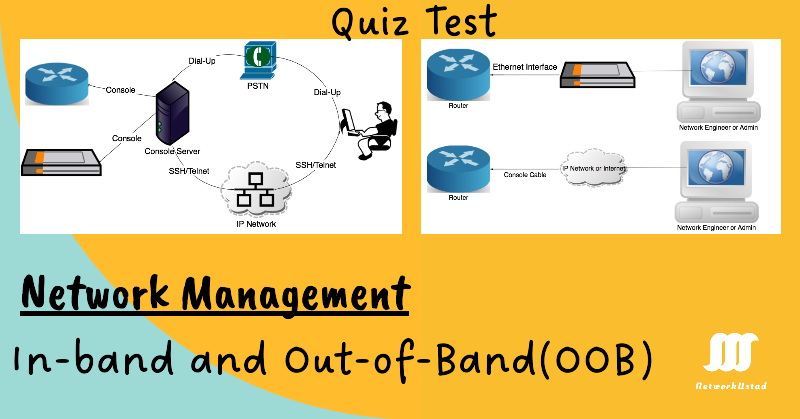

In-Band vs Out-of-Band Network Management Quiz Test for Self-Assessment
