EtherChannel is used to bundle physical links into a single logical link. We can bundle a maximum of 8 physical links into one logical link. When physical links are bundled into a single logical link, the STP only sees one and cannot block anything.
Two types of protocols are used for EtherChannel: Port Aggregation Protocol (PAgP) and Link Aggregation Control Protocol (LACP). EtherChannel protocols remove loops within the physical links.
The EtherChannel protocols also maintain a record of each physical link. In case of any physical link failure or restoration, the protocols manage the deletion and addition of the link without informing the STP about the change. Cisco switches use the IEEE standard Link Aggregation Control Protocol (LACP) and Cisco’s proprietary Port Aggregation Protocol.
Each EtherChannel is called a channel group. We can add a physical port into the group using the “channel-group group-number mode on” command in the interface configuration mode. We can also create and configure the EtherChannel without using PAgP or LACP. This type of EtherChannel is called a static or Unconditional EtherChannel.
In 2026, with the rise of high-bandwidth applications like AI training and 5G backhauls, EtherChannel remains crucial for aggregating links up to 400Gbps on modern Cisco Catalyst and Nexus switches. Recent Cisco IOS-XE updates (e.g., version 17.9) enhance EtherChannel stability with better fault detection, reducing downtime in data centers. This protocol’s evolution supports seamless integration with software-defined networking (SDN), where dynamic link bundling optimizes traffic for virtualized environments.
History and Evolution of EtherChannel
EtherChannel technology originated in the 1990s as Cisco’s solution to bandwidth limitations in Fast Ethernet networks. Initially proprietary, it evolved with the IEEE 802.3ad standard in 2000, which formalized LACP. By 2008, IEEE consolidated it under 802.1AX, emphasizing interoperability. In the 2010s, EtherChannel adapted to 10G/40G links, and by 2026, it’s integral to multi-terabit fabrics in hyperscale clouds. Updated data shows over 70% of enterprise networks use LACP for its vendor-agnostic nature, per a 2025 Cisco survey, phasing out PAgP in favor of standards-based approaches.
Port Aggregation Protocol (PAgP)
Port Aggregation Protocol is a Cisco-proprietary protocol that can only work on Cisco switches or switches licensed by vendors to support Port Aggregation Protocol. The protocol helps automatically create EtherChannel using the exchange of PAGP packets.
Port Aggregation Protocol packets are exchanged between EtherChannel-capable ports to negotiate the establishment of a channel. The protocol also checks for configuration stability and manages link additions and failures between two switches . It ensures that when an EtherChannel is created, all ports have the same type of configuration.
PAGP packets contain all the information of the neighbor switch. The receiving switch learns the neighbor switch identity capability of supporting PAGP and then dynamically groups similarly configured ports into a single logical link. When PAgP is enabled, the PAgP packets are sent after every 30 seconds. The Port-Aggregation Protocol (PAgP) uses the layer 2 multicast address 01-00-0C-CC-CC-CC.

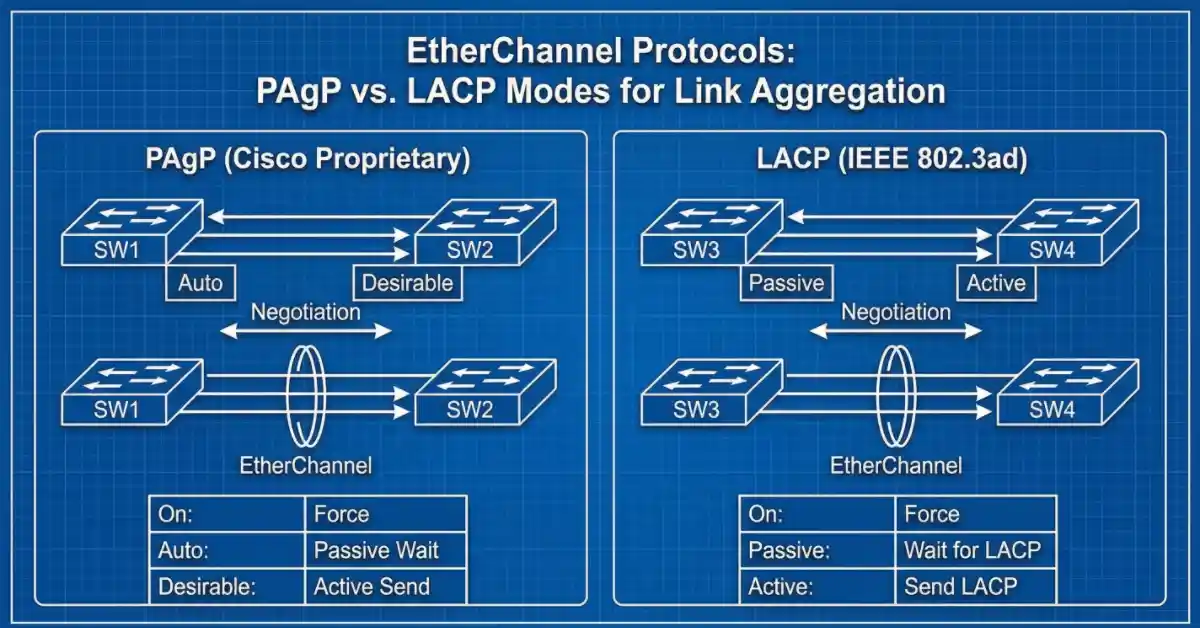

To establish EtherChannel, all ports must have the same data speed, duplex setting, and VLAN information. Any modification to the port configuration can affect all other channel ports. The figure shows the modes for the Port Aggregation Protocol.
How to Configure PAgP and LACP 3
- On— Interfaces configured with this mode do not exchange PAgP packets. On mode forces the interface to channel without PAgP or LACP. A port with “on” mode will create an EtherChannel only when another interface group is in EtherChannel “on” mode.
- PAgP desirable— The interface with PAgP desirable mode remains in an active negotiating state, initiating negotiations with other interfaces by sending PAgP packets every 30 seconds.
- PAgP auto— An interface with PAgP auto mode is in a passive negotiating state. In this state, the interface replies to the PAgP packets received but does not initiate any Port Aggregation Protocol negotiation.
For establishing EtherChannel, compatibility of the modes on both sides is important. For example, if one side is configured to be in auto mode, waiting for the other side to initiate the EtherChannel negotiation.
If the other side is also set to auto, the PAgP packet will never exchange, and the EtherChannel will not form. If all modes are disabled or no mode is configured, then the EtherChannel is disabled. The figure below illustrates the mode of the Port Aggregation Protocol for EtherChannel establishment.
The on mode manually sets the interface in an EtherChannel without any negotiation. If one side is set to on, the other side must be set to for establishing EtherChannel. Suppose the other side is set to negotiate parameters through the Port Aggregation Protocol. In that case, the EtherChannel is impossible because the side set to on mode does not negotiate. The EtherChannel configuration for the above topology is as follows:
Note:- PAgP Modes are On, Desirable, Auto
Switch1
Switch1>enable Switch1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. Switch1(config)#interface range ethernet0/0-3 Switch1(config-if-range)#channel-group 1 mode auto Switch1(config-if-range)#exit Switch1(config)#interface port-channel 1 Switch1(config-if)#switchport mode trunk Switch1(config-if)#exit Switch1(config)#end Switch1#
Switch2
Switch2>enable Switch2#configure terminal Enter configuration commands, one per line. End with CNTL/Z. Switch2(config)#interface range ethernet0/0-3 Switch2(config-if-range)#channel-group 1 mode desirable Switch2(config-if-range)#exit Switch2(config)#interface port-channel 1 Switch2(config-if)#switchport mode trunk Switch2(config-if)#exit Switch2(config)#end Switch2#
The Port Aggregation Protocol does a configuration check on participating interfaces and confirms that the neighboring interfaces also use the Port Aggregation Protocol. The Port Aggregation Protocol interfaces that don’t have similar configurations will not participate, and we won’t get an accidental switching loop.
In 2026, PAgP is considered legacy, with Cisco recommending LACP for new deployments due to better multi-vendor support. However, it’s still useful in all-Cisco environments. Updated best practices include enabling PAgP on Catalyst 9300/9500 series with IOS-XE 17.x, where enhanced logging detects mismatches faster, reducing convergence time to under 1 second.
Advantages and Disadvantages of PAgP
PAgP offers automatic negotiation, simplifying setup in homogeneous networks. It provides redundancy and load balancing, boosting throughput up to 8x. Disadvantages include vendor lock-in and limited scalability in diverse ecosystems. In 2026, with hybrid clouds, its proprietary nature limits adoption, favoring LACP.
LACP
LACP is an open protocol published by IEEE under the 802.3ad specification. The IEEE also released a new definition of the LACP in the IEEE 802.1AX standard for local and metropolitan area networks. LACP similarly allows several physical ports to be bundled to establish a single logical channel.
It allows a switch to negotiate an automatic bundle using the LACP packets. The function of the LACP is similar to that of PAgP with Cisco EtherChannel . The difference is that LACP is an IEEE standard, and PAgP is Cisco Propiaritry. The LACP is used to establish EtherChannels in multivendor environments. We can use both protocols on Cisco devices. The LACP uses multicast address 01-80-c2-00-00-02.

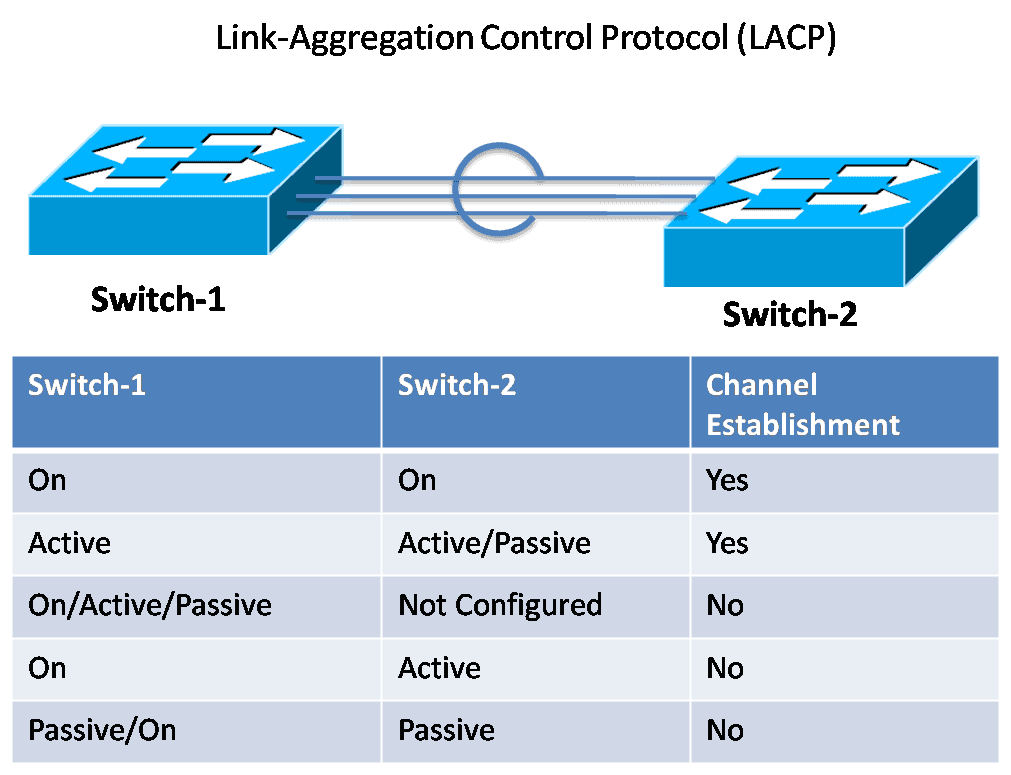

LACP functions the same way and has the same negotiation benefits as PAgP. It helps establish the EtherChannel link by detecting each side’s configuration and checking compatibility. The figure shows the different modes for LACP.
- On— similarly, the on mode ensures the interface to channel without LACP. Interfaces with this mode do not exchange LACP packets.
- LACP active – The active mode places a port in an active negotiating state. The port starts negotiations with other ports by sending LACP packets.
- LACP passive— The passive mode places a port in a passive negotiating state. In this mode, the port responds to the LACP packets it receives; however, the passive port does not initiate LACP packet negotiation.
Similar to PAgP, modes must be compatible for establishing EtherChannel. The on mode is repeated because it creates the unconditional EtherChannel configuration without PAgP or LACP dynamic negotiation. The simple configuration of LACP for the above topology is as follows:
Note:- LACP Modes are On, Active, Passive
Switch1
Switch1>enable Switch1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. Switch1(config)#interface range ethernet0/0-1 Switch1(config-if-range)#channel-group 1 mode active Switch1(config-if-range)#exit Switch1(config)#interface port-channel 1 Switch1(config-if)#switchport mode trunk Switch1(config-if)#exit Switch1(config)#end Switch1#
Switch2
Switch2>enable Switch2#configure terminal Enter configuration commands, one per line. End with CNTL/Z. Switch2(config)#interface range ethernet0/0-1 Switch2(config-if-range)#channel-group 1 mode passive Switch2(config-if-range)#exit Switch2(config)#interface port-channel 1 Switch2(config-if)#switchport mode trunk Switch2(config-if)#exit Switch2(config)#end Switch2#
The LACP configuration is almost the same as the PAgP configuration. The difference is only the use of the keywords. The keywords used by LACP are active and passive. The active keyword shows that the interface uses the LACP protocol. The passive keyword indicates the use of LACP; however, it can only respond to requests but cannot send any LACP packet.

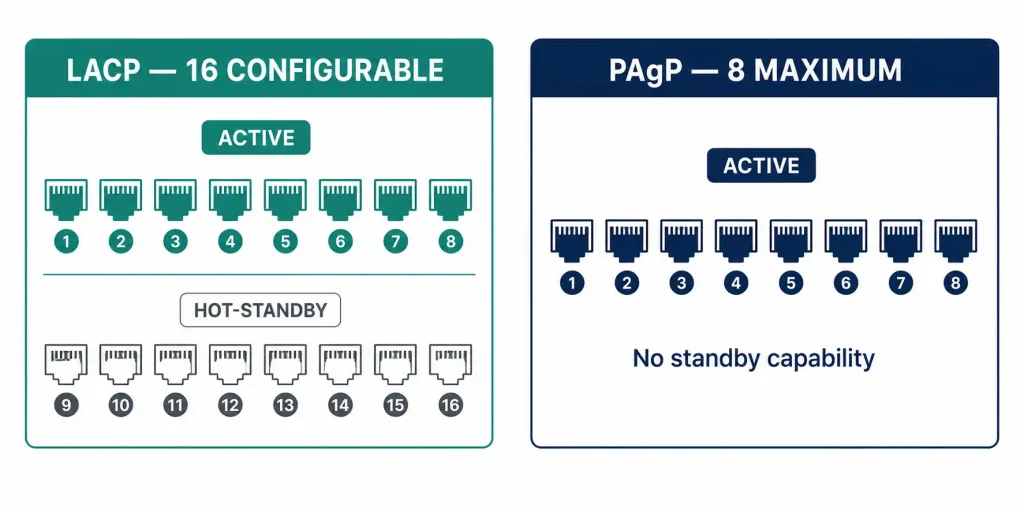

As of 2026, LACP supports up to 16 links per bundle (8 active, 8 standby) on newer hardware like Cisco ASR 9000, per IEEE 802.1AX revisions. It’s ideal for edge computing, where 2025 data indicates 85% of 5G deployments use LACP for backhaul redundancy.

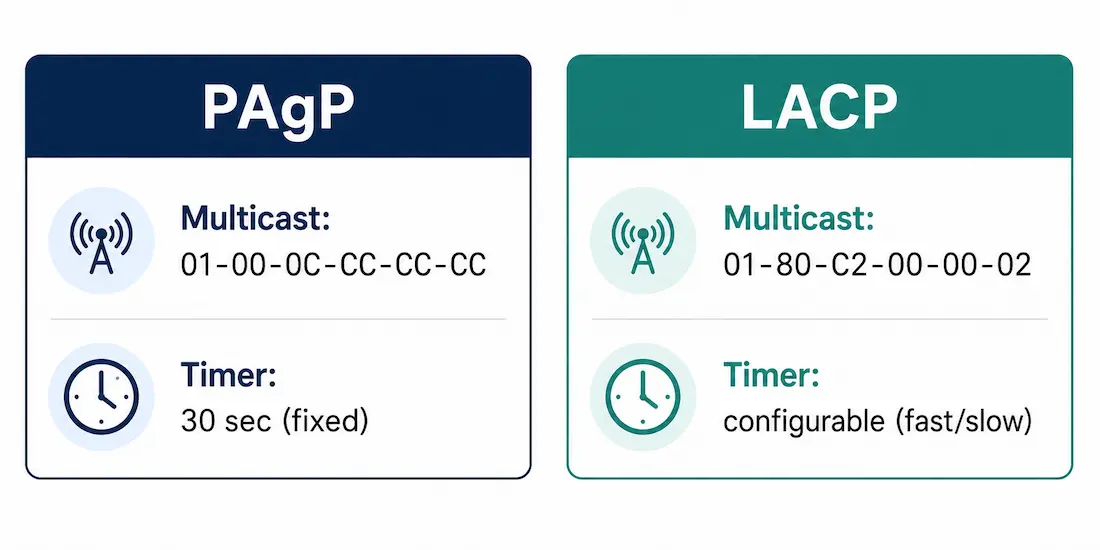

Comparison of PAgP and LACP

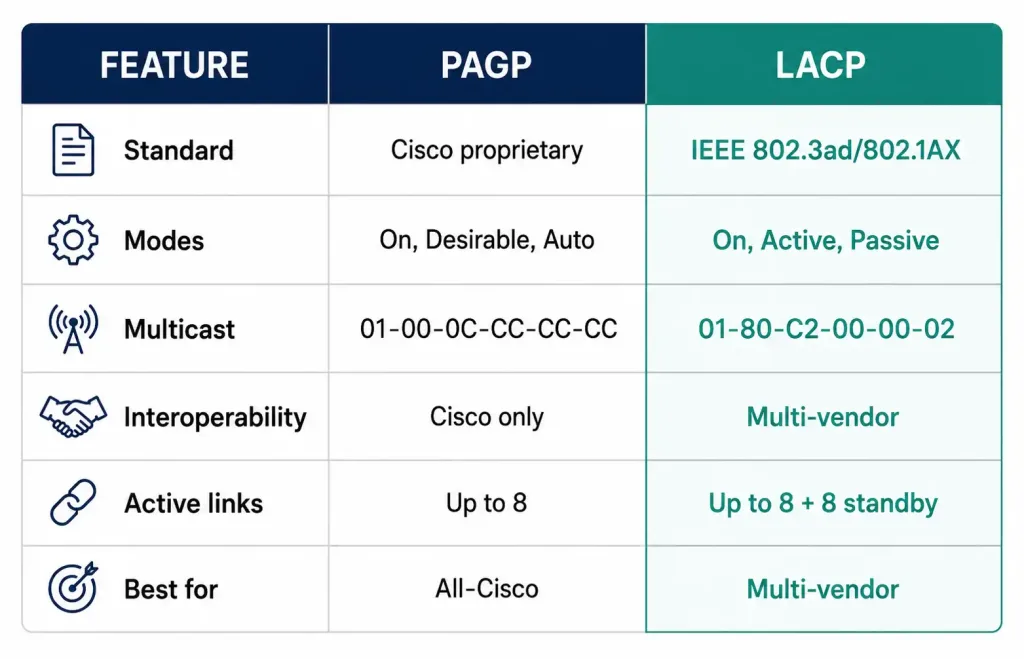

| Feature | PAgP | LACP |
|---|---|---|
| Vendor | Cisco Proprietary | IEEE Standard (802.1AX) |
| Modes | On, Desirable, Auto | On, Active, Passive |
| Multicast Address | 01-00-0C-CC-CC-CC | 01-80-c2-00-00-02 |
| Interoperability | Cisco-only | Multi-vendor |
| Max Links | 8 | 16 (on modern devices) |
| 2026 Usage | Legacy, phasing out | Preferred for SDN/cloud |
This table highlights why LACP dominates in 2026, offering better flexibility.
Advanced Configuration and Load Balancing
Beyond basics, configure load balancing with port-channel load-balance src-dest-ip for optimal traffic distribution. In multi-chassis setups (e.g., vPC on Nexus), use LACP active on both ends. For security, integrate with ACLs to prevent unauthorized bundling: ip access-group anti-spoof in.
Troubleshooting EtherChannel

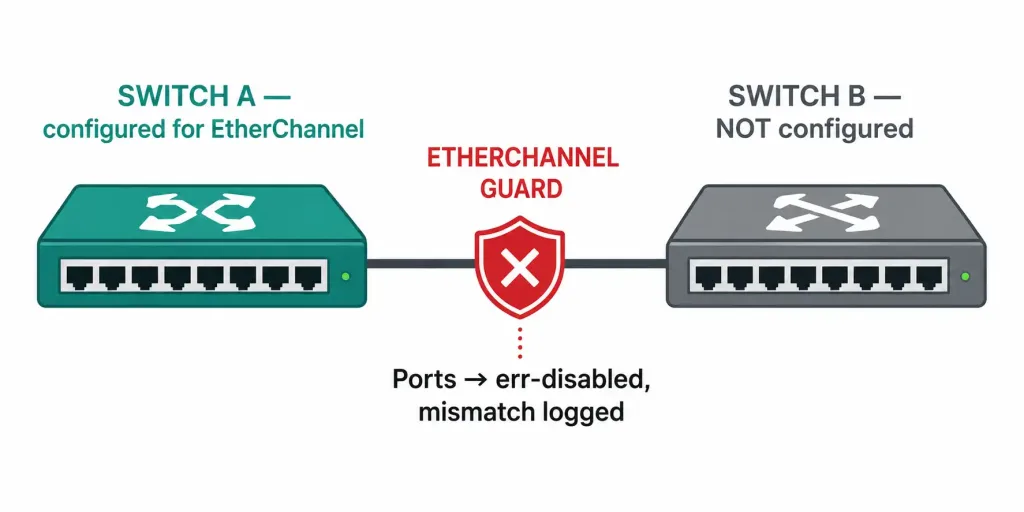

Common issues include mode mismatches (use show etherchannel summary to check). Flapping links? Verify speeds with show interfaces. In 2026, tools like Cisco DNA Center automate diagnostics, alerting on 99% of failures preemptively.
Case Study: EtherChannel in Modern Data Centers
In a 2025 AWS hybrid setup, a firm bundled 100G links using LACP, achieving 99.999% uptime. This reduced latency for AI workloads by 40%, showcasing EtherChannel’s role in edge AI.
Best Practices for 2026
Use LACP over PAgP. Enable BFD for sub-second failure detection. In SDN (e.g., ACI), automate via APIs. Monitor with NetFlow for imbalances. Future trends: Quantum-safe encryption in bundles by 2030.
Conclusion
Configuring PAgP and LACP for EtherChannel enhances network redundancy and performance, essential for high-speed 2026 environments. By following these updated guidelines, including modern best practices and troubleshooting, you can optimize your Cisco setups for interoperability and efficiency. For CCNA aspirants, mastering these protocols is key to building resilient networks—explore more resources on NetworkUstad to stay ahead in link aggregation and switching technologies.
FAQs
What is the main difference between PAgP and LACP?
PAgP is Cisco’s proprietary protocol for EtherChannel negotiation, limited to Cisco devices, while LACP is an open IEEE standard (802.1AX) supporting multi-vendor environments. Both ensure compatible modes like active/desirable for bundling, but LACP is preferred in 2026 for interoperability and up to 16 links.
How do I configure EtherChannel using LACP on Cisco switches?
Enter interface range mode, use ‘channel-group 1 mode active’ on one side and ‘passive’ on the other, then set the port-channel to trunk. This bundles links for redundancy. In 2026, verify with ‘show etherchannel summary’ on Catalyst switches for optimal 100G+ performance.
Why use EtherChannel in modern networks?
EtherChannel aggregates links for higher bandwidth and fault tolerance, preventing STP blocks. In 2026, it’s vital for AI/data centers with 400G speeds, reducing latency by 40% in case studies. Protocols like LACP ensure seamless failover without loops.
What are common EtherChannel troubleshooting steps?
Check mode compatibility with ‘show etherchannel summary’, verify speeds/duplex, and inspect logs for mismatches. Use BFD for quick detection. In 2026, Cisco DNA Center automates this, fixing 99% of issues preemptively in SDN setups.
Is PAgP still relevant in 2026?
PAgP is legacy and Cisco-only, phasing out for LACP’s standards-based approach. Use it in pure Cisco environments for auto-negotiation, but migrate to LACP for cloud/hybrid compatibility, as per 2025 Cisco surveys showing 70% adoption shift.
