When IPv4 was defined in RFC 791 back in 1981, nobody designing it anticipated that the internet would eventually connect billions of devices worldwide. That original design has been patched and extended repeatedly over the decades since, but several fundamental limitations remain baked into IPv4’s architecture. This guide covers exactly what those limitations are, why they matter, and how the industry has worked around them while IPv6 adoption continues to grow.
Shortage of IPv4 Addresses

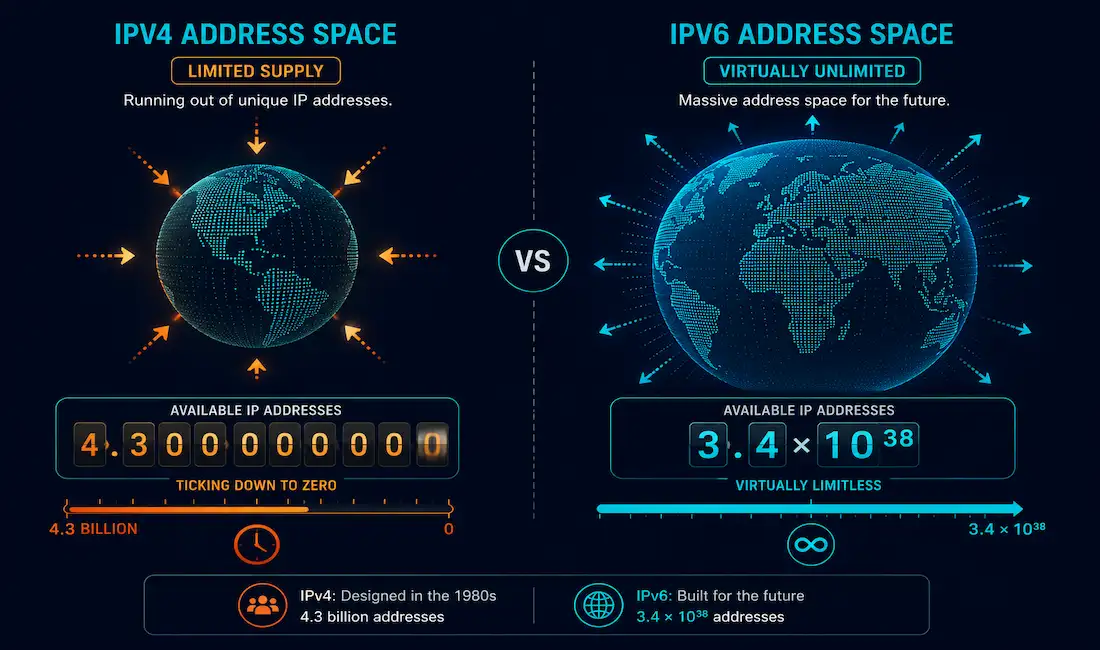

IPv4 uses a 32-bit address space, originally divided into Classes A through E under classful addressing. That 32-bit space provides roughly 4.3 billion unique addresses total, a number that seemed effectively limitless in 1981 but became a genuine constraint as the internet grew far beyond anything its original designers anticipated. The rise of always-on internet connections, an explosion of IP-enabled devices, and continued internet growth in regions that were barely connected decades ago have all compounded the pressure on a fixed, finite address pool.
Engineers developed several workarounds to extend IPv4’s usable life, none of them permanent solutions: CIDR (Classless Inter-Domain Routing) to allocate address space more efficiently than rigid classful boundaries allowed, NAT (Network Address Translation) to let many devices share a single public address, and private addressing ranges for internal networks that never need to be publicly routable. Carrier-Grade NAT (CGN) has extended this further at the ISP level, letting providers share a single public address across many customers simultaneously. These measures have meaningfully delayed IPv4 exhaustion, but they come with real operational costs and complexity, particularly for providers managing rapid subscriber growth in regions where new internet connectivity continues expanding quickly.
Security-Related Issues
IPsec (Internet Protocol Security), a protocol suite that provides authentication and encryption for IP traffic, can secure IPv4 packets, but it was never built into IPv4 by default. It has to be deliberately implemented and configured, rather than being a native, automatic feature of the protocol itself. This matters because it means IPv4 security is opt-in rather than guaranteed, leaving networks that haven’t specifically deployed IPsec, or an equivalent security layer, more exposed than a protocol with built-in security would be by default.
Address Configuration Complexity
As networks have grown, and as more device categories, printers, cameras, IoT sensors, personal devices, all require IP addressing, configuration has become a genuinely larger operational task. IPv4 addresses can be assigned manually or automatically via DHCP, and while DHCP handles the bulk of everyday configuration without direct administrator involvement per device, the underlying address pools DHCP draws from are still constrained by IPv4’s limited overall address space.
This creates real administrative overhead at scale: tracking address allocation, avoiding conflicts, and managing increasingly complex subnetting schemes to stretch a finite address space across growing numbers of devices, none of which would be nearly as constrained with IPv6’s vastly larger address space available to draw from instead.
Internet Routing Table Expansion
A routing table determines the best path for forwarding data, and as the number of networks connected to the internet grows, so does the number of individual routes internet routers need to track. Every one of these IPv4 routes consumes router memory and processing resources, and the global BGP routing table has grown substantially over the decades as internet connectivity has expanded, creating real, ongoing pressure on the hardware resources routers need to keep pace with continued growth.
Lack of End-to-End Connectivity
NAT, so heavily relied upon within IPv4 networks specifically because of address scarcity, creates a genuine architectural cost: it breaks true end-to-end connectivity. Multiple devices sharing a single public IPv4 address means individual internal hosts remain effectively hidden behind that shared address, which complicates any application or protocol genuinely built around the assumption that two devices can connect to each other directly.
This limitation has real consequences for emerging technology categories. Peer-to-peer applications, including blockchain networks and certain real-time gaming architectures, depend on direct device-to-device communication in ways NAT actively complicates, often requiring workarounds like NAT traversal techniques or relay servers that wouldn’t be necessary with IPv6’s native support for genuinely globally routable, non-shared addressing.
Quality of Service Limitations
IPv4 does include a mechanism intended to support Quality of Service: the 8-bit Type of Service (ToS) field in its header, now more commonly used as the Differentiated Services (DS) field. This field can signal priority and help routers make queuing decisions for time-sensitive traffic, but its functionality is genuinely limited compared to more modern QoS approaches, and its effectiveness depends heavily on every device along a path actually honoring it consistently, which isn’t always the case across a network spanning multiple providers and administrative domains.
Header Complexity
IPv4’s variable-length header, ranging from 20 to 60 bytes depending on whether Options are present, adds real processing overhead at every router that has to parse it, particularly since the header checksum has to be recalculated at every single hop due to the TTL field changing along the way. IPv6 addressed this directly with a fixed 40-byte header and no checksum field at all, trading some IPv4-era flexibility for meaningfully simpler, faster router processing.
IoT and Future Technology Compatibility
IPv4’s limited address space is a genuine scalability constraint for the Internet of Things specifically, where the sheer number of connected sensors, appliances, and embedded devices can easily outpace what remaining IPv4 address allocations can comfortably support without heavy reliance on NAT. IPv6’s 128-bit addressing, offering roughly 3.4×10³⁸ possible addresses, exists specifically to remove this constraint for the foreseeable future, giving every conceivable connected device its own globally unique address without needing to share.
Transition Strategies
Organizations manage the IPv4-to-IPv6 transition through several established approaches. Dual-stack configurations run IPv4 and IPv6 simultaneously on the same infrastructure, letting a network support both address families during a gradual transition period. Tunneling protocols, including 6to4 and Teredo, allow IPv6 traffic to traverse IPv4-only network segments by encapsulating IPv6 packets inside IPv4 ones. None of these are meant as permanent end states; they’re bridging strategies intended to ease the transition while native IPv6 deployment continues expanding.
Conclusion
IPv6 directly addresses each of these limitations of IPv4: a vastly larger address space, a simplified and more efficient header, security built into the protocol’s design rather than bolted on separately, and improved support for the kind of direct, end-to-end connectivity that modern peer-to-peer and IoT applications genuinely benefit from. IPv4 isn’t disappearing anytime soon, given the sheer scale of legacy infrastructure still running on it, but the long-term trajectory toward IPv6 reflects real, structural limitations in IPv4’s original design, not just a preference for something newer.

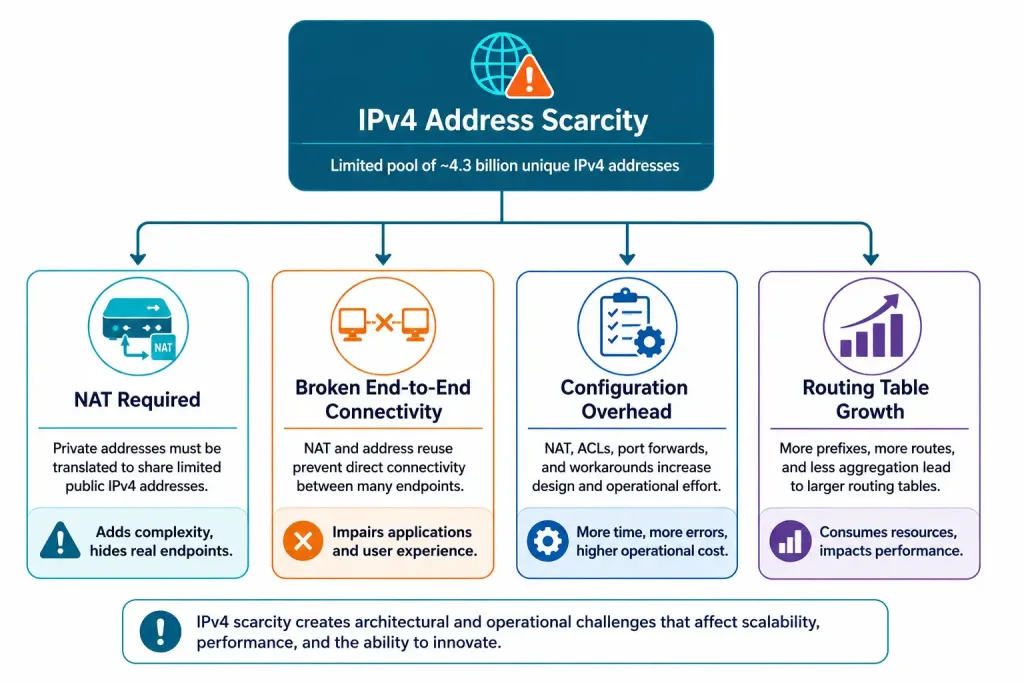

A Worked Example: How Address Scarcity Cascades Into Other Limitations
It helps to see how these limitations connect to each other rather than existing as a list of unrelated problems. Say a growing company deploys thousands of IoT sensors across several office buildings. IPv4 address scarcity means the company almost certainly can’t get enough public addresses to give every sensor its own; instead, it deploys NAT, putting all the sensors behind a small number of shared public addresses.
That NAT deployment immediately creates the end-to-end connectivity problem: if the company later wants a cloud service to reach an individual sensor directly, rather than the sensor always initiating contact outward, it now needs port forwarding rules, a NAT traversal technique, or a relay architecture, none of which would be necessary if every sensor simply had its own globally routable address.
Meanwhile, the administrative overhead of configuring and tracking thousands of devices behind a constrained set of shared addresses, managing DHCP scopes, avoiding conflicts, documenting which internal address maps to which physical sensor, adds real, ongoing operational cost that scales with device count in a way it wouldn’t under a less constrained addressing scheme.
None of these problems are independent. Address scarcity is the root cause, and NAT is the workaround that solves scarcity while directly creating the connectivity and complexity problems the company now has to manage on an ongoing basis. This is exactly the kind of cascading tradeoff IPv6’s much larger address space is designed to eliminate at the source, rather than requiring workarounds for each downstream consequence individually.
Why IPv4 Persists Despite All of This
Given this list of limitations, it’s worth asking why IPv4 hasn’t already been fully replaced. The answer comes down to the sheer scale and inertia of legacy infrastructure. Decades of hardware, software, network configurations, and trained expertise are built around IPv4, and a full cutover requires every single device and system along a communication path to support IPv6 correctly, not just the endpoints.
Dual-stack deployment, running both protocols simultaneously, has been the practical bridge for this reason, letting organizations adopt IPv6 incrementally rather than requiring a coordinated, all-at-once industry-wide switch that was never realistically achievable.
This gradual, layered approach to a genuinely massive infrastructure transition offers useful lessons that extend well beyond networking specifically. This is exactly why global IPv6 adoption has grown steadily but gradually over many years rather than happening in a single decisive transition, and why understanding IPv4’s real limitations matters just as much as understanding IPv6’s improvements, since both protocols will likely coexist for a long time yet. Anyone working in networking today needs a solid grasp of both, not just the newer one.
Frequently Asked Questions
What is the fundamental cause of IPv4 address shortage?
IPv4’s 32-bit address space provides roughly 4.3 billion unique addresses total, a fixed ceiling that seemed enormous when the protocol was designed in 1981 but has proven insufficient for a world with billions of individually connected devices. Workarounds like NAT and CIDR have extended IPv4’s usable life significantly, but they don’t change the fundamental fixed size of the address space itself, which is the root constraint everything else in this article traces back to.
How does NAT both help and hurt IPv4’s limitations?
NAT helps by letting many devices share a single public IPv4 address, directly easing address shortage pressure. It hurts by breaking true end-to-end connectivity, since internal devices behind a NAT boundary aren’t directly, individually reachable from the outside, which complicates certain peer-to-peer and IoT use cases that benefit from direct device-to-device connections, forcing those applications to build additional workarounds just to function reliably.
Why is IPv6 considered more secure than IPv4 by default?
IPv6 was designed with IPsec support built directly into its specification from the start, rather than as an optional add-on the way it exists for IPv4. This doesn’t automatically mean every IPv6 deployment is more secure in practice, since implementation still matters, but the protocol itself was designed with security considerations IPv4 simply didn’t originally include, a meaningful architectural difference rather than just a marketing distinction.
What industries are most affected by IPv4’s address limitations?
IoT, telecommunications, and cloud computing face some of the most direct pressure from IPv4’s restricted address pool, given how quickly they’ve needed to scale the number of individually addressable devices and services. These industries are consistently among the strongest drivers of IPv6 adoption specifically because IPv4’s address constraints affect their growth most directly.
Does the growing internet routing table actually cost money?
Yes, in a real, measurable sense. Every additional route internet routers need to track consumes memory and processing resources, and as the global routing table has grown over the decades, it’s placed genuine, ongoing pressure on the hardware capacity routers need to keep up, which is a real operational cost for internet service providers and large enterprise networks alike.
Is dual-stack a permanent solution to the IPv4-to-IPv6 transition?
No, dual-stack is a transitional bridging strategy, not a long-term destination. It lets a network support both IPv4 and IPv6 simultaneously while the broader transition continues, but running two protocol stacks indefinitely adds ongoing complexity that most organizations aim to eventually resolve by moving more fully toward native IPv6, since maintaining two parallel addressing systems permanently isn’t the efficient end state either protocol was designed for.
