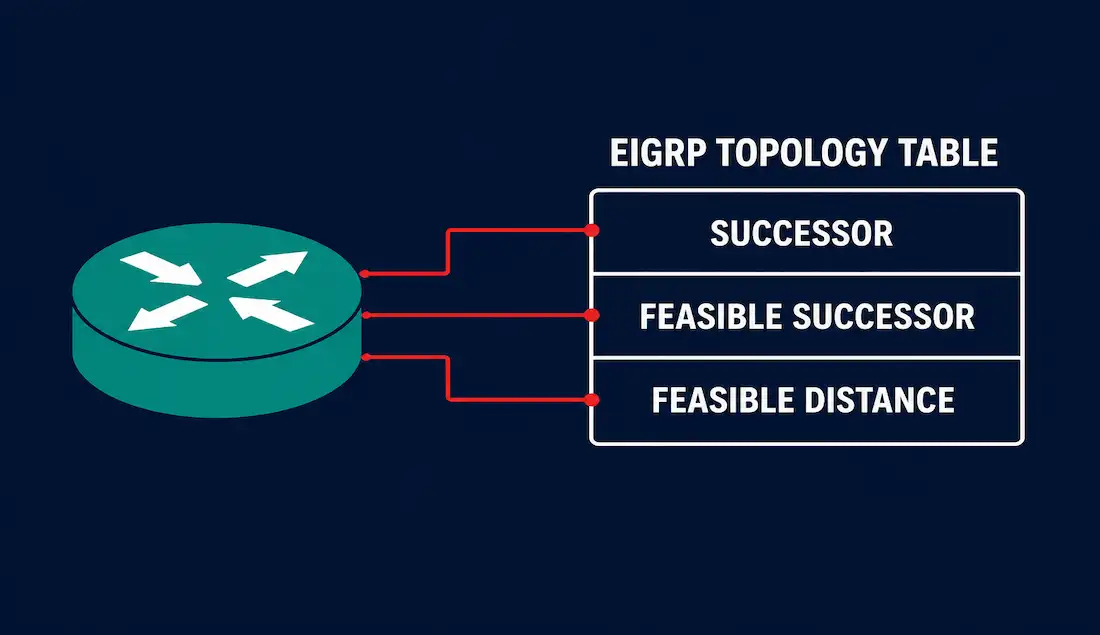

The EIGRP topology table contains all of the information about all known routes received from EIGRP neighbors. As an EIGRP router learns routes from its neighbors, those routes are stored in its EIGRP topology table. If a neighbor is advertising a possible route, it has to be using that route to forward packets to the destination network.

The topology stores all possible routes in the topology table database. It also provides the information used to select the best possible route, which is copied into the routing table. Topology tables are stored in Random Access Memory (RAM) and are re-created whenever a router starts up. Routing tables update all routing information from the topology table.

Topology Table

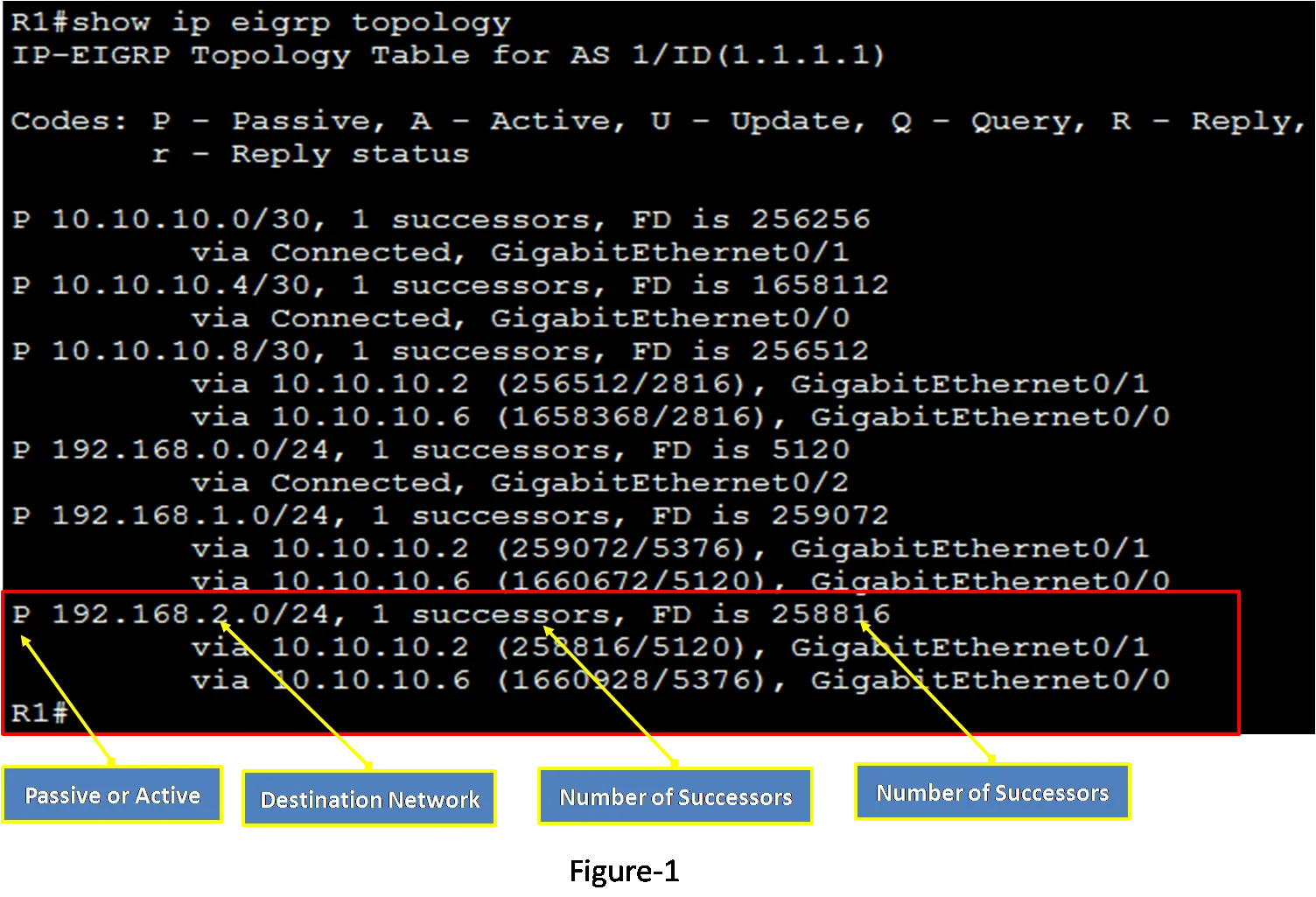

The “show ip eigrp topology” command illustrates the topology table as shown in figure 1. The topology table displays lists of all successors and Feasible Successors (FSs) calculated by DUAL. Only the successor with the lowest metric value is installed into the IP routing table. We should explain the entries marked in the red rectangle.

  • P– This parameter shows that the route is in the passive state. All routes in the topology table must be in the passive state for a stable routing domain. If the DUAL recalculates for a new path, the routes become is an active state and the parameter has changed to display A instead of P.
  • 168.2.0/24 – This is the destination network which is displayed just after the P or A. The address will also be displayed in the routing table if the route becomes the successors.
  • 1 successors– This parameter displays the number of successors for this network. If multiple equal-cost paths found to this network, there will be multiple successors.

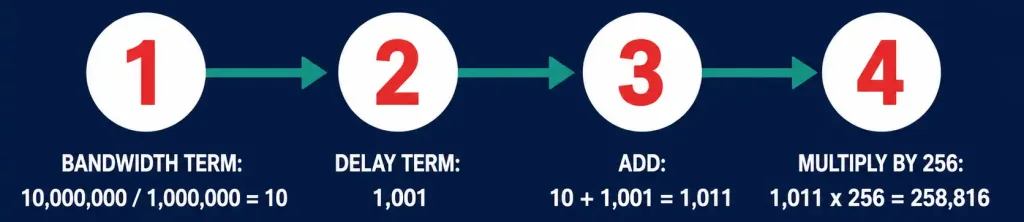

  • FD is 258816– FD (Feasible Distance), It is the EIGRP metric to reach the destination network. This is the metric value we have calculated earlier. The metric is also displayed in the routing table.

Topology Table - Exclusive Introduction 9

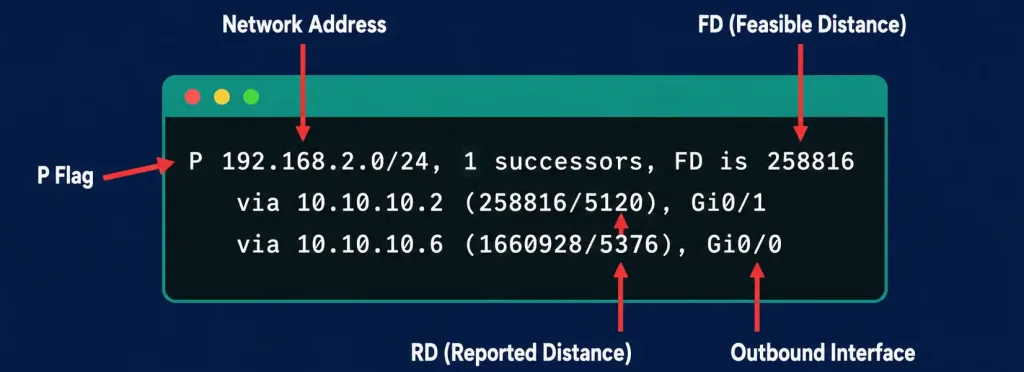

Figure 2 illustrates the entries of the next hop of the successor router.

  • via– This field identifies the Next-hop address of the successor, is the IP address of successor router. The IP address is also shown in the routing table.
  • 258816– FD to, the metric value is shown in the IP routing table.
  • 5120– This is the Reported Distance (RD) of the successor router and is R3’s cost to reach this network.
  • GigabitEthernet 0/1– This is the outbound interface of the local router to reach this network, also shown in the routing table.

Topology Table - Exclusive Introduction 10

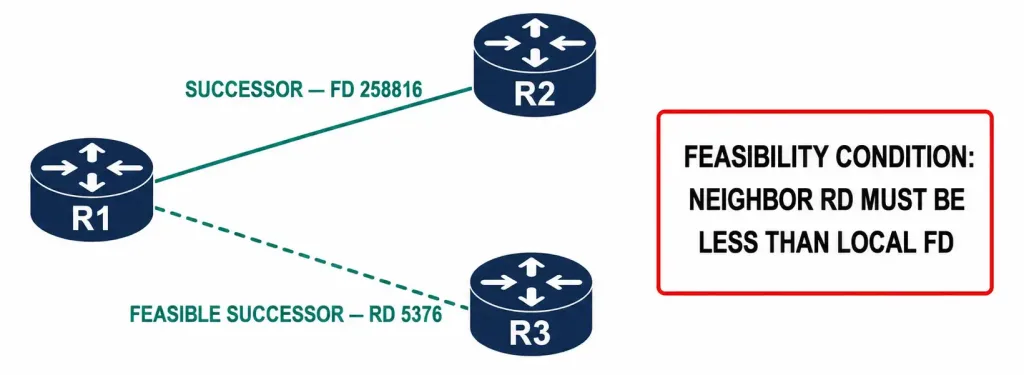

The second subentry as shown in figure 3 is the entry for Feasible Successor, if there is not a second entry, then there is no Feasible Successor

  • via– This is the Next-hop address of the Feasible Successor, is the IP address of R1.
  • 1660928– R1’s new Feasible Distance to, if R2 became the new successor. The entry would also be displayed in the IP routing table.
  • 5376– Reported Distance of the Feasible Successor.
  • GigabitEthernet 0/0 – This is the outbound interface used to reach a Feasible Successor if this router becomes the successor.
