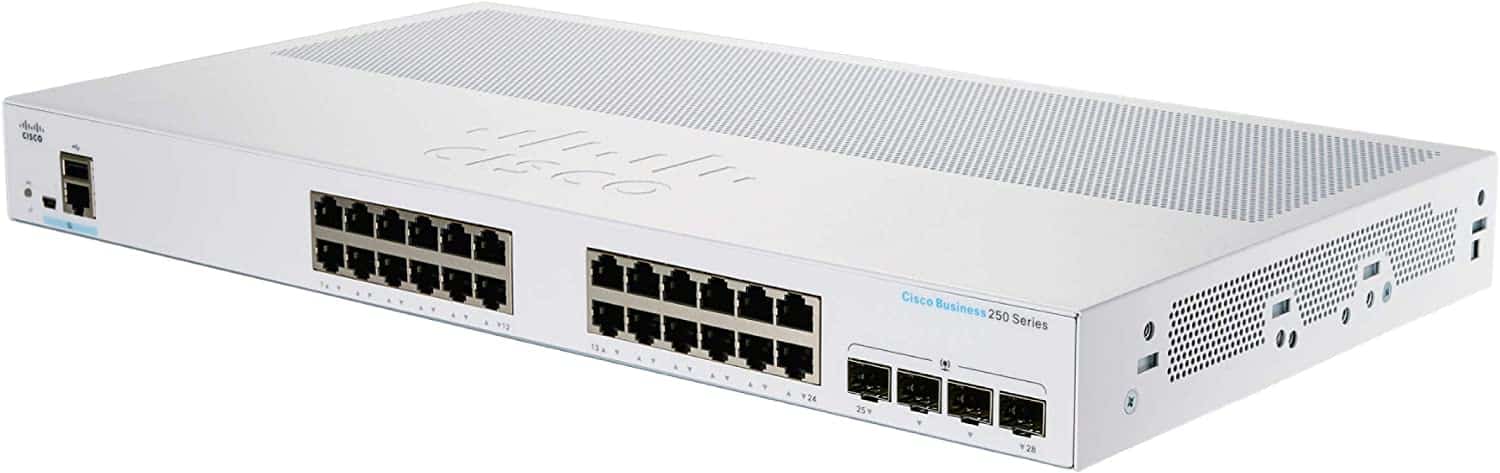

Cisco Business CBS250-24T-4G Smart Switch
Cisco Business CBS250-24T-4G Smart Switch” refers to a specific model of managed Ethernet switch from Cisco Systems, Inc. The “CBS250” designates it as a part of the Cisco Business line of networking equipment, and the “24T-4G” indicates that it has 24 Gigabit Ethernet ports and 4 SFP uplink ports. “Smart Switch” indicates advanced features such as VLAN, Quality of Service (QoS), and security. Here are some potential features and capabilities of the Cisco Business CBS250-24T-4G Smart Switch:
Port Configuration

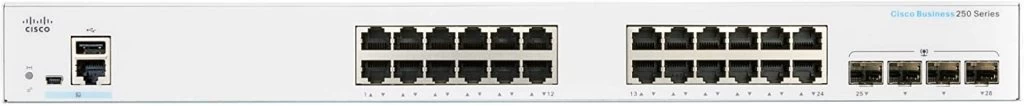

The Cisco Business CBS250-24T-4G Smart Switch has 24 Gigabit Ethernet ports and 4 Gigabit Ethernet SFP uplink ports. The 24 Gigabit Ethernet ports can connect devices such as computers, servers, and printers to the network, while the 4 SFP uplink ports can connect fiber optic connections to other switches or routers. All ports support auto-negotiation and auto-MDI/MDI-X, which means that they can automatically detect the connection type and speed and adjust accordingly.
VLAN Support
The Cisco Business CBS250-24T-4G Smart Switch supports VLANs (Virtual Local Area Networks) to segment network traffic and improve security. With VLANs, you can create multiple logical networks within a single physical network, which can help to isolate different types of traffic and secure sensitive data.
The switch supports both IEEE 802.1Q VLAN tagging and Port-based VLANs. IEEE 802.1Q VLAN tagging allows you to assign different VLAN IDs to different data frames to separate them and direct them to the correct destination. Port-based VLANs allow you to assign individual ports to specific VLANs, which can be used to segment traffic and isolate different types of devices on the network.
Additionally, the switch supports VLAN Trunking Protocol (VTP), allowing you to manage and configure VLANs across multiple switches in your network. With VTP, you can create, delete, or modify VLANs on one switch and have the changes automatically propagate to all other switches in the VTP domain.
Please note that, as with any network device, you need to configure your network accordingly to take full advantage of the VLAN feature.
Quality of service (QoS)
The Cisco Business CBS250-24T-4G Smart Switch supports Quality of Service (QoS) to prioritize network traffic and ensure critical applications receive the bandwidth they need. QoS helps to prevent network congestion by assigning different priorities to different types of traffic, such as voice, video, and data.
The switch supports several QoS features to help ensure that your critical applications receive the bandwidth they need:
- Traffic Classification: The switch can classify traffic based on Layer 2, 3, and 4 information, such as MAC addresses, IP addresses, and TCP/UDP ports.
- Traffic Marking: The switch can mark traffic with Differentiated Services Code Point (DSCP) or IEEE 802.1p priorities, which indicate the level of priority for different types of traffic.
- Traffic Shaping and Policing: The switch can shape and police traffic to control the rate of traffic flowing through the network. This can help prevent congestion and ensure that high-priority traffic receives the bandwidth it needs.
- Congestion Management: The switch supports several congestion management mechanisms, such as Weighted Random Early Detection (WRED) and tail drop, which can help to manage network congestion and ensure that high-priority traffic is not dropped.
Please note that QoS configuration is a complex task and it is recommended to seek professional help or guidance to set it up correctly.
security features
The Cisco Business CBS250-24T-4G Smart Switch includes several security features to help protect your network from unauthorized access and malicious attacks. These features include:
- Access Control Lists (ACLs): The switch supports ACLs that can restrict access to the network based on IP addresses, MAC addresses, or other parameters. This can help prevent unauthorized devices from connecting to the network.
- Port Security: The switch supports port security, which can limit the number of MAC addresses that can be learned on a specific port and prevent MAC flooding attacks.
- DHCP Snooping: The switch supports DHCP Snooping, which can prevent DHCP spoofing attacks by verifying DHCP messages and filtering out invalid ones.
- Dynamic ARP Inspection (DAI): The switch supports DAI, which can be used to prevent ARP spoofing attacks by verifying ARP messages and filtering out invalid ones.
- IEEE 802.1X: The switch supports IEEE 802.1X, an authentication standard that allows you to control access to the network based on the identity of the device or user.
- Secure Shell (SSH) and Secure Sockets Layer (SSL): The switch supports SSH and SSL for secure remote management and configuration.
- Network Admission Control (NAC): The switch supports NAC, a Cisco proprietary solution that allows you to implement security policies based on the posture of the device attempting to connect to the network.
Please note that these are just a few examples of the security features that the switch supports. Properly configuring them is important to take full advantage of these capabilities.
Switch management and monitoring.
The Cisco Business CBS250-24T-4G Smart Switch can be configured and managed through a web-based interface, which provides an easy-to-use graphical interface for configuring and monitoring the switch. The switch also includes several management and monitoring features to help you manage and troubleshoot your network:
- Web Interface: The switch’s web interface allows you to configure and monitor the switch from any web browser. It provides a simple and intuitive interface for managing the switch’s various features and settings.
- Command-Line Interface (CLI): The switch also supports a command-line interface (CLI) that allows you to configure and monitor it through a console or Telnet/SSH connection.
- SNMP: The switch supports SNMP (Simple Network Management Protocol), which allows you to monitor its performance and status using network management software.
- Syslog: The switch supports Syslog, which allows you to send log messages to a Syslog server for centralized logging and analysis.
- RMON: The switch supports RMON (Remote Monitoring), which allows you to monitor traffic statistics and alarms on the switch remotely.
- LLDP: The switch supports LLDP (Link Layer Discovery Protocol), allowing you to discover neighboring devices and their capabilities.
- TACACS+: The switch supports TACACS+ (Terminal Access Controller Access-Control System Plus), allowing you to authenticate and authorize network access.
- RADIUS: The switch supports RADIUS (Remote Authentication Dial-In User Service), allowing you to authenticate and authorize network access.
- While all these features allow you to monitor, troubleshoot, and manage your network efficiently, it is important to keep the switch firmware up-to-date for security and bug fixes.
FAQs
1. What is the Cisco Business CBS250-24T-4G Smart Switch?
This high-performance networking device is designed for small—to medium-sized businesses. It offers multiple Ethernet ports, advanced security, and management features.
2. What are the key features of the Cisco CBS250-24T-4G Smart Switch?
Key features include 24 Ethernet ports, 4 Gigabit SFP uplink ports, advanced security protocols, easy management through a web-based interface, and energy-efficient design.
3. How does the Cisco CBS250-24T-4G enhance network security?
The switch includes advanced security features such as access control lists (ACLs), port security, and secure management interfaces to protect your network from unauthorized access and threats.
4. Is the Cisco CBS250-24T-4G easy to install and manage?
Yes, the switch is designed for ease of use, with a web-based management interface that makes it simple to configure and monitor network performance.
5. What businesses would benefit from using the Cisco CBS250-24T-4G Smart Switch?
This smart switch would benefit small- to medium-sized businesses looking for a reliable, secure, and easy-to-manage networking solution.
6. Can the Cisco CBS250-24T-4G Smart Switch support high-bandwidth applications?
With its Gigabit Ethernet ports and advanced traffic management features, the switch can support high-bandwidth applications and ensure smooth network performance.
7. What is the warranty period for the Cisco CBS250-24T-4G Smart Switch?
The switch typically comes with a limited lifetime warranty, which provides peace of mind and ensures long-term reliability.
8. Does the Cisco CBS250-24T-4G support PoE (Power over Ethernet)?
No, this particular model does not. However, other models in the Cisco Business Series may offer PoE capabilities.
