What is Stub Network? – Introduction

As a network engineer preparing CCNA and CCNP students for real-world Cisco deployments, understanding stub networks and routers is crucial. These concepts help optimize routing in environments with limited paths, reducing unnecessary overhead from dynamic protocols. In this article, we’ll explore definitions, topology analysis, configuration examples, advantages, troubleshooting, and more. We’ll base our discussion on the provided figure, which illustrates a classic stub setup.

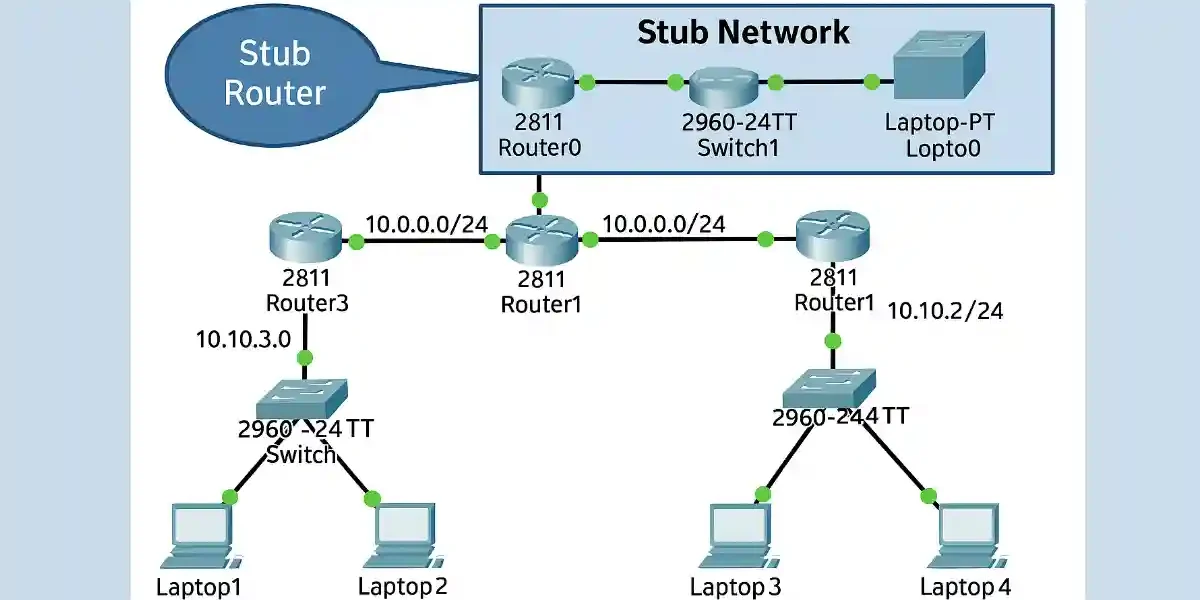

Cisco network topology diagram showing stub router (Router0) connected to Switch1 and laptops, with core routers Router3, Router1, Router2, and IP subnets like 10.10.10/24 for illustrating stub networks and default routes.

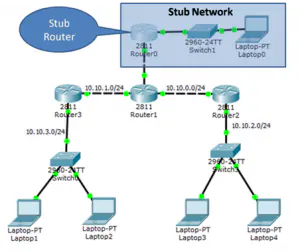

Example Cisco topology demonstrating a stub router (Router0) and networks, ideal for static and default route setups in CCNA/CCNP studies.

Topology Overview

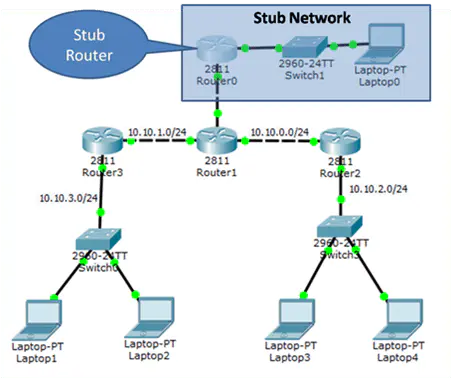

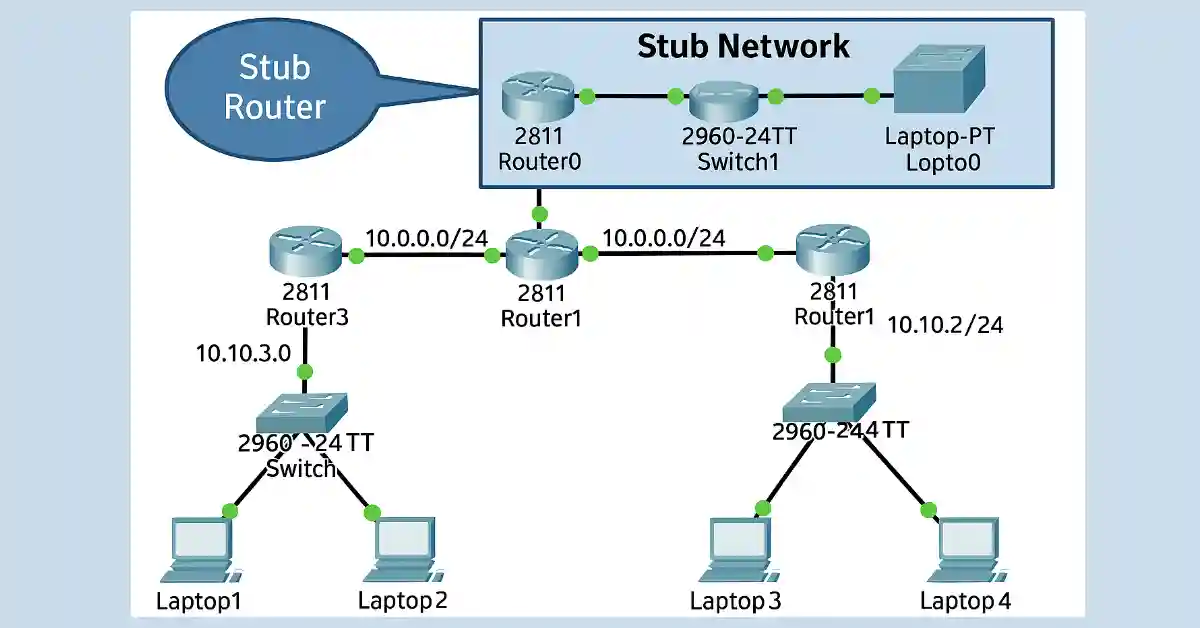

The provided figure shows a simple Cisco network topology:

  • Stub Router (Router0): Connected via its 2e1/1 interface to a 2960-24TT Switch (Switch1), which links to Laptop0. This represents a stub network with only one exit path.
  • Core Routers: Router3 (10.10.10/24 on its link) connects to Router1 (10.10.0/24), which connects to Router2 (10.10.2/24).
  • Additional Networks: Below Router1 (not Router3 or Router2 as mislabeled), a 2950-24TT Switch connects to Laptops 1-4, forming potential stub segments.

This illustrates a stub network where Router0 has a single path to the rest of the network via Router3/Router1. The local network behind Switch1 (connected to Router0) is indeed a stub network. However, Router1 is not a stub router—it’s a core router with connections to Router3 (10.10.10/24) and Router2 (10.10.0/24), plus a downstream switch to laptops. Router0 is the true stub router here.

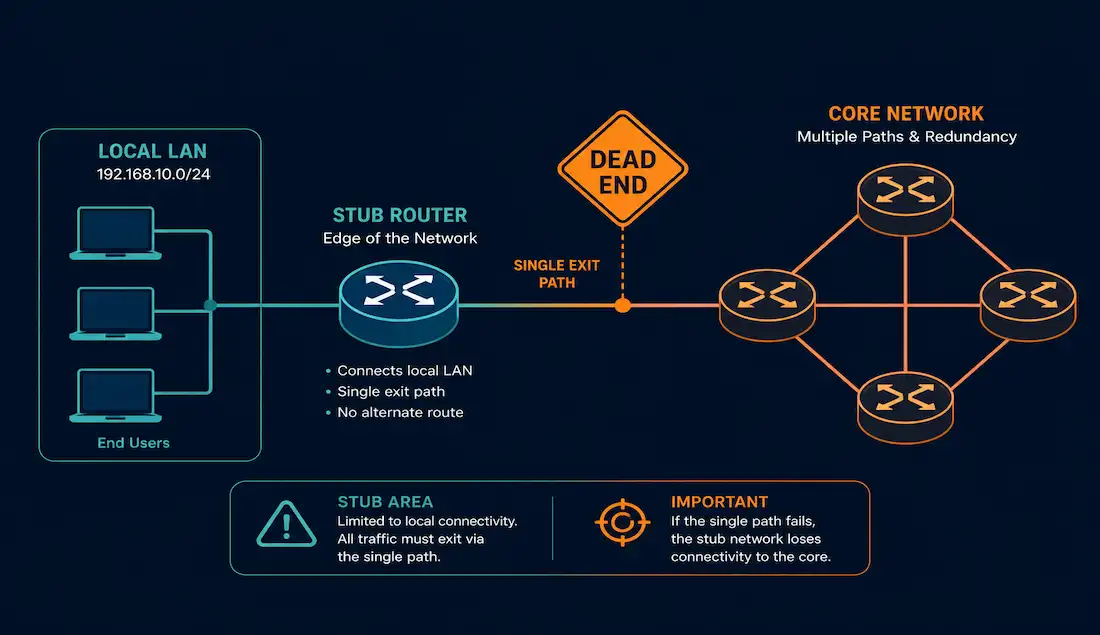

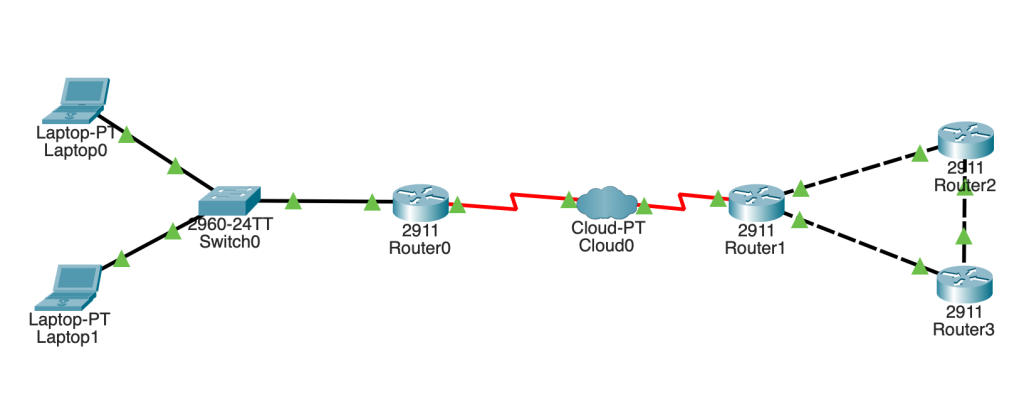

What is a Stub Router and Stub Network?

A stub router, like Router0 in the figure, is a device with only one connection to the broader network, making it inefficient for dynamic routing protocols that exchange full topology information. Per Cisco, in protocols like OSPF or EIGRP, stub routers/areas reduce routing overhead by summarizing routes.

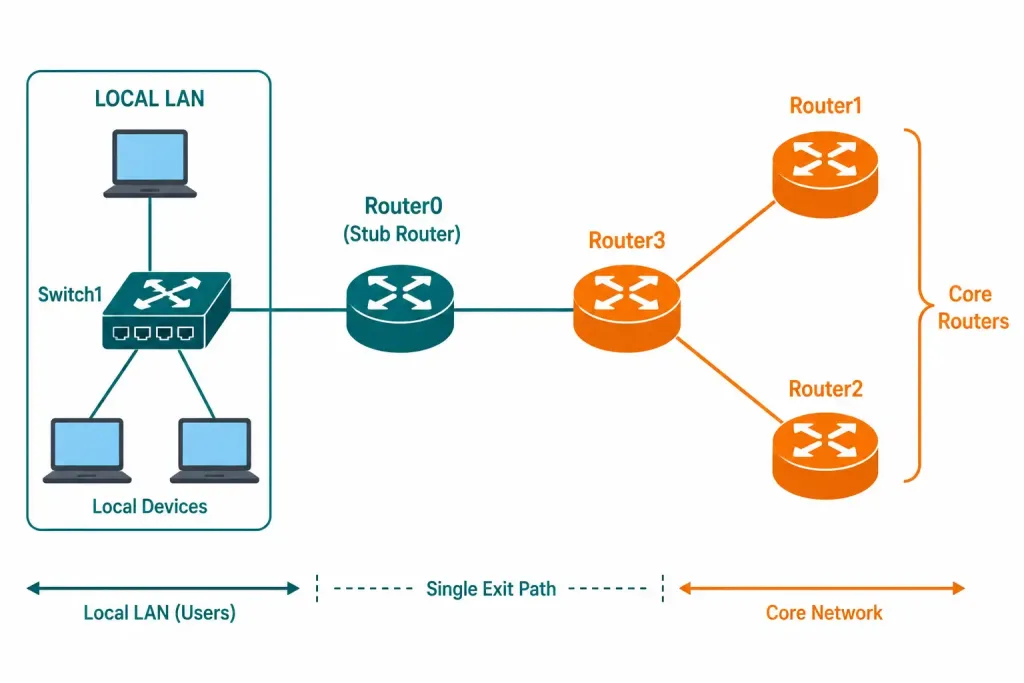

Any LAN directly attached to a stub router (e.g., the network behind Switch1) becomes a stub network, as all traffic must egress through that single router. This is common in branch offices for CCNA-level designs. In CCNP contexts, stub configurations are extended to areas in OSPF (e.g., stub or totally stubby areas) to minimize LSAs (Link-State Advertisements) and improve convergence.

Why Avoid Dynamic Routing in Stub Scenarios?

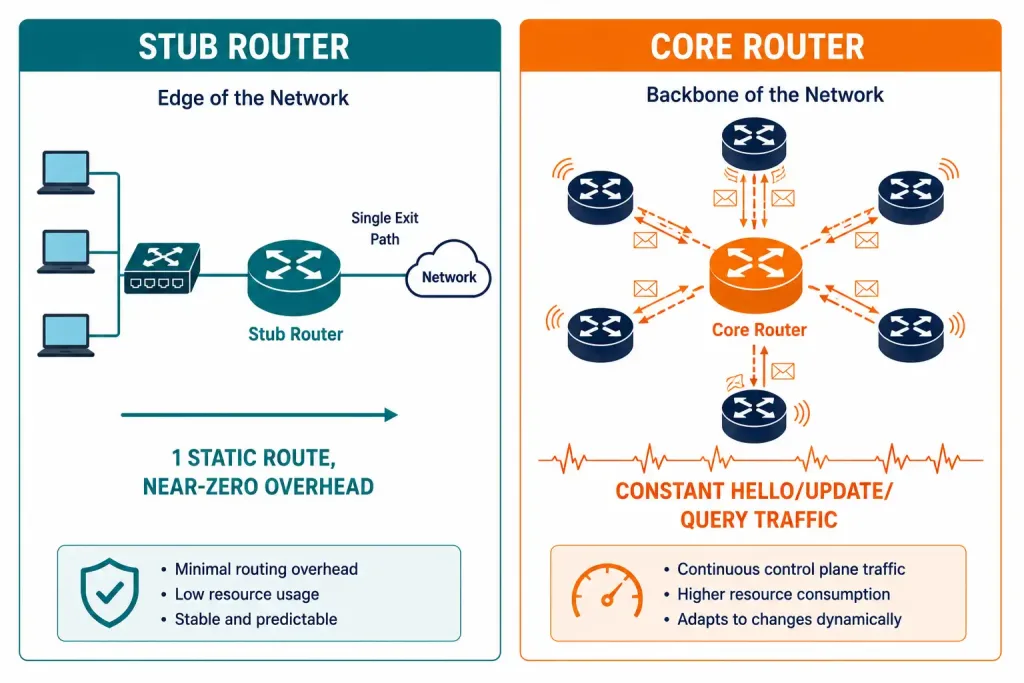

In stub topologies like this, running dynamic protocols (e.g., OSPF, EIGRP) between the stub router (Router0) and upstream routers (e.g., Router3 or Router1) wastes CPU, memory, and bandwidth on unnecessary updates. Static routes are simpler and more efficient for CCNP-level optimization. For instance, there’s no need for periodic hello packets or topology tables when there’s only one path—static routes eliminate this overhead, making them ideal for low-bandwidth links or resource-constrained devices.

Configuring Static Routes

Static routes are manually configured paths that don’t change unless edited, perfect for stub environments. On Router0 (stub router), configure a static route to the core network:

Router0(config)# ip route 10.10.0.0 255.255.255.0 10.10.10.1 // Next-hop to Router3

For IPv6

Router0(config)# ipv6 route 2001:DB8::/64 2001:DB8:1::1

On upstream routers (e.g., Router3), add routes back to the stub network:

Router3(config)# ip route 192.168.1.0 255.255.255.0 10.10.10.2 // Assuming stub LAN is 192.168.1.0/24 behind Router0

Always verify with show ip route or show ipv6 route to ensure the ‘S’ (static) code appears. For CCNA students, remember: static routes have an administrative distance of 1, overriding most dynamic routes if conflicts arise.

Using Default Routes in Stub Networks

For Router0 (true stub), configure a default route to upstream (e.g., Router3):

Router0(config)# ip route 0.0.0.0 0.0.0.0 10.10.10.1

This sends all unknown traffic outbound, ideal for edge devices. Avoid on Router1, as it has multiple paths.

In IPv6:

Router0(config)# ipv6 route ::/0 2001:DB8:1::1

Default routes act as a “gateway of last resort,” simplifying configurations in stubs where full routing tables aren’t needed.

IPv4 vs. IPv6 Static Routes: Advantages and Use Cases

Static routes work similarly in IPv4 and IPv6, useful for small networks or specific remotes.

Pros: Low overhead, predictable.

Cons: Manual maintenance, no auto-failover. IPv6 uses hexadecimal addressing and the ipv6 route command, but the logic is identical—great for dual-stack environments in modern networks.

Pros and Cons of Static Routing

To expand for CCNP depth:

AspectProsCons
Resource UsageMinimal CPU/memory; no protocol overheadManual updates required for changes
PredictabilityFixed paths; easy debuggingNo automatic adaptation to failures
ScalabilityIdeal for small/stub networksPoor for large, dynamic topologies
SecurityLess vulnerable to routing attacksRequires ACLs for protection

Static routing shines in stubs but pairs with dynamic protocols in hybrid designs.

Comparison with Dynamic Routing Protocols

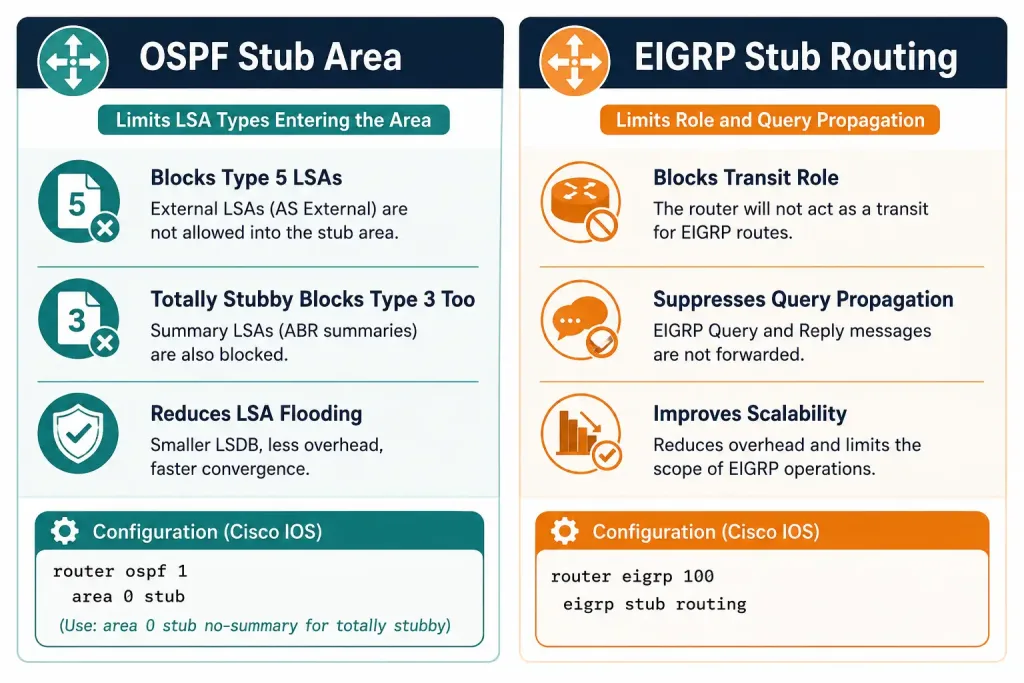

Unlike static routes, dynamic protocols like OSPF or EIGRP automatically discover paths and handle failures. In stubs, OSPF stub areas summarize routes, but even that’s overkill—static saves resources. Dynamic is for redundancy; static is for simplicity. Use EIGRP stub routing to prevent queries from propagating to stubs.

Real-World Scenarios

In a branch office (stub) connected to HQ, configure static/default routes on the branch router to point to the WAN link. This conserves bandwidth for VoIP or video. In service provider edges, static routes connect customer stubs without exposing full BGP tables.

FAQs

What is a stub router, and how does it differ from a core router in Cisco networks?

A stub router (e.g., Router0) has one path, ideal for edges, unlike core routers (e.g., Router1) with multiple links. In OSPF/EIGRP, stubs reduce overhead; cores handle transit traffic.

Why should dynamic routing protocols be avoided in stub network topologies?

Dynamic protocols like OSPF waste CPU/memory with updates in stubs (e.g., Router0). Static routes are simpler, saving bandwidth—perfect for single-path setups

What is the difference between a stub network and a transit network?

A stub network has one entry/exit point (e.g., behind Router0), while transit networks (like between Router1 and Router2) carry traffic between multiple segments.

How do you configure and verify static and default routes on Cisco routers for IPv4 and IPv6?

Use ‘ip route 10.10.0.0 255.255.255.0 10.10.10.1’ or ‘ipv6 route ::/0 2001:DB8:1::1’. Verify with ‘show ip route static’ or ping tests.

What are the advantages and disadvantages of using static routing in Cisco stub networks?

Static routing saves resources and is secure, but needs manual updates and lacks failover, unlike dynamic routing—best for stable stubs.
