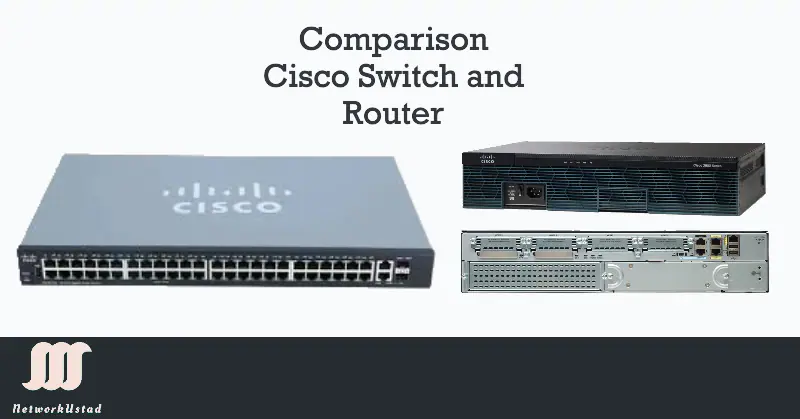

Switch and Router comparison is most important because both are the backbone devices in computer networking. So here I am giving a comparison between a Switch and vs Router for the student of networking. If somebody understands the switch vs router comparison, he can manage a network easily.

Definition of Router

A network device that forwards data packets from one network to another. Based on the address of the destination network in the incoming packet and an internal routing table; the router determines which port (line) to send out the packet (ports typically connect to Ethernet cables). Routers require packets formatted in a routable protocol, the global standard being TCP/IP, or simply “IP.”

Definition of Switch

A switch is a networking device that is used to connect many devices together on a computer network. A switch is working in a single network. it also connects multiple devices. The port of the switch can be managed.

Comparison of Switch vs Router

• Router work in layer 3 and switch available for both layer2 and layer3
• The router transmits data in the shape of a Packet but the switch transmits data both in frame and packets
• The transmission type of the router at the Initial Level is Broadcast then Unicast and multicast but the switch, first broadcast then unicast & multicast as needed.
• Routers are available in different ports and we can also add ports as needed. The Switch is a multi-port Bridge. 8/16/24/48 ports and available in modular form
• The router can be used in LAN and WAN, and the Switch is mostly used for LAN
• Routers store IP addresses in the Routing table and keep up the address on their own but Switches use a content-accessible memory CAM table which is typically accessed by ASIC (application-specific integrated chips).
• The router is full-duplex and the switch is working on both have and full-duplex
• In Router, every port has its own Broadcast domain but the switch has a single broadcast domain [unless VLAN is implemented] and each port has its own collision domain.
• The router can connect two or more networks, but the switch can connect two or more nodes in the same network.
• Switch vs Router both are intelligent devices
• Router bandwidth sharing is Dynamic (Enables either static or dynamic bandwidth sharing for modular cable interfaces. The default percent value is 0. The percent value range is 1-96.) but the switch made sharing according to ports that can be 10; 100, 1000 and 10000 Mbps.

• Both speeds are 10/100/1000 Mbps
• The router can make faster routing decisions but the switch takes more time for complicated routing decisions.
• The Routers can do NAT but the switch can’t
• In a different network environment, a router is faster than an L3 switch.
• Examples of Router as Linksys WRT54GL Juniper MX & EX series Cisco 3900, 2900, 1900, and the Example of Switches as – Alcatel’s OmniSwitch 9000; Cisco Catalyst switch 4500 and 6500 (10 Gbps)
• The router Uses an IP address and the switch uses a MAC address

FAQs

1. What’s the heart of the network: Router or Switch?

• Well, both the router and switch are like the backbone of a network. The router works its magic by forwarding data packets between different networks, deciding the best path. In contrast, the switch connects multiple devices within a single network, making it a local champion.

2. How do they handle data transmission?

• The router sends data in the form of packets, ensuring they find their way to the right destination. Meanwhile, the switch is a multitasker, transmitting both frames and packets, adapting to the network’s needs.

3. What’s the sequence of data transmission?

• When routers start the show, it’s with a broadcast, followed by unicast and multicast transmissions. On the other hand, switches lead with broadcasting too, then adapt to unicast and multicast as required.

4. Ports and versatility – who wins?

• Routers offer flexibility with different ports, and you can even add more as needed. Switches are no slouch either, coming in various sizes, like 8, 16, 24, or 48 ports. You can even go modular if you want!

5. Where do they typically hang out?

• Routers have a broader social circle, mingling in both LAN and WAN environments. But the switch? It’s often found in LAN, where it thrives at connecting devices within the same network.

6. What’s their memory game like?

• Routers memorize IP addresses in their routing table, keeping them close to heart. Switches, on the other hand, rely on their content-accessible memory (CAM) table, accessible through their trusty ASIC chips.

7. Are they in sync with the network’s rhythm?

• Routers are all about full-duplex communication, while switches are a bit more versatile, working with both half and full-duplex modes. They adapt to the network’s needs like seasoned dancers.

8. What about broadcast and collision domains?

• Routers give each port its own broadcast domain, keeping things neat and organized. But switches? They usually stick to a single broadcast domain, unless they’re partying with VLANs. Each port on a switch has its own collision domain, ensuring smooth communication.

9. Speed and decision-making: Routers vs. Switches

• Routers take the lead in making snappy routing decisions. They’re the fast thinkers of the networking world. In contrast, switches might need a bit more time for intricate routing choices.

10. NAT, the Network Sorcery

• Routers are the wizards that can perform Network Address Translation (NAT), while switches, unfortunately, can’t conjure up this magical trick.

11. Who’s the speed demon? Router or L3 switch?

• In different network environments, the router usually takes the speed crown over an L3 switch, making it the racing car of networking devices.

12. Who’s who in the world of Routers and Switches?

• When you think of routers, you might picture Linksys WRT54GL, Juniper MX & EX series, and Cisco 3900, 2900, and 1900. Switches, on the other hand, bring Alcatel’s OmniSwitch 9000, and the almighty Cisco Catalyst switch 4500 and 6500 (with 10 Gbps) to the networking party.

13. IP or MAC: The Address Game

• Routers are all about IP addresses, while switches are loyal to MAC addresses. They use these addresses to navigate the networking terrain.
