physical layer and media

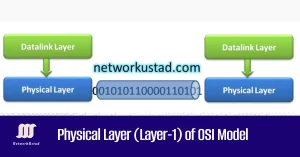

The Physical Layer is the lowest layer of the OSI Model. It provides the resources to transport the bits that comprise a data link layer frame across the network media. This layer accepts a complete frame from the data link layer and encodes it as a series of signals transmitted to the local press, as shown in the figure below. The encoded bits contain a frame received by either an end device or an intermediate device.

Definition and Functions of the Physical Layer

The physical layer is the first layer of the OSI model. It is responsible for transmitting bits from one computer to another. This layer defines how the cables are connected, the voltages, and the timing of voltage changes.

The physical layer, or Layer 1, is the lowest layer of the OSI model, responsible for transmitting unstructured raw bit streams over a physical medium. It defines the electrical, mechanical, and procedural interfaces for data transmission, ensuring devices can communicate physically. Unlike higher layers, it does not interpret data; it focuses on moving bits accurately.

Key Functions

• Physical Connection: Establishes and terminates connections between devices.
• Bit Transmission: Sends individual bits over the medium (e.g., cables, wireless).
• Medium Specification: Defines cable types, connectors, and signal characteristics.
• Signal Encoding: Converts bits into transmittable signals (e.g., electrical, optical).
• Bit Synchronization: Ensures sender and receiver agree on bit timing.
• Error Detection: Identifies physical errors like signal distortion (correction occurs at higher layers).

Components and Technologies of the Physical Layer

Components of this layer are the electronic hardware devices, media, and other connectors such as NIC, cable, and connectors that send and carry the signals. Hardware components such as NICs, interfaces, switches, and connectors, cable materials, and cable designs are all specified in standards associated with the physical layer. The physical layer deals with all the above physical components of the network. For example, the network cable, the female adapter of your NIC, and the network interface card of a computer is a part of the physical layer. So, let’s look into all the basic things the physical layer does and what protocols are run at the physical layer.

The physical layer includes various components and technologies that facilitate data transmission.

Transmission Media

Many different types of media can be used for this layer. We can categorize the transmission media into Guided and Unguided media. Different transmission techniques may apply to each media type.

• Guided Media:
  • Twisted Pair Cables: Used in Ethernet (e.g., Cat5e, Cat6), affordable and common.
  • Coaxial Cables: Found in cable TV and older networks, offering higher bandwidth.
  • Fiber Optic Cables: Transmit data via light, ideal for high-speed, long-distance communication.
• Unguided Media:
  • Radio Waves: Power Wi-Fi and cellular networks.
  • Microwaves: Enable point-to-point communication (e.g., satellite links).
  • Infrared: Used for short-range communication (e.g., remote controls).

Signal Encoding and Modulation

Encoding converts a stream of data bits into a predefined “code.” Codes are groupings of bits that give a predictable pattern that both the sender and the receiver can recognize. In the case of networking, encoding is a pattern of voltage or current used to represent bits, the 0s and 1s.

• Encoding: Converts digital bits into signals.
  • Non-Return-to-Zero (NRZ): ‘1’ as high voltage, ‘0’ as low.
  • Manchester Encoding: Combines data and clock for synchronization.
  • Differential Manchester: Enhances error detection.
• Modulation: Adjusts a carrier signal to represent data.
  • Amplitude Modulation (AM): Varies signal strength.
  • Frequency Modulation (FM): Varies the signal frequency.
  • Phase Modulation (PM): Varies the signal phase.

Devices

• Hubs: Broadcast data to all connected devices.
• Repeaters: Amplify signals to extend transmission distance.
• Modems: Convert digital to analog signals for telephone lines.
• Network Interface Cards (NICs): Connect devices to networks.

Standards

Upper layer Protocol: – Protocols and operations of the upper OSI layers are performed in software designed by software engineers and computer scientists. IETF (Internet Engineering Task Force ) is an organization that defines the services and protocols for TCP/IP suites.

This layer consists of electronic circuitry, media, and connectors. Therefore, it is suitable that the relevant electrical and communications engineering organizations define the standards governing this hardware. The standards used in the Layer are as follows:-

• RS-232: Serial communication standard.
• V.35: Used in WAN connections.
• Ethernet Standards: Define LAN specifications (e.g., 10BASE-T, 1000BASE-T).

Many different international and national organizations, regulatory government organizations, and private companies are involved in establishing and maintaining physical layer standards. For example, the physical layer hardware, media, encoding, and signaling standards are defined and governed by the following:-

• International Organization for Standardization (ISO)
• International Telecommunication Union (ITU)
• American National Standards Institute (ANSI)
• Institute of Electrical and Electronics Engineers (IEEE)
• Telecommunications Industry Association/Electronic Industries Association (TIA/EIA)
• National telecommunications regulatory authorities, including the Federal Communications Commission (FCC) in the USA and the European Telecommunications Standards Institute (ETSI)
• Canadian Standards Association (CSA)
• European Committee for Electrotechnical Standardization(CENELEC)

How Data is Transmitted at the Physical Layer

Data transmission at the physical layer involves:

1. Bit Generation: Upper layers send frames, broken into bits.
2. Encoding: Bits are converted into signals (e.g., electrical for copper cables).
3. Transmission: Signals travel over the medium.
4. Reception: Signals are decoded back into bits.
5. Synchronization: Clock signals ensure bit timing alignment.
6. Error Detection: Identifies issues like signal attenuation.

For example, in an Ethernet network, bits are encoded as electrical signals, transmitted via twisted pair cables, and decoded at the receiving NIC.

Comparison with Other Layers

The physical layer works closely with the data link layer (Layer 2), which adds framing and error correction. Key differences include:

• Scope: Physical layer handles bits; data link layer manages frames.
• Functions: Physical layer transmits raw bits; data link layer ensures reliability.
• Devices: Physical layer uses hubs; data link layer uses switches.

The physical layer provides the raw connectivity, while higher layers add structure and intelligence.

Real-World Applications

The physical layer is vital in:

• Ethernet Networks: Twisted pair cables and RJ45 connectors enable LANs.
• Wi-Fi Networks: Radio waves support wireless connectivity (e.g., Wi-Fi 6).
• Fiber Optics: High-speed internet and data centers rely on light-based transmission.
• Telecommunications: Modems enable the Internet over telephone lines.
• Satellite Links: Microwaves facilitate global communication.

Case Study: A company upgrading to fiber optic cables experienced a 10x speed increase, highlighting the physical layer’s role in performance.

Modern Advancements (2025)

As of 2025, physical layer technologies are advancing:

• 5G Networks: Use millimeter waves for ultra-fast, low-latency communication.
• Wi-Fi 6 (802.11ax): Improves efficiency in crowded networks.
• Fiber Optic Innovations: Dense wavelength division multiplexing (DWDM) boosts capacity.

These advancements enhance speed, reliability, and scalability, keeping the physical layer relevant.

Conclusion

The physical layer is the backbone of network communication, enabling all higher-layer functions. By understanding its role, components, and advancements, you can better appreciate networking’s complexity. This article builds on your original content to provide a comprehensive resource for students, professionals, and enthusiasts.
