Small Network Topologies – Exclusive Details (Updated 2025)
This guide is designed for network professionals using Windows (e.g., 10/11) or Linux (e.g., Ubuntu 22.04) systems. Network configuration can be managed via Command Prompt (cmd) on Windows or terminal (Ctrl + Alt + T) on Linux, with tools like ipconfig (Windows) or ifconfig (Linux) for IP management. These OS platforms are essential for implementing and troubleshooting small networks as of 2025.
Small network topologies and techniques are vital for network professionals, as most businesses rely on these simple designs, typically comprising a single router and one or more switches.

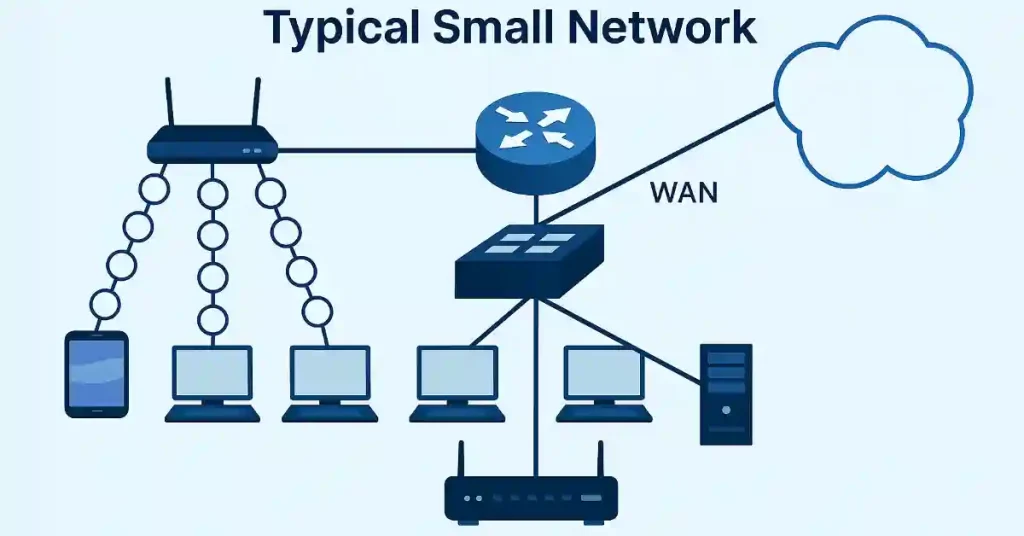

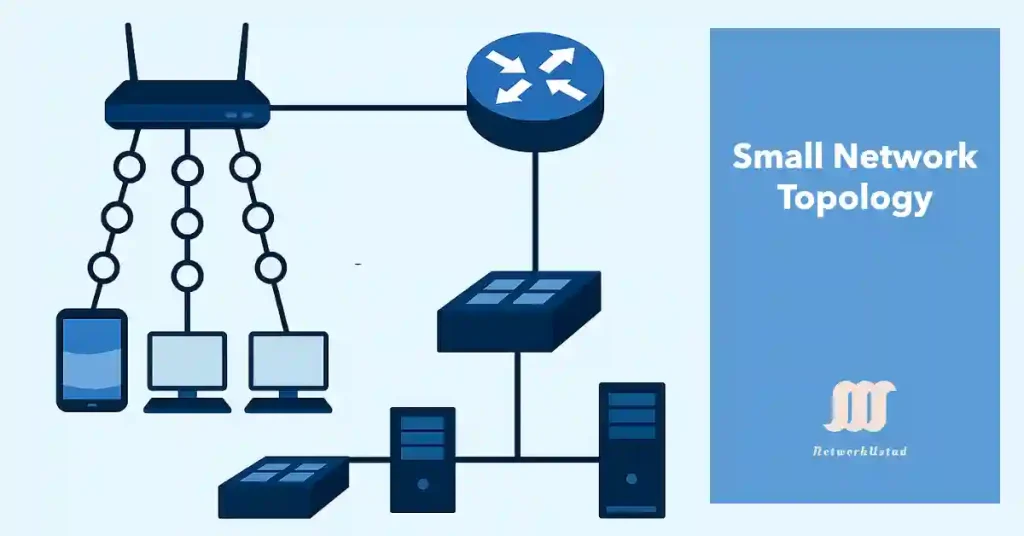

Small networks may have access points (possibly built into the router) and IP phones. As for the internet requirement, small networks usually use only a single WAN connection provided by internet service providers. The internet connection may be DSL, cable, or Ethernet. The figure below illustrates a small network topology.

The small network also requires the same skills as managing a more extensive network. The main work in the small network is maintenance and troubleshooting after the one-time equipment installation. The network administrator must secure devices and information on the network.
Device Selection for a Small Network
Planning and designing a small network must align with user needs, balancing requirements, costs, and implementation feasibility. Key considerations include selecting intermediate devices like routers and switches. Use show version (Cisco CLI) on a router or lshw -class network (Linux) to assess device specs. Factors such as port speed, expandability, and OS features (e.g., QoS, NAT) are critical, guiding CCNA/CCNP students in effective network design as of 2025.
Type of Intermediate Devices
The initial design step for a small network involves choosing appropriate intermediate devices, such as routers and switches. Selection criteria include cost, port speed, expandability, and OS features. Use ip route (Linux) or route print (Windows) to verify routing capabilities, ensuring devices meet the performance needs of CCNA/CCNP learners.
Cost
The price of intermediate devices depends on their capacity (e.g., port count and types), features (e.g., network management, security, advanced switching), and cabling costs. Redundancy, such as dual power supplies, also increases expenses.
Ports/Interfaces Speed and Types
Selecting the right port and interface speeds on routers or switches is a critical decision. Many computers feature built-in 1 Gb/s NICs, while newer workstations and servers support 10 Gb/s ports for high-bandwidth tasks. Upgrading Layer 2 devices to support these speeds can be costly, but modular switches (e.g., Cisco Catalyst 9200) with 10 Gb/s uplink ports offer scalability. Check compatibility with ethtool (Linux) or Device Manager (Windows), a key consideration for 2025 networks
Expandability
Both fixed and modular types of network devices are available. Fixed devices have a fixed number and type of ports or interfaces available, which cannot be changed, while modular devices have expansion slots that give the flexibility to add new modules per requirements. Switches are also available with extra ports for high-speed links.
Operating System Features and Services
The features and services of a network device’s operating system vary by version, impacting functionality. Key services include Quality of Service (QoS) for bandwidth prioritization (e.g., qos policy on Cisco), security with ACLs (e.g., access-list 10 permit 192.168.1.0 0.0.0.255), VoIP for IP phones, DHCP for automatic IP assignment (e.g., ip dhcp pool LAN on Cisco), NAT for IP sharing (e.g., ip nat inside source), and Layer 3 switching for routing. Configure these on a Cisco router via CLI or a GUI, essential for CCNA/CCNP skills.
Other Requirements
Assess Requirements: Evaluate the number of users (e.g., 10-50) and devices (PCs, printers, IP phones) using arp -a (Windows) or arp -n (Linux) to map connections. Plan for scalability with modular switches.
Choose Networking Equipment: Select a router (e.g., Cisco RV340) with VPN, QoS, and firewall support, configurable via CLI (show running-config) or GUI. Use Ethernet for wired, Wi-Fi with access points (e.g., TP-Link EAP225) for wireless, and switches (e.g., Cisco SG250) for multiple devices.
Internet Connectivity: Partner with an ISP for DSL/cable, configure the modem with dhcpc (Linux) or router settings, and test with ping 8.8.8.8.
Network Security: Enforce WPA3 on Wi-Fi, set router firewalls with access-list 101 permit, and install clamav (Linux) or Windows Defender for antivirus, plus VPN for remote access.
Network Configuration: Assign IPs with ipconfig /setclassid (Windows) or dhclient (Linux), enable DHCP (ip dhcp pool LAN on Cisco), and set shares with Samba (Linux).
Backup and Data Storage: Use rsync (Linux) or Windows Backup for data, and deploy a NAS like Synology DS220+ for centralized storage.
Remote Access and Monitoring: Configure VPN with pptpd (Linux) or router GUI, and monitor with ntopng (Linux) or PRTG (Windows).
Documentation and Maintenance: Record configs with show tech-support (Cisco) or manual logs, schedule updates with cron (Linux), and train staff on security.
Testing and Troubleshooting: Test with ping and tracert, and prepare a checklist for issues.
Compliance and Regulations: Adhere to GDPR or HIPAA with encryption (e.g., openssl) and audit logs, critical for 2025 networks as of 05:10 PM PKT, July 05, 2025.”
Performance Tuning: Optimize small network performance for efficiency. On Linux, increase TCP buffer sizes with sysctl -w net.core.rmem_max=8388608 and enable QoS with tc qdisc add on the router. On Windows, use netsh int tcp set global autotuning=normal and adjust switch QoS settings. Test with iperf (Linux/Windows) to measure throughput, ensuring peak performance for 2025 networks
Security Configuration
Secure the small network by configuring the router’s firewall. On a Cisco router, enable access control lists (ACLs) with access-list 101 permit tcp any host 192.168.1.10 eq 22 to allow SSH, then apply with interface gig0/0 ip access-group 101 in. On Windows, use netsh advfirewall set allprofiles state on to enable the firewall. Set up WPA3 on the access point via its web interface, and install fail2ban on Linux (sudo apt install fail2ban) to block brute-force attacks, ensuring robust protection as of 2025.
Troubleshooting Tips
Address common small network issues effectively. If devices can’t connect, verify IP settings with ipconfig /all (Windows) or ip addr (Linux) and ping the gateway (e.g., ping 192.168.1.1). For slow performance, check bandwidth usage with netstat -s (Windows) or nload (Linux) and adjust QoS settings on the router. If the switch fails, reboot it or use show running-config (on Cisco devices via CLI) to diagnose, equipping CCNA/CCNP students with practical skills as of 2025.
Case Study
A small retail business with 15 employees upgraded its network. They installed a Cisco RV340 router, a Cisco SG250-26HP switch, and a TP-Link EAP225 access point, configuring DHCP and WPA3. After initial setup, they faced latency issues, resolved by tuning sysctl -w net.core.rmem_max=8388608 on their Linux server and monitoring with ntopng. This approach improved VoIP quality, demonstrating practical skills for CCNA/CCNP.
Network Growth
To scale a small network from 10 to 20 users, upgrade from a Cisco RV340 to a Cisco ISR 1100 router with SD-WAN support, add a second Cisco SG250-26HP switch, and deploy additional TP-Link EAP225 access points. Configure VLANs with vlan 10 and vlan 20 (Cisco CLI) for segmentation, enable inter-VLAN routing with ip routing, and test with ping 192.168.10.1 (VLAN 10) and ping 192.168.20.1 (VLAN 20) on Windows/Linux, preparing CCNA/CCNP students for growth as of 2025. Effective network growth involves strategic planning and device upgrades to accommodate increased users and traffic, ensuring seamless scalability.
As businesses expand, small networks must scale to support additional users and devices. Use SD-WAN for centralized management, upgrade WAN links to fiber if DSL/cable limits are reached, and use show ip interface brief to verify port status. Integrate cloud services (e.g., AWS Direct Connect) for redundancy, a critical skill.
Security for Growth
Scaling introduces security risks; segment networks with VLANs (e.g., interface vlan 10 ip address 192.168.10.1) and apply ACLs (e.g., access-list 101 deny ip 192.168.20.0 0.0.0.255 any). Enable 802.1X authentication on switches and use IPSec VPNs for remote sites. Monitor with snmpwalk (Linux) or SolarWinds (Windows), ensuring secure expansion.
Zero Trust Security
Implement zero-trust security for scaling networks using micro-segmentation. Configure Cisco TrustSec with cts manual policy-static sap pmk and enforce MFA via RADIUS. Monitor with snmpwalk (Linux) or SolarWinds (Windows), ensuring robust protection
Cloud Integration
Integrate cloud services to support growth, such as AWS Direct Connect for low-latency connectivity. Configure on a Cisco router with interface gig0/0/0 description AWS-DX and BGP peering. Use aws configure (Linux) to set up CLI access, and monitor with Amazon CloudWatch. This enhances scalability and redundancy for 2025 networks.
Performance Optimization for Growth
As networks grow, optimize performance by implementing load balancing on the router with ip load-sharing per-packet (Cisco) and upgrading switch ports to 10 Gb/s where feasible. On Linux, use tc qdisc add dev eth0 root htb for traffic shaping, and monitor with iftop to ensure bandwidth distribution. On Windows, adjust QoS via netsh advfirewall and use Resource Monitor, ensuring scalability for 2025 networks as of 2025.
Monitoring Tools
Deploy advanced monitoring for growing networks. Use ntopng (Linux) for real-time traffic analysis or PRTG (Windows) for comprehensive dashboards. Configure SNMP on routers with snmp-server community public RO (Cisco) and set alerts for bandwidth thresholds. This proactive approach supports CCNA/CCNP skill development.
IoT Integration
Incorporate IoT devices (e.g., smart cameras, sensors) into growing networks. Configure a dedicated VLAN (e.g., vlan 30 name IoT) on a Cisco switch and apply QoS with qos policy-map IoT priority. Secure with 802.1X and monitor with ntopng (Linux) or PRTG (Windows), enhancing smart network capabilities
Important Step for Growth
Network Documentation: Create diagrams using Visio or Dia (Linux) with physical and logical layouts, updated with show cdp neighbors (Cisco).
Device Inventory: Maintain a list with lshw -class network (Linux) or Device Manager (Windows), tracking models and IPs.
Budget: Develop an IT budget with Excel, allocating funds for 2025 equipment (e.g., $500 for switches).
Traffic Analysis: Document protocols with Wireshark, capturing bandwidth needs (e.g., 1 Gb/s for VoIP) using tcpdump (Linux).
Network Segmentation: Plan VLANs based on performance, security, management, and availability, verified with show vlan brief (Cisco).
Protocol Analysis

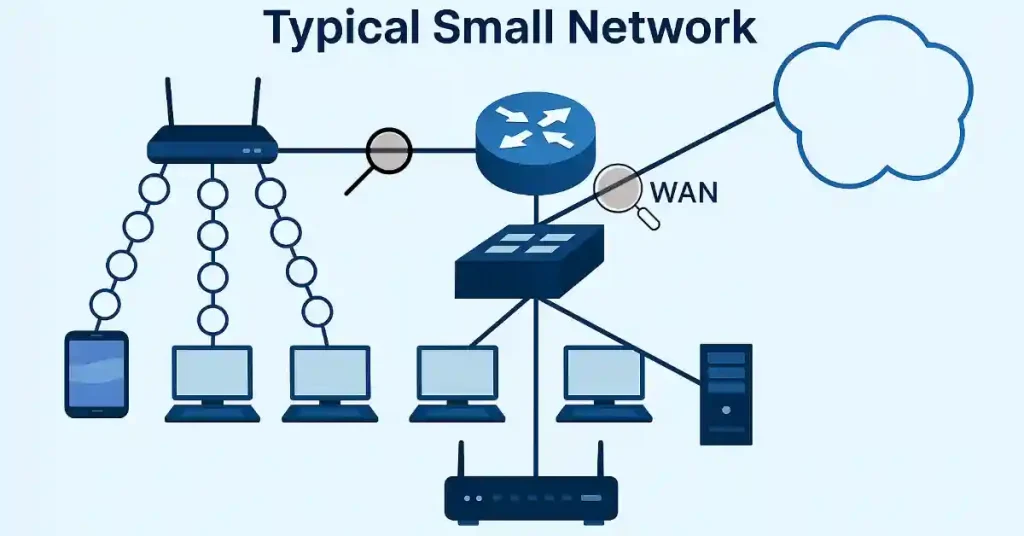

During network growth, analyze traffic types (e.g., HTTP, VoIP) using Wireshark or tcpdump -i eth0 (Linux). Capture data during peak hours (e.g., 9-11 AM) on segments with tcpdump -w capture.pcap, and review with tshark -r capture.pcap. The figure below illustrates the network analyzer for different segments. This image depicts Wireshark captures from VLAN 10 (Sales) and VLAN 20 (IT), highlighting HTTP and VoIP traffic.

Employee Network Utilization
During growth, assess changing usage with top (Linux) or Task Manager (Windows) snapshots, capturing OS versions, applications (e.g., Zoom, ERP), and resource use (CPU, RAM, disk). Schedule daily checks at 10 AM with cron (Linux) or Task Scheduler (Windows), correlating data with ntopng traffic trends. Adjust bandwidth or add servers based on findings
Conclusion
In summary, small network topologies are essential for businesses, leveraging simple designs with routers, switches, and access points. With proper device selection, security (e.g., WPA3, firewalls), and configuration (e.g., DHCP, VLANs), these networks meet current needs. As networks grow, scaling with VLANs, SD-WAN, and performance tuning (e.g., tc qdisc) ensures reliability. For CCNA/CCNP students, mastering these skills is vital for 2025 network management.
FAQs
-
A router in a small network directs traffic between devices and the internet, as shown in the article’s diagram. It connects the network to external systems and manages data flow efficiently. Proper router placement is crucial for optimal performance.
