Wireless Network Interface Card (WNIC) – Exclusive Details

Wireless Network Interface Card (WNIC) – Exclusive Details

//

A Wireless Network Interface Card (WNIC) is a crucial component that enables devices to connect to wireless networks. It’s a small device that allows your computer, laptop, or other devices to communicate with a wireless router or access point. This article will explore WNICs, their types, installation, security features, and common issues that need troubleshooting.

A wireless network interface card (WNIC) is a network card that connects to a wireless radio-based network. Like other NICs, it functions on Layer 1 and 2 of the OSI Model. It performs the same operation as a normal network card, except it operates wirelessly instead of through network cables. The card contains an antenna to send and receive microwave signals.

Laptops, tablets, and smartphones now all include built-in wireless NICs. However, we can use a USB wireless adapter if a device does not have a built-in wireless NIC. If we need a wireless network interface card (WNIC) in a desktop computer, we can install the WNIC on the PCI bus. The card is also available as a USB and PC card. The figure below illustrates USB WNIC and WNIC for the PC’s expansion slot.

Types of Wireless Network Interface Card (WNIC)

WNICs come in various forms, including:

  • PCI WNICs: These WNICs are suitable for desktop computers and are installed in a computer’s PCI slot.
  • USB WNICs: Connected via USB, these WNICs are ideal for laptops and devices with USB ports.
  • PCIe WNICs: Installed in a computer’s PCIe slot, these WNICs offer faster speeds and are suitable for high-performance devices.
  • Mini-PCIe WNICs: Smaller than PCIe WNICs, these are used in smaller devices like laptops and netbooks.
  • M.2 WNICs: Installed in a computer’s M.2 slot, these WNICs offer high-speed connectivity and are suitable for modern devices.

Installation and Compatibility

Installing a WNIC requires consideration of compatibility with your device and operating system. Ensure the WNIC is compatible with your device’s operating system (Windows, macOS, Linux, etc.) and follows these steps:

  1. Shut down your device.
  2. Locate an available slot (PCI, USB, PCIe, etc.).
  3. Insert the WNIC into the slot.
  4. Install device drivers from the manufacturer’s website or include a CD.
  5. Configure your wireless network settings.

Security Features

WNICs offer various security features to protect your wireless connection:

  • Encryption: WEP, WPA, WPA2, and WPA3 encryption methods secure your data.
  • Authentication: 802.1X authentication protocols ensure only authorized devices connect.
  • Firewall: Built-in firewalls block unauthorized access to your device.

Troubleshooting Common Issues

Common WNIC issues include:

  • Connectivity issues: Ensure correct installation, update drivers, and check wireless settings.
  • Slow speeds: Upgrade your WNIC, check for interference, and optimize your wireless settings.
  • Driver updates: Regularly update your WNIC drivers to ensure compatibility and performance.

Comparison with Other Wireless Technologies

WNICs differ from other wireless technologies like:

  • Wi-Fi Adapters: External devices that provide wireless connectivity.
  • Mobile Hotspots: Devices that create a wireless network using cellular connectivity.
  • Bluetooth: A wireless technology for device-to-device communication.

Conclusion and Future Outlook

WNICs play a vital role in enabling wireless connectivity. As wireless technology advances, we can expect faster speeds, improved security, and increased reliability. Emerging trends like Wi-Fi 6 and 5G will further enhance WNIC capabilities. By understanding WNICs and their features, you can make informed decisions when selecting and installing wireless network interface cards.

Network Interface Card (NIC) and Ethernet: Essential for Modern Networking (2025)

Network Interface Card (NIC) and Ethernet: Essential for Modern Networking (2025)

//

A Network Interface Card (NIC), also known as an Ethernet card, is a hardware component that enables a computer to connect to a network, such as a home network or the Internet, using an Ethernet cable with an RJ-45 connector or wireless technologies. Network Interface Cards provide a dedicated, full-time connection to a network, and most modern computers have a network interface built directly into the motherboard. Personal computers and workstations on a local area network (LAN) use Network Interface Cards designed for specific LAN transmission technologies, supporting high-speed and reliable connectivity.

Types of Network Interface

Types of Network Interface Cards

Network Interface Cards come in several forms, primarily wired, wireless, and fiber optic:

  • Wired NICs: Use an RJ-45 port for Ethernet cables, offering stable connections for LANs and data centers.
  • Wireless NICs: Employ antennas to connect via Wi-Fi, ideal for mobile devices and home networks.
  • Fiber Optic NICs: Support high-speed fiber connections for enterprise and data center applications.

NIC Types Comparison

TypeConnection MethodUse CaseSpeed Range
WiredRJ-45/EthernetLANs, data centers10 Mbps–100 Gbps
WirelessWi-Fi/AntennasHome networks, IoT11 Mbps–9.6 Gbps
Fiber OpticFiber cablesEnterprise, high-speed networks1 Gbps–400 Gbps

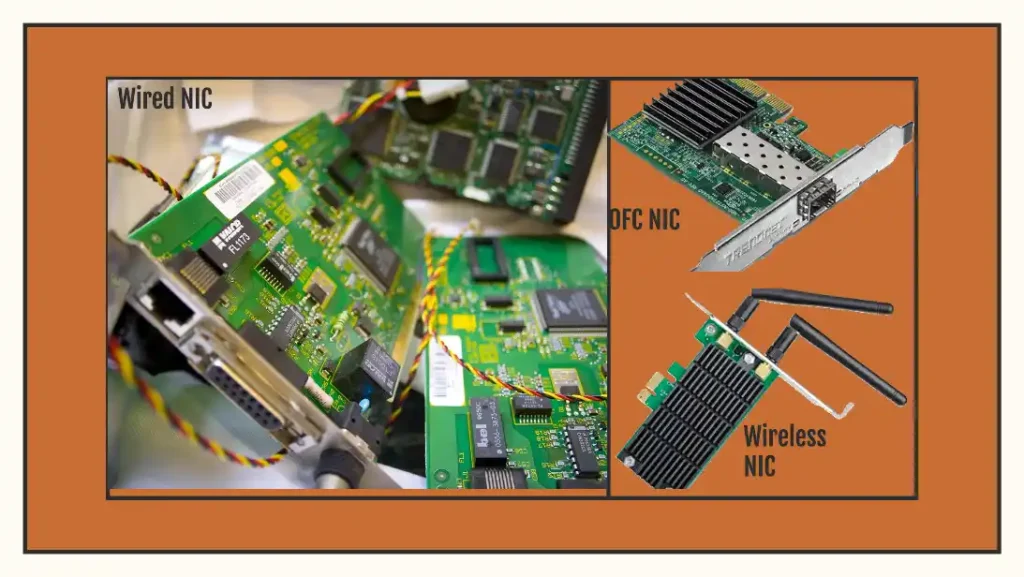

Diagram illustrating the components of a wired and wireless NIC, including RJ-45 port and antennas.
Network Interface Card (NIC) and Ethernet: Essential for Modern Networking (2025) 2

Network Interface Card Speed

Network Interface Cards support various speed ratings, such as 10 Mbps, 100 Mbps, 1 Gbps, 10 Gbps, and up to 100 Gbps in 2025. The Network Interface Card’s speed rating indicates its maximum performance, but actual internet speed depends on available bandwidth and service plans. For example, if your DSL speed is 16 Mbps and your Network Interface Card supports 100 Mbps, the NIC won’t increase your internet speed beyond 16 Mbps. However, a 10 Mbps NIC would limit a 16 Mbps connection to 10 Mbps.

Modern Network Interface Card Features (2025)

In 2025, Network Interface Cards will be critical for advanced networking. High-speed Network Interface Cards (10/25/100 Gbps) power 70% of data center traffic, supporting AI workloads and cloud computing. Wi-Fi 6/7 Network Interface Cards enable low-latency IoT and 5 G-integrated networks, with features like OFDMA for efficient channel access. SmartNICs, equipped with onboard processors, offload tasks like encryption and virtualization, enhancing performance in data centers. Ethernet 802.3bt (PoE) Network Interface Cards support IoT devices, delivering power and data over a single cable.

Network Interface Card Driver

Network Interface Cards require device drivers to interface with a computer’s operating system. If a Network Interface Card isn’t working, the driver may be missing, corrupted, or outdated. Modern operating systems like Windows 11 and Linux often update drivers automatically via online repositories. If manual updates are needed, drivers can be downloaded from the manufacturer’s website using another device and transferred via USB.

Ethernet

Ethernet, invented by Robert Metcalfe and D.R. Boggs in 1972, is a data link and physical layer protocol for LANs, defined by the IEEE 802.3 standard. It governs data transmission, specifying frame format, size, timing, and encoding. Ethernet supports various media and bandwidths, with a consistent frame format across all types.

Ethernet historically used Carrier Sense Multiple Access/Collision Detection (CSMA/CD) for half-duplex LANs to manage collisions. In 2025, full-duplex switches dominate, allowing simultaneous sending and receiving without collisions, supporting speeds up to 400 Gbps in enterprise networks.
