IP address planning is crucial for implementing a small network, ensuring all hosts have unique addresses. The network administrator must document the IP addressing scheme. The administrator should also maintain IP addresses based on the type of device to configure the addresses. The different types of devices that require IP addresses are:-
Servers: Host critical services (e.g., 192.168.1.10 – 192.168.1.30).
End Devices: Include PCs and IP phones (e.g., 192.168.1.100 – 192.168.1.200).
Intermediary Devices: Routers and switches (e.g., 192.168.1.50 – 192.168.1.70).
Internet-Accessible Hosts: E-commerce servers with public IPs (e.g., 203.0.113.10)

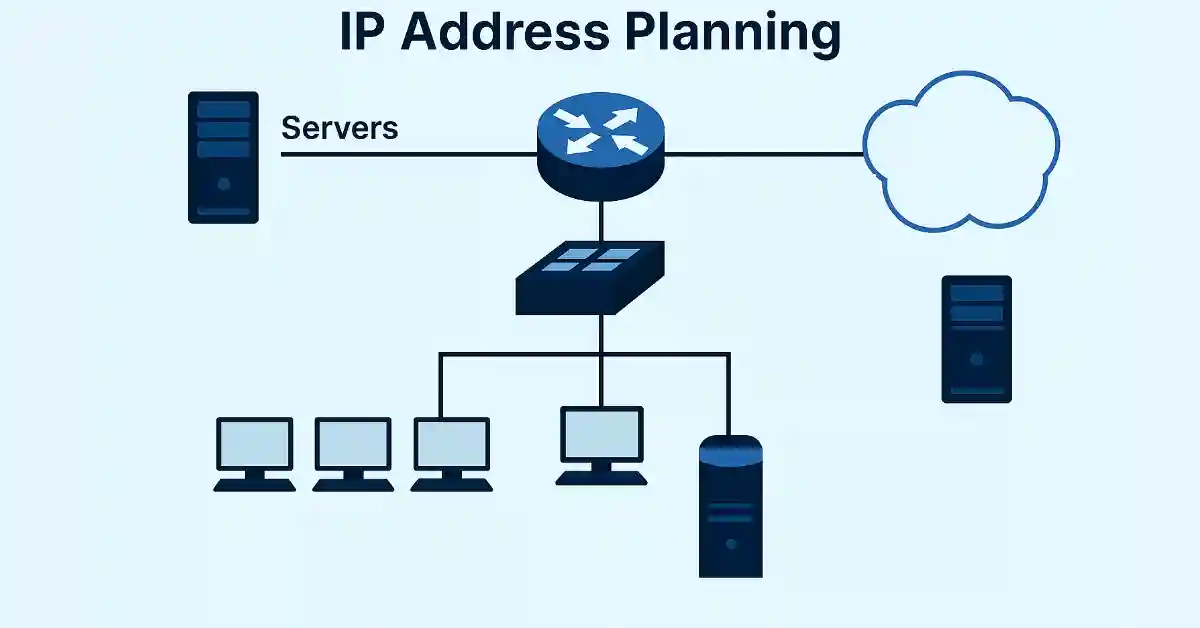

The figure above illustrates the devices that need IP address planning to assign an IPv4 address.

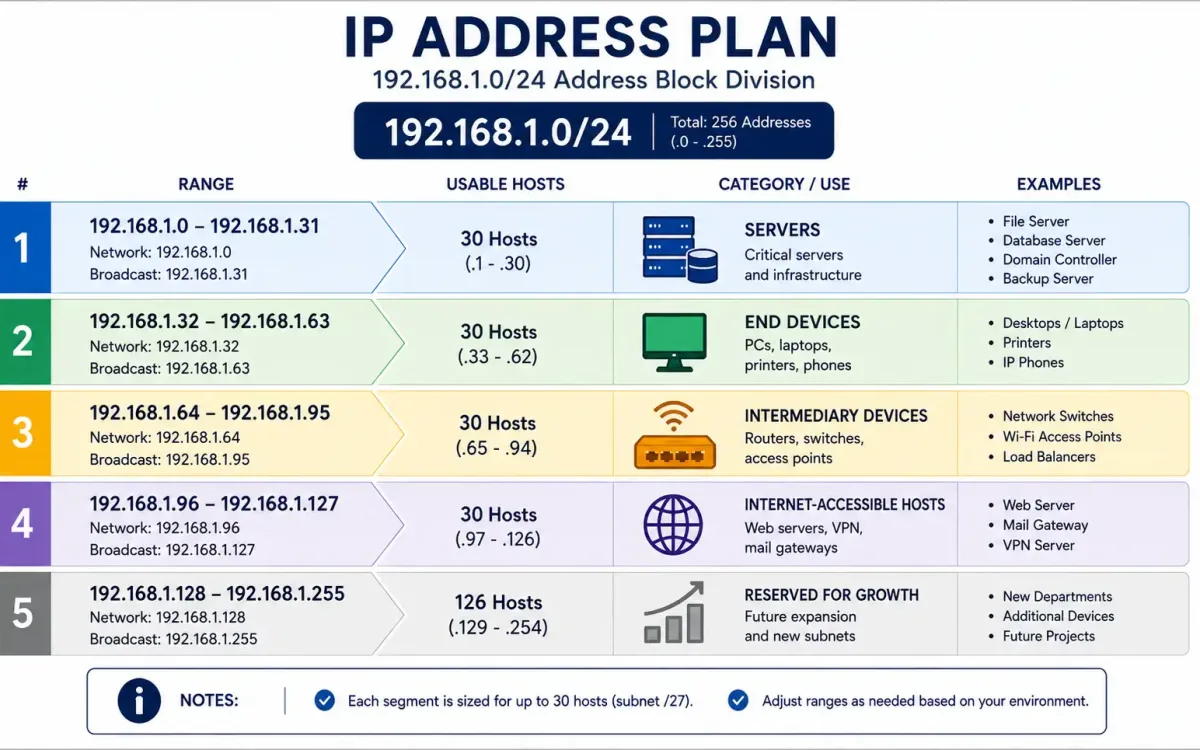

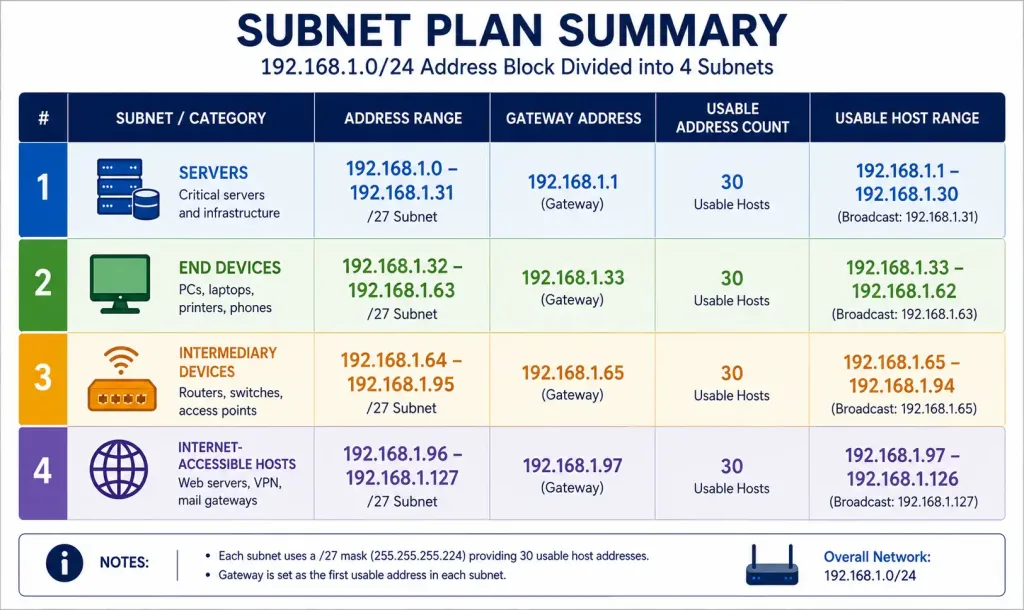

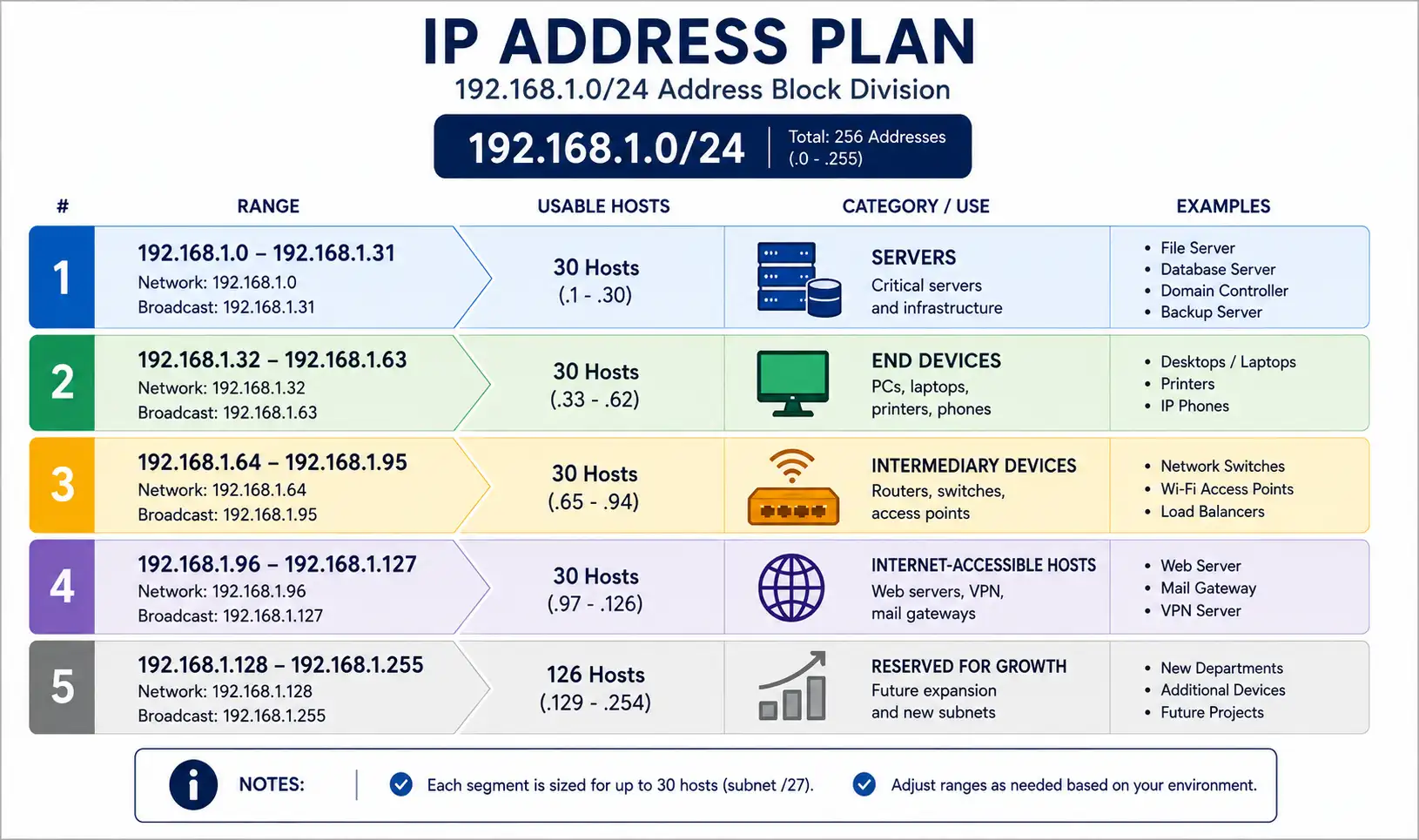

For a small network with 50 devices, use the 192.168.1.0/24 range. Subnet into /27 (32 addresses each) with 192.168.1.0 – 192.168.1.31 for servers, 192.168.1.32 – 192.168.1.63 for end devices, and 192.168.1.64 – 192.168.1.95 for intermediary devices. Configure a Cisco router with interface vlan 1 ip address 192.168.1.1 255.255.255.224, a key skill.
Proper IP address planning and documentation are necessary for helping the network administrator to track device types and troubleshoot. Usually, the network administrator knows the ranges of IP addresses assigned to devices.
For example, assign hosts 192.168.1.100 – 192.168.1.200 and servers 192.168.1.220 – 192.168.1.250. This segmentation simplifies traffic analysis with Wireshark, aiding CCNA/CCNP troubleshooting and resource control via documented ACLs.
The IP addressing scheme is necessary for hosts that provide resources to internal and external networks, such as e-commerce servers. Without proper planning, security and accessibility are not possible. If a host has a random address assigned from the address range, blocking access to this host is difficult. Different device types should assign their logical block of addresses within the network’s address range.

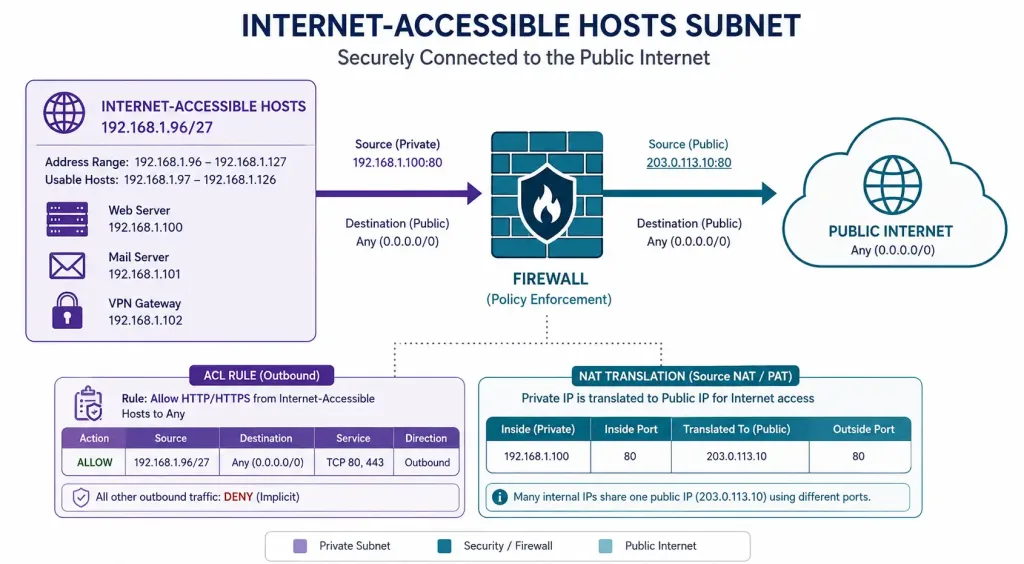

Proper IP planning boosts security. Enable DHCP snooping with ip dhcp snooping (Cisco) to block rogue servers. For internet-accessible hosts, use ACLs (e.g., access-list 101 permit tcp any host 192.168.1.10 eq 443) and NAT (e.g., ip nat inside source static 192.168.1.10 203.0.113.10), then monitor with show access-lists to ensure protection.
Conclusion – IP Address Planning
Effective IP address planning is the cornerstone of a robust and secure small network, ensuring every device—from servers to internet-accessible hosts—operates seamlessly with unique addresses. By leveraging subnetting, DHCP configuration, and security measures like ACLs and NAT, network administrators can optimize performance and troubleshoot issues efficiently
FAQs
What is the importance of IP address planning for a small network?
IP address planning ensures every host, like servers and end devices, has a unique address, preventing conflicts. It helps network administrators document schemes for troubleshooting and security, making management easier for small networks
How can I subnet a small network with 50 devices?
Use the 192.168.1.0/24 range and subnet into /27 blocks, allocating 192.168.1.0 – 192.168.1.31 for servers and similar ranges for other devices. Configure on a Cisco router with interface vlan 1 ip address 192.168.1.1 255.255.255.224 and verify with show ip interface brief.
What security measures should be applied to IP planning?
Enhance security with DHCP snooping using ip dhcp snooping (Cisco) to block rogue servers and ACLs (e.g., access-list 101 permit tcp any host 192.168.1.10 eq 443) with NAT for internet hosts, ensuring protection.
How do I allocate IPs for internet-accessible hosts?
Assign private IPs (e.g., 192.168.1.96 – 192.168.1.127) and map them to public IPs (e.g., 203.0.113.10) from an ISP using NAT with ip nat inside source static. This setup secures e-commerce servers while enabling internet access.
