As IPv4 address exhaustion pushed NAT into every network, IPv6 flips the script with 128-bit addresses (3.4 × 10^38 possibilities). But during transitions, NAT evolves. This guide covers Unique Local Addresses (ULA) as IPv6’s ‘private’ space and translation tools like NAT64 — essential for CCNA 200-301 IPv6 topics. NAT’s ‘security’ myth? Busted—it’s not a firewall (per RFC 5902). Stateful inspection does that job better. Dive in for configs, labs, and exam tips on how to configure NAT64 on a Cisco router for the CCNA exam, IPv6 ULA vs. global unicast addresses explained, and differences between NAT-PT and NAT64 in IPv6 transitions.
NAT and private IPv4 addresses have slowed down the depletion of IPv4 addresses, but NAT has some disadvantages. The one major benefit provided by NAT is security. NAT hides the private IPv4 network from the public Internet, providing a perceived level of security by denying computers on the public Internet from accessing internal hosts. However, NAT is not the alternative for proper network security, such as security provided by a firewall. In RFC 5902, the IAB included the NAT for IPv6 quote. “It is commonly perceived that a NAT box provides one level of protection because external hosts cannot directly initiate communication with hosts behind a NAT. However, one should not confuse NAT boxes with firewalls.
As discussed in RFC 4864, Section 2.2, translation does not provide security. The stateful filtering function can provide the same level of protection without requiring a translation function. For further discussion, see RFC 4864, Section 4.2.” IPv6, an addressing scheme, provides 340 undecillion addresses. It has its own IPv6 private address space and NAT, which are implemented differently than for IPv4. For CCNA students, remember: IPv6 favors end-to-end connectivity over translation—perfect for why IPv6 doesn’t need NAT like IPv4 for beginners.
IPv6 Unique Local Addresses (ULA)
These addresses are similar to the private addresses of IPv4, but there are major differences between both. IPv6 Unique Local Addresses (ULA) intends to provide IPv6 address space for communications within a local site. It does not provide any additional IPv6 address space and does not provide any level of security.

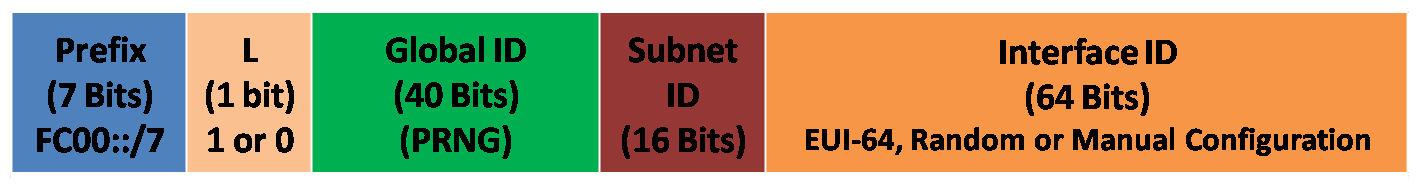

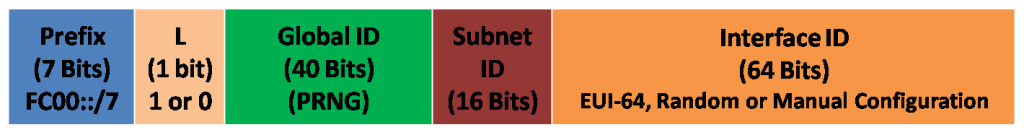

The IPv6 Unique Local Addresses (ULA) prefix is FC00::/7, which ranges in the first hextet from FC00 to FDFF. The figure below illustrates the Unique Local Addresses (ULA).
After the prefix, the next 1 bit is set to 1 if the prefix is locally assigned. Set to 0 may be defined later. The next 40 bits are a randomly generated global ID followed by a 16-bit Subnet ID. These first 64 bits make the ULA prefix. The remaining 64 bits are used as the interface ID. These addresses are defined in RFC 4193. ULAs are also known as local IPv6 addresses.
For CCNA labs, generate ULA on Cisco: Use ipv6 address fc00:1:1::/64 eui-64 on loopback for testing. Example: FC00:0001:0000:0000:0200:5EFF:FE00:1234 (random global ID ensures uniqueness).
ULA allows sites to be privately interconnected without creating address conflicts. The address can be used independently without any ISP and for communications within a site without having any Internet connectivity.
The ULA is not routable across the internet like the RFC 1918 private IPv4 address; however, if by chance it is leaked by routing or DNS, there is no conflict with any other addresses.
The IPv6 addresses are not created to be used in the form of NAT to translate between unique local addresses and IPv6 global unicast addresses. The execution and possible uses for IPv6 unique local addresses are still under-examined by the Internet community. For CCNP guide to IPv6 NAT troubleshooting commands, note: Avoid NAT for ULA-to-GUA translations—use routing instead.
NAT for IPv6
There are several varieties of NAT for IPv6, which provide transparent access between IPv6-only and IPv4-only networks. NAT for IPv6 is not a private IPv6 to global IPv6 translation like NAT for IPv4 addresses.
The IPv6 devices should communicate with each other over IPv6 networks. However, during the IPv4-to-IPv6 transition, the IETF has developed several techniques, including dual-stack, tunneling, and translation, to accommodate IPv4-to-IPv6.
In dual-stack, both IPv4 and IPv6 are running on the devices in parallel. Tunneling involves encapsulating an IPv6 packet inside an IPv4 packet. This allows the IPv6 packet to be transmitted over an IPv4-only network.
NAT for IPv6 cannot be used as a long-term approach. It is only a temporary method to assist in the transition from IPv4 to IPv6. NAT for IPv6 has several methods, including NAT64 as the current standard (detailed below). Focus on step-by-step IPv6 NPTv6 configuration example for advanced scenarios.
IPv4 NAT vs. IPv6 NAT Variants Comparison
For CCNA exam prep, compare these to spot why IPv6 favors end-to-end connectivity over translation.
| Feature | IPv4 NAT (RFC 1918) | IPv6 ULA (RFC 4193) | NAT64 (Transition) | NPTv6 (Prefix Translation) |
|---|---|---|---|---|
| Purpose | Address conservation & security | Local comms, no Internet routing | IPv6-to-IPv4 access | Prefix remapping, no port overload |
| Address Space | 10.0.0.0/8, etc. | FC00::/7 (L=1 for local) | 64:ff9b::/96 prefix | Stateless prefix swap |
| CCNA Config | ip nat inside/outside | N/A (auto via EUI-64) | nat64 prefix stateful | ipv6 nat prefix |
| Security | Hides internals (but not firewall) | Non-routable on Internet | Stateful filtering required | Preserves end-to-end |
| Exam Tip | Overload for PAT | Avoid NAT for ULA-to-GUA | Deprecated NAT-PT successor | CCNP: Use for multi-homing |
NAT64: Enabling IPv6-Only Networks to Access IPv4 Resources
NAT64 is a stateful translation mechanism that allows IPv6 hosts to communicate with IPv4-only servers during the IPv4-to-IPv6 transition. Unlike IPv4 NAT, it maps IPv6 prefixes to IPv4 addresses using a well-known /96 prefix (64:ff9b::/96). For CCNA students, remember: NAT64 is bidirectional but requires DNS64 for name resolution. Explain IPv6 NAT64 with a simple example: An IPv6 client at 2001:db8::1 pings www.example.com (IPv4 192.0.2.1), which translates via the gateway.
Key Components:
IPv4 Server: Legacy endpoint.
IPv6 Client: Uses global unicast address.
NAT64 Gateway (e.g., Cisco Router): Performs translation.
Key Components:
- IPv6 Client: Uses global unicast address.
- NAT64 Gateway (e.g., Cisco Router): Performs translation.
- IPv4 Server: Legacy endpoint.
Configuration Example (Cisco IOS for CCNA Lab):
- Enable IPv6 unicast routing:
ipv6 unicast-routing - Assign interfaces:
- IPv6 side:
interface GigabitEthernet0/0ipv6 address 2001:db8:1::1/64 - IPv4 side:
interface GigabitEthernet0/1ip address 192.168.1.1 255.255.255.0
- IPv6 side:
- Define NAT64 prefix:
nat64 prefix stateful 2001:db8:64::/96 v4-mapped 192.168.1.0/24 - Enable prefix:
nat64 prefix stateful 2001:db8:64::/96
Verification Commands:
show nat64 statistics– Check translations.- Ping test: From IPv6 host,
ping ipv6 2001:db8:64::192.168.1.10(maps to IPv4 192.168.1.10).
CCNP Tie-In: enterprise transitions, integrate with ACLs for security: ipv6 access-list NAT64-ACL deny ipv6 any host 2001:db8::dead:beef. In SD-WAN, ULAs prevent leaks via BGP route filtering. How does ULA work in IPv6 for CCNA students? Pair it with NAT64 for hybrid IPv6 private addressing with ULA for enterprise networks.
Troubleshooting
Common IPv6 NAT issues and fixes are crucial for CCNP students debugging in production. What is NAT for IPv6 and do we still need it? Yes, temporarily—here’s how to fix it.
- No Translation Occurring: Check
show nat translations—ensurenat64 v6v4is enabled. Fix: Verify prefix overlap withdebug nat64 packets. - DNS Resolution Fails: IPv6 host can’t resolve IPv4 A records. Solution: Deploy DNS64 to synthesize AAAA records.
- MTU Fragmentation: IPv6 min MTU 1280 bytes; translations add overhead. CCNA Tip: Use
ipv6 mtu 1280on interfaces. - Security Blocks: ACLs deny traffic. Debug:
debug ip nat(hybrid mode) and add permits.
Lab Scenario: Simulate with Packet Tracer: IPv6 client pings IPv4 server; troubleshoot with ping and traceroute ipv6.
CCNA Practice Lab Suggestion
For hands-on learning, set up a Packet Tracer topology: Dual-stack router as NAT64 gateway, IPv6 PC client, and IPv4 server. Download a sample .pkt file here or build it yourself. Steps: Configure as above, test connectivity, then introduce faults (e.g., wrong prefix) for troubleshooting. This targets “CCNP guide to IPv6 NAT troubleshooting commands” and boosts retention for exam day.
FAQs
What is NAT for IPv6 and how does it differ from IPv4 NAT?
NAT for IPv6 focuses on transition mechanisms like NAT64 and NPTv6 rather than address conservation, unlike IPv4 NAT’s private-to-public overload. It enables IPv6-only devices to access IPv4 resources without hiding internals for security—firewalls handle that. Key types include stateful NAT64 for bidirectional translation using 64:ff9b::/96 prefix.
What are Unique Local Addresses (ULA) in IPv6?
ULAs (FC00::/7 prefix) provide site-local IPv6 addressing similar to IPv4 private ranges but are non-routable on the internet, avoiding conflicts via random global IDs. Defined in RFC 4193, they support internal communications without ISP dependency or NAT translation to global addresses. Generate on Cisco with ‘ipv6 address fc00:1:1::/64 eui-64’.
How do you configure NAT64 on a Cisco router?
Enable ‘ipv6 unicast-routing’, assign IPv6/IPv4 interfaces (e.g., 2001:db8:1::1/64 and 192.168.1.1/24), define prefix with ‘nat64 prefix stateful 2001:db8:64::/96 v4-mapped 192.168.1.0/24’, and activate it. Verify with ‘show nat64 statistics’ and test pings like ‘ping ipv6 2001:db8:64::192.168.1.10’. Requires DNS64 for full functionality.
Why isn’t NAT considered a security solution in IPv6?
Per RFC 5902, NAT provides no true protection—it’s translation, not filtering. External hosts can’t initiate connections behind NAT, but this mimics firewall stateful inspection without security depth. Use firewalls for real defense; IPv6’s vast addresses reduce NAT need, emphasizing proper access controls over perceived hiding.
