Statistical Time-Division Multiplexing is an advanced multiplexing technique that dynamically allocates transmission time slots to active channels, eliminating the bandwidth waste inherent in standard Time-Division Multiplexing (TDM). Understanding STDM — how it differs from TDM and FDM, how its frame structure works, and where it is applied in real WAN protocols — is essential knowledge for networking students and professionals working with telecommunications and WAN technologies.
What Is Multiplexing?
Before examining Statistical Time-Division Multiplexing specifically, it helps to understand the broader context. Multiplexing is the technique of combining multiple signals or data streams over a single shared transmission medium. Rather than requiring a separate physical link for each communication channel, multiplexing allows many channels to share one high-capacity link — reducing infrastructure cost and improving utilization.
Three primary multiplexing techniques exist in telecommunications:
| Technique | How It Divides the Channel | Key Characteristic |
|---|---|---|
| FDM (Frequency Division Multiplexing) | Divides by frequency | Each channel gets a fixed frequency band — used in radio broadcasting, cable TV, ADSL |
| TDM (Time Division Multiplexing) | Divides by time — fixed slots | Each channel gets a fixed time slot whether or not it has data to send |
| STDM (Statistical Time Division Multiplexing) | Divides by time — dynamic slots | Time slots assigned only to channels that have data — idle channels get no slot |
STDM was specially developed to overcome the bandwidth inefficiency of standard TDM. It is the foundation of modern packet-switched networks including Frame Relay, X.25, and ATM-derived technologies.
Standard TDM: The Problem STDM Solves
In standard TDM, the available transmission time is divided into fixed, equal-length slots. Each input channel is assigned a specific slot in a repeating frame — regardless of whether it has data to transmit. The slot belongs to that channel permanently.
Standard TDM Frame:
┌────┬────┬────┬────┬────┬────┬────┬────┐
│ A │ B │ C │ D │ A │ B │ C │ D │
└────┴────┴────┴────┴────┴────┴────┴────┘
↑ ↑
Channel B Channel D
has no data! has no data!
(slot wasted) (slot wasted)If Channel B and Channel D are idle — as is common in bursty data communication — their slots go unused. The shared link carries empty slots, wasting bandwidth. In environments where channels are idle most of the time (typical of data networks where traffic is bursty rather than continuous), standard TDM can waste 50–80% of available bandwidth.
This is acceptable for voice telephony — where a call holds a channel continuously for its duration — but highly inefficient for data networks where terminals alternate between periods of activity and silence.
How STDM Works
STDM shares the transmission medium like TDM, but allocates time slots dynamically based on demand rather than statically by channel assignment. Only channels that have data to transmit receive a time slot in a given frame. Channels that are idle receive no slot — their bandwidth is redistributed to active channels.
STDM Frame — same four channels, only active ones get slots:
┌────────┬──────────────┬──────────┐
│ A+ID │ C+ID │ D+ID │
└────────┴──────────────┴──────────┘
↑ ↑ ↑
Channel A Channel C Channel D
active active active
(Channel B idle — no slot allocated, bandwidth saved)The key difference from TDM is that slot position no longer implies which channel the data belongs to. Because channels are dynamically assigned, each slot must carry a channel identifier (ID) so the receiving demultiplexer knows which channel the data belongs to. This overhead is small but necessary — it is the cost of dynamic allocation.
Key Operational Characteristics
Dynamic Slot Allocation: The STDM multiplexer monitors all input channels continuously. When a channel has data ready, it is assigned a slot in the next frame. When idle, it is skipped entirely.
Variable Frame Length: Because the number of active channels varies, STDM frame length varies from frame to frame. A frame carrying five active channels is larger than a frame carrying two — the frame expands and contracts based on demand.
Channel Identifier: Every slot in an STDM frame carries a header identifying which input channel the data belongs to. The receiving demultiplexer reads this identifier to route each slot’s data to the correct output channel.
Buffer Memory: STDM multiplexers use buffer memory to store incoming data from channels when the output link is temporarily congested. During peak traffic periods, data queues in the buffer until transmission capacity is available. This buffering introduces variable latency — a characteristic that makes STDM unsuitable for real-time applications like voice telephony without additional Quality of Service mechanisms.
Statistical Gain: Because multiple channels are unlikely to be active simultaneously at full rate, STDM can support a total input data rate higher than the output link capacity — a concept called statistical multiplexing gain. If eight channels each have a maximum rate of 64 Kbps (total 512 Kbps) but are each active only 30% of the time statistically, a 200 Kbps output link can serve all eight channels without significant queuing delay under typical traffic conditions.

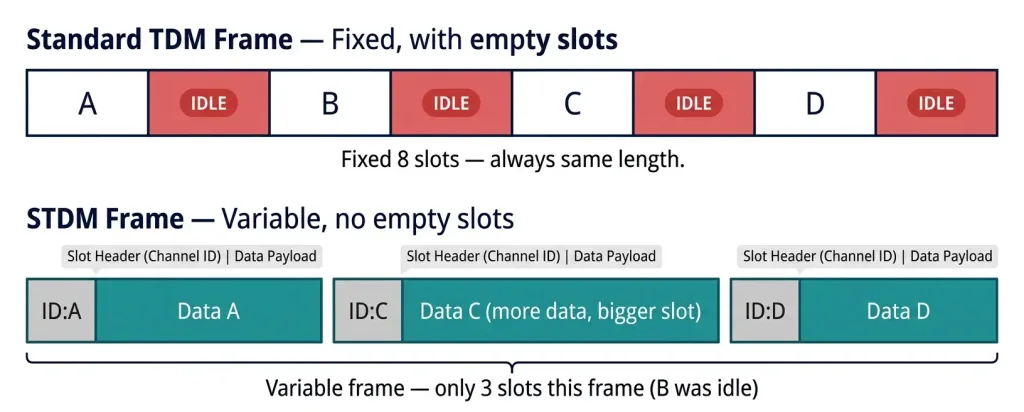

STDM Frame Structure
Its frame has a fundamentally different structure from a TDM frame because slot position no longer carries meaning — the channel identifier field does.
Frame Header: Marks the beginning of a frame and may carry frame length information (since frames are variable-length).
Slot Header (Channel ID): Each slot within the frame carries a short channel identifier field — typically 4–8 bits depending on the number of channels supported. This allows the demultiplexer to correctly route data to the appropriate output channel.
Data Field: The actual payload for the identified channel. Slot data field length may be fixed or variable depending on the STDM implementation.
No Empty Slots: Unlike TDM, STDM frames contain no empty or idle slots. Every slot in a frame carries real data from an active channel.

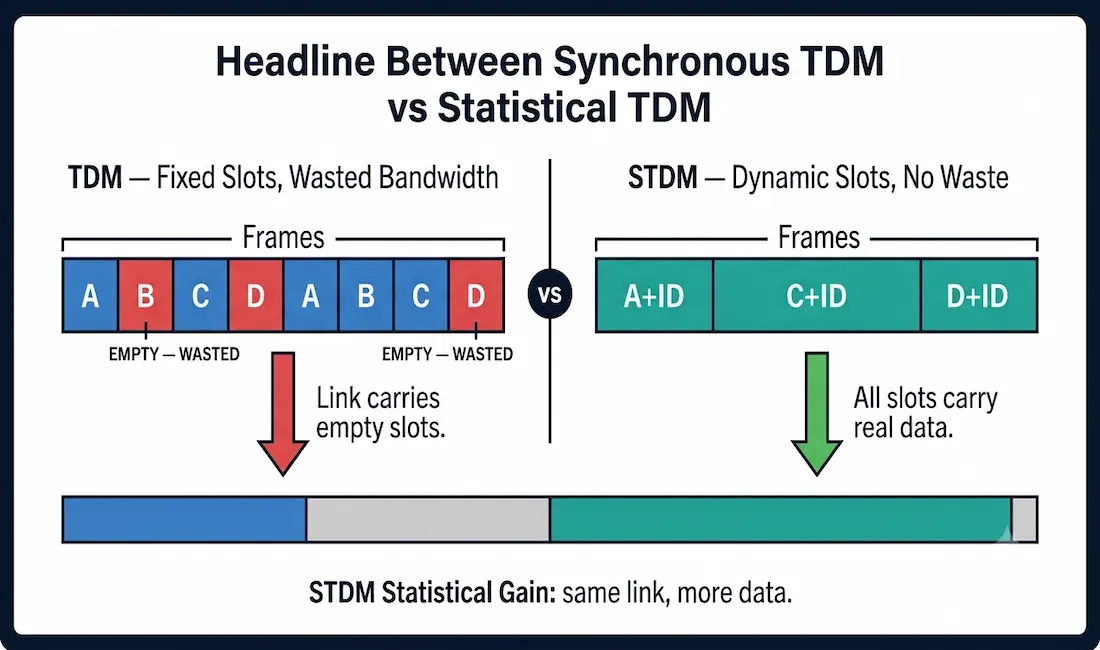

STDM vs TDM vs FDM: Full Comparison
| Feature | FDM | TDM | STDM |
|---|---|---|---|
| Division method | Frequency bands | Fixed time slots | Dynamic time slots |
| Idle channel handling | Fixed band always occupied | Fixed slot always reserved — wasted | No slot allocated — bandwidth freed |
| Channel identifier needed | No — frequency implies channel | No — position implies channel | Yes — ID field in each slot |
| Frame structure | Continuous frequency bands | Fixed-length repeating frames | Variable-length frames |
| Buffer memory required | No | No | Yes |
| Latency | Constant | Constant | Variable (buffering) |
| Bandwidth efficiency | Low when channels idle | Low when channels idle | High — uses only what is needed |
| OSI layer | Physical (Layer 1) | Physical (Layer 1) | Data Link and above (Layer 2+) |
| Best suited for | Analog signals, broadcast | Constant-rate signals (voice, T1/E1) | Bursty data traffic (internet, WAN) |
| Examples | Radio, cable TV, ADSL | T1, E1, SONET/SDH | Frame Relay, X.25, packet switching |
A critical distinction from the table: standard TDM and FDM operate at the physical layer in the OSI and TCP/IP model, while STDM operates at the data link layer and above. This is because STDM requires intelligence — it must inspect incoming data, manage buffers, assign slots dynamically, and add channel identifiers — functions that go beyond simple physical-layer signal switching.
Advantages of STDM
Bandwidth Efficiency: STDM’s primary advantage is dramatically improved link utilization. By allocating slots only to active channels, the output link carries real data in every slot rather than empty placeholders. In networks with bursty traffic (typical of data applications), STDM can achieve 3–5× the effective throughput of standard TDM on the same physical link.
Statistical Multiplexing Gain: STDM exploits the statistical reality that not all channels are active simultaneously. This allows the multiplexer to support more input channels than the output link could serve if all channels were simultaneously active at full rate.
Adaptive to Traffic Patterns: STDM naturally adapts to changing traffic conditions. Channels with heavy load receive more slots; channels with light load receive fewer. This self-adjusting behavior requires no manual reconfiguration.
Support for Variable-Rate Channels: Unlike TDM where all channels share equally, STDM can accommodate channels with different data rates — a high-speed file server channel can receive proportionally more slots than a low-speed terminal channel.
Cost Efficiency: By using bandwidth more efficiently, STDM reduces the required capacity of the shared WAN link, lowering circuit costs.
Disadvantages of STDM
Variable Latency: Because data queues in buffer memory during congestion, transmission delay varies from packet to packet. This makes pure STDM unsuitable for real-time, delay-sensitive applications like voice telephony without additional QoS mechanisms.
Overhead of Channel Identifiers: Each slot requires a channel identifier field that consumes a small portion of available bandwidth. In TDM, position implies channel — no identifier overhead is needed.
Complexity: STDM multiplexers are significantly more complex than TDM multiplexers. They require buffer management, dynamic scheduling, and channel identification logic — all of which add cost and potential failure points.
Congestion Risk: If traffic on all channels simultaneously spikes beyond the output link capacity, buffers fill and packets are dropped. STDM has no guaranteed delivery mechanism — congestion management must be handled at higher protocol layers.
Potential Unfairness: Without explicit scheduling controls, high-traffic channels can monopolize slots at the expense of lower-traffic channels. Fair queuing algorithms address this but add further complexity.
Real-World Applications
Frame Relay
Frame Relay is one of the most direct applications of STDM principles in WAN networking. Frame Relay uses variable-length frames with a DLCI (Data Link Connection Identifier) field that identifies the logical channel — directly analogous to STDM’s channel identifier. Multiple logical connections share a single physical circuit, with bandwidth allocated dynamically based on traffic. Frame Relay’s Committed Information Rate (CIR) and Excess Information Rate (EIR) parameters define how bandwidth is shared under contention.
X.25
X.25 is an older packet-switched WAN protocol that uses STDM-based dynamic slot allocation. Like Frame Relay, X.25 multiplexes multiple virtual circuits over a single physical link, with each packet carrying a logical channel identifier. X.25 includes extensive error correction at the packet level — a legacy of its design for unreliable physical circuits.
ATM (Asynchronous Transfer Mode)
ATM uses a variation of STDM concepts — it dynamically allocates cells (not slots) based on traffic demand. However, an important distinction: ATM uses fixed 53-byte cells (48 bytes payload + 5 bytes header), not variable-length slots. Each cell carries a VCI/VPI (Virtual Channel Identifier / Virtual Path Identifier) field that serves the same purpose as STDM’s channel identifier. ATM’s fixed-cell design was chosen to minimize latency variance for real-time traffic — the predictable cell size allows hardware-speed switching that variable-length frames cannot match. ATM represents a refined evolution of STDM principles adapted for the specific requirements of broadband networks carrying both voice and data.
Modern Packet Switching
The internet itself is built on statistical multiplexing. IP routers dynamically share link capacity among all active flows, with each packet carrying source and destination addresses (the channel identifier equivalent). Modern broadband technologies including cable DOCSIS, DSL, and 5G NR all use statistical multiplexing to share physical capacity among many subscribers.
The STDM is used to transport multiple data, audio, and video streams with different data rates to be broadcast across a bandwidth-limited channel.
STDM and Quality of Service
STDM’s variable latency characteristic creates challenges for applications requiring consistent delay — particularly voice and video. Modern STDM-based systems address this with QoS mechanisms:
Priority Queuing: Real-time traffic (voice, video) is assigned a high-priority queue that is served before lower-priority data queues. This bounds the latency for delay-sensitive channels.
Weighted Fair Queuing (WFQ): Distributes bandwidth among channels proportionally to their assigned weights, preventing any single channel from monopolizing the link.
Traffic Shaping: Limits the rate at which channels can inject data into the multiplexer, preventing buffer overflow and ensuring fair access.
Committed Information Rate (CIR): In Frame Relay, each virtual circuit is guaranteed a minimum bandwidth allocation (CIR) even under congestion. Traffic above the CIR is marked as Excess and may be discarded during congestion.
CCNA Exam Pointers
- TDM operates at Layer 1 (Physical); STDM operates at Layer 2 (Data Link) and above
- TDM wastes bandwidth by reserving fixed slots for idle channels; STDM eliminates this waste by allocating slots dynamically
- STDM requires a channel identifier in each slot — position alone does not identify the channel (unlike TDM)
- STDM uses buffer memory to handle peak traffic — introduces variable latency
- Statistical multiplexing gain — STDM can support total input rates higher than output link rate by exploiting the fact that not all channels are simultaneously active
- Frame Relay and X.25 are real-world WAN protocols based on STDM principles
- ATM uses fixed 53-byte cells (5-byte header + 48-byte payload) with VCI/VPI identifiers — a fixed-cell evolution of STDM concepts
- STDM frame length is variable — TDM frame length is fixed
- STDM is best suited for bursty data traffic; TDM is best suited for constant-rate traffic (voice, leased lines)
Conclusion
Statistical Time-Division Multiplexing solves the fundamental inefficiency of standard TDM by replacing fixed slot assignments with dynamic, demand-driven allocation. By carrying a channel identifier with each slot and using buffer memory to absorb traffic bursts, STDM achieves significantly higher bandwidth utilization on shared WAN links — at the cost of variable latency and additional protocol complexity. Its principles underpin Frame Relay, X.25, ATM, and ultimately the statistical multiplexing that makes the modern internet possible. For CCNA candidates, understanding the contrast between TDM’s fixed allocation and STDM’s dynamic allocation — and the OSI layer distinction between them — provides the conceptual foundation for understanding WAN technologies and packet-switched network design.
Frequently Asked Questions
What is Statistical Time-Division Multiplexing (STDM)?
Statistical Time-Division Multiplexing is a data transmission technique that dynamically allocates time slots on a shared communication link only to channels that have data to transmit, rather than reserving fixed slots for every channel regardless of activity. Each dynamically assigned slot carries a channel identifier so the receiving demultiplexer can route data to the correct output channel. STDM uses buffer memory to temporarily store data during traffic peaks, and its variable frame length adapts to the number of active channels at any moment. This dynamic allocation dramatically improves bandwidth utilization compared to standard TDM, making STDM the fundamental technique behind modern packet-switched WAN protocols like Frame Relay and X.25.
How does STDM differ from standard TDM?
The core difference is how time slots are assigned. In standard TDM, each input channel receives a fixed, pre-assigned time slot in every repeating frame — whether or not the channel has any data to send. If a channel is idle, its slot is transmitted as empty, wasting bandwidth.
In STDM, slots are assigned dynamically based on which channels have data ready to transmit. Idle channels receive no slot, and their unused bandwidth is redistributed to active channels. Additionally, TDM frames are fixed-length (same number of slots every frame), while STDM frames are variable-length (number of slots depends on how many channels are active). TDM also operates at the physical layer while STDM requires data link layer intelligence for buffer management and channel identification.
Why does STDM require channel identifiers in each slot?
In standard TDM, the position of a slot within the fixed frame uniquely identifies which channel it belongs to — Channel A always occupies slot 1, Channel B always slot 2, and so on. The demultiplexer at the receiving end can separate channels purely by counting slot positions. In STDM, slots are assigned dynamically in any order based on which channels are active — there is no fixed position for any channel.
The demultiplexer therefore cannot determine which channel a slot belongs to from its position alone. The channel identifier field added to each slot header solves this — it explicitly labels each slot with the identity of its source channel, allowing the demultiplexer to correctly route each slot’s data to the appropriate output channel regardless of its position in the frame.
What is statistical multiplexing gain?
Statistical multiplexing gain is the efficiency advantage that STDM achieves by exploiting the statistical probability that not all channels are simultaneously active at their maximum rate. For example, if eight channels each have a maximum data rate of 64 Kbps (total potential demand of 512 Kbps) but each channel is statistically active only 30% of the time, the average total demand is approximately 153 Kbps.
An STDM multiplexer can therefore serve all eight channels on an output link of 200 Kbps with minimal queuing delay under typical conditions — even though the peak total demand of 512 Kbps exceeds the link capacity. The “gain” is the ratio of total possible input bandwidth to actual output link bandwidth required. This gain is what makes STDM economically attractive for data networks with bursty traffic.
What real-world WAN protocols use STDM principles?
Frame Relay is the most direct application of STDM in WAN networking — it dynamically allocates virtual circuit bandwidth using DLCI identifiers in each frame, with CIR guarantees for minimum bandwidth allocation. X.25 is an older packet-switched protocol that also uses dynamic channel multiplexing with logical channel identifiers, adding extensive error correction for unreliable physical circuits. ATM uses a refined variant of STDM concepts with fixed 53-byte cells carrying VCI/VPI identifiers — the fixed cell size reduces latency variance compared to variable-length STDM frames, making ATM suitable for real-time voice and video alongside data. At the broadest level, all IP packet-switched networks — including the internet — operate on statistical multiplexing principles derived from STDM.
