Network Redundancy Solutions: Ensuring Uninterrupted Connectivity Through Redundant Cabling

November 27, 2023

Internet connectivity is far from a mere luxury at this point. It is a necessity for households, businesses, and other industries. The COVID-19 pandemic proved how valuable it is to find ways to stay connected. Everyone wanted to check up on their loved ones or colleagues, but interaction was limited.

In the case of businesses, uninterrupted connectivity dictates an operation’s success. Without it, productivity comes to a halt, and businesses face significant risk of losses. For example, IoT products need connectivity to function, and OEMs might face customer frustration without an internet connection.

Natural disasters and severe weather events can also cause major disruptions to business operations. When network infrastructure fails, downtime costs can be catastrophic. Implementing redundant cabling systems is a proven strategy. It can strengthen disaster resilience and avoid costly interruptions. It safeguards continuity for businesses and services.

Defining Network Redundancy

Network redundancy refers to a backup source of connectivity. It guarantees uninterrupted internet access and ongoing functionality even when the internet connection fails. It’s similar to concepts of “backup internet” or “internet failover.”

When an internet outage occurs, the redundant network takes over immediately. Thus, it eliminates downtime. And it ensures consistent access to customers and employees.

There is usually a fixed monthly fee for backup connectivity. But this is a worthy investment to safeguard your business. Budgeting for this backup means investing in continuity of operations. In effect, it will give you peace of mind. Critical services are still accessible despite potential network issues.

The Components of Network Redundancy

Redundant Hardware

This plays a critical role in network redundancy. Backup or duplicate devices refer to the following:

Routers
Switches
Servers
Power supplies

Having these will enable organizations to remove single points of failure. Whether they encounter hardware failures or maintenance, redundant hardware can take over seamlessly. They will preserve network connectivity and prevent disruptions to the business.

Businesses will experience increased uptime since network services remain operational despite failures. It also affects the restoration rate of services. Finally, duplicate devices reduce the chances of experiencing network outages. That’s because the hardware failure rate itself will be reduced.

Bringing in experienced cabling partners and vendors can greatly simplify redundancy projects. If you live in Florida, Cable companies in Coral Springs offer qualified professionals who can understand your infrastructure. They can also help you manage the complexity every step of the way. Their installation, testing, documentation, and project management expertise is invaluable for seamless execution.

Redundant Software and Protocols

Redundant software and protocols work hand in hand with hardware redundancy. Together, they maintain network availability. Deploying redundant software solutions will allow organizations to keep operating.

The seamless failover that this method provides is vital. The switchover to backup systems will be automatic with no disruptions. It also distributes network traffic across redundant systems. This means organizations can improve performance and prevent overload on certain components. Finally, redundant software solutions can enhance security against cyber threats.

Redundant Network Connections

This was probably expected, but network redundancy uses redundant network connections. It ensures many independent pathways for data transmission. Implementing a diverse physical connection will help businesses enhance network reliability. Having many internet service providers (ISPs) or diverse fiber routes are some ways they can do so.

The business can ensure that the network will still be operational. There are alternative pathways available to keep the work going. They also experience reduced latency.

Having many connections allows businesses to distribute traffic, reduce congestion, and improve general network performance. But the best part is that it facilitates disaster recovery efforts. That’s because it provides alternative routes for data transmission.

Cutting-Edge Technologies Improving Redundant Cabling Resilience

New materials and innovations in cabling offer enhanced durability and resilience:

Composite cables – Made of materials like fluoropolymers that resist water and chemicals.
Self-healing cables – Can repair breaks in the line automatically.
Low-smoke zero-halogen cables – Release less toxic fumes in fire.

These technologies allow cabling to better withstand disasters and continue functioning. For example, some composite cables can operate fully submerged in water.

The Critical Importance of Redundant Cabling for Maintaining Connectivity

Network outages during disasters carry huge financial risks. According to FEMA, nearly 40% of businesses never reopen following a disaster. Gartner estimates that the average cost of IT downtime is $5,600 per minute.

Redundant cabling provides an invaluable safeguard. It prevents connectivity loss by creating multiple pathways for data. If the primary cable fails, network traffic can be instantly routed through the secondary cable with no interruption in service.

Case Study

Miami Children’s Hospital maintained connectivity throughout Hurricane Irma in 2017. This was thanks to a redundant fiber optic backbone. Their resilient infrastructure prevented an estimated $1.5 million in downtime costs.

The Benefits of Network Redundancy

There are several benefits to availing and installing network redundancy in a business. It is especially crucial today, as customers have high expectations of the services and products they receive.

Minimized Downtime

It is common knowledge that unplanned downtimes have severe financial and reputational consequences. However, network redundancy helps businesses avoid costly disruptions. It ensures continuity and high availability when one network fails.

Enhanced Performance

Distributing network traffic across redundant components and connections is a big deal. Businesses can prevent bottlenecks and maintain optimal performance levels. It does not matter, even if they are at peak usage periods. Operations will still run smoothly.

Improved Scalability

Redundant systems are naturally designed to handle huge workloads and traffic demands. This scalability enables businesses to keep growing without worrying about network limitations.

Robust Disaster Recovery

Network redundancy will persist even if these occur:

Natural disasters
Hardware failure
Cyberattack

It provides businesses with the ability to recover quickly and resume operations.

Analyzing the Costs and Benefits of Redundant Cabling

Redundant cabling requires major capital expenditure but pays off by preventing downtime costs. According to research from Omdia:

Installing redundancy for a 1,000-node network costs $200,000-$300,000.
Just four hours of downtime for the same network would cost around $420,000.

It is costly. However, the long-term benefits against downtime make redundancy investments well worth it.

Network Redundancy Examples

Environmental Sensors

IoT sensors are used for environmental monitoring tasks. They can track temperature and humidity levels in storage facilities. It can be engineered to connect to many networks at the same time. Having this backup connection guarantees consistent transmission of important data.

Smart Home Locks

OEMs can produce smart door locks that implement network redundancy. They equip these devices with Wi-Fi and cellular connectivity options. In the event that the Wi-Fi goes offline, the lock can switch to cellular connectivity, ensuring continuous access to security.

Fleet Tracking Devices

OEMs can create fleet-tracking solutions for transportation companies. These solutions incorporate redundancy using multi-carrier connectivity and can switch between cellular carriers. Thus, vehicles can be tracked in areas with weak coverage.

Success Stories: Redundant Cabling Resilience in Action

Florida Hospital

A redundant fiber loop allowed connectivity during the 2004 hurricane season.

Global Bank NYC Data Center

Redundant fiber cabling prevented disruption during Hurricane Sandy flooding. No data loss occurred.

These examples demonstrate the proven effectiveness of proper redundant cabling in safeguarding connectivity.

The Future of Network Redundancy Technology

As threats evolve, redundancy technology will continue advancing:

Artificial intelligence may allow self-healing networks that automatically reroute traffic.
New cabling materials like graphene could enhance durability and speed.
5G wireless redundancy may complement wired redundancy.

Regular evaluation of new technologies will help ensure networks stay resilient. It is effective and more necessary as disaster risks grow.

With natural disasters increasing in severity, redundant cabling is essential to business continuity. It needs planning and investment. A resilient cabling infrastructure can prevent immensely costly downtime. Following best practices in the following will enable companies to thrive despite disruptions:

Design
Installation
Emerging technologies

Frequently Asked Questions

What makes redundant cabling so important for disaster resilience?

Redundant cabling provides alternative paths for network traffic to flow when the main cable is damaged. This prevents complete network failures that would otherwise occur during disasters. The enormous costs of downtime make redundant cabling an essential part of resilience.

How does cabling redundancy compare to other disaster recovery methods?

Disaster recovery solutions help. However, only redundant cabling can provide continuous real-time failover capability. Seamless rerouting of traffic is critical for applications that cannot tolerate interruptions. Redundant cabling works hand-in-hand with these other methods for comprehensive resilience.

What key factors should be considered when implementing cabling redundancy?

These are all vital when implementing cabling redundancy:

Careful planning and design
Diverse routing
Ideal cable types
Complete redundancy
Infrastructure mapping
Monitoring capabilities
Adherence to standards

A phased approach is recommended to spread out costs. Ongoing maintenance and upgrade considerations are also important for long-term resilience.

What is Network Redundancy? – Exclusive Explanation

Asad Ijaz / CCNA /

October 16, 2019

Reliability is the quality of a computer network that consistently performs according to its specifications. It has long been considered one of three related attributes that must be considered when planning a network.

Network Redundancy is one of the key factors to maintain network reliability. Multiple physical connections between network devices provide redundant network paths. The network can continue its operation when a single link or port has failed. Redundant links also share the traffic load and increase capacity and speed.

The Spanning Tree Protocols are the best to use and manage Layer 2 redundancy. Without a proper protocol, layer 2 loops are created which cause network breakdown. The spanning tree protocol chooses the best paths and also chooses an alternate path immediately when the primary path fails.

The network devices provide the capability of network redundancy, such as multilayer switches or routers; provide the facility for a user to use an alternate gateway when the primary gateway fails.

A client may now the ability to connect more than one possible default gateway. First Hop Network Redundancy Protocols manages the client’s default gateway, and also the ability to use an alternate default gateway should the primary default gateway fail.

Network Redundancy at OSI Layers 1 and 2

The three-tier hierarchical network attempts to eliminate a single point of failure on the network. Multiple cabled connections between switches provide physical redundancy in a switched network.

Network Redundancy improves the reliability and availability of the network. With alternate physical connections for data to pass through the network makes it possible for users to access network resources, regardless of any interference.

Nowadays, the availability of the network is very necessary for every organization to complete their business needs. So, the network infrastructure plan is a serious component. Path redundancy eliminates the possibility of failure and continues the services without any disruption.

A hierarchical network design that uses core, distribution, and access layers with network redundancy, attempts to eliminate any disruption of network services to users.

Redundant networks need physical connection including logical redundancy. However, there are possibilities of physical and logical layer 2 loops in the redundant paths in a switched Ethernet network.

When multiple paths exist between two switches on a network, and there is no spanning tree protocol between both, a Layer 2 loop occurs. A Layer 2 loop can result in three primary issues:

MAC database instability
Broadcast storms
Multiple frame transmission

MAC Database Instability (Layer 1 Redundancy)

Ethernet frames require a mechanism to block the continued propagation of broadcast frames on a switched network. The Ethernet frames propagate between switches endlessly, or until a link is disrupted and breaks the loop because the Ethernet frames have no TTL value in their frame headers. This nonstop propagation between switches can result in MAC database instability.

The MAC Address instability occurs due to broadcast frames forwarding which is forwarded out to all switch ports, except the original ingress port. The broadcast ensures that all devices in a broadcast domain can receive the frame.

So, if there is a redundant network path between networks switches that cause an endless loop result. When a loop occurs, it is possible for the MAC address table on a switch to constantly change with the updates from the broadcast frames, which results in MAC database instability.

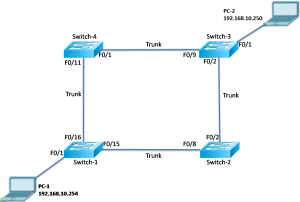

Now look at the below topology PC-1 and PC has a redundant path without any proper logical mechanism. The process of packet sending is as under:

When PC1 sends a broadcast frame to Switch-1. Switch-1 will receive the broadcast frame on F0/1. When Switch-1 receives the broadcast frame, it updates its MAC address table that PC1 is available on port F0/1.
Due to broadcast frame, Switch-1 forwards the frame out to all its ports, including both Trunks. When the broadcast frame arrives at Switch2 and Switch-4, the switches update their MAC address tables to indicate that PC1 is available on port F0/8 on Switch-2 and F0/11 on Switch-4.
So, when the broadcast frame received on Switch-2 and Switch-4, they forward the frame out all ports, except the incoming ports. Both switches send the broadcast frame to Switch-3. If Switch-3 received the broadcast frame from Switch-2 first, it maintains the MAC address table that PC-1 is available on F0/2, and flood the frame out to all its port accept the port 0/2. Meanwhile, it receives the frame from switch-4 on the interface F0/9, the switch-3 overwrite its MAC address table again and flood the same packet to all its interfaces except F0/9
Now again the same packet will circulate into the entire network. Each switch forwards the broadcast frame out all of its ports, except the ingress port. Each time the MAC address table is updated with the last entry received from the other two switches.

This process continuous nonstop until the loop is broken. The loop can be broken by disconnecting the connections physically or powering down one of the switches in the loop. The loop between switches put a high load on the CPU load of all switches which slows down performance on the switch when genuine traffic arrives.

A host participating in the network loop cannot access to other hosts on the network. At the last, due to the constant changes in the MAC table, the switch does not know which port to forward unicast frames.

Broadcast Storms (Layer 1 Redundancy)

When so many broadcast frames caught in a Layer 2 loop that consumes all available bandwidth and there is no bandwidth available for legitimate traffic and the network becomes unavailable for data communication, the broadcast storm occurs. This is also known as an effective denial of service (DoS).

A broadcast storm is expected on a looped network because more devices send broadcasts traffic over the network, which causes more broadcast traffic, is caught in the loop and consumes network resources. This finally creates a broadcast storm that causes the network to fail.

There are other disadvantages of the broadcast storm because traffic is forwarded out every port on a switch; all the connected devices must process all the broadcast traffic that is flooded endlessly around the looped network. This can cause the end device to malfunction.

Duplicate Unicast Frames (Layer 1 Redundancy)

Broadcast frames are not only the type of frames that are affected by loops. Unicast frames sent onto a looped network can result in duplicate frames arriving at the destination device.

Most upper-layer protocols cannot recognize duplicate frames. This protocol generally makes use of a sequence-numbering mechanism assume that the transmission has failed and that the sequence number has recycled for another communication session. Ethernet protocol (Layer 2), require a mechanism to recognize and eliminate endlessly looping frames.

Layer 3 implement a TTL mechanism for eliminating the loops because TTL limits the number of times a Layer 3 networking device can retransmit a packet. Layer 2 devices do not have a mechanism like TTL, so they continue to retransmit looping traffic again and again.

STP, a Layer 2 loop-avoidance mechanism, was developed to solve these problems. To stop these issues from occurring in a redundant network, some type of spanning tree must be enabled on the switches. By spanning tree is enabled in all the Cisco switches to stop Layer 2 loops from occurring.
