Properly configuring Cisco router interfaces is critical for network performance, security, and scalability. Whether you’re setting up an essential LAN connection or advanced IPv6 routing, this guide covers CLI commands, real-world labs, and troubleshooting tips updated for Cisco IOS XE 2024. We can categorize Cisco Interfaces

Physical Interfaces: GigabitEthernet, Serial, FastEthernet, etc.

Logical Interfaces: Loopback, VLAN subinterfaces, Tunnel interfaces.

Virtual Interfaces: Port-channel (EtherChannel) for link aggregation.

In 2025, configuring Cisco router interfaces is vital for supporting 5G backhaul, IoT scalability, and SD-WAN deployments, with 100G, 400G, and emerging 800G interfaces driving AI, high-density networks, and data center interconnects, making this guide essential for CCNA and enterprise engineers.

Step-by-Step Interface Setup

After connecting to a router, you need to get into the Global Configuration Mode of your router using the following commands:

NU_Router>
NU_Router>enable
Password:
NU_Router#configure terminal

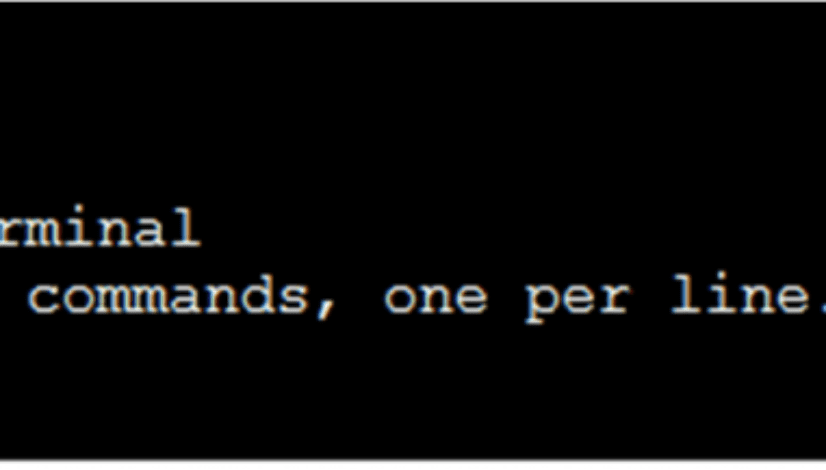

Enter configuration commands, one per line.  End with CNTL/Z.
NU_Router(config)#
NU_Router(config)#

The next option is to choose the correct interface. Many interfaces are available on Cisco routers, such as Ethernet, Fast Ethernet, Gigabit Ethernet, 10G Ethernet, serial interface, Logical and virtual, etc. All interfaces in IOS are exactly numbered. For example, we want to configure Fast Ethernet, which has serial 0/0. We should enter the command as shown below.

NU_Router(config)#interface FastEthernet 0/0

Adding a Description to the Cisco Router Interface

This feature is not necessary, so you may bypass it. It describes the interface but does not assist with the configuration. It just helps prevent human error. For example, add a description (e.g., description 400G to DataCenter or description 800G to AI Cluster) to aid troubleshooting. In 2025, this is key for managing 100G/400G/800G interface documentation.

NU_Router(config-if)#description <Write description of the interface here>

Setting the IP Address on the Interface

Now that you have done everything necessary to add the IP address to the interface, use the following command to enter an IP address according to your IP scheme.

NU_Router(config-if)#ip address 192.168.100.1 255.255.255.0

Enabling Interface

Before using the router interface, you also need to enable the corresponding interface. We can allow the router interface by entering the following command.

NU_Router(config-if)#no shutdown
%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

As of 2025, Cisco IOS XE 17.9 introduces auto-configuration for 100G, 400G, and 800G interfaces on Nexus 9000 and 8000 Series, using QSFP28, QSFP-DD, and OSFP modules, streamlining high-speed lab configurations.

Verifying Cisco Router Interface Configuration

We can verify the interface configuration using several commands. For example, the <show ip interface brief> is the most helpful command for verifying interface configuration. The output of this command displays all interfaces with their IPv4 address and the current status. The configured and connected interfaces should display a status of “up” and Protocol “up”. Any other statements would indicate a problem with the configuration or the cabling. Also, remember that show commands are working in “Privileged mode”

In the same way, we can verify the configuration of the interface using <show running-config>  and also with show startup-config. We can also verify connectivity from the interface using the ping command. The ping command sends five consecutive pings and measures minimal, average, and maximum round-trip times. Exclamation marks in Cisco routers also verify connectivity.

In 2025, use show interfaces status with Cisco DNA Center integration to monitor 100G, 400G, and 800G interfaces in real-time, and show controller optics for detailed diagnostics on 400G/800G coherent optics (e.g., TX/RX power, laser state).

NU_Router#
NU_Router#show ip interface brief
Interface              IP-Address      OK? Method Status                Protocol
FastEthernet0/0        192.168.100.1   YES manual up                    up
FastEthernet0/1        10.10.10.254    YES manual up                    up
Vlan1                  unassigned      YES unset administratively down  down
NU_Router#

Other commands to verify the Cisco router interface configuration.

• show interfaces– Displays statistics for all interfaces on the device.
• Ping – Using the ping command, we can generate five exclamation marks verifying connectivity to the remote side.
• show running-config-.The command shows the entire configuration of the router.
• show startup-config:- When the configuration is saved with the write command, we can verify it using the command mentioned.

Configuring Global Parameters – Summary

To configure the global parameters for the Cisco router, follow these steps.

1. configure terminal

2. hostname name

3. enable secret password

4. no ip domain-lookup

DETAILED STEPS

	Command	Purpose
Step 1	Enter global configuration mode, when using the console port.	Enter global configuration mode when using the console port.
Step 2	hostname nameExample: Router(config)# hostname Router	Specifies the name for the router.
Step 3	enable secret passwordExample: Router(config)# enable secret shxabxaA	Specifies an encrypted password to prevent unauthorized access to the router.
Step 4	no ip domain-lookup Example: Router(config)# no ip domain-lookup	Disables the router from translating unfamiliar words (typos) into IP addresses.

Add IPv6 unicast-routing for IPv6 support, service-policy BRANCH-QOS for 5G/100G/400G/800G traffic prioritization, and enable 400G/800G-specific FEC with zr-optics fec cFEC on supported interfaces.

2025 Interface Configuration Best Practices

In 2025, optimize interfaces with QoS for 5G traffic, enable IPv6 and 100G/400G/800G support using QSFP28/QSFP-DD/OSFP modules, leverage mGig for Wi-Fi 7, and use AI analytics like Cisco ThousandEyes for proactive maintenance on Cisco 8000 Series routers.

Conclusion

This guide equips you with skills to configure Cisco router interfaces, from GigabitEthernet to 100G, 400G, and 800G, preparing you for CCNA labs and enterprise scalability in high-speed networks.
