VLSM lets a single address block be divided into subnets of genuinely different sizes, rather than forcing every subnet to share one uniform mask. This guide continues directly from the network-requirement subnetting example covered previously, taking one of those eight /25 subnets and subdividing it further, three levels deep, to show exactly how VLSM avoids wasting address space that uniform subnetting would otherwise leave unused.
Where This Picks Up

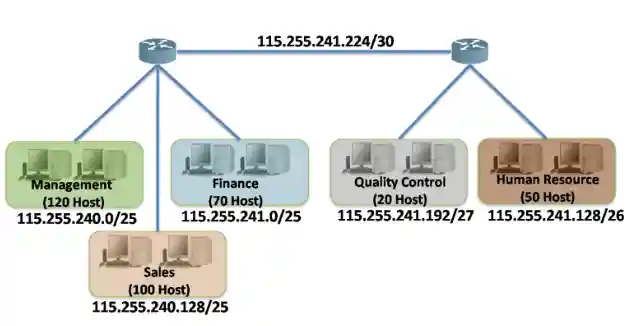

The earlier example split 115.255.240.0/22 into eight /25 subnets, Net-0 through Net-7, using ip subnet-zero to make the all-zeros subnet (Net-0) usable, standard behavior on any current Cisco IOS version rather than something requiring manual configuration today. Three of those subnets went to actual departments:
- Net-0 (115.255.240.0/25): Management
- Net-1 (115.255.240.128/25): Sales
- Net-2 (115.255.241.0/25): Finance
That leaves Net-3 through Net-7 unallocated. This is exactly where VLSM earns its keep: rather than assigning entire /25 subnets, each with 126 usable hosts, to needs that require far fewer addresses, VLSM lets us subdivide Net-3 further into exactly the sizes actually needed, without wasting the remaining capacity on requirements that never call for it.

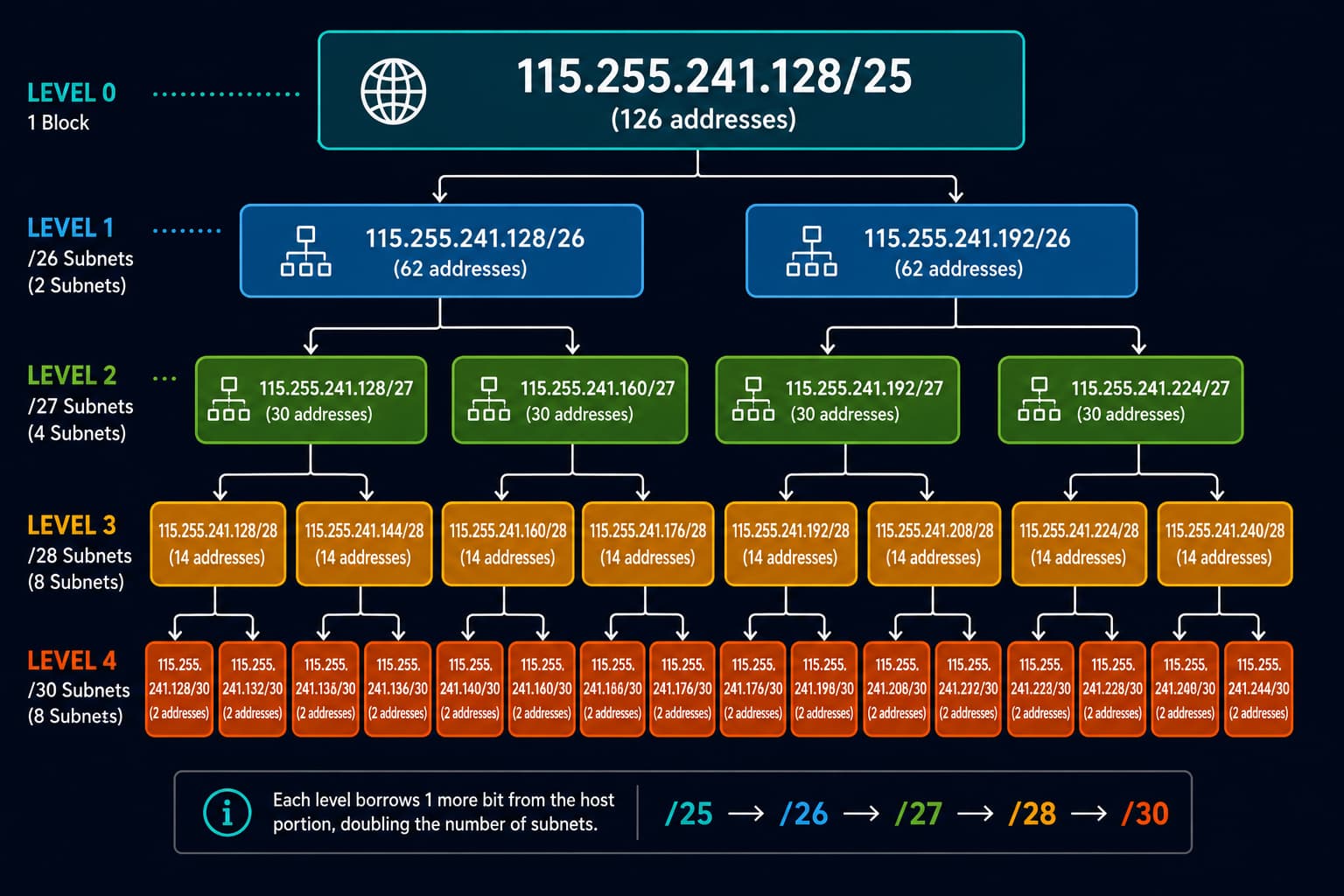

Subdividing Net-3, Step by Step
Starting point: Net-3 = 115.255.241.128/25 (126 usable hosts).

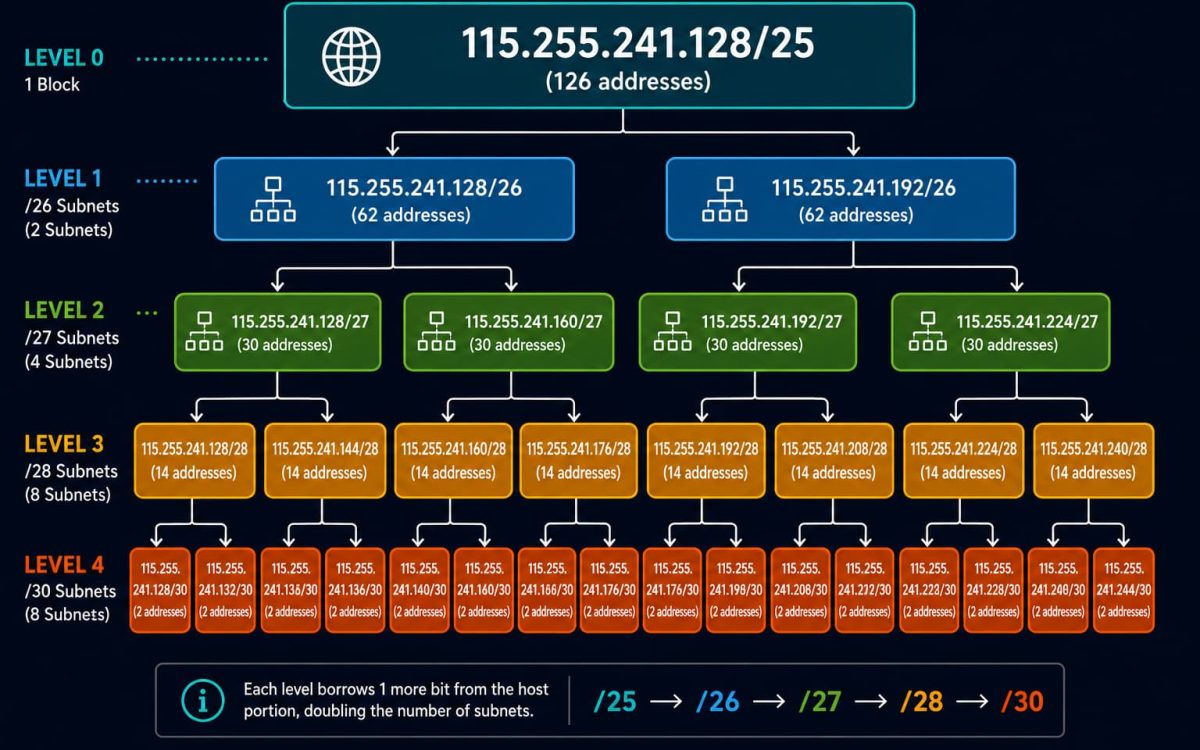

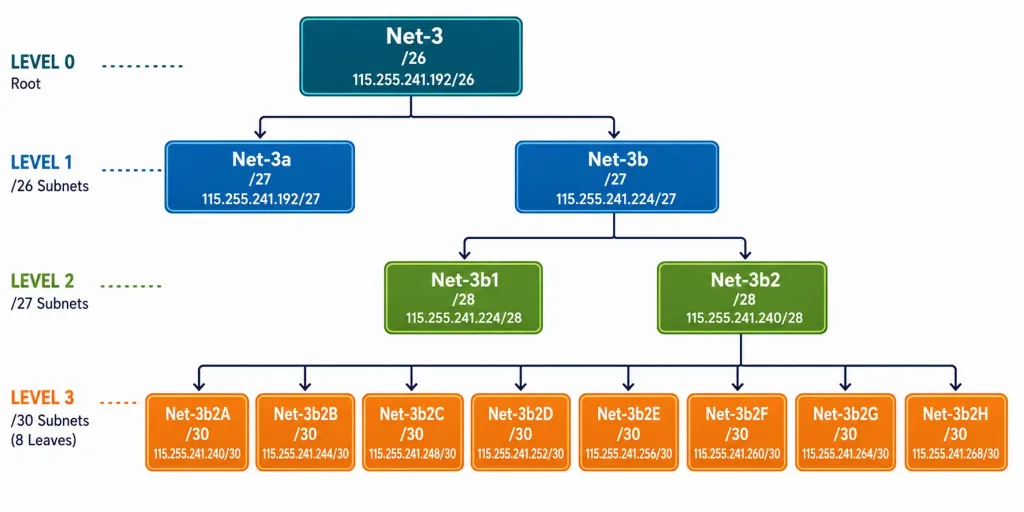

Level 1: Split into two /26s
Net-3 splits evenly into two /26 subnets, each with 62 usable hosts:
- Net-3a: 115.255.241.128/26, assigned to the WAN link between routers.
- Net-3b: 115.255.241.192/26, held for further subdivision.
A WAN link genuinely only needs 2 addresses, one per router, so even a /26’s 62 hosts is far more than necessary here. In a fully optimized design, Net-3a itself could be subdivided down to a /30, but this example keeps it at /26 to illustrate the broader subdivision pattern; the important point is that VLSM makes that further optimization available whenever it’s actually needed, not that every possible optimization has to be applied in every design.
Level 2: Split Net-3b into two /27s
Net-3b splits into two /27 subnets, each with 30 usable hosts:
- Net-3b1: 115.255.241.192/27, assigned to Quality Control.
- Net-3b2: 115.255.241.224/27, held for further subdivision.

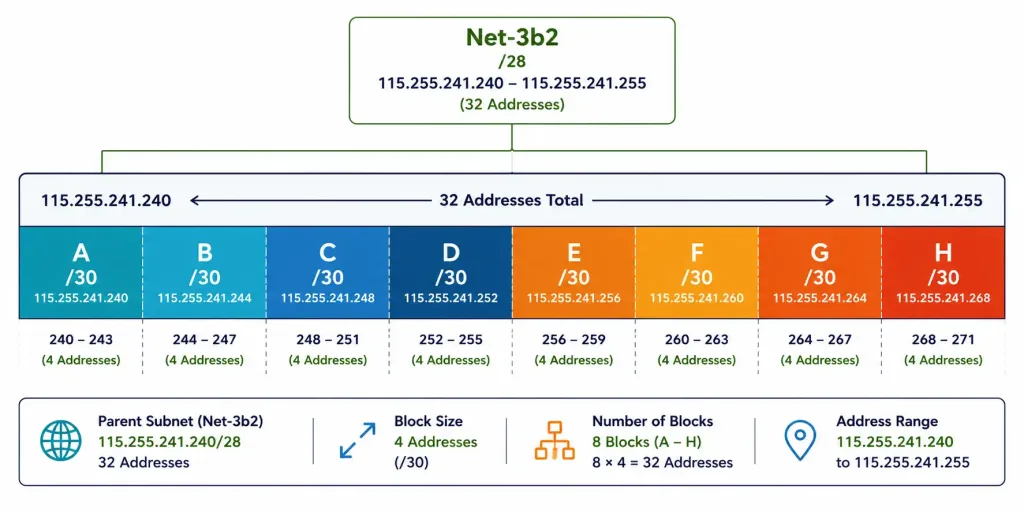

Level 3: Split Net-3b2 into eight /30s
Net-3b2 splits into eight /30 subnets, each providing exactly 2 usable hosts, the standard size for a point-to-point link:
| Subnet | Address | Usable Hosts | Assignment |
|---|---|---|---|
| Net-3b2A | 115.255.241.224/30 | 2 | Spare for future expansion |
| Net-3b2B | 115.255.241.228/30 | 2 | Spare for future expansion |
| Net-3b2C | 115.255.241.232/30 | 2 | Spare for future expansion |
| Net-3b2D | 115.255.241.236/30 | 2 | Spare for future expansion |
| Net-3b2E | 115.255.241.240/30 | 2 | Spare for future expansion |
| Net-3b2F | 115.255.241.244/30 | 2 | Spare for future expansion |
| Net-3b2G | 115.255.241.248/30 | 2 | Spare for future expansion |
| Net-3b2H | 115.255.241.252/30 | 2 | Spare for future expansion |
Why This Subdivision Pattern Matters
A single /25 subnet, 126 addresses, that would have been entirely consumed by one uniform allocation instead ended up serving a WAN link, an entire department, and eight spare point-to-point-sized subnets held in reserve, all without wasting a single address beyond what each specific need actually required. This is the core value proposition of VLSM: address space gets allocated in exactly the sizes different needs actually call for, rather than forcing every allocation into the same fixed size regardless of fit.

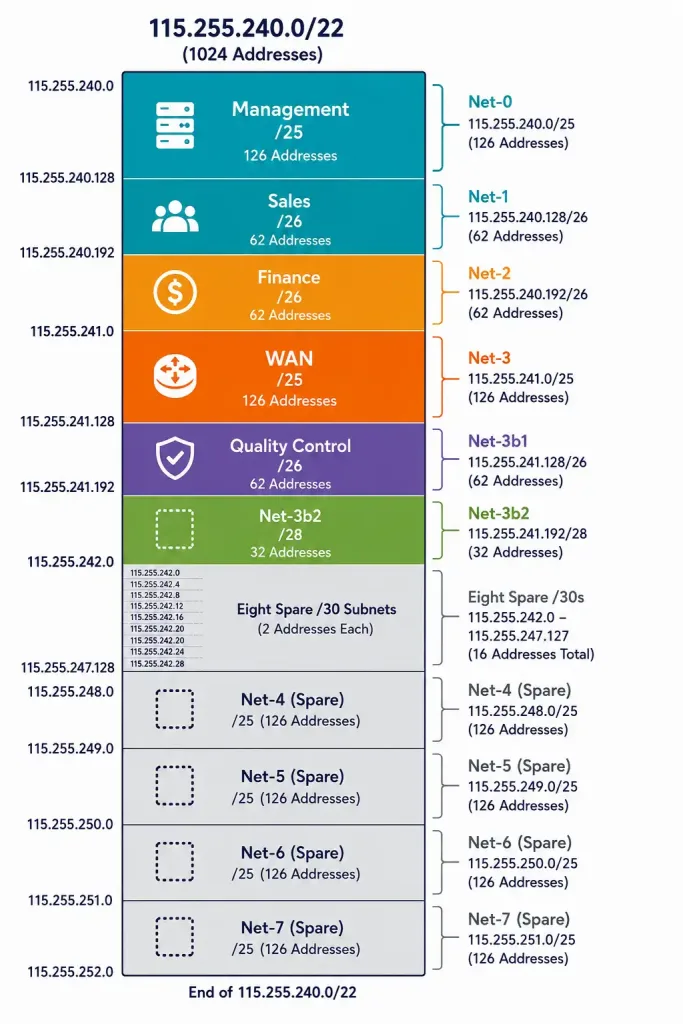

The Complete VLSM Chart
An addressing chart like this is essential documentation for any VLSM design, since it’s the only reliable way to track which blocks are already allocated and which remain available, preventing accidental overlaps as a network continues to grow.
| Subnet | Subnet ID | Usable IPs | Remarks |
|---|---|---|---|
| Net-0 | 115.255.240.0/25 | 126 | Management |
| Net-1 | 115.255.240.128/25 | 126 | Sales |
| Net-2 | 115.255.241.0/25 | 126 | Finance |
| Net-3a | 115.255.241.128/26 | 62 | WAN link between routers |
| Net-3b1 | 115.255.241.192/27 | 30 | Quality Control |
| Net-3b2A | 115.255.241.224/30 | 2 | Spare |
| Net-3b2B | 115.255.241.228/30 | 2 | Spare |
| Net-3b2C | 115.255.241.232/30 | 2 | Spare |
| Net-3b2D | 115.255.241.236/30 | 2 | Spare |
| Net-3b2E | 115.255.241.240/30 | 2 | Spare |
| Net-3b2F | 115.255.241.244/30 | 2 | Spare |
| Net-3b2G | 115.255.241.248/30 | 2 | Spare |
| Net-3b2H | 115.255.241.252/30 | 2 | Spare |
| Net-4 | 115.255.242.0/25 | 126 | Spare for future expansion |
| Net-5 | 115.255.242.128/25 | 126 | Spare for future expansion |
| Net-6 | 115.255.243.0/25 | 126 | Spare for future expansion |
| Net-7 | 115.255.243.128/25 | 126 | Spare for future expansion |
A Second, Independent VLSM Example

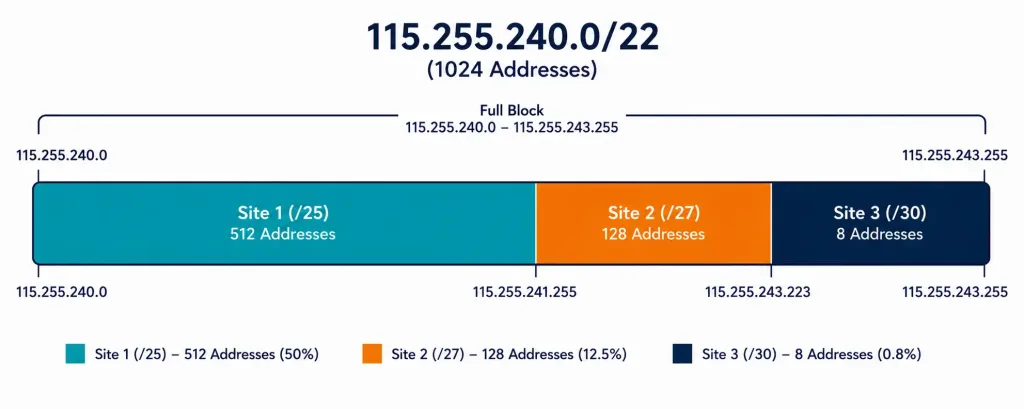

To see the same principle applied at a smaller scale, consider dividing 115.255.240.0/22 across 3 sites with genuinely different size requirements:
| Site | Prefix | Usable Hosts | Address Range |
|---|---|---|---|
| Site 1 | /25 | 126 | 115.255.240.0 – 115.255.240.127 |
| Site 2 | /27 | 30 | 115.255.240.128 – 115.255.240.159 |
| Site 3 | /30 | 2 | 115.255.240.160 – 115.255.240.163 |
Each site gets exactly the size it needs, immediately adjacent to the next without any wasted gap, exactly the efficient packing that makes VLSM worth the extra planning effort compared to uniform subnetting, and precisely the same principle demonstrated at greater depth in the three-level Net-3 example above.
Troubleshooting VLSM Designs
Overlapping subnets. This is the single most common VLSM mistake, since tracking many differently-sized blocks by hand is genuinely error-prone. show ip route on a live Cisco device confirms exactly which ranges are actually configured, and cross-referencing that against your VLSM chart catches overlaps before they cause real routing problems, ideally as a routine check rather than only after something has already broken.
A subnet doesn’t have enough hosts. Using a /30 (2 hosts) for what turns out to be a LAN segment rather than a point-to-point link is a classic sizing mistake. Re-evaluate the actual host requirement and resize to something like a /27, verifying the change with show running-config afterward, and double-check the surrounding blocks haven’t already claimed the additional address space the resize needs.
Difficulty tracking allocated vs. available blocks. This is exactly what a VLSM chart, like the complete table above, exists to solve. Keeping it updated as an authoritative reference, rather than relying on memory or scattered notes, is the single most effective practice for avoiding overlap errors as a VLSM design grows more complex, particularly once a network has been through several rounds of expansion since its original design.
Tracing the Address Math Behind Level 3
It helps to see the actual bit arithmetic behind the eight /30 subnets, rather than just accepting the table. Net-3b2 is 115.255.241.224/27, a 32-address block. Splitting it into /30 subnets means each new subnet is only 4 addresses (2² = 4), so 32 ÷ 4 = 8 subnets result, exactly matching the eight rows in the table above.
Each subnet’s starting address increments by exactly 4 from the last: 224, 228, 232, 236, 240, 244, 248, 252, the eighth and final block ending at .255, precisely the top of Net-3b2’s original /27 range. This consistent 4-address increment is a direct consequence of the /30 mask itself, 255.255.255.252 in decimal, where the block size is determined entirely by the value of the lowest set bit in the mask’s final octet, a relationship worth internalizing rather than memorizing case by case.
Verifying this kind of increment pattern is a genuinely fast way to sanity-check a VLSM design by hand: if consecutive subnets in the same tier of subdivision don’t increment by a consistent value matching their mask’s block size, something in the calculation has gone wrong upstream. This same check applies at every level of a VLSM hierarchy, not just the deepest tier.
How Much Address Space VLSM Actually Saved

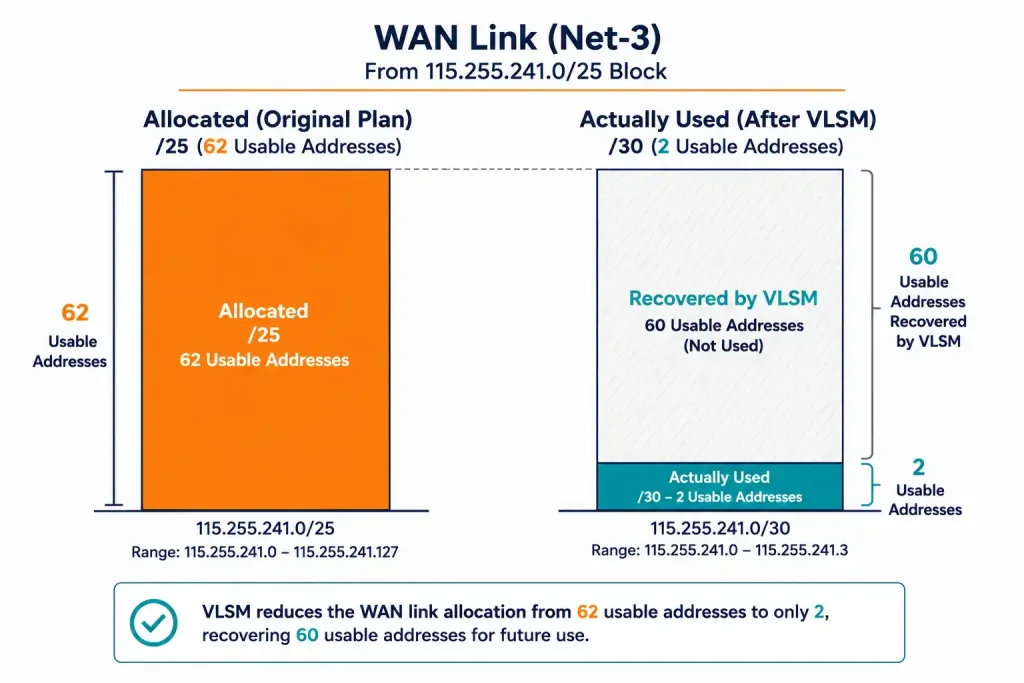

It’s worth quantifying the efficiency gain directly, rather than treating it as an abstract benefit. If Net-3 had simply been left as a single /25 assigned to whichever need came first, only one requirement could have been served from those 126 addresses, and every other need, the WAN link, Quality Control, and the eight spare point-to-point allocations, would have required carving out entirely separate address space elsewhere, if any remained at all. This is precisely the scenario that motivates VLSM in the first place: without it, growth eventually forces either wasteful over-allocation or an entirely new address block.
Instead, that same 126-address block now serves a WAN link (using just 2 of its 62 available addresses), an entire Quality Control department (using up to 30), and eight genuinely reserved spare subnets ready for future point-to-point links without requiring any further planning when that need arises. The gap between “2 addresses actually used” and “62 addresses allocated” for the WAN link alone illustrates exactly the kind of waste uniform subnetting would have locked in permanently, waste that VLSM’s further subdivision recovers and makes available for other purposes instead. That recovered space is precisely what makes Net-4 through Net-7 and the eight spare /30s genuinely available for the network’s future needs.
Frequently Asked Questions
What is VLSM and how does it improve IP address usage?
VLSM (Variable Length Subnet Masking) allows different subnets within the same overall network to use different mask sizes, matching each allocation to its actual host requirement rather than forcing a single uniform size across the board. This directly reduces wasted address space compared to uniform subnetting, where every subnet has to be sized to accommodate the largest requirement, a distinction the fully worked example above makes concrete.
How do I determine the subnet mask for a specific host count using VLSM?
Find the smallest number of host bits h such that 2^h − 2 meets or exceeds the requirement. For 126 hosts, h = 7 works exactly, giving a /25 mask; for a point-to-point link needing just 2 hosts, h = 2 gives a /30, the standard choice for that specific use case, the same underlying formula applying regardless of how large or small the requirement happens to be.
Why are /30 subnets specifically used for point-to-point links?
A /30 provides exactly 2 usable host addresses, precisely matching a point-to-point link’s requirement of one address per router with nothing wasted. Using a larger subnet for a link that will only ever have two devices on it would waste address space for no benefit, exactly the inefficiency VLSM is designed to avoid.
How does VLSM support scalability in larger networks?
By allocating exactly the address space each need actually requires, VLSM leaves considerably more of the original block genuinely available for future growth, as demonstrated by Net-4 through Net-7 and the eight spare /30s remaining untouched in this example. Uniform subnetting, by contrast, would have consumed the same total space far less efficiently, leaving less room for whatever comes next, a difference that compounds noticeably as a network scales over time.
What Cisco commands help verify a VLSM configuration?
show ip interface brief confirms which IP addresses are actually assigned to which interfaces, while show running-config displays the full configuration including subnet masks, letting you confirm a device’s actual configuration matches your VLSM chart. show ip route additionally helps catch overlapping subnets by showing exactly which ranges the router considers distinct routes, a check worth running any time a new subnet is added to an existing design.
What’s the most common mistake when implementing VLSM in practice?
Overlapping subnets, caused by losing track of which address ranges have already been allocated across a design with many differently-sized blocks, is the most frequent error. Maintaining an accurate, continuously updated VLSM chart, like the complete table in this guide, is the most reliable safeguard against this specific mistake.
How does VLSM apply to IPv6 networks?
IPv6 typically uses a fixed /64 subnet size, considerably reducing the need for the kind of variable sizing VLSM provides in IPv4, since address scarcity simply isn’t the same concern under IPv6. The underlying VLSM concept, matching allocation size to actual need, still applies conceptually to how larger IPv6 prefixes get divided among sites or departments, even if the specific /64-per-subnet math looks different from anything covered in this guide.
