OSPF Troubleshooting and Verification Guide

OSPF (Open Shortest Path First) is a cornerstone of enterprise routing, widely tested in CCNA and CCNP exams. Its complexity stems from link-state operations, making troubleshooting and verification crucial for network stability and certification success. This guide explores real-world scenarios, like multi-area OSPF in large networks, to equip students with practical skills. Therefore, troubleshooting OSPF and verifying configurations are very important. There are several ways to verify and troubleshoot OSPF:

Verify OSPF Neighbors

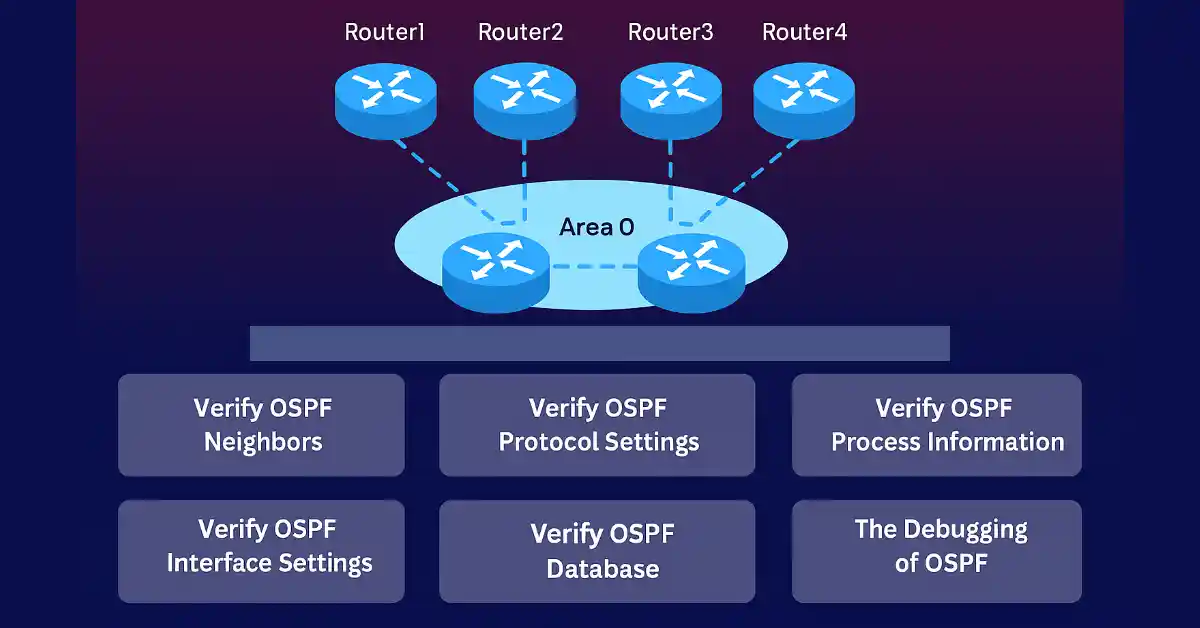

Figure 1 shows the reference topology for this lesson. We can show and verify the OSPF neighbor adjacency using the show ip ospf neighbor command. If the router is not showing the state of FULL, the routers have not formed an OSPF adjacency.

The causes of routers not establishing adjacency include incomplete LSDBs, which can lead to inaccurate SPF trees and routing tables if the route to the destination does not exist or may not be the most optimal path. Figure 2 displays the Router1 neighbor adjacency.

Parameters of show ip ospf neighbor

• Neighbor ID: The unique ID of the neighboring router.
• Pri: The OSPF priority of the interface, used in DR and BDR elections.
• State: The OSPF state of the interfaces. A FULL state means the router and its neighbor have identical OSPF LSDBs. On multi-access networks like Ethernet, adjacent routers may show 2WAY, with DR indicating the adjacent router is the Designated Router.
• Dead Time: The remaining time to receive an OSPF Hello packet before declaring the neighbor down, reset by incoming Hello packets.
• Address: The IP address of the neighbor router interface to which this router is directly connected.
• Interface: The router interface on which adjacency is formed with the neighbor.

Troubleshooting Checklist

If adjacency fails to form on any router, check the following:

Issue	Cause	Solution
Mismatched Subnet	Different masks	Align subnet configurations
Mismatched Timers	Hello/Dead timer mismatch	Sync timers (e.g., 10/40)
MTU Mismatch	Different MTU settings	Match MTU with show interfaces
ACL Blocking	Access list filtering	Verify and adjust ACLs
Passive Interface	Interface set as passive	Remove passive-interface if needed

Use show running-config or debug ip ospf packet to diagnose further. We can also verify Router2, Router3, and Router4 using the show ip ospf neighbor command to troubleshoot OSPF on these routers.

Verify OSPF Protocol Settings

We can verify the OSPF protocol settings using the show ip protocols command to confirm important OSPF configuration information. This command displays the OSPF process ID, the router ID, the advertised networks, the neighbors receiving updates, and the default administrative distance. Figure 3 illustrates the output of the show ip protocols command.

Verify OSPF Process Information

We can verify the OSPF process ID and router ID using the show ip ospf command, as shown in Figure 4. This command displays OSPF area information and the last time the SPF algorithm was calculated, aiding in tracking convergence issues.

Verify OSPF Interface Settings

The command show ip ospf interface displays interface settings, providing a detailed list for every OSPF-enabled interface to check if network statements are correctly composed. For a summary, use show ip ospf interface brief. Figure 5 displays detailed information about this command.

Advanced Usage

Specify an interface name for targeted output, e.g., show ip ospf interface GigabitEthernet0/0/0. Use filters like | include (e.g., show ip ospf interface brief | include FULL) to streamline analysis, reflecting modern Cisco IOS practices.

Verify OSPF Database

The command show ip ospf database displays information on the number of routers in the network or internetwork, plus the ID of the neighboring router. Figure 6 illustrates the output of this command. The ADV router is the advertising router, and the checksum link count may vary depending on the routing device.

LSA Types Explanation

• LSA Type 1 (Router LSA): Describes the router and its links.
• LSA Type 2 (Network LSA): Generated by the DR for multi-access networks.
• Use this command to identify issues like duplicate Router IDs or missing LSAs, critical for CCNP troubleshooting.

OSPF in Multi-Area Networks

Multi-area OSPF optimizes large networks by dividing them into areas. Key concepts include:

• Area Types: Stub, Totally Stubby (reduce LSA flooding).
• ABRs: Area Border Routers connect areas.
• Troubleshoot with show ip ospf border-routers to verify ABR paths.
• Example: Configure area 1 stub on an ABR to limit LSA types.

This is essential for CCNP students managing scalable networks.

OSPF Security and Optimization

Enhance OSPF with security and performance features:

• Authentication: Use MD5 with ip ospf authentication message-digest a key.
• Route Summarization: Reduce routing table size with area range on ABRs.
• Monitoring: Use show ip ospf statistics to track SPF calculations. These practices are vital for secure, efficient CCNP-level networks.

The Debugging of OSPF

This is an essential command for troubleshooting OSPF. Use it cautiously due to CPU impact in production. Options include:

• debug ip ospf event: Displays sent and received Hello packets.
• debug ip ospf adj: Shows DR and BDR elections on broadcast and non-broadcast multi-access networks.
• debug ip ospf packet: Analyzes packet-level issues. Disable all with undebug to avoid resource strain, a key consideration for CCNP engineers.

Conclusion and Best Practices – OSPF Troubleshooting and Verification

Regular verification with the commands above ensures OSPF stability. Enable logging with logging buffered to track events, and download our OSPF Command Cheat Sheet PDF for quick reference. Best practices include consistent timer settings and periodic show ip ospf checks.
