Understanding Transmission Modes: Simplex, Half-Duplex, and Full-Duplex Explained

Transmission modes define the direction and flow of data between devices in a network, playing a critical role in determining communication efficiency. Whether it’s a one-way broadcast like radio or simultaneous two-way conversations like a phone call, understanding these modes—simplex, half-duplex, and full-duplex—is essential for network design and optimization. This article explores each mode with examples, technical insights, and modern applications to help you grasp their significance in today’s connectivity landscape.

Simplex Communication

Simplex transmission allows data to flow in only one direction, from the sender to the receiver, with no capability for the receiver to send data back. This one-way communication is governed by protocols like AM/FM radio signals or infrared transmissions. Examples include:

• Radio Broadcasting: Stations transmit signals to receivers without feedback.
• Television Broadcasting: Content is sent to viewers without interaction.

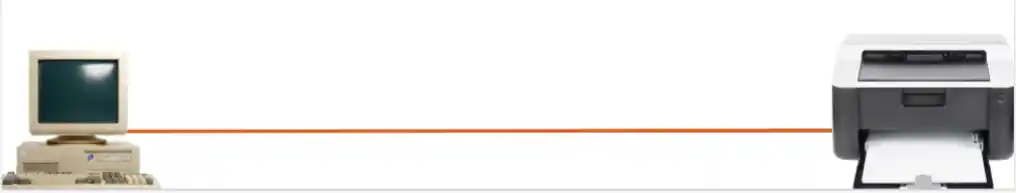

• Computer-to-Printer: Data flows from the computer to the printer.
• Keyboard-to-Computer: Keystrokes are sent to the system, but not vice versa.

Technical Notes

Simplex mode is ideal for scenarios where feedback is unnecessary, using dedicated channels to avoid collisions. However, it limits interactivity, making it less suitable for modern two-way applications.

Half-duplex communication

In half-duplex communication, one side can talk at a time, and the other side should listen. When one side has wholly transmitted its data, the other can reply. Only one node can talk at a time. If both try to speak simultaneously, a collision will occur on the network. So, both devices can transmit and receive the media, but cannot do so simultaneously.

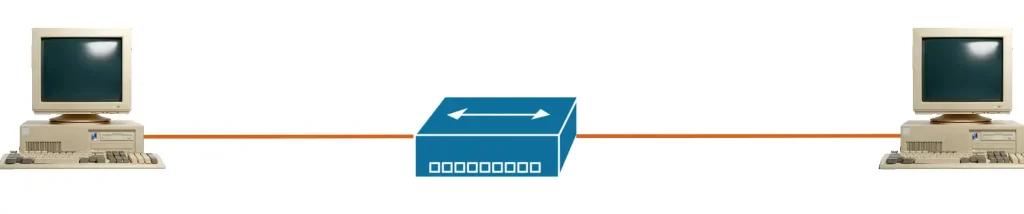

Half-duplex mode is used in legacy bus topologies and with Ethernet hubs. WLANs also operate in half-duplex. It is used with contention-based access methods. This method of communication is not very efficient and requires more time to send/receive larger amounts of data. Older networks are mostly based in half-duplex mode due to the constraints of the network medium (coax cable) and hardware equipment (hubs), as shown in the figure below.

Characteristics

• Only one device can transmit at a time; the other must wait.
• Common in older networks using coaxial cables and hubs, though less prevalent today.
• Modern examples include walkie-talkies, some IoT devices, and certain Wi-Fi networks under heavy load.

Advantages and Disadvantages

• Advantages: Simpler hardware requirements, lower cost for basic setups.
• Disadvantages: Reduced efficiency for large data transfers, potential for collisions.

Technical Context

While half-duplex was standard in legacy Ethernet with hubs, modern switches and twisted-pair cabling (e.g., Cat6) predominantly support full-duplex. However, half-duplex persists in wireless LANs (WLANs) due to shared medium constraints.

Full-duplex communication

Full-duplex communication is the type of communication in which both devices can transmit and receive the media at the same time. The data link layer assumes that the media is available for transmission for both nodes at any time without any danger of collision, so the transfer of data occurs much faster.

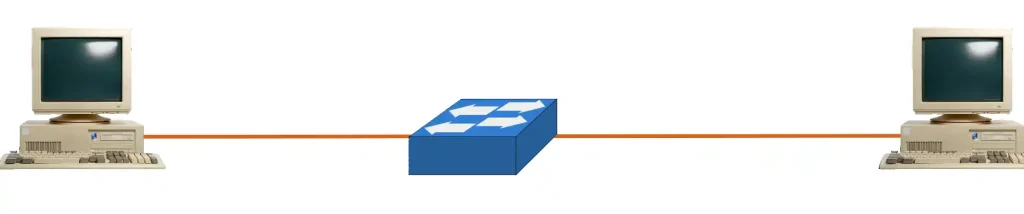

Ethernet switches operate in full-duplex mode by default, but can operate in half-duplex if connecting to a device such as an Ethernet hub. The figure below illustrates full-duplex communication.

Today, all networks use switches instead of hubs and UTP Ethernet cabling instead of coaxial cabling, which allows full-duplex communication between all connected hosts. Both interconnected interfaces must operate using the

Characteristics

• Both devices can transmit and receive at the same time.
• Enabled by modern Ethernet switches and unshielded twisted-pair (UTP) cabling (e.g., Cat5e, Cat6).
• Requires compatible network interface cards (NICs) with auto-negotiation capabilities.

Examples

• Telephone calls where both parties can speak and listen concurrently.
• Video conferencing platforms like Zoom or Microsoft Teams.
• High-speed LANs with Gigabit Ethernet switches.

Technical Context

Ethernet switches operate in full-duplex by default, unlike older hubs that supported half-duplex. Both interconnected interfaces must operate using the same duplex settings (e.g., auto-negotiation or manually configured) to avoid performance issues.

Comparison of Transmission Modes

Modern Applications and Trends 2025

Transmission modes continue to evolve with networking advancements:

• 5G Networks: Utilize full-duplex technologies to enhance uplink and downlink speeds.
• IoT Devices: Often use half-duplex for cost-effective communication in smart homes.
• Fiber Optics: Support full-duplex with separate wavelengths for sending and receiving.
• Auto-Negotiation: Modern NICs dynamically switch between half- and full-duplex based on network conditions.
• Edge Computing: Requires full-duplex for real-time data exchange between edge devices.

These trends reflect the shift toward faster, more efficient communication systems.

Conclusion

As we navigate the evolving landscape of network communication, understanding transmission modes—simplex, half-duplex, and full-duplex—remains foundational to designing efficient and reliable systems. Simplex serves niche one-way applications, while half-duplex offers a cost-effective solution for alternating communication. However, full-duplex stands out as the cornerstone of modern high-speed networks, enabling simultaneous data exchange critical for technologies like 5G, fiber optics, and edge computing. As of June 2025, the shift toward full-duplex capabilities reflects the demand for faster, more responsive connectivity. By selecting the appropriate mode based on your network’s needs, you can optimize performance and future-proof your infrastructure for emerging trends.
