Imagine a group of friends passing a ball around in a circle. Each person receives the ball, does something with it, and then passes it to the next person. This simple idea mirrors the basic principle of a ring network in computer science.

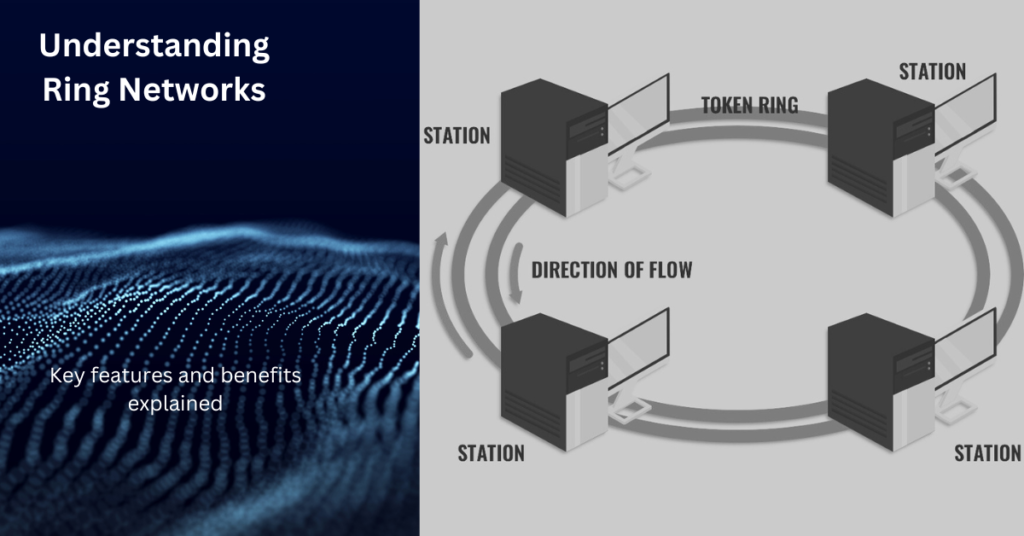

A ring network is a type of network topology where devices are interconnected in a circular fashion, forming a closed loop. In this setup, each device is linked to two others. This creates a continuous path for data transmission. Data travels one way around the ring, passing through each device until it reaches its destination.

Key Characteristics of Ring Network

• Topology: Devices are arranged in a circular pattern.
• Data Flow: Data travels in a single direction around the ring.
• Connection: Each device is connected to two other devices.
• Media Access Control (MAC): Methods for regulating data transmission, such as token passing, are employed.

Understanding Media Access Control (MAC)

Media Access Control (MAC) protocols are vital. They manage data flow in shared networks, like a ring. In a ring network, MAC protocols prevent data collisions. They ensure only one device can transmit at a time.

• Token Passing: One of the most common MAC methods in ring networks is token passing. A special data packet called a “token” circulates around the ring. Only the device possessing the token is allowed to transmit data. Once the device has finished transmitting, it releases the token, allowing the next device to acquire it and transmit its data. This controlled access ensures efficient and collision-free data transmission.
  • Variations:
    • Passing: In this method, the token is simply passed to the next device in sequence around the ring. This is generally simpler to implement but can potentially result in lower throughput, as only one device can transmit at a time.
    • Insert: In this method, a new token is added to the ring. This increases the number of tokens and may improve network throughput. It allows multiple devices to transmit at the same time. However, inserting too many tokens can increase network traffic. It may also cause collisions if not carefully managed.
  • Impact on Network Performance: The choice of token-passing method significantly impacts network performance.
    • Passing: Offers lower complexity but may limit overall throughput.
    • Insert: It can improve throughput. But, it adds complexity. It may increase network traffic and collisions if not managed.
  • Potential for Collisions: Even with token passing, collisions can still occur in certain scenarios:
    • Premature Transmission: If a device attempts to transmit data before receiving the token, it can cause a collision.
    • Token Corruption: If the token gets corrupted during transmission, it can disrupt the data flow and cause collisions.
    • Token Loss: If the token is lost or destroyed, it can disrupt the entire network until a new token is generated or inserted.

How Ring Network Function

1. Data Transmission: When a device has data to send, it waits for the token to arrive.
2. Token Acquisition: Once the device receives the token, it captures it and appends the data to be transmitted.
3. Data Circulation: The data packet, now attached to the token, travels around the ring, passing through each device.
4. Data Reception: The destination device recognizes its address in the data packet and extracts the data.
5. Token Release: The destination device removes the data from the packet and releases the token back onto the ring.

Advantages of Ring Network

• Efficient Data Transmission: Token passing eliminates data collisions. It allows for very efficient data transmission. This is especially true compared to bus topologies, where collisions are more frequent.
• Simplified Cabling: Ring networks need less cabling than mesh topologies. This cuts installation costs and complexity. However, cabling complexity can vary. It depends on the size and complexity of the ring network, the number of devices, and the specific implementation.
  Cabling complexity can be affected by:
  • cable lengths,
  • the need for repeaters or amplifiers, and
  • the network’s layout.
• Scalability: Ring networks can be scaled to accommodate a moderate number of devices. However, scalability may be limited. As the ring size grows, latency and performance bottlenecks may increase.
• Fault Tolerance:
  • Dual Rings: Some ring networks employ two concentric rings for enhanced fault tolerance. If one ring fails, data can still use the second ring. This ensures high availability and minimizes disruption. However, dual rings are only effective if they are synchronized. There is also a risk of cascading failures. Plus, managing two rings is complex.
  • Bypass Switches: These devices can reroute traffic around a failed segment of the ring. They maintain connectivity even if a link fails. However, bypass switches depend on their placement, speed, and rerouting issues. It also depends on the complexity of managing the switches.

Disadvantages of Ring Network

• Single Point of Failure: A single break in the ring can disrupt the entire network. If any point in the circular connection is severed, data transmission is interrupted, affecting all devices on the ring.
• Troubleshooting Challenges: Finding faults in a ring network is harder than in other topologies. Its circular, interconnected design makes it complex.
• Performance Bottlenecks: A single faulty device or heavy traffic can slow data transmission for all other devices on the ring.
• Scalability Limitations: Very large ring networks can be slow. As data travels further, latency increases. This can impact overall network performance, especially for latency-sensitive applications.

Applications of Ring Network

• Local Area Networks (LANs): Once, ring networks were popular for connecting devices within a building or a small campus.
• Metropolitan Area Networks (MANs): Some MANs use ring networks to connect multiple LANs across a city or region.
• Telecommunications: Ring networks are still used in some systems, like SONET/SDH rings, for fast data and voice transmission. These systems need high reliability and fault tolerance. So, ring topologies are best for critical infrastructure.
• Industrial Control Systems: Ring networks are used in industrial control systems for real-time data access and control. They are crucial for reliable and timely data transfer.
• Data Centers: Some data centers use ring topologies for fast links between servers and storage.

Evolution of Ring Network: From Token Ring to Modern Implementations

• Token Ring: One of the most well-known ring network technologies, Token Ring utilized a physical token to control access to the network.
• Fiber Optic Ring Networks: Fiber optic ring networks use fiber optic cables. They have high bandwidth and low latency. They perform much better than traditional copper-based systems.
• Modern Implementations: In networking, ring networks are less common than star or mesh topologies. But their principles are used in specialized cases that require high reliability and performance.

Comparison of Ring Network with Other Network Topologies

Security Considerations

Ring networks, like any network topology, are susceptible to security vulnerabilities. Potential threats include:

• Eavesdropping: Malicious actors can potentially intercept data as it travels around the ring.
• Data Interception: Unauthorized access to data packets can lead to data breaches.
• Denial of Service (DoS) Attacks: Malicious actors can disrupt network traffic. They can flood the ring with data or interfere with the token-passing mechanism.
• Man-in-the-Middle Attacks: Malicious actors can intercept and modify data as it travels around the ring.
• Unauthorized Access: Malicious actors can attempt to gain unauthorized access to network devices on the ring.

It is crucial to mitigate these risks. Use strong security measures, like: encryption (e.g., AES), authentication (e.g., 802.1x), IDS for ring networks, firewalls, network segmentation, and ACLs.

Historical Context

Ring networks have a rich history, evolving alongside the development of computer networking. Early ring networks, like the ALOHAnet, laid the foundation for better ring technologies. The 1980s saw the development of the Token Ring standard (IEEE 802.5). It provided a standard for implementing ring networks. However, the rise of Ethernet and other technologies gradually diminished the popularity of Token Ring. The ideas behind ring networks still influence the development of other systems.
