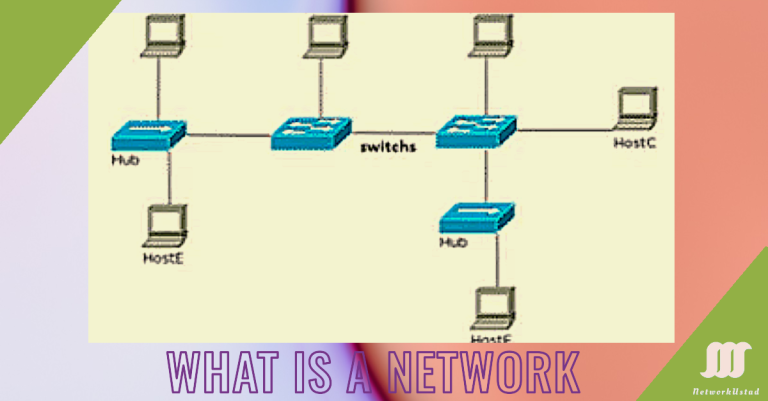

Any network infrastructure contains three components: devices, Media, and Services. Moving data from source to destination can be as simple as connecting one device to another.
Note:- At the end of this article, the assessment test is waiting for you about the Basic network Components
Devices and media are the physical network components, also known as Hardware network components. We can touch or take some physical place, such as the PC, switch, router, wireless access point, or the cabling used to connect the devices.
Services include many typical network applications people use daily, like email and web hosting services. Additionally, processes provide functionality that directs and moves messages through the network. Processes are less evident to us but are critical to the operation of networks.
End Devices
End devices are the first network components and the source or destination of messages or data transmitted over the network. An address recognizes each end device on a network to differentiate one from another. When an end device initiates communication, it uses the address of the destination end device to specify where the message should be sent. Laptops, Desktops, Printers, IP Phones, tablets, and telepresence are examples of end devices.
Intermediary devices
Intermediary devices connect the individual end devices to the other network components. It can connect multiple networks to form an internetwork. These intermediary devices provide connectivity. These devices also make sure data flows across the network. Intermediary devices use the destination end device address, with information about the network interconnections, to decide the path messages should take through the network. Routers, switches, wireless routers, and firewalls are examples of intermediary devices. The most essential intermediary devices are:
Hub
Hub is a network technology, but it is not used in modern networks. In networking, it is just studied because it is helpful to understand a switch. If somebody understands it, then they can easily understand a switch. It is a device that copies data received on any port to all its ports. So, if a packet of data arrives on interface 1 of a 5-port hub, it will blindly copy that data from interfaces 2 through 5. It’s a common connection point for devices in a network. Different segments of the LAN are commonly connected to the hub. It was a cheap and quick way to link multiple computers in the early days.
The main issue with hubs is that only one computer can talk at a time. So, if 2nd computers are going to speak simultaneously, their traffic would get joined as it echoed out the other interfaces. This is called a collision, and it would corrupt the data being transmitted by both computers. So, each computer would have to try again after a random period. This becomes a real problem when the network gets busy or when more than a handful of computers are on a network. A switch solves the collision issue. Hub is a single broadcast and single collision domain.

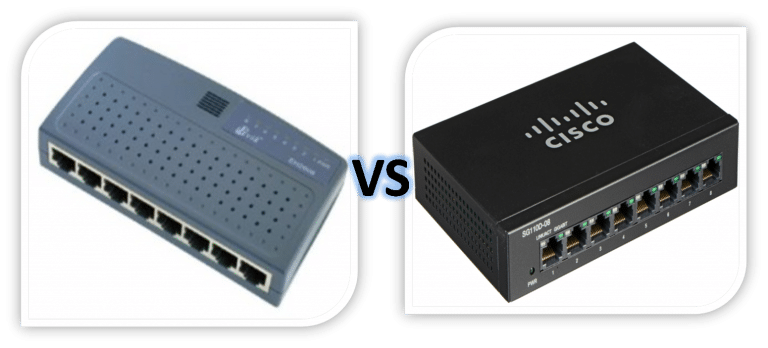

Switch

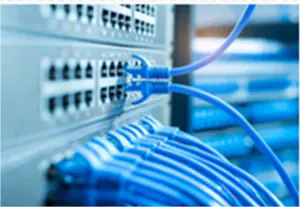

An Ethernet Switch is a device used to connect multiple computers and devices within a LAN. It works at the OSI model’s Layer Two (Data Link Layer). Some switches also work at Layer 3 ( Network Layer). These switches are referred to as Layer 3 switches or multilayered switches.
The Essential Functions of a Network Ethernet Switch and a Network Ethernet Hub are the same: forwarding Layer 2 packets (Ethernet frames) from the source device to the destination device. However, a network switch is more intelligent than a hub. Because an Ethernet switch uses MAC addresses to make forwarding decisions, it does not know about the protocol in the data portion, such as an IPv4 packet. The switch makes forwarding decisions based only on the Layer 2 Ethernet MAC addresses.
Unlike an Ethernet hub that repeats bits from all ports except the incoming port, an Ethernet switch consults a MAC address table to make a forwarding decision for each frame. The MAC address table is sometimes called a content-addressable memory (CAM) table. Moreover, network switches for different input and output bandwidths are available. Today’s Ethernet Network Switches can have bandwidths of 10, 100, 1000, or 10,000 Megabits per second.
Switch Features and Advantages
Connect network devices in a Local Area Network (LAN).
It learns Layer 2 (MAC) addresses and forwards Layer 2 packets (Ethernet frames) to the exact destination with the help of the device’s MAC address.
It’s the control of who has access to various parts of the network.
Provision to monitor network usage.
High-end switches have pluggable modules.
It allows multiple devices and ports to be connected and managed. VLAN can create security and also apply
First broadcast, then unicast & multicast as needed.
Switches use content-accessible memory CAM table, typically accessed by ASIC (Application Specific Integrated Circuits).
Half/Full duplex
Connecting two or more nodes in the same network or a different network
The switch has one broadcast domain [unless VLAN is implemented]

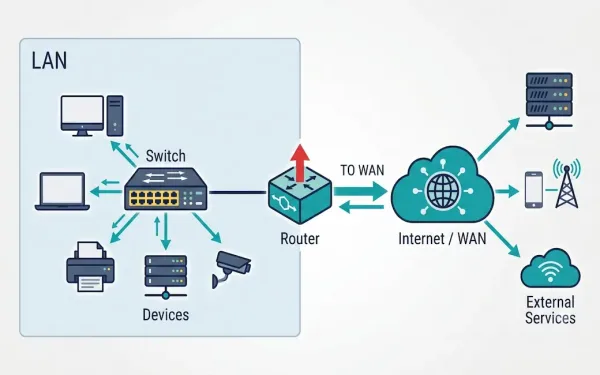

Router
The router is a network device that selects the best path for a data packet. It is located at any gateway (where one network meets another) and forwards data packets from one network to another based on the address of the destination network in the incoming packet and an internal routing table. It also determines which port (line) to send the packet out (ports typically connect to Ethernet cables).
Routers also require packets formatted in a routable protocol. The global standard is TCP/IP, or simply “IP.” Routers operate at Layer 3 (network layer) of the OSI model, and they use the destination IP address in a data packet to determine where to forward the packet. The router stores the IP address in the Routing table and maintains it on its own.
Media
Communication Medium is an essential component of the network. The data transfer speed is good if the medium works well and correctly. Still, if the medium is not working correctly, then your data will be delayed or will not be sent, or even lost during transmission Wires, optical fiber cable, and wireless are the main components of Medi
End devices are like the heart of a network! They are either the source or destination of messages. Think of your laptop, desktop, printer, or trusty tablet. They use addresses to communicate. Have you ever wondered how your data gets to the right place? These devices hold the answer!
Intermediary devices are like the architects of a network. They connect end devices and make data flow smoothly. Routers, switches, wireless routers, and firewalls are among them. Furthermore, they decide how messages travel, ensuring they reach their destination.
Hubs might seem like ancient technology, but they have a place in network history. They copied data to all their ports, which made them ideal for connecting multiple devices. However, they had a downside – only one device could talk at a time, causing collisions. That’s where switches came to the rescue!
Network switches are like the genius of networking. They work at the Data Link Layer and use MAC addresses to send data where it needs to go. Unlike hubs, they don’t repeat data to all ports, making them super efficient. Plus, they can handle varying bandwidths and create secure VLANs.
Routers are like the GPS of the network world. They select the best path for data packets, ensuring they reach the right destination. Routers work at the network layer and decide based on the destination IP address. They’re the gatekeepers that connect different networks.
The communication medium is like the road for your network data. If it’s in top shape, your data will zoom through. But your data could be delayed, lost, or never sent if it’s faulty. Wires, optical fiber cables, and wireless connections are the main components. They’re the unsung heroes that keep data flowing!
Think of the communication medium as the lifeline of your network. When it’s working well, your data travels at lightning speed. But when it’s not, your data can face roadblocks. Wires, optical fiber cables, and wireless connections are the building blocks of network success.
Intermediary devices, like routers and firewalls, are the gatekeepers of your network. They ensure your data gets to the right place and enhance network security. They use their routing tables and internal logic to ensure everything runs smoothly.
A Network Switch is like the brain of the operation. It uses MAC addresses to send data directly to the intended device, making it super efficient. Unlike Hubs, which blindly copy data to all ports, switches ensure data gets to the correct destination, eliminating collisions and boosting performance.
A Router is your network’s traffic director. It decides the best path for data packets and sends them where they need to go. It operates at the network layer, using IP addresses to determine routes. Routers are essential for connecting different networks and ensuring data flows seamlessly.
Peer-to-peer communication has changed the way people share, connect, and collaborate. It removes the need for central authorities. Users speak directly with each other. Over the past decades, peer-to-peer, or P2P, has evolved from basic data exchange to complex, real-time systems. It has shaped messaging, file sharing, online conferencing, and more.
This article comprehensively and structuredly explains the development of P2P communication. It covers key milestones, technical approaches, social impacts, and security implications. Each section is designed to deliver depth while remaining easy to read.
The Origin of Peer-to-Peer Communication Principles
From Local Networks to Global Sharing
P2P communication began in local computer networks. Early systems allowed one user to access files or printers on another computer. These systems did not rely on a central server. Instead, each device operated both as a client and a server. This model supported equal participation. It also introduced the idea that every participant can contribute to the network.
As networks grew larger, so did the complexity of connections. The internet provided a platform to scale the concept of peer-to-peer communication. This shift brought both benefits and new challenges.
File Sharing and the First Breakthroughs
The late 1990s saw a rise in file-sharing platforms. These tools let users share music, videos, and documents. The most famous example used a centralized index but enabled direct file transfers. The idea of millions of users sharing data from their own devices captured public interest. Developers soon looked for ways to remove the central index to improve security and resilience.
By the early 2000s, developers created fully decentralized systems. In these systems, each node knew about other nodes. This formed the basis for modern P2P technologies.
Technical Architecture of P2P Networks
Centralized, Decentralized, and Distributed Structures
There are three core types of P2P design:
Centralized P2P: Users connect to a central server that manages traffic or indexes files.
Decentralized P2P: Users connect through a web of links without relying on a central server.
Fully Distributed P2P: Every node has equal roles and responsibilities, with no special nodes or authorities.
Each structure has pros and cons. Centralized systems are easy to set up but create a single point of failure. Decentralized and distributed systems offer more fault tolerance and harder shutdowns.
Routing and Peer Discovery
For any P2P system to work, users must discover each other. Techniques such as gossip protocols, distributed hash tables (DHTs), and peer exchange methods are used to find and maintain connections. DHTs allow for scalable indexing. Each node stores a small part of the total data and can route requests efficiently.
These systems are often dynamic. Nodes may come and go without warning. The protocol must adapt to these changes without loss of data or access.
Real-Time Peer-to-Peer Communication
Direct Voice and Video Links
P2P found new applications in live communication. Voice over IP (VoIP) and video conferencing tools were early adopters. These services allowed direct media streams between users. The advantage was clear: reduced latency, lower server loads, and improved quality.
Video platforms now use P2P to deliver clearer streams with less delay. Protocols such as WebRTC made it easier to build applications that support this model.
Anonymous Webcam Conversations
A specific use of real-time P2P is found in online video chat communities that enable users to anonymously talk to strangers via webcam. These platforms connect users without login requirements. They allow quick, direct video conversations. The systems often pair users at random. The traffic between them is sent peer-to-peer to improve speed and privacy.
These services depend on stable and low-latency connections. They often use fallback servers if direct peer connection is blocked by firewalls or network settings.
P2P in Content Distribution and Storage
BitTorrent and Swarming Techniques
One of the most effective uses of P2P is large file distribution. BitTorrent is the most well-known protocol in this area. It splits files into small parts. Users download different parts from different peers. This speeds up downloads and reduces the load on any single computer.
The technique, called swarming, means users also upload while downloading. The more people who join, the faster the file spreads. This is more efficient than traditional client-server models, especially for popular or large files.
Decentralized Storage Networks
New storage models use P2P principles to hold data across many computers. Instead of saving data in one location, it is split, encrypted, and stored in many locations. If one node fails, the data can still be reconstructed from others.
Projects that use this model aim to create open, secure storage alternatives. These systems give users more control and reduce dependence on data centers.
Security and Privacy in Peer-Based Systems
Common Risks and Vulnerabilities
P2P communication creates unique risks:
Spoofing: A node can pretend to be another.
Data Pollution: Corrupted or fake data may spread.
Eavesdropping: Without encryption, others may read messages.
Sybil Attacks: One user may create many fake identities to control a large part of the network.
These issues are harder to control in decentralized systems. There is no central monitor or authority to remove bad actors.
Strategies for Protection
To reduce these risks, developers apply:
End-to-End Encryption: Ensures only sender and receiver can read the data.
Peer Reputation Systems: Track behavior over time and discourage abuse.
Consensus Mechanisms: Help verify that data or identity is valid.
Blockchain Integration: Provides a tamper-resistant record of interactions.
Security must balance trust and freedom. Too much control can break the model. Too little control invites abuse.
The Social Shift Toward Peer-Driven Platforms
From Users to Participants
P2P changed the role of users. People no longer just consume content. They share, host, and serve. Every user can contribute. This shift has broken old models of one-way communication.
With this model, small groups can build tools that reach many. Independent creators now have channels to share without hosting costs or platform rules. This has opened new doors for creativity, learning, and community.
Decentralized Communities and Communication
Online groups are forming around P2P platforms. These communities use direct sharing to bypass restrictions or moderation. Messaging apps that use direct peer communication offer more privacy and resistance to censorship.
People have adopted these platforms for open discussion, activism, and collaboration. With the right tools, they can communicate without central oversight or records.
What We’ve Built and What It Means
The rise of peer-to-peer communication has redefined how people connect. What started as a method for sharing files has grown into a powerful structure for real-time video, voice, and data exchange. The systems built today are more secure, flexible, and efficient than ever before.
Users now expect direct, instant access. They want tools that protect privacy and reduce their dependence on central platforms. Peer-to-peer communication technology meets these needs with speed, scale, and strength. The path has not been simple, but the result is a system where people speak to each other without needing anyone in the middle.
I have already written about IPv6 multicast addresses in my previous article. IPv6 multicast addresses work similarly to IPv4 multicast addresses. IPv6-enabled devices can join and listen for multicast traffic on an IPv6 multicast address. Multicasting is one of the powerful features of IPv6 addresses, which enables one-to-many communication, optimizing bandwidth for applications like video streaming, IoT, and network discovery protocols.
This article provides a comprehensive guide to IPv6 multicast addresses, covering their structure, types, practical examples, and real-world use cases. Whether you’re a CCNA/CCNP candidate, a network engineer, or an enthusiast, this guide will help you with the knowledge to master IPv6 multicast. We’ll also include configuration snippets, diagrams, and a downloadable cheat sheet to enhance your learning.
What Are IPv6 Multicast Addresses?

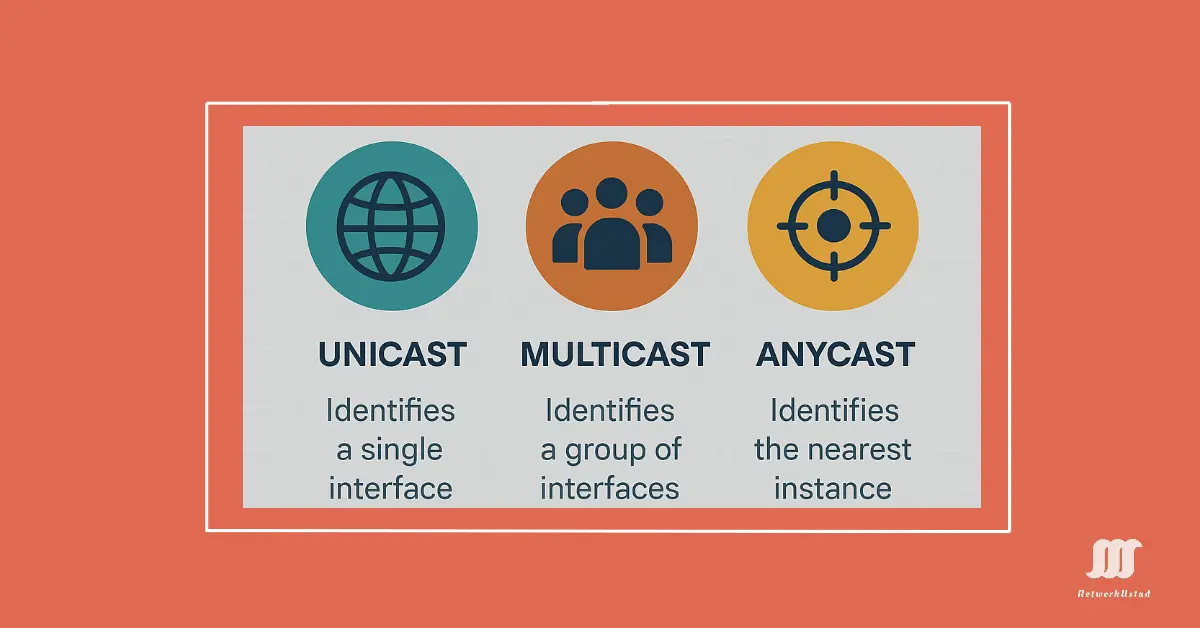

Unlike unicast (one-to-one) or anycast (one-to-nearest) addresses, IPv6 multicast addresses enable a single packet to be sent to multiple recipients simultaneously. This is ideal for scenarios where data needs to reach a group of devices, such as video conferencing, software updates, or Neighbor Discovery Protocol (NDP) in IPv6.
IPv6 multicast addresses are identified by the prefix ff00::/8, meaning the first 8 bits are always 11111111 (FF in hexadecimal). This distinguishes them from unicast or anycast addresses. Multicast eliminates the need for redundant unicast transmissions, saving bandwidth and improving network efficiency. For example, a single multicast packet can deliver a live video stream to thousands of viewers, compared to thousands of unicast streams consuming excessive resources.
IPv6 Multicast Address Structure
The IPv6 multicast address is a 128-bit address divided into four key components, as shown in the diagram below:
The multicast address comprises an 8-bit address indicator, a 4-bit flag, a 4-bit scope, and 112-bit group ID fields. An IPv6 multicast address can identify multiple network interfaces. In IPv6 multicasting, IPv6 datagram packets addressed to a multicast address are delivered to all interfaces identified by the address. The details of the multicast address fields are as follows:-
8-bit Prefix or 8-bit indicator: Always ff00::/8 (binary: 11111111), identifying the address as multicast.
4-bit Flags: Indicates properties of the multicast address:
0 (Reserved): Always 0.
R (Rendezvous Point): 1 if the address embeds a Rendezvous Point (RP) for inter-domain multicast (RFC 3956).
P (Prefix-based): 1 if the address is based on a unicast prefix (RFC 3306).
T (Transient): 1 for dynamically assigned addresses; 0 for well-known addresses assigned by IANA.
4-bit Scope: Defines the address’s reach:
1: Interface-local (e.g., loopback).
2: Link-local (e.g., same subnet).
5: Site-local.
8: Organization-local.
E: Global.
112-bit Group ID: This ID identifies the specific multicast group. For example, ff02::1 represents all nodes on a link.
This structure allows for flexible and scalable multicast communication, tailored to specific network scopes and applications.
Types of IPv6 Multicast Addresses
IPv6 multicast addresses are categorized into well-known and transient addresses, based on their assignment and usage.
Well-Known Multicast IPv6 Addresses
Well-known Multicast Addresses are predefined IP addresses assigned by the Internet Assigned Numbers Authority (IANA) for specific group communications in IP multicast networks. The typical is FF00::/8 for IPv6. These addresses are reserved for protocols like routing, discovery, and management. They also enable devices to join multicast groups without dynamic allocation, ensuring standardized communication.
We can send a single packet to one or more destinations using a multicast address. The multicast IPv6 address Prefix is FF00::/8. Multicast addresses can only be destination addresses. There are two types of IPv6 multicast addresses:
Assigned multicast
Solicited-node multicast
An assigned multicast address is a single address to reach a group of devices running a standard service. It is used in situations with specific protocols, such as DHCPv6.Two common IPv6-assigned multicast groups are the following:
Assigned Multicast IPv6 Addresses
Assigned IPv6 Multicast Addresses are specific addresses within the FF00::/8 range, reserved for multicast group communications in IPv6 networks. These addresses are used for standardized protocols like routing, device discovery, and network management.
All-nodes multicast group
All-nodes multicast groups can join all IPv6-enabled devices. The ff002::1 IPv6 address is reserved for this group. A packet sent to this group should be received and processed by all IPv6 interfaces. RA message to the all-nodes multicast group is an example of an All-nodes multicast group.
When an IPv6 router sends an Internet Control Message Protocol version 6 (ICMPv6) RA message to the all-nodes multicast group, it informs all IPv6-enabled devices on the network about the IPv6 prefix, prefix length, default gateway, and all other related information.
All-routers multicast group
All router multicast groups can join all routers in the local network segment. The IPv6 address FF02::2 is reserved for the all-routers multicast group. A local router can join and become a member of the all-routers multicast group when it is enabled as an IPv6 router with the “ipv6 unicast-routing” command. The “ipv6 unicast-routing” is the command of Global Configuration Mode.
All IPv6-enabled routers on a local network can receive and process a packet sent to this group. IPv6-enabled devices send ICMPv6 Router Solicitation (RS) messages to an all-routers multicast address. The Router Solicitation (RS) message requests a Router Advertisement (RA) message from the IPv6 router to assist the device in its address configuration.
Solicited-Node IPv6 Multicast Addresses
A solicited-node multicast address is like an all-node multicast address. We can map the solicited-node multicast address to a particular Ethernet multicast address. This allows the Ethernet NIC to filter the frame by examining the destination MAC address without sending it to the IPv6 process to see if the device is the deliberate target of the IPv6 packet.
The Solicited-node multicast is a flooding optimization. If sufficient information were already known to support unicast operation, then there would be no point. The solicited-node multicast is used when there is no information to support unicast operation. The solicited node allows the flooded traffic to reach all nodes like a broadcast.
Solicited-node multicast addresses can be created automatically using a special mapping of the device’s unicast address with the solicited-node multicast prefix, which is ff02:0:0:0:0:1:ff00::/104. It can be created automatically for every unicast address on a device.
How It Works
For every unicast address assigned to an interface, a device automatically joins a corresponding solicited-node multicast group. The address is calculated as follows:
Prefix: ff02::1:ff00:0/104 (link-local scope).
Last 24 bits: Copied from the unicast address’s last 24 bits.
For example:
Unicast address: 2001:db8::1234:5678.
Last 24 bits: 34:5678.
Solicited-node address: ff02::1:ff34:5678.
When a device needs to resolve a neighbor’s MAC address, it sends a Neighbor Solicitation message to the solicited-node multicast address. Only devices subscribed to that group respond, reducing network overhead.
Example in Action
Suppose a router needs to resolve the MAC address for 2001:db8::a1b2:c3d4. It sends a Neighbor Solicitation to ff02::1:ffc3:d4. The target device responds with its MAC address via a Neighbor Advertisement, completing the resolution process.
Transient Multicast Addresses
Transient Multicast Addresses in IPv6 are multicast addresses that are not permanently assigned by IANA and are instead dynamically allocated for temporary or application-specific use. Unlike well-known multicast addresses (e.g., FF02::1), transient addresses are typically within the FF00::/8 range but outside the reserved scopes like FF02::/16 or FF05::/16. They are used by applications or services for short-term multicast groups, such as multimedia streaming or ad-hoc group communications. These addresses are often assigned via protocols like Multicast Address Dynamic Client Allocation Protocol (MADCAP) or through manual configuration, and they are released when no longer needed. IANA does not maintain a fixed registry for transient addresses, as their use is temporary and context-specific.
Multicast Listener Discovery (MLD)
Multicast Listener Discovery (MLD) is the IPv6 equivalent of IGMP in IPv4, enabling devices to join or leave multicast groups. MLD operates in two versions:
MLDv1: Supports basic group membership (similar to IGMPv2). Devices send MLD Report messages to join groups like ff02::1.
MLDv2: Adds support for source-specific multicast (SSM), allowing devices to specify which sources they want to receive data from (RFC 3810).
MLD uses link-local multicast addresses like ff02::16 (MLDv2 queriers) to manage group memberships. For example, a video streaming client might join ff05::1234 (site-local) to receive a multicast stream.
IPv6 Multicast vs. IPv4 Multicast
To understand IPv6 multicast’s advantages, let’s compare it with IPv4 multicast:
Feature
IPv4 Multicast
IPv6 Multicast
Address Range
224.0.0.0–239.255.255.255 (Class D)
ff00::/8
Address Structure
32 bits, no scope field
128 bits, with flags and scope fields
Address Resolution
Uses ARP (broadcast-based)
Uses solicited-node multicast (NDP)
Group Management
IGMP (v1, v2, v3)
MLD (v1, v2)
Scope Control
Limited (relies on TTL)
Explicit scope field (e.g., link-local, global)
Adoption
Declining (~59% IPv4 traffic, 2025)
Growing (~41% IPv6 traffic, 2025)
IPv6 multicast is more scalable, efficient, and flexible, thanks to its structured addressing and NDP integration.
Real-World Use Cases of IPv6 Multicast
IPv6 multicast addresses power a wide range of applications, from network protocols to modern technologies. Here are key use cases:
Neighbor Discovery Protocol (NDP):
Uses ff02::1 (all-nodes) and solicited-node addresses for address resolution, router discovery, and duplicate address detection.
Example: A new device joins a network and sends a Router Solicitation to ff02::2 to find routers.
Video Conferencing and Streaming:
Multicast delivers live streams to thousands of viewers, saving bandwidth. For example, a global stream might use ff0e::1234 (global scope).
Catchpoint notes that multicast can save ~50 Mbps per HD video stream in teleconferencing.
Internet of Things (IoT):
IoT devices use multicast for group communication, such as firmware updates to smart bulbs on ff05::abcd (site-local).
Example: A smart home hub sends a single update packet to all devices in a multicast group.
Software Distribution:
Enterprises use multicast to deploy updates to multiple servers simultaneously, using organization-local addresses like ff08::5678.
Inter-Domain Multicast:
Embedded Rendezvous Point (RP) addresses (RFC 3956) enable multicast across domains, used in large-scale content delivery networks (CDNs).
Practical Example: Configuring IPv6 Multicast on a Cisco Router
To illustrate IPv6 multicast in action, let’s configure a Cisco router to ping the all-nodes multicast address (ff02::1) and verify connectivity.
Sending 5, 100-byte ICMP Echos to FF02::1, timeout is 2 seconds:
Reply to request 0 from 2001:DB8::2, 1 ms
Reply to request 0 from 2001:DB8::3, 1 ms
Reply to request 1 from 2001:DB8::2, 1 ms
...
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms
This confirms that all nodes on the link (e.g., 2001:db8::2, 2001:db8::3) received and responded to the multicast ping.
Wireshark Capture
To analyze multicast traffic, use Wireshark with the filter ipv6.dst == ff02::1. You’ll see ICMPv6 packets sent to the all-nodes address, demonstrating multicast’s efficiency.
Reserved IPv6 Multicast Addresses
Address
Description
ff02::1
All nodes on the local network
ff02::2
All routers on the local network
Ff02::4
The all-Distance Vector Multicast Routing Protocol address.
All Dynamic Host Configuration Protocol servers and relay agents on the local network site
ff02::1:3
Link-local multicast name resolution
Conclusion
IPv6 multicast addresses are a powerful tool for efficient, scalable communication in modern networks. By understanding their structure (ff00::/8, flags, scope, group ID), types (well-known, transient), and applications (NDP, streaming, IoT), you can leverage multicast to optimize network performance. Practical configurations, like pinging ff02::1 on a Cisco router, and tools like Wireshark deepen your expertise.
IPv6 multicast reduces bandwidth usage by transmitting data to multiple recipients in a single stream, making it ideal for IoT and large-scale networks.
Configuring global IPv6 addresses can feel difficult, but don’t worry—you are at the right place, and we will guide you step by step. Whether you’re a beginner setting up your first IPv6 network or a pro looking to refine your skills, this guide covers everything. We’ll break down the three main methods—manual configuration, Stateless Address Autoconfiguration (SLAAC), and DHCPv6, with practical examples, troubleshooting tips.
Why IPv6? A Quick Recap
IPv6 isn’t just an upgrade of IP addresses, it’s a necessity for the future of networking. With IPv4 addresses’ space running out faster, IPv6 steps in with its massive 128-bit address space. That’s enough to assign an IP address to every device on the planet (and beyond) a unique address.
The Basics: What’s in a Global IPv6 Address?
TheInternet Assigned Numbers Authority (IANA) and the Internet Corporation for Assigned Names and Numbers (ICANN) allocate Global IPv6 address blocks to the five Regional Internet Registries (RIRs). Only global unicast addresses with the first three bits of 001 or 2000::/3 are assigned to various Internet address registries. This is a tiny portion of the available Global IPv6 addresses. A global IPv6 unicast address has three parts, which are illustrated in the figure below:-

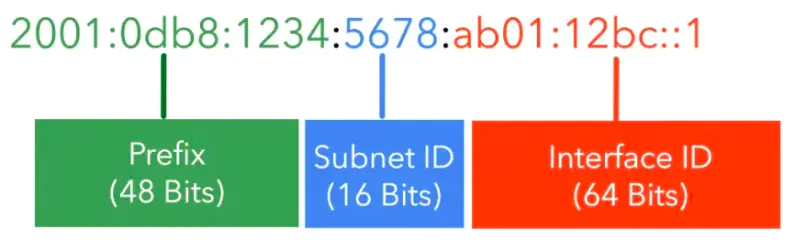

Clear visualization of the IPv6 address components: Prefix, Subnet ID, and Interface ID.
Global routing prefix
Subnet ID
Interface ID
Global Routing Prefix is the network portion of the global IPv6 address, which the provider has assigned. RIRs assign a /48 global routing prefix to customers, as shown in the figure above. This can be used by everyone, from business networks to individual households. The figure illustrates the structure of a global unicast address using a /48 global routing prefix with a 16-bit subnet ID.
An IPv6 address looks a bit intimidating at first—something like 2001:0db8:85a3:1234:2525:7a2e:a370:b334. It’s 128 bits long, split into eight groups of hexadecimal numbers. The first 64 bits typically represent the network prefix, while the last 64 bits are the interface identifier. This structure is key to how IPv6 works, and we’ll see it in action as we configure these addresses. The range of global IPv6 prefixes in the first hextet is 0010 0000 0000 (2000) to 0011 1111 1111 (3FFF).
IP Address Configuration on Cisco Routers
Method 1: Manual Configuration – Taking Control
If you can configure an IPv4 address on a router, then you can easily configure the IPv6 address, because there is not much difference between the configurations. You can assign a static IPv6 address to a device’s interface yourself, just as you would in IPv4 address assigning.
Simple Steps to do it
Here’s a simple and step-by-step guide for configuring a global IPv6 address manually on a Cisco router:

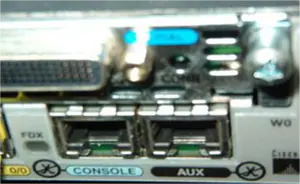

Log In: Access your device via SSH or using console cable. You can also access it using telnet, but we discourage it because it is not safe.
Enter Config Mode: Type <configure terminal> to start making changes.
Pick an Interface: For example, interface GigabitEthernet0/1.
Set the Address: Use <ipv6 address 2001:db8::1/64> (adjust the address to your network’s prefix).
Activate It: Run no shutdown to bring the interface online, just like assigning an IPv4 address to an interface.
Check Your Work: Use the show <ipv6 interface brief> command to confirm everything’s set.
Real-World Example
Imagine you’re setting up a router for your small business. Here’s what the commands might look like:
Router> enable Router# configure terminal Router(config)# interface GigabitEthernet0/1 Router(config-if)# ipv6 address 2001:db8::1/64 Router(config-if)# no shutdown Router(config-if)# end Router# show ipv6 interface brief
After running this, you’d see the interface listed with 2001:db8::1. The original article included a similar Cisco example, assigning the address 2001:db8::1 with a /64 prefix. It’s satisfying to see it come to life, right?
When to Use It
Manual configuration is best when you are working in smaller networks or for critical devices. I once had to manually configure a server’s address because our monitoring tools needed a consistent IP—SLAAC just wouldn’t cut it there. But for a big network with dozens of devices? That’s when it gets tedious.
Method 2: SLAAC – Let Devices Figure It Out
Stateless Address Autoconfiguration (SLAAC) is IPv6’s gift to lazy network admins (and I mean that in the best way). Devices configure their own addresses automatically using info from the router—no babysitting required. I had already discussed how the SLAAC is working in my article Router Advertisement (RA) Messages in detail. Here is the summary I am sharing again, and then a detailed configuration command.
How SLAAC Works
Here’s the magic:
Router Talks: It sends Router Advertisement (RA) messages with the network prefix.
Device Listens: The host grabs the prefix from the RA.
Address Creation: It combines the prefix with an interface ID (often based on its MAC address).
Safety Check: The device runs Duplicate Address Detection (DAD) to avoid conflicts.
Setting Up SLAAC on Your Router.
On your router, you need to enable RA messages. Here’s a Cisco example:
Router(config)# interface GigabitEthernet0/1 Router(config-if)# ipv6 address 2001:db2::1/64 Router(config-if)# ipv6 nd ra interval 200 Router(config-if)# ipv6 nd ra lifetime 1800
The RA messages will be sent every 200 seconds with a 1800-second lifetime. Now, any device on that network can pick up the prefix 2001:db2::/64 and generate its address.
Why SLAAC is a beauty
I’ve used SLAAC in home networks and also in a small office, it’s a beauty. Once, I set it up on a network, and within minutes, every device was online without me lifting a finger. It’s like the network configured itself while I grabbed a coffee.
Method 3: DHCPv6 – The Organized Approach
DHCPv6 is the big brother of IPv4’s DHCP, offering stateful address assignment with a server keeping tabs on everything. It’s perfect when you want control and automation. I have already discussed the working procedure ot the DHCPv6 in my article Router Advertisement (RA) Messages. Here is the summary of how it works, and then a detailed configuration command.
How It Goes Down
Client Asks: The device sends a “Solicit” message to find a DHCPv6 server.
Server Offers: It responds with an address and config details.
Client Chooses: The device picks the offer and requests it.
Server Locks It In: The address is assigned, along with extras like DNS info.
How to Configure DHCPv6 on Cisco Router
Step-1 – Enter to Global configuration mode and enable IPv6 unicast router
Router(config)# ipv6 dhcp pool DHCPv6-POOL Router(config-dhcpv6)# dns-server 2001:4860:4860::8888 # Example DNS (Google) Router(config-dhcpv6)# domain-name networkustad-a2bb2f.ingress-alpha.ewp.live # Your domain Router(config-dhcpv6)# address prefix 2001:db8:1::/64 # Subnet for clients Router(config-dhcpv6)# exit
Use address range 2001:db8:1::100 2001:db8:1::200 instead of address prefix for a specific range.
Add lifetime infinite infinite to the prefix/range for permanent leases (optional).
Step 3: Configure the Interface
Router(config)# interface GigabitEthernet0/0 Router(config-if)# ipv6 address 2001:db8:1::1/64 # Router's interface address Router(config-if)# ipv6 dhcp server DHCPv6-POOL # Bind the DHCPv6 pool Router(config-if)# ipv6 nd managed-config-flag # Force clients to use DHCPv6 for addresses Router(config-if)# end
Step 4: Verification Commands
Router# show ipv6 dhcp binding Router# show ipv6 dhcp pool Router# show ipv6 interface GigabitEthernet0/0
Static Configuration of Global IPv6 Address on Host
Similarly, we can configure an IPv6 address on a host computer like an IPv4. For example, As shown in Figure, the IP address configured for the host is 2001: DA1: B111:: ABCD: BCD: 1 and the default gateway address is 2001: DA1: B111:: ABCD: BCD: 1. Both addresses are global unicast addresses. The router’s link-local address can also be configured as the host’s default gateway. Both configurations will work. Static address configuration for the host is best practice in a small network, but for a more extensive network, dynamic assignment of IPv6 address configuration is best.
We can use dynamic IPv6 address configuration on host computers in two ways. The ways to configure IPv6 global unicast address automatically are Stateless Address Auto-Configuration (SLAAC) and Dynamic Host Configuration Protocol version 6 (DHCPv6). Using DHCPv6 or SLAAC, the local router’s link-local address will also automatically be specified as the default gateway address for the host.
Stateless Address Auto-Configuration (SLAAC)
It is a unique feature for IPv6 addresses that is not available in IPv4. Using SLAAC, the device can get an IPv6 address prefix, prefix length, default gateway address, and other information from an IPv6 router without using a DHCPv6 server. All Cisco devices have the capability of SLAAC, but by default, SLAAC does not provide anything to the client outside of an IPv6 address and a default gateway. Using SLAAC, devices rely on the local router’s ICMPv6 Router Advertisement (RA) messages to obtain the necessary information.
IPv6-enabled routers send out ICMPv6 RA messages, after every 200 seconds, to all IPv6-enabled devices on the network. RA messages have three options to automatically get an IPv6 address. An RA message will also be sent in response to a host sending an Internet Control Messaging Protocol version 6 (ICMPv6) Router Solicitation (RS) message. IPv6 routing is not enabled by default. We can allow IPv6 routing using the following commands.
A global IPv6 address lets your device connect worldwide, while a link-local address is just for local network chatter. Think global as your phone number and link-local as an intercom.
Make sure your router’s sending RA messages with the right flags (like the A-bit). Also, check if the device is set to accept them—some OSes need tweaking.

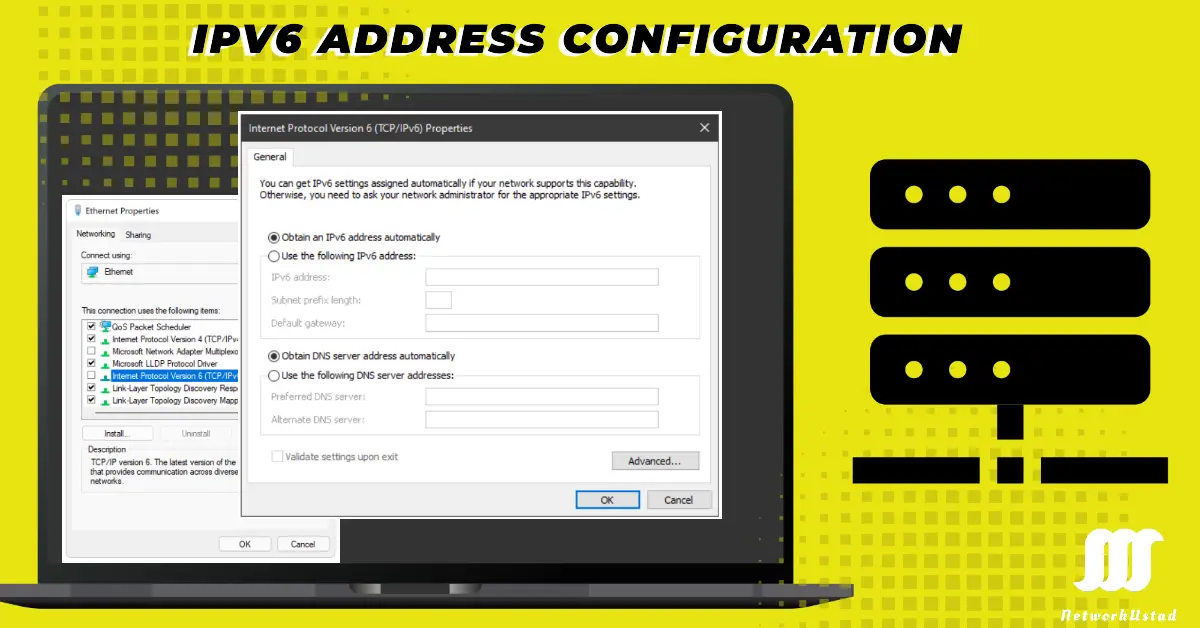

Open the TCP/IPv6 Properties window, select “Obtain an IPv6 address automatically,” and ensure your network supports IPv6. Click OK to apply the settings.
The subnet prefix length is typically 64 for most networks. It defines the network portion of the IPv6 address, so confirm with your network administrator if unsure.
Yes, in the TCP/IPv6 Properties window, select “Use the following DNS server addresses” and enter your preferred DNS server, such as Google’s 2001:4860:4860::8888.

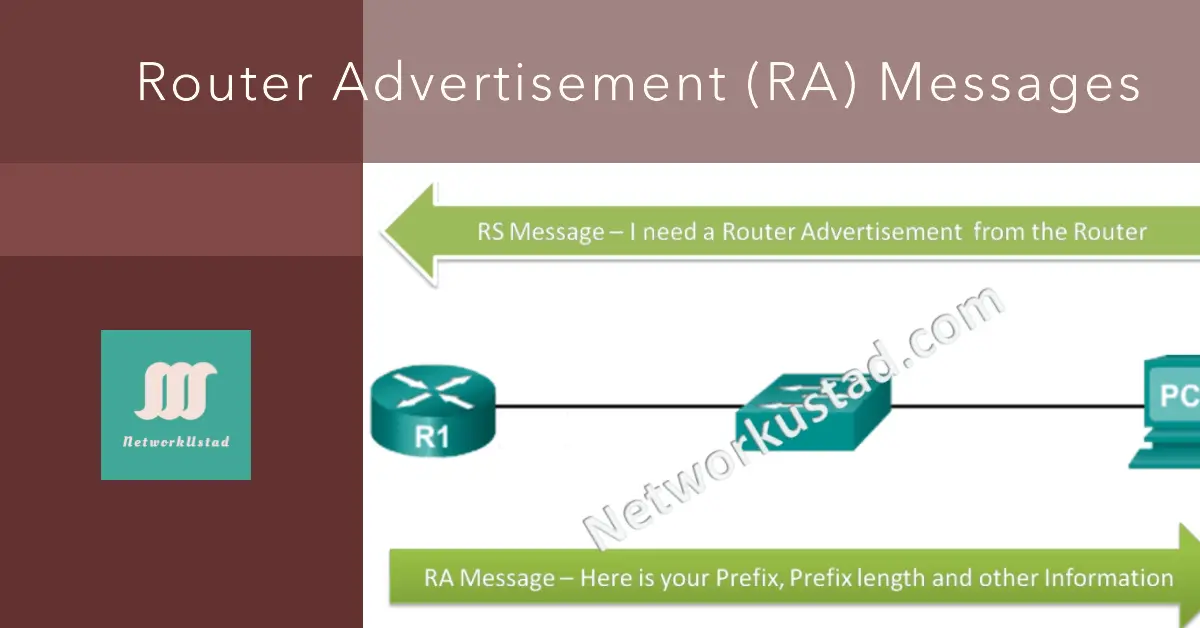

Router Advertisement (RA) messages are a cornerstone of IPv6 networking, allowing routers to broadcast their presence and share critical configuration details with devices on the network. This guide provides an in-depth exploration of RA messages, their structure, and their role in IPv6 networks—perfect for network professionals and enthusiasts aiming to master IPv6 configuration.
What Are Router Advertisement Messages?
RA messages belong to the Internet Control Message Protocol for IPv6 (ICMPv6). Routers send these messages either periodically to the all-nodes multicast address (FF02::1) or in response to Router Solicitation (RS) messages from hosts. Their primary purpose is to:
Announce the router’s presence.
Deliver configuration parameters like network prefixes, default gateways, and MTU settings.
Key information provided includes:
Network Prefixes: Used for Stateless Address Autoconfiguration (SLAAC).
Default Gateway: The router’s address for external traffic routing.
MTU: The maximum packet size allowed without fragmentation.
Hop Limit: The maximum hops a packet can travel.
Structure of an RA Message

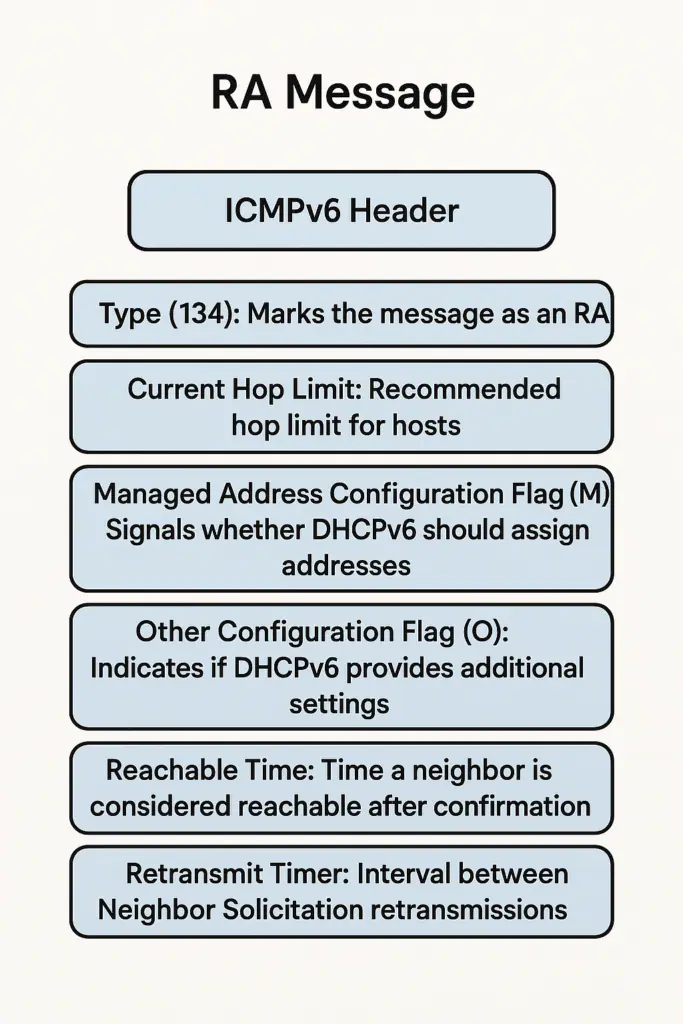

An RA message comprises an ICMPv6 header and optional fields. Key components include:
Type (134): Marks the message as an RA.
Current Hop Limit: Recommended hop limit for hosts.
Managed Address Configuration Flag (M): Signals whether DHCPv6 should assign addresses.
Other Configuration Flag (O): Indicates if DHCPv6 provides additional settings.
Router Lifetime: Duration (in seconds) the router serves as the default gateway.
Reachable Time: Time a neighbor is considered reachable after confirmation.
Retransmit Timer: Interval between Neighbor Solicitation retransmissions.
Options in RA Messages
The ICMPv6 Router Advertisement (RA) message suggests that a device is getting an IPv6 global unicast address. The device operating system is also the final authority to get the IPv6 address. Furthermore, the ICMPv6 RA message consists of the following:
Network prefix along with the prefix length
Default gateway address
DNS addresses, along with the domain name
There are three options for Router Advertisement (RA) messages, which are used to get an IPv6 address automatically. The RA message option 1, SLAAC, is the default option for the router. We can configure the router interface for the other option manually:
SLAAC
There are two types of IPv6 address auto-configuration. One is the old type that automatically configures IP addresses from IPv4 DHCP. The other type is to make the auto-configuration in IPv6, which empowers the hosts to make the auto-configuration by themselves without the need to communicate with anybody else on the network. IPv6 makes the life of network administrators easier, especially when dealing with the vast address space provided by IPv6. The IPv6 address is much more significant than IPv4.
SLAAC is the default RA option, which says I’m all you need (Prefix, Prefix-length, Default Gateway). As a result, an IPv6 host can configure itself with complete address settings automatically. Using SLAAC, a router interface is assigned a 64-bit prefix, and then the last 64 bits of its address are derived by the host or router with the help of EUI-64 process. The figure below illustrates the SLAAC Process.
Step-by-step visualization of IPv6 address configuration through Router Solicitation (RS) and Router Advertisement (RA) messages.
The host computer sends a Router Solicitation (RS) message to the Router, and the router replies with an RA message, including the IPv6 Prefix, Prefix length, and all other related information.
What it includes:
The prefix (e.g., 2001:db1:1:3::/64), defines the network portion of the IPv6 address.
The prefix length (e.g., 64 bits), indicates how many bits of the prefix are significant.
Flags:
On-link flag (L-bit): If set, hosts consider the prefix to be on-link, meaning they can communicate directly with other devices using this prefix without involving a router.
Autonomous address configuration flag (A-bit): If set, hosts can use the prefix to autonomously generate their IPv6 addresses via SLAAC.
Purpose: This option enables hosts to automatically configure their IPv6 addresses and determine whether they need a router to reach other devices on the same prefix. It’s the cornerstone of SLAAC, a key feature of IPv6.
SLAAC and DHCPv6 stateless
We can configure the router interface to send a router advertisement (RA) message using SLAAC and stateless DHCPv6. A stateless DHCPv6 server distributes DNS server addresses and domain names only. It does not allocate global unicast addresses. SLAAC and Stateless DHCPv6 is RA option 2, which says my information is here, but you also need to get other information like DNS addresses from a DHCPv6 server.
SLAAC creates its own IPv6 global unicast address, the router’s link-local address, and the RA’s source IPv6 address for the default gateway address, and a stateless DHCPv6 server obtains other information like DNS server address and a domain name. The figure below illustrates the SLAAC and DHCPv6 process.
Illustration of the DHCPv6 setup process through Router Solicitation, Router Advertisement, and Server Communication.
The clients send RS messages to the router for IPv6 address prefix, prefix length and other related information.
The Router replies with a Router Advertisement (RA) message, including prefix, prefix length and the DHCPv6 server.
The client starts the DHCPv6 process with a DHCPv6 server.
Stateful DHCPv6
It works like DHCP for IPv4 addresses. A device can get its addressing plan and information, including a global unicast address, prefix length, and the addresses of DNS servers, automatically using the services of a stateful DHCPv6 server. The RA message in this option says I can’t give you any information you need. Send a request to the DHCPv6 server for all your required information. This option suggests devices:
The router’s link-local address is the RA’s source IPv6 address for the default gateway address.
A stateful DHCPv6 server to obtain a global unicast address, DNS server address, domain name, and all other information.
A stateful DHCPv6 server allocates and maintains a list of devices that receive IPv6 addresses. The default gateway address can only be obtained from the RA message. The stateless or stateful DHCPv6 server does not provide the default gateway address. The figure below illustrates the DHCPv6 process.
Visual representation of DHCPv6 interaction for obtaining IPv6 configuration.
The host requests an IPv6 address assignment, including other related information.
The server replies with the assigned IPv6 address, including other related information like lease time, default gateway, and DNS server address.
Summary of RA Message Options
Here’s a concise overview of the key options in RA messages and their purposes:
Option
Purpose
Prefix Information
Provides network prefix for SLAAC and on-link determination.
Route Information
Advertises specific routes to other networks.
Recursive DNS Server (RDNSS)
Supplies DNS server addresses for name resolution.
DNS Search List (DNSSL)
Provides domain suffixes for hostname resolution.
MTU
Specifies the maximum packet size to avoid fragmentation.
Source Link-Layer Address
Gives the router’s hardware address for direct communication.
Neighbor Discovery Options
Supports neighbor discovery and maintenance (e.g., Target Link-Layer Address).
Conclusion
The options in Router Advertisement (RA) messages are essential for configuring hosts on an IPv6 network efficiently and automatically. By including these options, routers provide hosts with the information needed to:
Generate their own IPv6 addresses using SLAAC.
Route traffic to other networks effectively.
Resolve domain names using DNS servers and search lists.
Optimize packet sizes to avoid fragmentation.
Communicate directly with the router at the link layer.
This automation and flexibility make RA messages a vital component of IPv6, enabling network administrators to manage host configurations seamlessly without manual intervention on each device.
RA messages are sent by routers to provide devices with information like prefix and prefix length, enabling automatic IP address configuration in IPv6 networks.
IP addresses are the backbone of network communication, but not all IP addresses are created equal. Some are reserved for special purposes, serving unique roles in networking, from local testing to private networks and multicast applications. As of April 2025, with IPv6 adoption surpassing 70% of global internet traffic (per industry estimates), understanding both IPv4 and IPv6 special-purpose addresses is more critical than ever. Whether you’re a network administrator, student, or IT enthusiast, this guide dives deep into these ranges, their uses, and their relevance in today’s interconnected world.
In this article, you will learn special-purpose IPv4 and IPv6 address ranges, practical examples, and highlight trends shaping their use in 2025. Let’s get started.
Special-Purpose IPv4 Addresses
IPv4, Despite its looming exhaustion, remains widely used, and its special-purpose addresses play key roles in networking. Below, we’ll cover the most significant ranges, including their purposes and limitations.
As mentioned earlier, IP Addressing is at the core of computer networking, and IP Addresses uniquely identify devices connected to a network. However, some IP Addresses serve a special purpose and are not used in the same way as routable IP Addresses. These special-purpose IP Addresses serve special networking functions and are not available for normal use.
1. Loopback Address (127.0.0.0/8)
The IP Address 127.0.0.1 is the most commonly known IP Address and serves as the localhost or loopback address. Any IP Address in the range from 127.0.0.0 to 127.255.255.255 serves the same purpose, and packets sent to these addresses do not appear on the network; instead, they loopback to the host itself.
The 127.0.0.0/8 range is reserved for testing and diagnostics. For example, pinging 127.0.0.1 verifies that your device’s TCP/IP stack is functioning. While 127.0.0.1 is the standard loopback, the entire /8 block (over 16 million addresses) serves this purpose, though rarely used beyond the single address.
2. Private IP Address Ranges
IANA has reserved three blocks of IP Addresses as Private IP Addresses for use in private networks such as home or enterprise LANs. Private IP Addresses are not routable on the public internet, and devices configured with private IP Addresses use Network Address Translation (NAT) to communicate with the public internet. These IP Address ranges are 10.0.0.0 – 10.255.255.255 (10.0.0.0/8), 172.16.0.0 – 172.31.255.255 (172.16.0.0/12), and 192.168.0.0 – 192.168.255.255 (192.168.0.0/16).
These ranges—10.0.0.0/8 (16.7M addresses), 172.16.0.0/12 (1M addresses), and 192.168.0.0/16 (65K addresses)—are defined in RFC 1918. They’re ideal for internal networks, reducing the demand for public IPv4 addresses. For instance, a home router might assign 192.168.1.x to devices, while enterprises might use 10.x.x.x for larger setups.
3. Multicast Addresses (224.0.0.0/4)
Another special-purpose IP Address block is 224.0.0.0 – 239.255.255.255 reserved by IANA for multicast traffic.
The 224.0.0.0/4 range (224.0.0.0 to 239.255.255.255) supports multicast, where data is sent to multiple recipients simultaneously—think video streaming or network discovery protocols like IGMP. For example, 224.0.0.1 targets all hosts on a local network.
4. Link-Local Addresses (169.254.0.0/16)
169.254.0.0 – 169.254.255.255 (169.254.0.0/16) is another IP Address block reserved by IANA as link-local addresses. Devices assign themselves IP Addresses from this range when DHCP fails to assign an IP Address.
Defined in RFC 3927, this range is used for Automatic Private IP Addressing (APIPA). If a device can’t reach a DHCP server, it self-assigns a 169.254.x.x address to communicate locally—handy for troubleshooting or ad-hoc networks.
5. Documentation and Testing Ranges
IANA has also reserved three IP Address blocks for use in documentation and examples; 192.0.2.0 – 192.0.2.255 (192.0.2.0/24), 198.51.100.0 – 198.51.100.255 (198.51.100.0/24), and 203.0.113.0 – 203.0.113.255 (203.0.113.0/24).
These ranges (per RFC 5737) ensure examples in manuals or training don’t conflict with real networks. Additionally, 198.18.0.0/15 is reserved for network benchmarking (RFC 2544).
With IPv4 nearing exhaustion, IPv6’s 128-bit address space is now dominant. Its special-purpose ranges address modern networking needs, from local communication to global scalability.
1. Loopback Address (::1/128)
The IPv6 loopback is ::1, a single address (unlike IPv4’s /8 block). It serves the same purpose—testing the local host. Try ping ::1 on an IPv6-enabled system.
2. Link-Local Addresses (fe80::/10)
Addresses starting with fe80::/10 are link-local, automatically assigned for communication within a single network segment (e.g., fe80::1%eth0). They’re mandatory for IPv6 devices and are used in neighbor discovery (RFC 4861).
3. Unique Local Addresses (fc00::/7)
Defined in RFC 4193, fc00::/7 includes locally assigned (fd00::/8) ranges for private use, similar to IPv4’s private blocks. They’re not routable globally but ensure uniqueness with a 40-bit random identifier (e.g., fd12:3456:789a::1).
4. Multicast Addresses (ff00::/8)
IPv6 multicast begins with ff00::/8, supporting applications like streaming or service discovery (e.g., ff02::1 for all nodes on a link, per RFC 4291).
Special-purpose addresses aren’t just theoretical—they’re tools for real-world networking.
Loopback Testing: Run ping 127.0.0.1 (IPv4) or ping ::1 (IPv6) to check your stack. No response? Your TCP/IP may need fixing.
Private Network Setup: Configure a router with 192.168.1.1 as the gateway, assigning 192.168.1.x to devices via DHCP.
Multicast in Action: Streaming services use 224.0.0.x (IPv4) or ff02::x (IPv6) to deliver content efficiently.
For example, on a Cisco router, you might configure a private range:
Router(config-if)#interface GigabitEthernet0/0 ip address 10.0.0.1 255.255.255.0
2025 Trends and Insights
By 2025, IPv6 will dominate due to IPv4 exhaustion, with over 70% of internet traffic being IPv6-based (per Google stats). Special-purpose ranges are evolving:
IPv6 Adoption: Link-local (fe80::/10) and unique local (fd00::/8) ranges are critical for IoT devices, now numbering billions.
Security: Misconfigured private IPs (e.g., exposed 192.168.x.x via VPN leaks) remain a risk.
Multicast Growth: Streaming and smart cities leverage ff00::/8 for efficient data delivery.
Special-purpose IPv4 and IPv6 addresses—from loopback to multicast—enable everything from local testing to global communication. While IPv4 ranges like 10.0.0.0/8 remain vital, IPv6’s fe80::/10 and ff00::/8 reflect the future. As networking evolves in 2025, mastering these ranges is key.
Special-purpose IPv4 addresses are reserved ranges like 127.0.0.0/8 (loopback) and 192.168.0.0/16 (private) that serve specific networking functions. They’re not routable like public IPs and are defined by IANA for tasks like testing or internal use.
The 127.0.0.1 address loops packets back to the host, never reaching the network. It’s used to test a device’s TCP/IP stack—pinging it confirms local network functionality.
Private ranges (e.g., 10.0.0.0/8, 172.16.0.0/12) are for internal networks like home or office LANs. They rely on NAT to connect to the internet, conserving public IPv4 addresses.
Multicast addresses (224.0.0.0/4) send data to multiple devices at once, like in video streaming. They’re efficient for group communication, unlike unicast or broadcast.
When DHCP fails, devices self-assign a 169.254.x.x address from the link-local range. This allows local communication but not internet access, aiding troubleshooting.
IP addressing is the backbone of modern networking, enabling devices to communicate across local networks and the internet. Every device—whether a smartphone, server, or IoT sensor—requires a unique IP address to send and receive data.
However, the original IP addressing system (classful addressing) struggled to scale with the internet’s explosive growth. This led to inefficiencies like IPv4 address exhaustion and rigid network structures. The solution? Classless Inter-Domain Routing (CIDR), a flexible system that replaced classful addressing in 1993.
Key Takeaway: Classless addressing (CIDR) solved IPv4 shortages by eliminating fixed network classes and enabling efficient subnetting.
This article, “Classful vs. Classless IP Addressing,” is the continuation of my previous articles about the IP addresses, which are the following:
So, you need to study the above article to understand it better before reading it. If you have already covered the above topics, let’s dive straight into this article.
Classful Addressing
The IETF published the first major addressing scheme in September 1981 in RFC 790. The IP addressing scheme was 32 bits long and had three classes, A, B, and C, corresponding to 8-bit, 16-bit, and 24-bit prefixes. No other prefix lengths were allowed then, and there was no concept of nesting a group of 24-bit prefixes, such as within a 16-bit prefix.
Class D and E addresses were also defined, but neither of these two address classes was normally used. Class D addresses are reserved for multicasting, and Class E addresses are reserved for experimental and future use. The easiest way to distinguish between different address classes is to use the first decimal number in the IP address. Classful networks use the classful subnet mask according to the leading bits in the first block of the IP address. The figure below illustrates the key information of the Classful address scheme.
In the early days of the internet, IP addresses were divided into five fixed classes (A, B, C, D, E) based on their first few bits. This system wasted addresses. For example, a company needing 500 hosts had to take a Class B (65k hosts), wasting 64,500 addresses. By 1992, 49% of Class B addresses were allocated, risking IPv4 exhaustion (RFC 1338).
1993: RFC 1519 and the CIDR Revolution
CIDR introduced classless addressing, where networks could be split into subnets of arbitrary size using a variable-length subnet mask (VLSM). For example:
Result: ISPs could allocate precise address blocks, reducing waste by up to 70% (ICANN Report, 2000).

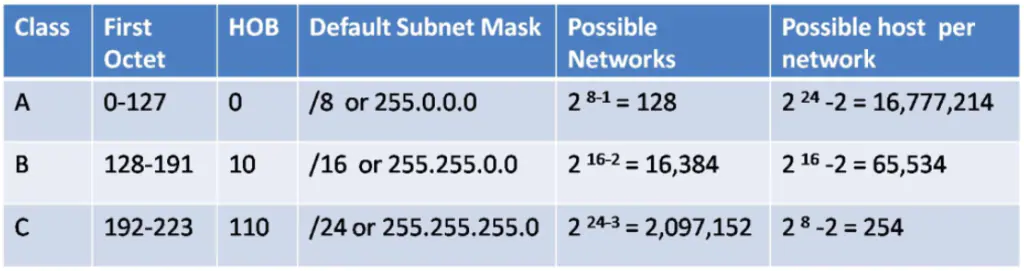

Technical Breakdown of Classful Addressing
Class A Networks (0.0.0.0 to 127.255.255.255): The Giants
The default subnet mask for this class is 255.0.0.0 or /8. This class supports an extremely large network with more than 16 million hosts. The first octet’s high-order bits of Class A addresses are zero, so the remaining 7 bits create 128 possible Class A networks. 0.0.0.0 is used for the default route, and the 127.0.0.0 network is reserved for local loop testing. So, the remaining network is from 1 – 126 total 126 networks.
Range: 1.0.0.0 to 126.255.255.255
Subnet Mask: 255.0.0.0 (/8)
Hosts: 16,777,214 per network
Use Case: Governments and telecom giants (e.g., MIT owns 18.0.0.0/8).
Limitation: Only 126 Class A networks existed globally, monopolized by early internet pioneers.
Class B Networks (128.0.0.0 – 191.255.255.255): The Middle Ground
The default subnet mask for the class B network is 255.255.0.0 or /16. Class B network support supports large networks with up to 65,000 host addresses. The high-order bits for the class B network are 10 in the first octet, and the remaining bits of the first 2 octets create over 16,000 networks. The network 169.254.0.0 is a special network for link-local addresses, also known as Automatic Private IP Addressing (APIPA).
Range: 128.0.0.0 to 191.255.255.255
Subnet Mask: 255.255.0.0 (/16)
Hosts: 65,534 per network
Use Case: Universities and mid-sized corporations.
Problem: Companies like Ford (19.0.0.0/8) hoarded Class A blocks, while smaller firms faced scarcity.
Class C Networks (192.0.0.0 – 223.255.255.255): Too Small for Growth
The default subnet mask for a Class C network is 255.255.255.0 or /24. Class C supports small networks with a maximum of 254 hosts. The first three bits of the octet indicate the high-order bit of the class. The remaining bits of the first three octets indicate the network, and the fourth indicates host addresses in this class. The high-order bit is 110. A Class C address has over 2 million possible networks.
Range: 192.0.0.0 to 223.255.255.255
Subnet Mask: 255.255.255.0 (/24)
Hosts: 254 per network
Use Case: Small offices.
Issue: Startups needing 300 hosts had to request multiple Class C blocks, complicating routing tables.
Class D (224.0.0.0 – 239.255.255.255)
The first four bits of the first octet in Class D IP addresses are high-order bits (HOB); the first four bits are 1110. The range of Class D addresses starts from 224.0.0.0 to 239.255.255.255. Class D is reserved for multicasting. In multicast communication, data is destined for multiple hosts, not for a particular host. The class has no subnet defined.
Class E (240.0.0.0 – 255.255.255.254)
The first five bits of the first octet are reserved HOB for Class E address. The HOB for Class E is 11111. The address range is 240.0.0.0 to 255.255.255.254. This class is reserved for experimental purposes only, such as R&D and study. Class E is also not equipped with a subnet mask like Class D.
Public IP Addresses
A public IP address range is defined for network devices, hosts, and servers like web servers and email servers to allow direct access to the Internet. Any server device using public IP addresses directly accessible from the Internet. A public IP address is globally unique and can only be assigned once to any device worldwide. Every device accessing the internet is using a unique IP address. Public IP addresses are also required for any publicly accessible network hardware, such as servers hosting websites. Public addresses are globally routed between different ISPs and routers. However, some addresses are not routable on the Internet. These addresses are called private addresses.
Private IP addresses
Private IPv4 addresses were introduced in 1990 because of reduced IPv4 addresses. The Private addresses are not unique and can be used repeatedly for internal networks. The computers at home, tablets, smartphones, network printers, and the computers within organizations are generally assigned private IP addresses. A computer with a private IP address can see and access the local network through its private IP address.
The computer and devices with a private IP address cannot directly access and communicate via the private IP address; however, using the router’s public IP addresses, the devices outside a private network can communicate. The NAT allows direct access to a local device assigned a private IP address. The range of private IP addresses is defined for all three classes.
10.0.0.0 /8 or 10.0.0.0 to 10.255.255.255
172.16.0.0 /12 or 172.16.0.0 to 172.31.255.255
192.168.0.0 /16 or 192.168.0.0 to 192.168.255.255
The Birth of Classless Addressing (CIDR)
Classless Addressing
CIDR replaces fixed classes with prefix lengths (e.g., /24, /17) to define networks. Classful addressing divides an IP address into the Network and Host portions along octet boundaries. It uses a fixed subnet mask, which is /8, /16 and /24, but classless addresses use a variable number of bits for the network and host portions of the address. The subnet mask is not fixed for a classless addressing system.
The classful addressing system assigned 50% of IPv4 addresses to Class A networks, 25% of IPv4 addresses to Class B, 12.5% of IPv4 addresses to Class C, and the remaining 12.5 % Shared to both Class D and E. The classful addressing plan wastes the most IP addresses, decreasing the availability of IPv4 addresses. For example, an organization with a network with more than 254 hosts would need a class B network with more than 65,000 addresses, wasting 64,700 IP addresses.
IETF introduced classless addressing to overcome the waste of IP addresses in 1993. There is no IP address class in a classless addressing system, but the addresses are still granted in blocks. In a classless addressing system, when an organization or individuals need connectivity to the Internet, it also grants a block or range of addresses according to the needs of the organization and individuals. For example, an individual requires only two addresses, and an organization is given thousands of addresses based on the number of its requirements.
Key Innovations:
Aggregation: Combine multiple networks into a single route (e.g., 192.168.0.0/16 covers all /24 subnets).
VLSM: Subnet a network into smaller chunks (e.g., split /24 into four /26 subnets).
Classful vs. Classless: Side-by-Side Comparison
Feature
Classful Addressing
Classless Addressing (CIDR)
Flexibility
Fixed classes (A, B, C)
Custom prefix lengths (e.g., /24, /28)
Subnetting
Limited to default masks (e.g., /8, /16)
VLSM allows variable-sized subnets
Address Efficiency
High waste (e.g., 64k hosts for 500 needed)
Minimal waste (allocate exact needs)
Routing Tables
Large tables (no aggregation)
Compact tables (route aggregation)
Adoption Era
1981–1993
1993–Present
Example
150.10.0.0 (Class B, /16)
150.10.0.0/22 (1,022 hosts)
Real-World Applications
Case Study 1: ISP Address Allocation
Comcast uses CIDR to allocate /29 blocks (8 addresses) to small businesses while reserving /20 blocks for enterprise clients.
Case Study 2: AWS VPC Subnetting
Amazon VPC allows users to create subnets like 10.0.1.0/24 for web servers and 10.0.2.0/28 for databases, optimizing security and cost.
To understand CIDR calculation, read our complete articles about IP address subnetting. Subnetting is essential for any networking technician and engineer. However, once you understand and pass your CCNA exam, then you can use our free online subnetting calculator for fast working.
Classful IP Addressing divides IP addresses into fixed classes (A, B, C, D, E) based on their leading bits. Each class has a predefined subnet mask, which determines the division between the network and host portions. While simple, this method often leads to inefficient IP allocation in large networks.
Classless IP Addressing uses a variable-length subnet mask (VLSM) to allocate IP addresses more efficiently. Unlike Classful addressing, it does not rely on fixed classes, allowing networks to use only the required number of IPs. This flexibility reduces wastage and optimises address space.
CIDR (Classless Inter-Domain Routing) is a technique used in Classless IP Addressing to define IP ranges with a prefix length. For example, 192.168.1.0/24 specifies the network portion with “/24”. CIDR improves routing efficiency and allows for more granular IP allocation.
Classful IP Addressing lacks flexibility, as it assigns fixed subnet masks to each class. This often results in unused IP addresses, especially in Class A and B networks. It also struggles to accommodate modern networking needs, such as variable-sized subnets.
Classless IP Addressing is preferred because it optimises IP allocation and supports subnetting of varying sizes. It allows networks to grow or shrink based on demand, reducing wastage. This adaptability makes it ideal for today’s dynamic networking environments.
In Classful addressing, subnet masks are predefined and fixed for each class, limiting flexibility. In Classless addressing, subnet masks are variable, enabling precise division of IP ranges. This flexibility allows for efficient use of IP address space.
Yes, Classful and Classless addressing can coexist in certain scenarios. For example, legacy systems may use Classful addressing, while newer systems adopt Classless methods. Proper configuration ensures compatibility and efficient network operation.
IPv6 addressing is the future of modern networking, designed to replace IPv4 with a vastly larger address space and enhanced features. As of April 2025, global IPv6 adoption is nearing 43.91% (per Google’s stats), making it critical for network professionals, students, and enthusiasts to understand its address types. This comprehensive guide explores IPv6 address types—unicast, multicast, and anycast—with practical examples, configurations, and visuals to simplify your learning journey.
Unlike IPv4, which uses 32-bit addresses and supports broadcasts, IPv6 uses 128-bit addresses and eliminates broadcasts, relying on multicast for group communication. Mastering IPv6 address types is essential whether you’re configuring a home router or designing an enterprise network. Let’s dive in!
What Are IPv6 Address Types?
IPv6 addresses are categorized based on their communication purpose, The address types are the following:
Unicast: Delivers packets to a single, specific device (one-to-one).
Multicast: Sends packets to a group of devices (one-to-many).
Anycast: Routes packets to the nearest device in a group (one-to-nearest).
Unlike IPv4, IPv6 has no broadcast addresses—multicast handles group communication more efficiently. Below, we’ll explore each type with examples and use cases, updated for 2025 networking trends.
Unicast Address
A unicast address is the most common type of IPv6 address that we can assign only to one network interface. An IPv6 unicast address individually identifies an interface on an IPv6-enabled device. This unicast address is also used for one-to-one communication between different devices in the network. A packet sent to a unicast address receives the interface assigned to that address type.
The source IPv6 address must be a unicast address; however, the destination IPv6 address can be unicast or multicast. Unicast Addresses are the most common IPv6 address type used for direct communication like browsing a website or sending an email. IPv6 unicast addresses include several subtypes.
The types of IPv6 unicast are:
Global unicast addresses (GUA), link-local addresses, and unique local IPv6 unicast addresses. The most common are global unicast and link-local unicast addresses. The figure below illustrates IPv6 Unicast address types:-
Global Unicast Address
A global unicast address is just like a public IPv4 address. The addresses should be unique worldwide and can only be assigned once. It is a routable address across the Internet, like a public IPv4 address. We can configure global unicast addresses dynamically or statically. The Internet Assigned Numbers Authority (IANA) has assigned only 2000::/3 addresses to the global pool. The only assigned IPv6 pool is 2001::/16 to various Internet address registries. A global IPv6 address consists of two parts:
Subnet ID – The subnet ID is 64 bits long. It contains the site prefix, which can be assigned from a Regional Internet Registry, and the subnet ID. Interface ID—The interface ID is also 64 bits long. It is typically composed of part of the interface’s MAC address. The figure below illustrates the different parts of the global IPv6 unicast address.
The first three bits are set to 001 because the prefix of a global IPv6 address is 2000::/3, So 0010000000000000 is 2000 in hexadecimal. The following 45 bits are the global routing prefix. This is the part that has been assigned to different organizations. The following 16 bits are for the subnet ID, which a network administrator can use for hierarchical addressing. The last 64 bits show the interface ID, the part of the IPv6 address that must be unique within a subnet.
Example:
2001:0db8:1234:5678::1 might be a web server’s address, routable worldwide.
Use Case: Hosting a website accessible globally.
IPv6 Link-local Addresses
Link-local addresses are used to communicate with other devices in the same network. They start with the hexadecimal character “FE”. In the IPv6 network, the term link refers to a subnet. We cannot route link-local addresses to the public network. However, we can dynamically configure them similarly to IPv4 link-local (169.254.0.0/16) addresses.
In the IPv4 network, link-local addresses are assigned because of some problem. However, in the IPv6 network, link-local addresses are configurable, and we can use them for communication within the local network. The link-local address must be unique within the local network. We cannot route the link-local address to the internet or public network.
We can identify the IPv6 Link-Local address with the leftmost 64 bits as the hexadecimal digits FE80. So, the first 16 bits are reserved for the prefix. The binary of FE80 is 1111 1110 1000 0000. The link-local network is FE80:: /64. The figure below illustrates the distribution of link-local address bits.
The link-local IPv6 is derived from the NIC’s MAC address. A MAC address is 48-bit address, and an IPv6 address is 128 bits. The steps for converting a MAC address to an IPv6 is the following: step by step:
Get and write down the MAC address of the PC or device, for example, BC:85:56:60:ED:75
Insert ff: life in the middle: BC:85:56:FF:FE:60:ED:75
Reorder to IPv6 notation BC85:56FF:FE60:ED75
Now it’s 4 hextet, convert the first two digits of hexadecimal to binary: BC> 10111100
Flip the 7th bit: 10111100->10111110
Convert it back to hexadecimal: 10111110 ->BE
Change the first octet with a newly calculated one: BE85:56FF:FE60: ED75
Insert the link-local prefix at the beginning : FE80::BE85:56FF:FE60:ED75
You have done!
Example:
fe80::1%eth0 on a router’s Ethernet interface.
Use Case: Auto-configuring devices during network setup, like discovering neighbors.
Tip: Never manually assign link-local addresses—devices generate them automatically.
IPv6 Unique Local Addresses
The IPv6 unique local addresses have limited similarities to private IPv4 addresses, with some significant differences. An address registry does not allocate it and is not routed outside its local domain and network. Unique local addresses are used inside or between a limited number of sites. These addresses must not be routable in the global IPv6 and must not be translated to a global IPv6 address. The unique local address range is from FC00::/7 to FDFF::/7. The address block is divided into two /8 groups fc00::/8 and fd00::/8.
The group fc00::/8 has not been defined yet, and the group fd00::/8 is defined for /48 prefixes, formed by setting the 40 least significant bits of the prefix to a randomly generated bit string. The resultant format is like fdxx:xxxx:xxxx::
With the IPv4 addressing scheme, we required NAT (Network Address Translation) and PAT (Port Address Translation). This is done because of the limited availability of IPv4 address space. Many sites use the private nature of RFC 1918 addresses to secure or hide their network from possible security risks. However, this was never the purposeful use of these technologies. We can use unique local addresses for devices that will never need or have access from another network.
Example:
fd12:3456:789a::1 for a private server.
Use Case: Creating isolated networks in enterprises or IoT setups without public IP conflicts.
Note: Site-local addresses (fec0::/10) were deprecated in 2004 (RFC 3879)—avoid using them.
IPv6 Loopback Address
Just like in IPv4, the loopback address is an address that represents the same interface as a computer. Whenever we communicate to a loopback address, the TCP/IP protocol stack will loop the packets back on the same interface without even leaving the interface. The loopback addresses are typically for testing network applications without having network configurations. The IPv6 address reserved for loopback is 0000:0000:0000:0000:0000:0000:0000:0001/128—the simplified and short form of the IPv6 loopback address is::1/128.
IPv6 Unspecified Addresses
The IPv6 Unspecified address has all binary bits set to “0”. The operating systems used unspecified addresses before IPv6 address configuration. The IPv4 and IPv6 routers will not forward packets with the unspecified address. The unspecified IP address in IPv6 is 0000:0000:0000:0000:0000:0000:0000:0000/0 — the simplified and short form of this address is::/0.
Embedded IPv4 Address
The IPv6 address is used by hosts and routers to tunnel IPv6 packets dynamically under the IPv4 routing infrastructure. IPv6 nodes are assigned particular IPv6 unicast addresses that carry an IPv4 address in the low-order 32 bits. This type of address is called an Embedded IPv4 Address or IPv4-compatible IPv6 address. For example, if the route is 200.100.50.10, the embedded IPv4 address may be like:: 200.100.50.10.
Multicast Address
IPv6 multicast addresses work similarly to IPv4 multicast addresses. The IPv6-enabled devices can join and listen to multicast traffic on an IPv6 multicast address. The multicast address comprises an 8-bit address, 4-bit flag, 4-bit scope, and 112-bit group ID fields. An IPv6 multicast address can identify multiple network interfaces. In IPv6 multicasting, IPv6 datagram packets addressed to an IPv6 multicast address are delivered to all interfaces identified by the address. The IPv6 multicast address as:-
Preferred
ff00:0000:0000:0000:0000:0000:0000:0000/8
Leading 0s omitted
ff00:0:0:0:0:0:0:0/8
Compressed
ff00::/8
Anycast Address
An IPv6 Anycast address is any IPv6 unicast address. We can assign this address to multiple network devices. Like a multicast address, an anycast address identifies multiple interfaces. However, while various machines accept multicast packets, Anycast packets are delivered to the nearest device with that address. The routing protocol determines the nearest. An Anycast address must be assigned to a router, not a host, and cannot be used as a source address.
Note—Broadcast addresses no longer exist in the IPv6 addressing scheme. However, an IPv6 all-nodes multicast address essentially gives the same result.
IPv6 addresses are categorized into unicast, multicast, and anycast. Each type serves a unique purpose in network communication, such as one-to-one, one-to-many, or one-to-nearest communication.
A unicast IPv6 address identifies a single interface, enabling one-to-one communication. It is commonly used for direct communication between two devices.
Multicast addresses allow one-to-many communication by identifying a group of interfaces. They are efficient for applications like video streaming and conferencing.
Anycast addresses identify the nearest instance of a group of interfaces. They are used for one-to-nearest communication, optimizing network performance and reducing latency.
IPv6 addressing provides a larger address space, improved routing efficiency, and enhanced security features, making it essential for the growing number of internet-connected devices.
VPNs—Virtual Private Network—have become crucial for protecting online privacy, anonymity, and security. There are a range of reasons to use these networks aside from safeguarding sensitive data, including bypassing geo-restrictions.
Varied developers come up with different VPN types, and choosing the right server is essential. What should you look for in the best VPN services? Let’s learn. qualities
Qualities To Look for in the Best VPN Services
Online privacy is increasingly a concern, making VPNs (Virtual Private Networks) essential for people. Whether protecting sensitive information, securing your internet connection, or accessing geographically restricted content, reliable VPNs offer a viable solution.
The vast number of VPN services makes it challenging to identify the ideal one for your specific needs. First, you must understand the qualities that set VPN services apart from others. Consider the following qualities for top-tier VPN services.
Security and Encryption
Top-notch VPN services offer solid security features and strong encryption standards to safeguard online activities from potential harm. When browsing the web or accessing sensitive data, your foray through these networks might not be secure. Cybercriminals, hackers, or even the ISP (Internet Service Provider) could intercept the data.
A VPN masks your traffic by creating an encrypted pathway to counter access to your data. Secure VPNs employ AES—Advanced Encryption Standard—widely regarded as the most secure encryption protocol.
This is a virtually impenetrable encryption to ensure that even if someone intercepts the data, they won’t be able to decipher it.
It’s recommended to look for VPNs that offer added security like kill switches that automatically disconnect the connection if the VPN drops, preventing exposed data in the event of unexpected VPN failure. Visit—Why You Need a VPN, and How to Choose the Right One | PCMag—for reasons you need a VPN and how to choose the right service.
No-logs Policy
One of the key motivations for using VPNs is privacy, and the best VPN service considers privacy as a serious concern by implementing a strong no-log policy. A VPN service that logs your activity defeats the purpose of a VPN service.
If your VPN service keeps browsing history records, timestamps, or IP addresses, it leaves you vulnerable to subpoenas, potential breaches, and possible surveillance.
A no-logs policy means that the VPN service won’t store, track, or share the online activity, ensuring that even if a third-party requests information, nothing would be provided. High-quality VPNs go beyond claims, having their no-log policies verified through independent audits.
It’s essential to delve into the service’s privacy policy to understand their definition of no-logs. Some service providers might claim to have no-logs but still gather connection data or metadata. It’s essential to take precautions with providers that aren’t transparent about what they collect.
Ideally, the best services will collect nothing beyond anonymized or essential data that’s vital for maintaining the service.
High-speed Performance
A common misconception is that VPNs significantly slow internet speed. Using a VPN can affect performance to a degree due to rerouting traffic and encryption; high-quality services are designed to minimize speed loss. In fact, top-tier services are designed to minimize speed loss.
Generally, you won’t notice a difference with the browsing experience. Speed is primary if using the VPN for bandwidth-intensive activities such as online gaming or other streaming.
Wide Server Network Coverage
VPNs with servers across varied regions ensure you have access to content worldwide. A broad network enables the ability to bypass geographical restrictions to enjoy content that could otherwise be blocked.
A diverse server network ensures you’re not funneled into congested servers where performance can drop due to overcrowding.
A diverse network keeps you from being funneled into a crowded server. Performance can be impacted when many users are connected to the same location. When the connection is well-distributed, users get multiple options to ensure smoother connectivity and fewer disruptions.
Server variety isn’t only about entertainment or streaming but is crucial with remote work or travel. If you frequently switch time zones or need access to country-specific services, having servers that spread worldwide ensures seamless access to essential platforms without lockout.
Multiple Service Connections
Nowadays, it’s common to have several connected devices, from mobile devices to laptops to tablets and smart TVs. A high-quality VPN enables you to secure all the devices under a single account.
This ability to secure these devices simultaneously ensures that an entire digital footprint is protected regardless of how the internet is accessed.
Some VPN service providers limit the number of devices used at the same time, while the best services offer unlimited connections. This feature is useful for families or individuals with multiple gadgets. It enables individuals to protect all connections without purchasing several subscriptions.
Remote or business groups will benefit from the flexibility as everyone in the group is covered by the same VPN. These collaborative teams are safer and easier to manage. No one is at risk for sensitive details being exposed when slots run out on their VPN account.
Geo-Restrictions / Bypass Censorship
Not all VPNs are created equal as far as accessing blocked content. If you travel or live in a country with stringent internet regulations, the ability to circumvent these barriers is essential.
The best VPN services provide features to bypass censorship, including obfuscated servers that mask VPN traffic as typical internet activity.
Access to global streaming services is key also. Many platforms strive to block this traffic, so choosing a provider that stays ahead of these restrictions is vital. Premium VPN services routinely update their IPs to retain access to primary sites worldwide.
This feature isn’t merely about entertainment. In many cases, accessing censored information could be critical for work or staying connected to close friends or family.
A reliable VPN ensures that no matter where you are, you can freely use the internet without restriction. Read here for guidance on making the most of using a VPN service.
Kill Switch
The internet is unpredictable with connections that can unexpectedly drop. When this happens, the risk for IP and sensitive data exposure is a real possibility. This is when a kill switch is vital. The feature instantly disconnects internet access if the VPN fails, ensuring unprotected data is safe.
Many providers offer customizable kill switches to ensure control over its behavior. You might want the feature to block specific apps from accessing the web or stop all activity.
A kill switch is essential for those handling sensitive information, including remote workers. Without this feature, a momentary drop in connection could leave you vulnerable to surveillance or online tracking.
IPv6 addresses are 128 bits and represented as eight groups of four hexadecimal digits each, each group representing 16 bits. The address can be written in both lowercase and uppercase. The preferred format for writing an IPv6 address is x: x: x: x: x: x: x: x, where each “x” is a group of four hexadecimal digits, and each group contains 16 bits. The term used for a group is a hextet. So, each “x” is a single hextet, 16 bits, or four hexadecimal digits.
The range of IPv6 addresses is 0000:0000:0000:0000:0000:0000:0000:0000 to FFFF: FFFF: FFFF: FFFF: FFFF: FFFF: FFFF: FFFF. This expression is in hexadecimal. If we convert one hextet into binary, it should be 16 bits. For example, we have a hextet “0000” that is equal to 0000000000000000 (16 time 0s), and hextet “FFFF” is equal to 1111111111111111 (16 tim1 1s). The following is the primary relationship table of binary, decimal, and hexadecimal.
Decimal
Binary
Hexadecimal
0
0000
0
1
0001
1
2
0010
2
3
0011
3
4
0100
4
5
0101
5
6
0110
6
7
0111
7
8
1000
8
9
1001
9
10
1010
A
11
1011
B
12
1100
C
13
1101
D
14
1110
E
15
1111
F
The ideal method of representing IPv6 addresses is groups of eight hextet (32 hexadecimal digits). However, there are two rules we can apply to reduce the number of digits needed to represent an IPv6 address. The preferred format for representing an IPv6 address is the following.
There are two rules defined for shortening IPv6 addresses in RFCs 2373 and 5952. The rules are important to understand.
Omitting Leading 0s
Omitting leading 0 is the first rule to reduce the notation of the IPv6 address. The following are the examples to omit any leading 0s (zeros) in any 16-bit section or hextet:
0100 can be represented as 100
0DA1 can be represented as DA1
0123 can be represented as 123
0000 can be represented as 0
This rule only omits leading 0s, not trailing 0s. Otherwise, the address would be ambiguous. The table below shows examples of omitting leading 0s from the IPv6 address.

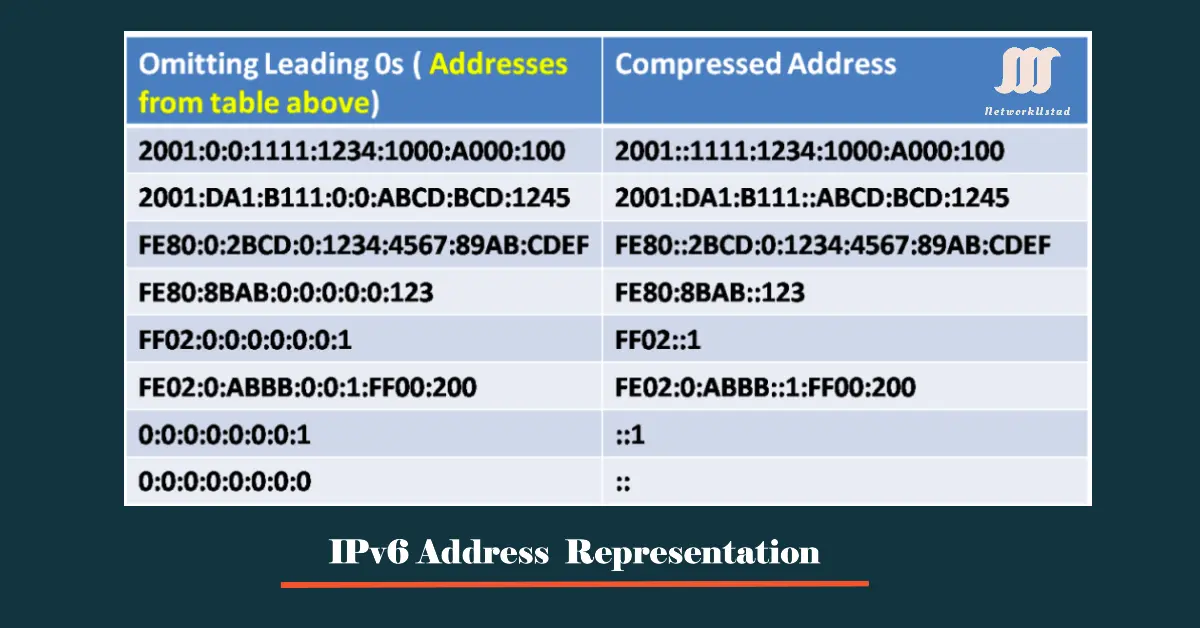

Omit All 0 Segments
The second rule reduces the notation of IPv6 addresses using a double colon (::) that can replace any single, contiguous string of one or more hextet containing all 0s. The double colon (::) can only be used once within an address; otherwise, there would be more than one possible resulting address. For example, if we have an IPv6 address FE02: 0000 : ABBB: 0000: 0000: 0001: FF00: 0200 and we apply the technique like FE02:: ABBB:: 1: FF00: 200. it is not correct. When used with the omitting leading 0s technique, the notation of the IPv6 address can often be greatly reduced. This is commonly known as the compressed format.
Common Mistakes & Examples in IPv6 Address Shortening
1. Using Multiple “::” in a Single Address
The double colon (::) can only be used once to replace the longest consecutive sequence of zeros.
Mistake: 2001::db8::1 (Two :: symbols, which is invalid.)
Correct: 2001:db8::1 (Single :: replaces the longest zero sequence.)
2. Failing to Compress the Longest Zero Run
RFC 5952 mandates replacing the longest consecutive zero groups. If multiple runs exist, compress the leftmost longest run.
Original Address: 2001:0db8:0000:0000:0000:ff00:0042:8329
Mistake: 2001:db8:0::ff00:42:8329 (Shortened only one zero group instead of three.)
Correct: 2001:db8::ff00:42:8329 (Replaces the longest zero sequence: 0000:0000:0000 → ::.)
3. Incorrectly Truncating Non-Zero Groups
Leading zeros in a group can be removed, but trailing zeros cannot.
Mistake: 2001:0db8:85a3:0000:0000:8a2e:0370:7334 → 2001:db8:85a3::8a2e:370:7334 (Truncated 0370 to 370, which is valid. However, if the group was 0370, truncating to 370 is correct. If it was 037f, truncating to 37f would be wrong.)
Use ::once to replace the longest consecutive zero sequence.
Remove leading zeros in groups (e.g., 0db8 → db8).
Keep trailing zeros (e.g., abc0 stays abc0, not abc).
For equal-length zero runs, compress the leftmost one.
Always validate shortened addresses with tools like IPv6 Test.
Examples of Valid vs. Invalid Shortening
Original Address
Invalid Shortening
Correct Shortening
2001:0db8:0000:0000:0000:ff00:0042:8329
2001:db8:0::ff00:42:8329
2001:db8::ff00:42:8329
fe80:0000:0000:0000:0000:0000:0000:0001
fe80::0:1
fe80::1
3ffe:0500:0000:0000:0000:0000:0000:0001
3ffe:500::::1
3ffe:500::1
0000:0000:0000:0000:0000:0000:0000:0001
::0:1
::1
By avoiding these pitfalls and adhering to RFC 5952 standards, you’ll ensure accurate and unambiguous IPv6 address representation.
Prefix Length Notation
The most left bits of the IPv6 address and the network bits length represented in CIDR format are known as the network prefix. The prefixes in IPv6 are used similarly to the subnet mask of IPv4 addresses. In IPv6, we use a notation similar to the CIDR mask representation in IPv4. The notation values are between 1 and 128 to represent the network bits.
For example, in IPv6 address 2001: ABC8: 1000: 000C: 0000: 0000: 0000: 0001/ 64, 2001: ABC8: 1000: 000C::/64 represents the network prefix and the range for this IP network is from 2001: ABC8: 1000: 000C: 0000: 0000: 0000: 0001/64 to 2001: ABC8: 1000: 000C: ffff: ffff: ffff: ffff/64.
The first three hextet (48 bits ) 2001:ABC8:1000 are the IP version 6 global routing prefix, and the next 16 bits(hextet) “000C ” is used for internal subnetting within an organization, and the last 64 bits are used for internal hosts of the network. The length of the IPv6 prefix is used to recognize how many bits of a Global Unicast IP version 6 address are in the network.
Typically, Network Administrators and engineers choose prefix lengths that are multiples of four. That makes the prefix easier to comprehend without using a subnet calculator. Look at the table below to understand IPv6 Prefix. Each additional 4 in the prefix length moves the network portion of the address one hexadecimal digit to the right.
Prefix Length
Network Portion
Total Addresses
Remarks
/4
2000::/4
21242124
– Reserved for future global unicast allocations. – Example: 2xxx::/4 (where x is variable).
/8
2000::/8
21202120
– Sub-range of /4 for large-scale allocations (e.g., continental ISPs).
/16
2001::/16
21122112
– Assigned to regional internet registries (RIRs).
/32
2001:db8::/32
296296
– Documentation/example prefix (RFC 3849).
/48
2001:db8:1234::/48
280280
– Standard assignment for organizations (supports 65k subnets).
/64
2001:db8:1234:5678::/64
264264
– Default subnet size for end networks (SLAAC/DHCPv6).
/128
::1/128
11
– Loopback address (refers to the device itself).
Key Notes
Network Portion:
For /4, the first 4 bits are fixed (e.g., 2 in hex = 0010 in binary), and the rest are variable.
Addresses like 2000::/4 are part of the global unicast range (2000::/3 is standard).
Total Addresses:
Calculated as 2(128 − Prefix Length).
Example: For /4, 2(128 − 4) = 2124.
Special Cases:
/64 is mandatory for SLAAC (Stateless Address Autoconfiguration).
/128 is a single-host address (e.g., ::1 for loopback).
