Lesson 5.5.1 — Software Troubleshooting Tools

Domain 5.0 | Network Troubleshooting — 24% of exam

Learning Objectives

By the end of this lesson, you will be able to:

• Explain what ping and traceroute each reveal about connectivity and path
• Describe how nslookup and dig isolate DNS-specific problems
• Explain how netstat reveals active connections and listening ports
• Describe how ipconfig/ifconfig and arp support local configuration and address resolution troubleshooting
• Explain packet capture as a deep diagnostic tool for problems other tools can’t fully explain

Key Terms – Software Troubleshooting Tools

Explanation

From Categories of Problems to the Tools That Diagnose Them

Every lesson in this module has covered a category of problem. This lesson and the next cover the actual tools used to test a theory — Step 3 of the troubleshooting methodology covered at the start of this module. Software tools, covered here, generally require no special equipment beyond a computer already on the network; the hardware tools in the next lesson require dedicated physical devices.

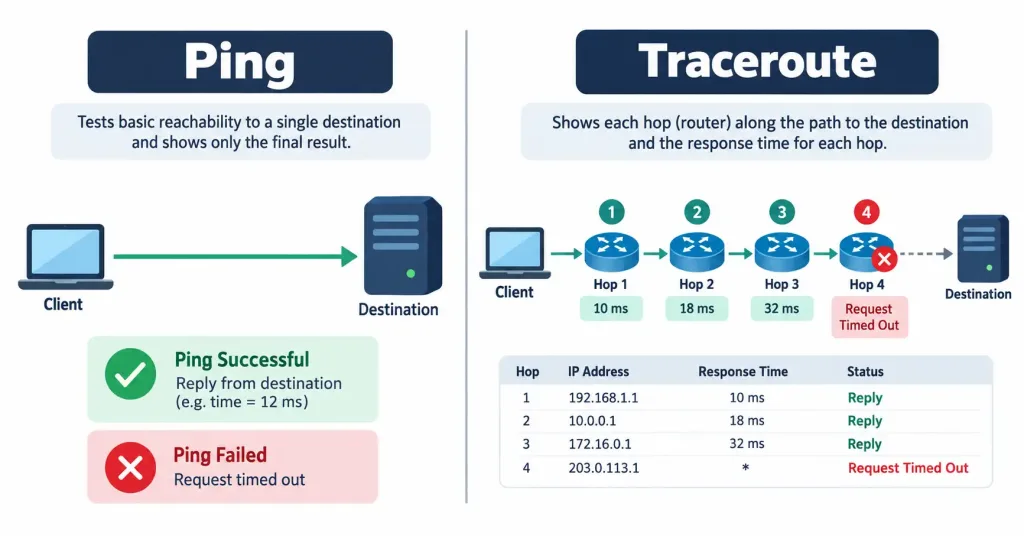

ping and traceroute: Testing Reachability and Path

ping sends ICMP echo requests to a target and waits for a response, providing a simple, direct answer to “is this host reachable at all?” It’s usually the very first test run in almost any connectivity troubleshooting scenario, precisely because it’s fast and tells you immediately whether basic reachability exists — but it tells you nothing about how traffic got there, or where a problem lies if it doesn’t.

traceroute (or tracert on Windows) answers that follow-up question, revealing the hop-by-hop path packets take to reach a destination, along with the response time at each hop along the way. This makes it genuinely useful for identifying exactly where along a path a problem is occurring — a traceroute that gets partway through a path and then stops responding points directly at the specific hop where things break down.

Running traceroute in both directions between two endpoints is also exactly how asymmetric routing, covered earlier in this module, actually gets confirmed in practice — comparing the hop sequence in each direction directly reveals whether the paths genuinely differ.

nslookup and dig: Diagnosing DNS Issues

nslookup (available on Windows and other platforms) and dig (common on Linux and macOS) let an administrator directly query a specific DNS server for a specific record, rather than relying on whatever resolution a normal application would perform automatically. This is exactly the tool needed to isolate whether a problem is genuinely DNS-related or something else entirely — if a direct DNS query for a hostname returns the wrong (or no) answer, the problem is clearly in name resolution; if it returns the correct answer but the application still can’t connect, the problem lies somewhere further along, past DNS entirely.

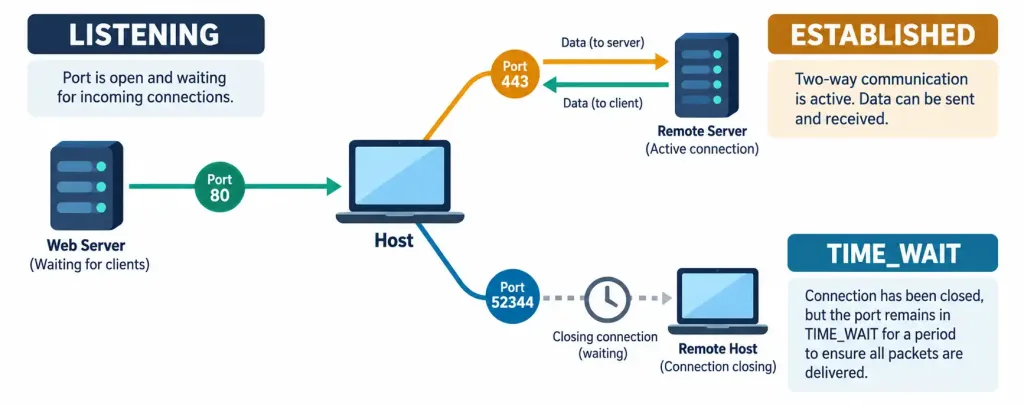

netstat: Viewing Active Connections

netstat displays a host’s active network connections and listening ports, which is useful in two genuinely different ways: confirming that a service is actually listening on the port it’s supposed to be (a service that isn’t listening at all explains a connection failure immediately), and identifying unexpected or suspicious connections that shouldn’t be there — a genuinely useful cross-check against the kind of unauthorized activity covered in this course’s security module.

ipconfig/ifconfig and arp: Local Configuration and Address Resolution

ipconfig (Windows) and ifconfig (Linux/macOS, though increasingly replaced by ip addr on modern Linux) display a device’s own current network configuration — its assigned IP address, subnet mask, and default gateway. This is literally the tool used to actually see an APIPA address or an incorrect gateway, covered earlier in this module, confirming exactly what a device believes its own configuration to be.

arp displays and manages a device’s local ARP cache — the table mapping IP addresses to MAC addresses on the local segment. Checking the ARP cache is exactly how ARP poisoning, covered earlier in this course’s security module, actually gets confirmed in practice — an unexpected or duplicate MAC address associated with a known IP (like the default gateway) in the ARP cache is a direct, actionable piece of evidence.

Packet Capture: The Deep Diagnostic Tool

Packet capture, covered in more depth back in the advanced monitoring lesson, records the actual contents of network traffic rather than summarized statistics or simple reachability results. This is the tool of last resort when the other tools in this lesson haven’t fully explained what’s happening — a malformed handshake, an unexpected protocol behavior, or the exact contents of a suspicious connection all require the level of detail only a full packet capture can actually provide.

Recognition-Level Verification Concepts

A few patterns are worth recognizing on sight:

• A quick reachability check with no path detail describes ping; a hop-by-hop path breakdown describes traceroute.
• A direct query returning the wrong DNS answer for a hostname points to a genuine DNS problem; a correct DNS answer with a connection failure afterward points elsewhere.
• A tool listing which ports a host is actively listening on, or what connections are currently established, describes netstat.
• A tool showing a device’s own IP configuration describes ipconfig/ifconfig; a tool showing IP-to-MAC mappings on the local segment describes arp.

Common Exam Traps

• Ping confirms reachability but reveals nothing about the path. Don’t assume a successful ping rules out a routing or path-specific problem entirely — it only confirms the endpoint itself responded.
• Traceroute stopping at a specific hop points to that hop as the likely problem location, but a hop simply not responding to traceroute’s probes (while still forwarding traffic normally) is also a real, common possibility worth ruling out.
• nslookup/dig isolate DNS specifically — don’t reach for packet capture or other deeper tools before first confirming or ruling out DNS with a quick, direct query.
• netstat is useful for both routine troubleshooting and basic security checks — don’t think of it as a single-purpose tool.
• ARP cache issues are local-segment-specific. Checking the ARP cache is only meaningful for diagnosing problems on the same local network segment as the device being checked, not for anything beyond it.
