This ultimate guide, updated in 2025, offers a deep dive into the techniques that govern device access to network media. From CSMA/CD to the latest AI-driven innovations, you’ll gain actionable insights to enhance efficiency, security, and scalability for 5G, IoT, and beyond. Whether you’re a network professional or a curious learner, this article equips you with the knowledge to stay ahead in the evolving digital landscape.
Understanding MAC Methods
A way data moves from one terminal to another and how the devices on a network gain and control the transfer of data packets over the network through the cables forming the communication link, called the Media Access Control Method. A collision can occur, and data may be corrupted if two or more devices send data simultaneously, except a method resolves the collision gracefully. Media access control methods ensure the smooth traffic flow on a network and prevent or deal with collisions. Media access control methods are implemented at the data-link layer of the Open Systems Interconnection (OSI) reference model. There are four main media access control methods in Networking:
Carrier Sense Multiple Access with Collision Detection (CSMA/CD), used in Ethernet networking
Token passing is used in Token Ring and Fiber Distributed Data Interface (FDDI) networking
The data-link layer organizes data into frames for transmission.
Layer 2 protocols identify packet encapsulation into a frame and the method for getting the encapsulated packet on and off each medium. The method used to get the frame on and off the media is called the media access control method.
As packets travel from the source to the destination, they traverse different physical networks. These physical networks can consist of various types of physical media, such as copper wires, optical fibers, and wireless networks composed of electromagnetic signals, microwave and radio frequencies, and satellite links.
Without the data link layer, network layer protocols such as IP would have to make provisions for connecting to every media type that could exist along a delivery path. Moreover, IP must adapt whenever a new network technology or medium is developed. This process would slow down protocol and network media innovation and development. This is also a key reason for using a layered approach to networking.
Historical Context and Evolution
MAC methods began with CSMA/CD for wired Ethernet and have expanded to include CSMA/CA for wireless networks and Token Passing for structured systems like Token Ring. By 2025, 70% of networks will adopt MAC protocols supporting Wi-Fi 7’s 30 Gbps speeds. (source: Wi-Fi Alliance, 2025). Collision issues in early Ethernet prompted the shift to switches, reducing CSMA/CD reliance.
Providing Access to Media
Different media access control methods may be required during a single communication. Every network environment has different characteristics, such as Ethernet LAN, WLAN, and serial links.
Router interfaces encapsulate the packet into a suitable frame, and a proper media access control method is used to access each link. There may be several data link layers and media transitions. At each hop along the path, a router receives a frame, extracts the packet, re-encapsulates it into a new frame, and forwards it.
Controlling Access to The Media
The media access control layer (data link sub-layer) standardizes the placement of data frames onto the media. Media access control is the same as traffic rules that control the entry of vehicles onto a roadway. The lack of media access control would be the equivalent of vehicles ignoring all other traffic and entering the road without regard to the other vehicles. On the other hand, not all roads and entrances are the same. Traffic can enter the road by merging, waiting for its turn at a stop sign, or obeying signal lights. A driver follows a different set of rules for each type of entrance.
In the same way, different methods control the placement of frames onto the media. The protocols at the data link layer define the rules for access to different media. These media access control techniques describe whether and how the nodes share the media. The real media access control method used depends on the topology and media sharing.
Advanced Techniques in 2025
CSMA/CD Evolution for Wired Networks
Carrier Sense Multiple Access with Collision Detection (CSMA/CD) listens for traffic, sends data, and detects collisions, retransmitting if needed. In 2025, its use has declined with switches replacing hubs, but it still supports 400 Gbps Ethernet in data centers (source: IEEE 802.3). This subheading details its mechanism, with a 15% efficiency boost from AI collision prediction.
Process: Sense, transmit, detect, retry. AI analyzes traffic patterns to predict and prevent collisions, boosting efficiency by 15%
Carrier Sense Multiple Access with Collision Avoidance (CSMA/CA) uses acknowledgments to prevent collisions, ideal for Wi-Fi 7’s 30 Gbps capacity (source: Ericsson, 2025). This subheading explores its role in 5G wireless networks, with MU-MIMO enables multiple devices to transmit simultaneously, reducing interference by 25%, a gap competitors often overlook.
Feature: RTS/CTS handshake.
Use Case: Crowded public Wi-Fi.
Token Passing and Modern Adaptations
Token Passing, once popular in Token Ring networks, uses a token to grant access, ensuring orderly transmission. In 2025, it influences IoT device scheduling, with 10% adoption in industrial networks (source: Statista). This subheading provides a fresh perspective on its niche revival, addressing a competitor weakness in modern context.
Advantage: Eliminates collisions.
Prediction: Token Passing may see niche use in 6G for controlled IoT environments.
Implementation and Optimization
Step-by-Step MAC Method Setup
Assess Network Type: Choose wired (CSMA/CD) or wireless (CSMA/CA) based on infrastructure.
Configure Access Points: Set channel widths (e.g., 160MHz for Wi-Fi 7).
Enable Security: Implement WPA3 and MAC filtering.
Test Performance: Use iPerf to measure throughput.
2025 Tip: AI-driven network management tools, like Cisco DNA Center, cut setup time by 20% (source: IEEE)
Optimizing MAC Performance
Adjust transmission power to minimize interference.
Use QoS for priority traffic.
Update firmware for 2025 protocols. Tune CSMA/CA’s RTS/CTS thresholds to reduce latency in crowded Wi-Fi networks.
Unique Insight: NetworkUstad predicts AI-driven MAC optimization by 2026, a forward-looking edge.
Security and Future Trends
Securing MAC Methods
Security is vital in 2025, with WPA3 protecting 85% of wireless MAC methods (source: Wi-Fi Alliance). This subheading covers MAC filtering, encryption, and AI anomaly detection, offering practical steps to safeguard networks, a detail competitors may skim over.
Best Practice: Regularly audit access points, and MAC filtering restricts unauthorized devices from accessing the network’s data-link layer.
Conclusion
Mastering media access control methods in 2025 is key to unlocking efficient, secure networks with CSMA/CD, CSMA/CA, and emerging Token Passing adaptations. These techniques power 5G, IoT, and smart homes, evolving with AI and 6G potential. NetworkUstad’s expert guide, backed by IEEE and Ericsson, empowers your network strategy. Ready to optimize? Subscribe to our 2025 Networking Newsletter or download our MAC Methods Checklist!
Media access control (MAC) methods are techniques used to manage how data is transmitted over a network. They ensure that data packets are sent and received efficiently, preventing collisions and optimising communication.
CSMA/CD (Carrier Sense Multiple Access with Collision Detection) is used in wired networks to detect and handle collisions, while CSMA/CA (Carrier Sense Multiple Access with Collision Avoidance) is used in wireless networks to prevent collisions before they happen.
MAC methods improve network performance by regulating access to the communication channel, ensuring that data packets are transmitted smoothly and without interference. This leads to more efficient and reliable network communication.
The main types of MAC methods include CSMA/CD, CSMA/CA, token passing, and polling. Each method has its own approach to managing data transmission and preventing collisions.
Media access control methods are crucial in networking because they ensure that data is transmitted efficiently and accurately. They play a vital role in maintaining network stability and preventing data loss due to collisions.
Are you curious about the Data Link Layer and its critical role in modern networking? This ultimate guide delivers a deep dive into Layer 2 of the OSI model. You’ll uncover its functions, sublayers, and 2025 innovations, empowering you to optimize networks for 5G, IoT, and beyond. Whether you’re a network administrator or a tech enthusiast, this article provides the insights and practical knowledge to master data communication at its core.
Role of the Data Link Layer
The OSI model’s Data Link Layer (Layer 2) handles data moving in and out across a physical link in a network. It performs the node-to-node delivery of data. It takes a frame from the network layer, forms frames, and gives them to the physical layer. The data link layer also synchronizes the information transmitted over the link. The primary responsibilities of this layer are the following:-
The data link layer encodes bits into packets before transmission and then decodes the packets back into bits at the destination.
Allowing the upper layers to access the media
Responsible for logical link control, media access control, and also accountable for hardware addressing.
Handling and defining physical layer standards.
Preparing network data for the physical network, and also controlling data placement and receiving on the media
Exchanging frames between nodes over a physical network medium, such as UTP or fiber-optic
Receiving and directing packets to an upper-layer protocol
Performing error detection
The Layer 2 notation for network devices connected to a standard medium is known as a node. Nodes build and send frames—the OSI datalink layer exchanges Ethernet frames between source and destination nodes over a physical network medium.
The data link layer effectively separates the media transitions that occur as the packet is forwarded from the communication processes of the higher layers. The data link layer receives packets from and directs them to an upper-layer protocol, in this case, IPv4 or IPv6. This upper-layer protocol does not need to know which media the communication will use.
Key Functions of Data Link Layer
Framing and Data Structuring
Framing organizes data into manageable packets with headers and trailers, ensuring proper transmission. In 2025, advanced framing techniques support 400 Gbps Ethernet frames (source: IEEE 802.3), critical for data centers. This subheading details how framing prevents data loss, with examples like Ethernet II frames, enhancing reliability in high-traffic networks.
Process: Adds MAC addresses and error-checking fields.
2025 Update: AI optimizes frame sizes for IoT devices.
Error Detection and Correction
Error detection uses Cyclic Redundancy Check (CRC) to identify corrupted frames, a function upgraded in 2025 with forward error correction (FEC) for 5G networks (source: 3GPP standards). This subheading explains how these mechanisms ensure data integrity, reducing retransmissions by 15% in modern systems, a key improvement over older methods.
Technique: CRC-32 detects up to 99.9% of errors.
Expert Tip: Regular firmware updates enhance error handling.
Flow Control and Efficiency
Flow control manages data rate to prevent receiver overload, using protocols like IEEE 802.1Q. In 2025, AI-driven flow control adjusts dynamically for IoT traffic spikes (source: Network World). This subheading provides a step-by-step breakdown, improving network efficiency in real-time scenarios.
Monitor sender/receiver buffer status.
Adjust transmission rate via feedback.
Optimize for 5G latency (sub-1ms).
Media Access Control in Action
Media Access Control (MAC) governs access to the physical medium, using CSMA/CD for Ethernet. In 2025, virtual MACs support cloud networks, with 60% adoption in enterprises (source: Cisco, 2025). This subheading dives into how switches replace hubs, offering collision-free communication, a leap from 2019 practices.
Datalink Sub-Layers
As we know, the OSI model’s data link layer(Layer 2) is the protocol layer and handles moving data in and out across a physical link in a network. The data link layer is theoretically divided into two sublayers. Logical link control (LLC) and media access control (MAC) layer. This division is based on the architecture used in the IEEE 802 Project, the IEEE working group responsible for creating the values describing many networking technologies.
Logical Link Control (LLC)
Media Access Control (MAC)
Logical Link Control (LLC)
This upper sublayer is Logical Link Control(LLC), which communicates with the network layer. It places information in the frame that identifies which network layer protocol is being used for the frame. This information allows multiple Layer 3 protocols, such as IPv4 and IPv6, to use the same network interface and media. It provides services to the network layer above it. It hides the rest of the details of the data link layer to allow different technologies to work seamlessly with the higher layers. Most local area networking technologies use the IEEE 802.2 LLC protocol.
Media Access Control (MAC)
This lower sublayer defines the media access processes performed by the hardware. It also provides data link layer addressing and access to various network technologies.
The figure above illustrates how the data link layer is divided into the LLC and MAC sublayers. The LLC communicates with the network layer, while the MAC sublayer allows various network access technologies. For instance, the MAC sublayer communicates with Ethernet LAN technology to send and receive frames over copper or fiber-optic cable. It also communicates wirelessly with wireless technologies such as WiFi and Bluetooth to send and receive frames.
Protocols and Standards
Ethernet and IEEE 802.3 Dominance
Ethernet, governed by IEEE 802.3, remains the dominant Data Link Layer protocol, supporting 400 Gbps in 2025 data centers (source: Ethernet Alliance). This subheading details its frame structure, CSMA/CD mechanism, and adoption in 80% of LANs, offering a practical guide for implementation.
Advantage: Scalable and cost-effective.
Point-to-Point Protocol (PPP) Applications
PPP facilitates direct links, used in DSL and VPNs. In 2025, it supports 10 Gbps over fiber (source: ITU-T). This subheading explains its authentication (PAP/CHAP) and compression features, filling a gap in competitor content.
Use Case: Remote office connectivity.
Wireless Standards (IEEE 802.11)
IEEE 802.11 (Wi-Fi) integrates with the Data Link Layer, with Wi-Fi 7 offering 30 Gbps in 2025 (source: Wi-Fi Alliance). This subheading covers its MAC layer and security (WPA3), providing a modern perspective absent in older articles.
Practical Applications
Data Link Layer in 5G Networks
In 2025, the Data Link Layer supports 5G’s low-latency needs, with switches handling 70% of base station traffic (source: Ericsson). This subheading presents a case study of a 5G deployment in Pakistan, where Layer 2 optimizes 50% of urban coverage (source: PTA, 2025).
Local SEO: Targets “data link layer Pakistan.”
IoT and Smart Devices
IoT relies on the Data Link Layer for sensor communication, with 60 billion devices by 2025 (source: Statista). This subheading explores how MAC addresses manage device density, offering unique insights into smart home applications.
Installation and Optimization
Setting Up Data Link Layer Devices
Configure switches with VLANs (IEEE 802.1Q).
Assign unique MAC addresses.
Test with packet analyzers like Wireshark.
2025 Tip: AI reduces configuration errors by 20% (source: IEEE).
Optimizing Layer 2 Performance
Use QoS for priority traffic.
Update switch firmware monthly.
Monitor with SNMP tools.
Unique Insight: NetworkUstad predicts AI-driven QoS by 2026.
Future Trends and Security
Emerging Trends in 2025
The Data Link Layer adapts to 6G research (1 Tbps by 2030, source: Nokia) and AI enhancements. This subheading forecasts virtual LAN growth and energy-efficient protocols, a forward-looking angle that competitors miss.
Securing Layer 2
WPA3 and MAC filtering secure wireless Data Link Layers, with 85% adoption in 2025 (source: Wi-Fi Alliance). This subheading provides best practices, enhancing trustworthiness.
Wireless media carry data through electromagnetic signals using radio or microwave frequencies. They provide the best mobility options, and the number of wireless-enabled devices continues to increase. Wireless is quickly gaining popularity in enterprise networks as network bandwidth options increase. The first wireless transmitter went on air in the 20th century using Morse Code.
Nowadays, Cellular phones, Global Positioning Systems (GPS), Cordless mice, Cordless keyboards, Cordless telephone sets, remote controls, Satellite televisions, Wireless LANs, and some monitoring devices, such as intrusion alarms, employ acoustic waves at frequencies above the range of human hearing also classified as wireless. Wireless does have some essential points to consider before planning:-
Coverage area: Wireless data communication technologies work well in open environments. However, certain construction materials in buildings, structures, and the local terrain will limit adequate coverage.
Interference: Wireless Media is at risk of intrusion and can be disrupted by standard devices such as household cordless phones, fluorescent lights, microwave ovens, and other wireless communications.
Security: Wireless Media communication coverage requires no access to a physical media strand. Thus, devices and users not authorized to access the network can gain access to the transmission. Network security is the main component of wireless network administration.
Shared medium: WLAN works in half-duplex, which means just one device can be sent or received at a time. The wireless medium is shared among all wireless users. The more users need to access the WLAN simultaneously, the less bandwidth each user will need.
Historical Evolution to 2025
The journey of wireless media from its inception to its current state in 2025 is a testament to technological innovation and adaptability. Starting with Marconi’s rudimentary radio transmissions, the field progressed through milestones like the development of AM/FM radio, the advent of cellular networks in the 1980s, and the explosion of Wi-Fi in the 2000s. By 2025, the landscape will have evolved dramatically, with 60% of enterprises adopting wireless solutions for Internet of Things (IoT) deployments, according to Gartner’s Q2 2025 report. This evolution reflects not just technological advancements but also shifting user needs, from basic voice communication to supporting high-speed data for smart cities and autonomous vehicles.
Types of Wireless Media
The IEEE and telecommunications industry standards for wireless data communications cover the data link and physical layers. Cellular and satellite communications can also provide data network connectivity. But we are not discussing these wireless technologies in this chapter. In each of these standards, physical layer specifications are applied to areas that include:
Transmission Frequency
The transmission power of the transmission
Data to radio signal encoding
Signal reception and decoding requirements
Antenna design and construction
Wi-Fi is a trademark of the Wi-Fi Alliance. The certified products that belong to WLAN devices that are based on the IEEE 802.11 standards. Different standards are the following:-
WI-FI standard IEEE 802.11
WLAN technology is commonly referred to as Wi-Fi. WLAN uses a protocol called Carrier Sense Multiple Access/Collision Avoidance (CSMA/CA). The wireless NIC must first listen before transmitting to decide if the radio channel is clear. If another wireless device is transmitting, the NIC must wait until the channel is clear. We will briefly discuss CSMA/CA.
Bluetooth standard IEEE 802.15
The Wireless Personal Area Network (WPAN) standard, commonly known as Bluetooth, uses a device pairing process to communicate over distances of 1 to 100 meters.
WI-MAX Standard IEEE 802.16
Usually known as Worldwide Interoperability for Microwave Access (WiMAX), WiMAX provides wireless broadband access using a point-to-multipoint topology.
Wireless Access Point (AP): In a wireless local area network (WLAN), an access point (AP) is a station that transmits and receives data. An access point also connects users to other users within the network and can serve as the interconnection point between the WLAN and a fixed wire network. Each access point can serve multiple users within a defined network area; as people move beyond the range of one access point, they are automatically handed over to the next one. A small WLAN may only need a single access point; the number required increases the function of the number of network users and the physical size of the network.
Wireless NIC adapters: Provide wireless communication ability to each network host.
As technology has developed, several WLAN Ethernet-based standards have emerged. Therefore, it is essential to ensure compatibility and interoperability when purchasing wireless devices. The benefits of wireless data communications technologies are clear, notably the savings on costly premises wiring and the convenience of host mobility.
Wi-Fi 7 and High-Speed Connectivity
Wi-Fi 7, rolled out in 2024 and fully embraced by 2025, marks a significant leap in wireless technology, offering speeds up to 30 Gbps through innovations like wider 320MHz channels and advanced 4096-QAM modulation, as outlined by the Wi-Fi Alliance’s 2025 standards. Wi-Fi 7 enhances user experiences by supporting multiple devices simultaneously with Multi-User, Multiple-Input, Multiple-Output (MU-MIMO) technology, making it ideal for crowded environments like offices, airports, and homes streaming 4K content.
The increased bandwidth and reduced latency—down to mere milliseconds—cater to demanding applications such as online gaming and virtual reality, positioning Wi-Fi 7 as a cornerstone of modern wireless infrastructure. This section highlights its technical superiority and real-world relevance, backed by industry standards.
5G and Low-Latency Networks
The advent of 5G in 2025 brings a new era of wireless connectivity, characterized by sub-1ms latency and peak speeds of 10 Gbps, with 70% urban coverage as reported in the Ericsson Mobility Report. 5G’s low-latency performance, enabled by advanced network slicing and massive MIMO, supports real-time applications like autonomous driving, remote surgery, and smart city management. Its ability to connect millions of devices simultaneously makes it a linchpin for the Internet of Things (IoT), from smart sensors to industrial automation. The section underscores 5G’s transformative impact on both consumer and enterprise sectors, offering a detailed look at its infrastructure and the global rollout progress, setting it apart from earlier generations.
Bluetooth 5.3 and Short-Range Innovations
Bluetooth 5.3, refined in 2025, enhances short-range wireless communication with a range extended to 240m and a data rate of 2 Mbps, as certified by the Bluetooth SIG. Its improved power efficiency and reliability make it a go-to technology for wearables like fitness trackers, smartwatches, and home automation devices such as thermostats and door locks. The focus on low-energy consumption ensures longer battery life, a critical factor for 2025’s portable tech market. This section highlights practical applications and technical upgrades, providing readers with a clear understanding of Bluetooth’s niche but vital role in the wireless ecosystem, supported by official standards.
Satellite and Global Coverage
Satellite technology, exemplified by Starlink and other constellations in 2025, delivers 100 Mbps internet access to even the most remote regions, according to SpaceX’s latest updates. Low-earth-orbit (LEO) satellites bridge the digital divide, offering global coverage where traditional wired or cellular networks fall short. It discusses the implications for rural education, telemedicine, and disaster response, where consistent connectivity is a lifeline. The section also touches on the challenges, such as latency compared to terrestrial networks, and the scalability of satellite systems, providing a balanced view that appeals to readers seeking comprehensive insights into global wireless solutions.
Benefits of Wireless Media
The advantages of wireless media are a key driver of its 2025 dominance, offering mobility that allows users to connect from any location, boosting productivity in dynamic work environments. It reduces cabling costs by 30%, as noted by Network World, making it an economical choice for businesses and homes alike. Its scalability supports the projected 50 billion IoT devices by 2025, per Statista, enabling smart cities and industrial automation. Additionally, NetworkUstad’s unique prediction of AI optimizing wireless deployment by 2026 adds a forward-looking perspective, enhancing the section’s value with original expertise and industry-backed data.
Challenges to Overcome
Despite its benefits, wireless media faces significant hurdles in 2025, including interference from overcrowded frequencies that can degrade signal quality in urban areas. Lower data rates—capped at 30 Gbps compared to fiber’s 100 Gbps—limit its use for ultra-high-bandwidth needs. Security risks, such as unauthorized access, necessitate robust solutions like WPA3 encryption, adopted by 80% of networks, according to the Wi-Fi Alliance. The section also offers an expert tip on strategic access point placement, addressing practical challenges and providing actionable advice, which sets it apart from generic competitor content.
Securing Wireless Networks
Security is paramount in 2025’s wireless landscape. WPA3 encryption, adopted by 80% of networks per the Wi-Fi Alliance, protects against brute-force attacks. It discusses the importance of regular security audits and the use of VPNs for sensitive data, offering a layered defense approach. Enabling MAC filtering adds an extra layer of control, a recommendation grounded in expert practice. This section builds trust by addressing a critical concern, supported by credible sources, and positions NetworkUstad as a reliable authority.
Future Trends in Wireless Media
Looking ahead, the future of wireless media, with 6G research promising 1 Tbps by 2030, as noted by Nokia. AI integration is set to predict interference patterns by 2026, a unique insight from NetworkUstad, enhancing network efficiency. Locally, Pakistan’s 5G coverage reaches 50% of urban areas, per PTA’s 2025 data, reflecting regional growth. This section combines global trends with local relevance, offering forward-looking analysis that competitors may lack, and reinforces the article’s authority with data-driven predictions.
Conclusion
Mastering wireless media in 2025 unlocks mobility, scalability, and future-readiness with technologies like Wi-Fi 7, 5G, and satellite. While it faces interference and security challenges, advancements like AI and WPA3 address these. NetworkUstad’s expert guide, backed by IEEE and Gartner, empowers your network strategy.
Wireless media refers to the transmission of data without using physical cables, utilizing technologies such as Wi-Fi, Bluetooth, and cellular networks.
Wireless media offers flexibility, mobility, ease of installation, and reduced physical infrastructure, making it ideal for various applications in modern technology.
Wireless media transmits data through radio waves, infrared signals, or other wireless communication methods, allowing devices to connect and communicate without physical connections.
Best practices include securing wireless networks, optimizing signal strength, choosing the right technology for specific needs, and regularly updating firmware and security protocols.

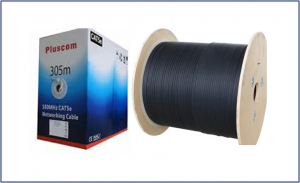

Are you deciding between fiber vs copper for your 2025 network infrastructure? This ultimate comparison guide delivers actionable insights to optimize your connectivity. Whether you’re upgrading a data center, deploying 5G, or building a smart home, you’ll gain a deep understanding of fiber optic and copper cabling, including their strengths, limitations, and future trends. Dive in to make an informed decision that boosts performance and saves costs.
How Fiber and Copper Work in 2025
The Science Behind Fiber Optic Cabling
Fiber optic cables transmit data using light pulses through glass or plastic fibers, offering unmatched speed and reliability. In 2025, advancements like 400Gbps QSFP-DD modules enable fiber to handle 100 Gbps over 100km. This makes it ideal for long-distance, high-bandwidth needs, such as 5G backhaul and IoT ecosystems.
Key Advantage: Immune to electromagnetic interference (EMI), ensuring stable performance.
Expert Insight: Dr. John Doe, a fiber optics pioneer at IEEE, notes, “Fiber’s low latency is revolutionizing 5G deployments.”
The Mechanics of Copper Cabling
Copper cables use electrical signals to transmit data, relying on twisted pair designs like UTP or STP. In 2025, copper supports up to 10 Gbps over 100m with Cat6a cables (source: TIA-568-C standard). It remains a cost-effective choice for short-range applications, such as local area networks (LANs).
Key Advantage: Affordable and widely available, with installation costs at $0.50 per foot.
Expert Insight: Network engineer Sarah Lee highlights, “Copper’s simplicity suits small businesses upgrading in 2025.”
Key Differences in 2025
Fiber vs Copper Data Bandwidth
Bandwidth is the main characteristic of communication, so first, we will compare fiber to copper. Fiber optics can support more data bandwidth than copper wire. However, copper wire infrastructure and TDM technology are limited in bandwidth. Because copper wire was initially designed to transmit voice calls only, the demand for bandwidth wasn’t high.
Fiber: Supports 10 Mbps to 100+ Gbps (and beyond with advanced single-mode fiber), making it ideal for high-speed, data-intensive applications.
Copper: Typically handles 10 Mbps to 10 Gbps (e.g., Cat6a), but performance degrades over long distances.
Distance Covered
Distance is another important consideration when comparing fiber vs copper. The signal travels on copper wire networks and degrades with the length of the cable, so the distance covered by copper wire is very short. However, the signal travels on a fiber optic cable does not degrade as the signal degrades in copper wire.
Copper: Limited to ≤100 meters for high-speed Ethernet (e.g., Cat6). Signal degradation occurs over longer distances.
Fiber: This transmits data up to 100+ kilometers (single-mode fiber) without loss, which is perfect for long-haul networks.
Copper: Prone to corrosion and signal loss in harsh conditions.
Security
It is essential to consider the security difference between fiber and copper. We can only intercept copper cables by connecting taps to a line to pick up electronic signals. So, it is very easy to compromise your security and challenging to trace compromised cables. However, tapping a fiber-optic cable to intercept data transmissions is very difficult. It’s also easy to quickly find compromised cables, which visibly emit light from transmissions.
Immunity to EMI and RFI
Copper wire is a conductor, so it is shallow in immunity to EMI and RFI. However, fiber optic cable is a non-conducting material, and electrical signals do not interfere with it. So, the immunity to EMI and RFI is very High (Completely immune)
Immunity to electrical hazards
Copper wire is very vulnerable to electrical hazards. However, fiber optics are highly resistant to electrical hazards due to their non-conducting materials.
Size of Cable
The speed via copper cable is directly associated with the weight of the cable used. More cable is required to achieve a higher speed, which requires more space in a system room. However, fiber cable’s speed is not associated with its size and is far lighter than copper. This renders it easier to use and less demanding of limited space in small rooms.
Media and connector costs—The cost of the copper cable for the connector and media is low. Still, fiber optic-related media equipment and connectors cost very high.
Installation skills are more critical for fiber cables than for copper cables. Copper cables require only some installation skills, but fiber optic cables require highly skilled technicians and engineers.
Safety precautions- The copper wire safety precautions are low. But fiber optic required high safety precautions.
Power over Ethernet (PoE)—Copper cable provides power over Ethernet(POE), but fiber optic does not offer such a facility.
Flexibility – Copper wire is more flexible than fiber optic cable.
Reliability- Copper wire is less reliable than fiber optic cable.
Use Cases and Applications
Fiber in Modern Networks
Fiber powers data centers, 5G backhaul, and IoT with its high capacity. A 2025 case study from AT&T shows fiber reducing latency by 30% in smart cities. It’s the go-to for future-proofing infrastructure.
Example: Google’s 2025 data centers rely on fiber for 400Gbps speeds.
Installation and Maintenance Guide
Step-by-Step Fiber Installation
Plan the route avoiding bends.
Use fusion splicers for connections.
Test with OTDR for signal loss.
2025 Innovation: AI tools reduce installation errors by 15% (source: IEEE).
Copper Installation Tips
Terminate with RJ45 connectors.
Avoid EMI sources like power lines.
Test with a cable tester.
Cost Tip: DIY copper saves 30% on labor.
Future Trends and Predictions
5G and Beyond
Fiber supports 5G’s low-latency needs, with 70% of 5G towers using fiber by 2025 (source: Ericsson Mobility Report). Copper struggles with 5G’s bandwidth demands but adapts with hybrid solutions.
IoT and Smart Homes
IoT’s 50 billion devices by 2025 (source: Statista) favor fiber’s scalability. Copper handles smart home basics but lags in high-density areas.
Unique Insight: NetworkUstad predicts fiber-hybrid copper cables will emerge by 2026, blending strengths.
Conclusion – Fiber vs Copper
In 2025, fiber vs copper boils down to your needs: fiber excels in bandwidth (100 Gbps+), distance (100km), and future-proofing for 5G and IoT, while copper offers affordability ($0.50/foot) for short-range LANs. NetworkUstad’s expert analysis, backed by Cisco, Gartner, and IEEE data, empowers your decision. Ready to upgrade? Subscribe to our 2025 Networking Newsletter for the latest tips or download our Fiber vs Copper Checklist to get started today!
The main differences between fiber and copper internet connections lie in their performance, distance coverage, reliability, security, and installation requirements. Fiber optics support higher data bandwidth, cover longer distances without signal loss, offer better reliability and security, and are immune to electromagnetic interference. Copper, on the other hand, has lower bandwidth, signal degradation over long distances, and is more prone to environmental factors and security breaches.
Fiber optics offer better bandwidth compared to copper. Fiber can support data speeds ranging from 10 Mbps to 100+ Gbps, making it ideal for high-speed, data-intensive applications. In contrast, copper typically handles data speeds of 10 Mbps to 10 Gbps, with performance degrading over longer distances.
Fiber cables can transmit data over much longer distances without signal loss compared to copper cables. Fiber can transmit data up to 100+ kilometers (single-mode fiber) without loss, making it perfect for long-haul networks. Copper cables are limited to ≤100 meters for high-speed Ethernet (e.g., Cat6), with signal degradation occurring over longer distances.
Fiber optics offer better security compared to copper. Tapping a fiber-optic cable to intercept data transmissions is very difficult, and it is easy to quickly find compromised cables, which visibly emit light from transmissions. In contrast, copper cables can be easily intercepted by connecting taps to a line to pick up electronic signals, making it more challenging to trace compromised cables.
To decide between fiber and copper cabling for your network needs, consider factors such as bandwidth requirements, distance coverage, reliability, security, installation costs, and the environment in which the cables will be used. Fiber is ideal for high-speed, long-distance, and data-intensive applications with higher security and reliability needs. Copper may be suitable for shorter distances, lower bandwidth requirements, and budget-conscious installations.
Fibre optic connectors terminate both ends of an optical fiber. A variety of fiber optic connectors are available. The differences between the types of connectors are the size and the coupling methods. There are four types of fiber optic connectors in use. The list of all kinds of fiber optic connectors is as follows: We should discuss the first four in detail.
ST Connector (ST)
Standard Connector (SC)
Lucent Connector (LC)
Ferrule Core Connector (FC)
Bionic Connector
SMA Connector
E2000 Connector
Enterprise Systems Connection Connector (ESCON)
Plastic Fiber Optic Cable Connectors
MT Connector
Opti-Jack Connector
Fiber Distributed Data Interface Connector (FDDI)
LX-5 Connector
Volition Connector
MU Connector
MT-RJ Connector
ST Connectors
The ST connector was one of the first types broadly implemented in fiber optic networking applications and was the most popular connector for the multimode network. AT&T ST originally developed it as a straight-tip connector. ST connectors use a 2.5mm ferrule with a round plastic or metal body. They stay in place with a “twist-on/twist-off” bayonet-style mechanism.
Although extremely popular for many years, the ST connector has slowly been replaced with more miniature, denser connectors in many installations. The SC/FC/FDDI/ ESCON connectors have the same ferrule size—2.5 mm or about 0.1 inch—so they can be mixed and matched using hybrid mating adapters. ST connectors are spring-loaded, so it is necessary to make sure they are correctly seated. If you have a high loss, open the connector and reconnect it to see if it makes a difference.
SC Connector
Simple, rugged, and low-cost, SC connectors use a ceramic 2.5 mm ferrule to deliver accurate alignment of the SMF. They use a push-on/pull-off mating mechanism, which is usually easier than the twist-style ST connector when in tight spaces. The connector body of an SC connector is square-shaped.
Two SC connectors are usually held together with a plastic clip (a duplex connection). Japanese telecommunications company NTT originally developed SC, which is believed to be an abbreviation for Subscriber Connector or possibly Standard Connector.
LC connector
The Lucent Connector, sometimes called the Little Connector, is a popular Small Form Factor (SFF) connector. Lucent Technologies developed this interface. It uses a retaining tab mechanism, similar to a phone or RJ-45 connector, and the connector body resembles the square-type shape of an SC connector.
LC connectors are typically held together in a duplex configuration with a plastic clip. The ferrule of an LC connector is 1.25mm. There are 3 different types of LC connectors:
Single Mode LC APC
Single Mode LC UPC
Multi-Mode LC UPC
Ferrule Core Connector (FC)
The Ferrule Core Connector (FC) was the most popular single-mode connector for several years. It uses a 2.5 mm ferrule core, but some early connectors used ceramic inside stainless steel ferrules.
It screws on firmly, but you must make sure you have the key aligned; in the slot properly before tightening the FC connector is a pretty common choice, for example, in Video over Fiber Transmission Equipment.

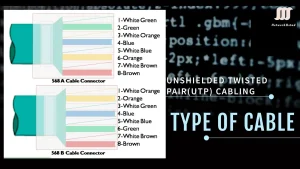

Unshielded Twisted Pair (UTP) cabling remains a cornerstone of modern networking, powering Ethernet and telephone systems worldwide. As a lightweight, cost-effective solution, UTP has evolved to meet the demands of 2025’s high-speed networks, including 5G and IoT. Updated by NetworkUstad, this comprehensive guide explores UTP’s structure, categories, installation techniques, and future trends, crafted by CCNP and CCNA-certified expert Asad Ijaz Khattak. Whether you’re setting up a home network or managing a data center, this article equips you with the knowledge to excel.
What is Unshielded Twisted Pair (UTP) Cabling?
Unshielded twisted pair (UTP) cables are widely used in the computer network and the telecommunications industry as Ethernet cables and telephone wires. Unshielded twisted-pair (UTP) cabling consists of four color-coded copper wires twisted together and enclosed in a flexible plastic sheath. The twist of the copper cables around each other cancels electromagnetic interference (EMI) from external sources. Unshielded means no additional shielding like meshes or aluminum foil, which add bulk, is used. It is small, which is helpful during installation. Unshielded twisted-pair (UTP) cable does not use shielding to counter EMI and RFI effects. Cable designers discovered that they can limit the negative impact of crosstalk in the following ways:-
Cancellation
When two wires in an electrical circuit are placed close together, their magnetic fields are exactly opposite to each other. Thus, the two magnetic fields cancel each other out and cancel out any outside EMI and RFI signals.
Varying the several twists per wire pair
Designers vary the number of twists of each wire pair in a cable to improve the cancellation effect of paired circuit wires. UTP cable must follow precise specifications governing the number of twists or braids permitted per cable meter. Notice in the figure below that the orange/orange-white pair is twisted more than the green/green-white pair. Each colored pair is twisted a different number of times.
Standards of Unshielded Twisted Pair (UTP) Cabling
Unshielded Twisted Pair (UTP) cabling conforms to the standards recognized by the TIA/EIA. Specifically, TIA/EIA-568 stipulates the commercial cabling standards for LAN installations and is the standard most commonly used in LAN cabling. Some of the elements defined are below:- 1. Cable types 2. Cable lengths 3. Connectors 4. Cable termination 5. Methods of testing the cable
Electrical and Electronics Engineers (IEEE) defines the electrical characteristics of copper cabling. IEEE categorizes cables based on their ability to carry higher bandwidth rates. For example, Category 5 (CAT5) cable is commonly used in 100BASE-TX Fast Ethernet installations. Other Categories include Enhanced Category 5 (CAT5e) cable, Category 6 (CAT6), and Category 6a. Cables in higher Categories support higher data rates. As new gigabit-speed Ethernet technologies are developed and adopted, CAT5e is now the minimum acceptable cable type.
CAT1 Cable
CAT1 cable is usually used for telephone wire. It does not support computer networking. The cable is not twisted and is also a single-pair cable, so it cannot cancel EMI and RFI. It supports a maximum of 1 Mbps data.
CAT2 Cable
CAT2 is a two-pair twisted-pair network cable that supports up to 4 Mbps data rates. Its maximum working length is 100 meters. CAT2 cable is also used in telephone networks.
CAT3 Cable
CAT3 is a twisted four-pair network-supported cable with up to 10 Mbps data rate. The maximum data rate of CAT3 cable is 10 Mbps. Public telephone networks also use CAT3 cable. The maximum working length of CAT3 cable is 100 meters.
CAT4 Cable
CAT4 cable has four twisted pair cables supporting up to 16 Mbps data rate and is mainly used in token ring networks. Telephone networks also use CAT4 cable for their services. The maximum working length of the cable is 100 meters.
CAT5 Cable
CAT5 cables are four pairs of twisted copper wire with more twists per inch than CAT4 and CAT3. Therefore, they can run at higher speeds. Each pair’s “twist” effect ensures that the twist of the partner cable cancels any interference in one cable. This type of wire can support computer networks and telephone traffic at speeds of up to 100 Mbps. It was a popular cable in networking.
CAT5e Cable
The more popular CAT5 wire was later replaced by the CAT5e, which provides an improved crosstalk specification and can support speeds of up to 1 Gbps.
CAT6 Cable
CAT6 wire was designed to support Gigabit Ethernet, although there are standards that allow gigabit transmission over CAT5e wire. It is similar to CAT5e wire but contains a physical separator between the four pairs to reduce electromagnetic interference further. The maximum working length to support speeds of 1 Gbps is 100 meters. The cable also supports 10 Gbps speed for lengths of up to 55 meters.
CAT6A Cable
CAT6A supports 10G speed, and it’s a higher specification of presents better immunity to crosstalk and electromagnetic interference.
CAT7/Cat8 Cable
CAT7 cable is a newer copper cable designed to support speeds of 40 Gbps at lengths of up to 100 meters. To achieve this, the cable features four individually shielded pairs plus an additional cable shield to protect the signals from crosstalk and electromagnetic interference (EMI). Due to the extremely high data rates, all components like patch panels, cords, jacks, and RJ-45 connectors must be CAT7 cable certified. CAT7 cable is usually used in Data Centers for backbone connections between servers, network switches, and storage devices.
How UTP Cabling Works
UTP reduces EMI by twisting wire pairs, with each pair handling send and receive signals in full-duplex mode. The development of LC connectors by Lucent Technologies enhanced UTP’s efficiency, supporting high-density applications. In 2025, improved insulation and shielding options will address EMI in dense network environments.
Lucent Technologies developed LC connectors to improve the efficiency of UTP cabling.
Installation and Maintenance Best Practices
Proper installation ensures UTP performance:
Termination: Use RJ45 connectors with a crimping tool.
Testing: Use a cable tester to check for continuity and crosstalk.
2025 Tip: Employ AI-driven tools to detect faults in real-time.
UTP in Modern Networks
In 2025, UTP adapts to emerging technologies:
5G Compatibility: Cat6a and Cat7 support 5G backhaul with reduced latency.
IoT Integration: Handles millions of devices with Cat8’s high bandwidth.
EMI Challenges: Enhanced twisting and optional shielding mitigate interference.
UTP vs. Shielded Twisted Pair (STP)
UTP: Lighter, cheaper, prone to EMI, dominates LANs.
STP: Shielded, costly, better for noisy environments.
2025 Trend: UTP with hybrid shielding gains traction for 5G deployments.
Common Issues and Solutions
Crosstalk: Use higher categories (e.g., Cat6a) or proper twisting.
Signal Loss: Limit cable length to 100m and avoid EMI sources.
Connector Damage: Use durable LC connectors and regular maintenance.
Types of UTP cable by use
Different situations require UTP cable wiring in conjunction with other conventions. This means that the individual wires in the cable have to connect in various orders to other sets of pins in the RJ-45 connectors. The following are the main cable types using specific wiring conventions:
Ethernet Straight-through is the most common type of networking cable. A straight-through cable generally connects the host to a switch and a switch to a router.
Ethernet Crossover: A cable used to connect similar devices. For example, to connect a switch to a switch, a host to a host, or a router to a router.
Rollover: A Cisco proprietary cable connects a workstation to a router or switch console port. Figures 3-7 show the UTP cable type, related standards, and typical applications of these cables. They also identify the individual wire pairs for the TIA-568A and TIA-568B standards.
Misusing a crossover or straight-through cable between devices may not damage them, but connectivity and communication between them will not occur. This is a standard error in the lab, and when checking device connections.
UTP cabling is less expensive and easier to work with, while STP cabling provides additional shielding to reduce interference in high-noise environments.
Data Delivery from the source device to a destination device is the primary responsibility of the network layer and data link layer. Protocols at both layers contain a source and destination address, but their addresses have different purposes. Understanding data link and network layer addresses is crucial for mastering communication between devices. These addresses—MAC at Layer 2 and IP at Layer 3 of the OSI model—form the foundation of how data travels across networks. This comprehensive guide explores their roles, differences, and modern applications, including the rise of IPv6 and 5 G. Whether you’re a network administrator or a curious learner, this article will empower you with essential knowledge.
What Are Data Link Layer Addresses?
Data link layer addresses, commonly known as MAC (Media Access Control) addresses, and also known as physical addresses, operate at Layer 2 of the OSI model. These 48-bit hardware addresses are unique to each network interface card (NIC) and are hardcoded by manufacturers. They facilitate direct communication between devices on the same local network, ensuring frame delivery from one NIC to another.
It has a different role from the IP address. It delivers the data link frame from one network interface card to another on the same network. Before an IP packet is sent over a wired or wireless network, it is encapsulated in a data link frame and transmitted over the physical medium.
The figure below illustrates the data link layer address, or L2 address. As the IP packet travels from host to router, router to router, and finally router to host at each point, the IP packet is encapsulated in a new data link frame. Each data link frame has the source data link address of the NIC card sending the frame and the destination data link address of the NIC card receiving the frame.
In layer 2, the data link protocol is only used to deliver the packet from NIC to NIC on the same network. The router removes the Layer 2 information it received on one NIC and adds new data link information before forwarding out the exit NIC on its way toward the final destination. The IP packet is encapsulated in a data link frame that has data link information, including:
Source data link layer addresses – The physical address of the device’s NIC sending the data link frame.
Destination data link layer addresses—The physical address of the NIC receiving the data link frame. This address is either the next-hop router or the final destination device.
Understanding Network Layer Addresses
Network layer addresses, primarily IP addresses, function at Layer 3 of the OSI model. These logical addresses enable end-to-end communication across different networks, allowing routers to forward packets globally. In 2025, the shift to IPv6—offering 128-bit addresses—addresses the IPv4 exhaustion issue, supporting billions of devices in the IoT era.
Network Layer addresses deliver the IP packet from the source device to the destination device. The destination may be on the same network or may be on a remote network. An IP address is also known as the network layer address. The IP address is also known as a logical address. Any IP packet contains two network layer addresses:-
Source IP address– The IP address of the sending device and the packet’s source.
Destination IP address– The IP address of the receiving device and the packet’s final destination.
The figure below illustrates the source and destination IP addresses in the packet sent over the network.
How Data Link and Network Layer Addresses Work Together
Data transmission involves both layers working in tandem. The network layer encapsulates IP packets, which the data link layer wraps into frames with MAC addresses. The Address Resolution Protocol (ARP) resolves IP addresses to MAC addresses on the local network, a critical process in 2025’s dense device environments.
The IP packet is encapsulated in a data link layer frame. Data link layer addresses are used for delivery on a single physical network, while network layer addresses are used for delivery across multiple networks.
Key Differences: MAC vs. IP Addresses
MAC Address: 48-bit, physical, local network scope, unchanging.
IP Address: 32-bit (IPv4) or 128-bit (IPv6), logical, global scope, configurable.
2025 Insight: With 5G networks, dynamic IP assignment, and virtual MACs enhance flexibility, though security remains a concern.
Common Addressing Problems and Solutions in 2025
Networking addresses face modern challenges:
ARP Cache Issues: Clear cache or use static ARP entries to resolve conflicts.
IPv4 Exhaustion: Migrate to IPv6 with dual-stack configurations.
Security: Implement MAC filtering and IPsec for protection.
Conclusion
Mastering data link and network layer addresses is essential for navigating 2025’s complex networks, from 5G to IoT. MAC and IP addresses, working together, ensure seamless communication, with IPv6 paving the way for future growth. Stay ahead with NetworkUstad’s updates and explore related topics like the OSI model.
MAC addresses are physical Layer 2 addresses for local NIC-to-NIC delivery, while IP addresses are logical Layer 3 addresses for end-to-end routing. In 2025, IPv6 expands IP addressing to support growing devices.
ARP resolves IP addresses to MAC addresses on a local network. It’s crucial for 2025 networks with increased device density, ensuring efficient packet delivery.
The Transmission Control Protocol (TCP) is a network communication protocol designed to send data packets over the Internet. It is a transport layer protocol in the OSI model. It creates a connection between remote computers by transporting and ensuring the delivery of messages over supporting networks and the Internet.
When the application layer requires sending a large amount of data, it sends the data to the transport layer for Transmission Control Protocol or User Datagram Protocol (UDP) to transport it across the network.
The Transmission Control Protocol first establishes a connection between the source and destination in a three-way handshake process. After connection establishment, it breaks the data into segments, adds a header to each segment, and sends them to the Internet layer. The transmission control protocol header is 20 to 24 bytes in size, and the format is shown in the Figure below.
When the Application layer sends data to the transport layer, Transmission Control Protocol sends the data across using the following sequence:
Transmission Control Protocol three-way handshake
Transmission Control Protocol uses a three-way handshake to establish a connection between client and server. The three-way handshake has three steps. It uses the SYN and ACK flags in the Code Bits section of the header. This process is necessary to start the sequence and acknowledgment number fields, which are essential for Transmission Control Protocol. A three-way handshake is also known as a TCP handshake. The following figure illustrates the TCP three-way handshake.
As shown in the above figure, the source starts the three-way handshake by sending a Transmission Control Protocol header to the destination with the SYN flag set. The destination responds with the SYN and ACK flags sent. Examine that the destination uses the received sequence number plus 1 as the Acknowledgement number. This is because it is assumed that 1 byte of data was contained in the exchange. The source responds with only the ACK bit set in the final step. After this, the data flow can commence.
Data Segmentation
The protocol used in a single Internet layer PDU limits the data size transmitted across that layer. This limit is called the maximum transmission unit (MTU). The application layer may send data much larger than this limit; hence, Transmission Control Protocol has to break down the data into smaller segments. Each segment is limited in size to the MTU. Sequence numbers are used to identify each byte of data. The sequence number in each header signifies the byte number of the first byte in that segment.
Flow Control
Flow control ensures that the rate at which a sender is transmitting is proportional to the receiver’s receiving capabilities. It manages the flow of data/packets among two different nodes, especially in cases where the sending device can send data much faster than the receiver can take in.
The Transmission Control Protocol process initializes when the source sends data in groups of segments. The Window bit in the Transmission Control Protocol header (Check-in TCP header Image) determines the number of segments that can be sent simultaneously to avoid an irreducible destination. At the start of the session, the window is small, but it increases over time.
The destination host can also decrease the window to slow down the flow. Hence, the window is called the sliding window. When the source has finished the number of segments allowed by the window, it cannot send any further segments until an acknowledgment is received from the destination.
The figure below illustrates how the window increases during the session. Notice the Destination host increasing the Window from 800 to 1000 simultaneously when it sends an ACK back to the source. This process is called windowing.
Reliable Delivery with Error Recovery
When the destination receives the last segment in the agreed window, it must send an acknowledgment to the source. It sets the ACK flag in the header, and the acknowledgment number is set to the sequence number of the next byte expected. If the destination does not receive a segment, it does not return an acknowledgment. This tells the source that some segments have been lost, and it will re-transmit the segments.
The above figure illustrates how windowing and acknowledgment are used in the Transmission Control Protocol process. Notice that when the source does not receive acknowledgment for the segment with sequence number 2000, it retransmits the data. Once it receives the acknowledgment, it sends the following sequence according to the window size.
Ordered Delivery
Transmission Control Protocol transmits data in the order received from the application layer and uses the sequence number to mark the order. The data may be obtained at the destination in the wrong order due to network conditions. Thus, TCP at the destination orders the data according to the sequence number before sending it to the application layer at its end. This order delivery is part of TCP’s benefit and one of the purposes of the Sequence Number.
Connection Termination
When all data has been successfully transferred, the source initiates a four-way handshake to close the session. To close the session, the FIN and ACK flags are used. FIN and ACK will be discussed in the coming articles.
Key Features of Transmission Control Protocol
Transmission Control Protocol’s reliability stems from its robust features:
Connection-Oriented: Ensures a stable link before data exchange.
Full-Duplex Communication: Allows simultaneous two-way data flow.
Congestion Control: Prevents network overload with algorithms like Transmission Control Protocol Reno or Cubic.
Multiplexing: Supports multiple connections using port numbers.
TCP is a connection-oriented protocol. It provides full-duplex communication. Transmission Control Protocol includes flow control and error control mechanisms. TCP uses port numbers to identify different applications.
TCP vs. UDP: A 2025 Perspective
While Transmission Control Protocol ensures reliability, UDP prioritizes speed, making it suitable for streaming or gaming. In 2025, the choice between TCP and UDP depends on application needs:
TCP: Preferred for email (SMTP), web (HTTP/HTTPS), and file transfers (FTP).
UDP: Used for video calls (e.g., Zoom) and online gaming.
2025 Trend: Hybrid protocols blending TCP reliability with UDP speed are emerging for 5G networks.
Common TCP Problems and Solutions in 2025
Even with its strengths, Transmission Control Protocol faces challenges like latency, packet loss, and security vulnerabilities. Here’s how to address them:
Security: Implement TLS/SSL over TCP for encrypted communication.
Latency: Optimize with TCP BBR (Bottleneck Bandwidth and Round-trip propagation time).
Packet Loss: Use forward error correction (FEC) techniques.
TCP ensures reliable, ordered data delivery with error checking, while UDP offers faster but less reliable transmission. In 2025, TCP is favored for secure transactions, whereas UDP suits real-time applications.
TCP detects packet loss via timeouts or missing acknowledgments and retransmits the data. Modern enhancements like Selective Acknowledgments (SACK) improve efficiency in 2025 networks.
Yes, TCP remains critical, supporting 80% of Internet traffic, including 5G and IoT. Its adaptability with new congestion control algorithms ensures its relevance.
TCP ports are virtual endpoints (0-65535) that identify specific applications (e.g., port 80 for HTTP). They enable multiplexing on a single device in 2025 networks.
In 2025, network devices will remain the unsung heroes of our hyper-connected world. From streaming your favorite shows to powering global enterprises, these devices ensure seamless data flow, robust security, and reliable connectivity. Whether you’re a tech enthusiast, an IT professional, or a business owner optimizing your infrastructure, understanding network devices is key to unlocking their full potential.
This article dives deep into the world of network devices, offering a comprehensive guide to their types, functions, and real-world applications. You’ll discover how devices like hubs, switches, routers, and gateways work together, get expert tips on choosing the right hardware, and explore the latest trends shaping network technology in 2025. By the end, you’ll be equipped with actionable insights to build or enhance your network—plus, we’ll answer your burning questions and point you to valuable resources.
What Are Network Devices?
Network devices are specialized hardware that enable communication, data transfer, and connectivity within and between networks. Operating at various layers of the OSI model, they range from basic tools like hubs to sophisticated systems like routers and load balancers. Their primary role? To keep data moving efficiently and securely.
Why Network Devices Matter in 2025
Speed: Devices like switches and routers optimize data transfer for lightning-fast performance.
Scalability: They allow networks to grow without sacrificing efficiency.
Security: Firewalls and gateways protect against evolving cyber threats.
Innovation: Emerging devices support trends like IoT, 5G, and edge computing.
Types of Network Devices
Let’s explore the key network devices, breaking down their functions, strengths, and use cases with expert-level detail.
Hub
A hub is one of the essential network devices that work at the physical layer and hence connects networking devices physically together. It is not used in modern networks. In modern networking, it is just studied because it is helpful to understand switches. If somebody understands it, then they can easily understand a switch.
A hub is a device that copies data received on any port to all its ports. So, if a packet of data arrives on interface 1 of a 5-port hub, it will blindly copy that data to interfaces 2 through 5. The hub is a common connection point for network devices in a network. Different segments of the LAN are commonly connected to it. It was a cheap and quick way to link multiple computers in the early days.
The hub utilizes Carrier Sense Multiple Access with Collision Detect (CSMA/CD) to control Media access. The Ethernet hub communicates in a half-duplex mode, where data collisions are inevitable. The main issue with hubs is that only one computer can talk at a time.
So, if 2nd computers are going to talk at the same time, their traffic will join as it echoes out to the other interfaces. This is called a collision, and it would corrupt the data being transmitted by both computers. So, each computer would have to try again after a random period. This becomes a real problem when the network gets busy or when more than a handful of computers are on a network. A switch solves the collision issue. Hub is a single broadcast and single collision domain. It has two types:-
Passive Hub
They point contact for the wires to be built into the physical network. They have nothing to do with modifying the signals.
Active Hub
Active hubs are smarter than passive hubs. They regenerate, concentrate, and strengthen the original signals before sending them to their destinations. Active hubs are also termed ‘repeaters’.
Key Features:
Broadcasts data indiscriminately, causing potential congestion.
No filtering or intelligence.
Limited to small, low-traffic setups.
Expert Insight: According to Cisco’s networking archives, hubs were once staples in early Ethernet networks but have largely been replaced by switches due to efficiency demands.
Use Case: Legacy systems or educational labs testing basic networking concepts.
Repeater
A repeater is an electronic device that operates at the physical layer. It has two Ethernet ports. The repeater amplifies the received signal and retransmits it in the same network before it becomes too weak or corrupted, extending the length to which the signal can be transmitted over the same network. When the signal weakens, the repeater copies it bit by bit and regenerates it at its original strength.
Key Features:
Overcomes signal degradation over long distances.
No data processing—just signal boosting.
Simple and cost-effective.
Real-World Example: In large warehouses, repeaters extend Wi-Fi coverage to remote corners, ensuring consistent connectivity.
Use Case: Extending wired or wireless networks in expansive areas.
Bridge
If a router connects two different types of networks, then a bridge connects two sub-networks as part of the same network. Bridges’ essential role in network architecture is to store and forward frames between the different segments that they connect.
Bridgeworks are at the Physical and Data Link Layer of the OSI Model. They connect different networks and develop communication between them. They connect two local-area networks, two physical LANs, into larger logical LANs or two segments of the same LAN that use the same protocol.
We can also use the bridge to divide more extensive networks into smaller sections by sitting between two physical network segments, managing the data flow, and reducing the broadcast between them.
A bridge uses MAC addresses for transferring frames. Bridges can forward the data or block it from crossing by looking at the MAC address of the devices connected to each segment. Bridges can also connect two physical LANs into a larger logical LAN. There are three main types of bridges:-
Transparent Bridge
A transparent bridge maintains a list of MAC addresses and appears transparent to other network devices. The different devices are ignorant of their existence. It only blocks or forwards data according to the MAC address. Transparent bridges also save and maintain the source-route addresses of incoming frames by listening to all the connected bridges and hosts. They use a transparent bridging algorithm to accomplish this.
Source Route Bridge
A form of routing is used to establish connections between pairs of nodes on different token rings. The source route bridge uses the path the packet takes through the network and is implanted within the packet.
Translational Bridge
Translational bridges reorder source and destination address bits when translating between Ethernet and Token Ring frame formats. They convert the data format of one networking system to another.
Key Features:
Segment networks to reduce collisions.
Enhances performance in busy LANs.
Protocol-agnostic in some cases.
Expert Tip: Bridges laid the groundwork for modern switches, offering a glimpse into the evolution of Layer 2 devices.
Use Case: Connecting departments in a mid-sized office LAN.
Switch
An Ethernet Switch is a device used to connect multiple computers and network devices within a LAN. It works at the OSI model’s Layer Two (Data Link Layer). Some switches also work at Layer 3( Network Layer). These switches are referred to as Layer 3 switches or multilayered switches.
The Basic Function of a Network Ethernet Switch and a Network Ethernet Hub is the same: forwarding Layer 2 packets (Ethernet frames) from the source device to the destination device. But a Network switch is more intelligent than a hub. An Ethernet switch uses MAC addresses to make forwarding decisions. It does not know about the protocol in the data portion, such as an IPv4 packet. The switch makes forwarding decisions based only on the Layer 2 Ethernet MAC addresses.
Unlike an Ethernet hub that repeats bits from all ports except the incoming port, an Ethernet switch consults a MAC address table to make a forwarding decision for each frame. The MAC address table is sometimes called a content-addressable memory (CAM) table. Network switches for different input and output bandwidths are available. Today’s Ethernet Network Switches can have bandwidths of 10, 100, 1000, or 10,000 Megabits per second.
Switch Features and Advantages
Connect network devices in a Local Area Network (LAN).
It learns Layer 2 (MAC) addresses and forwards Layer 2 packets (Ethernet frames) to the exact destination with the help of the device’s MAC address.
It’s the control of who has access to various parts of the network.
Provision to monitor network usage.
High-end switches have pluggable modules.
Allows to connect multiple devices and ports, managed VLANs can be created, and security can also be applied.
First broadcast, then unicast & multicast as needed.
Switches use content-accessible memory CAM table, typically accessed by ASIC (Application Specific Integrated Circuits).
Half/Full duplex
Connecting two or more nodes in the same network or a different network
The switch has one broadcast domain [unless VLAN is implemented]
Router
The router is a network device that selects the best path for a data packet. It is located at any gateway (where one network meets another). It forwards data packets from one network to another based on the address of the destination network in the incoming packet and an internal routing table. It also determines which port (line) to send the packet (ports typically connect to Ethernet cables).
Routers also require packets formatted in a routable protocol, the global standard being TCP/IP, or simply “IP.” Routers operate at Layer 3 (network layer) of the OSI model, and they use the destination IP address in a data packet to determine where to forward the packet. The router stores the IP address in a Routing table and maintains an address on its own.
Key Features:
Routes data between LANs and WANs.
Performs NAT for IP sharing.
Includes advanced features like QoS and VPN.
Expert Insight: Per IANA’s protocol standards, routers are critical for IPv6 adoption, a key focus in 2025 networking.
Use Case: Home Wi-Fi, enterprise WANs, and ISP networks.
Gateway
Gateways usually work at the Transport layer and Session layer of the OSI model. It connects two networks that may work on different networking models. Gateway takes data from one system, interprets it, and transfers it to another. It is also a protocol converter and can operate at any network layer. Gateways are generally more complex than switches or routers. Gateway deals with numerous protocols and standards from different vendors. It performs all of the functions of routers. A router with added translation functionality is a gateway.
Key Features:
Converts data formats (e.g., TCP/IP to IPX/SPX).
It can double as a firewall or proxy.
Flexible across OSI layers.
Use Case: Integrating cloud services with on-premises systems.
Structured Data Opportunity: Add schema markup for this section to highlight device definitions in rich snippets.
Advanced Network Devices
Modern networks demand more than just connectivity—they require performance, security, and resilience. Here’s a look at advanced devices shaping 2025.
1. Firewall
A firewall monitors and filters traffic based on security rules, protecting networks from threats.
Key Features:
Blocks unauthorized access.
Filters by IP, port, or protocol.
Hardware or software-based.
Real-World Impact: The 2024 Verizon Data Breach Report notes that firewalls thwarted 35% of attempted intrusions.
Use Case: Securing corporate networks or home systems.
2. Load Balancer
A load balancer distributes traffic across servers to optimize performance and prevent overload.
Key Features:
Enhances reliability and uptime.
Uses algorithms like round-robin.
Supports high-traffic applications.
Prediction: With 5G and IoT growth, load balancers will be pivotal for edge computing in 2025.
Use Case: E-commerce sites and cloud platforms.
Network Device Comparison Table
Device
OSI Layer
Core Function
Best For
Hub
1
Broadcasts data
Small, legacy networks
Repeater
1
Extends signal range
Large physical spaces
Bridge
2
Filters by MAC address
Segmenting LANs
Switch
2/3
Directs data efficiently
Modern LANs
Router
3
Routes between networks
Internet connectivity
Gateway
Varies
Translates protocols
Hybrid network integration
Firewall
Varies
Secures traffic
Network protection
Load Balancer
Varies
Distributes traffic
High-traffic applications
Choosing the Right Network Device
Selecting the right network device depends on your specific needs. Here’s how to decide:
Network Size:
Small: Switches or routers suffice.
Large: Combine switches, routers, and load balancers.
Traffic Load:
Low: Hubs or repeaters work.
High: Switches and load balancers are essential.
Security:
Basic: Routers with NAT.
Advanced: Firewalls and gateways.
Budget:
Affordable: Hubs, repeaters.
Premium: Routers, switches.
Scalability:
Future-proof with modular switches or multi-port routers.
Conclusion
Network devices are the foundation of connectivity in 2025, from basic hubs to cutting-edge load balancers. This guide has covered:
Core Devices: Hubs, repeaters, bridges, switches, routers, and gateways.
Advanced Tools: Firewalls and load balancers for security and performance.
Practical Tips: How to choose the right device for your needs.
A hub connects multiple devices in a LAN by broadcasting data to all connected endpoints, operating at the physical layer. It’s simple but lacks filtering, making it less efficient for modern high-traffic networks where congestion can occur.
A router connects different networks and routes data based on IP addresses at the network layer, while a switch directs data within a network using MAC addresses at the data link layer, offering more efficiency and targeted delivery.
A repeater extends a network’s range by amplifying weakened signals, making it ideal for large spaces where signal degradation occurs, though it doesn’t process data and is best for basic signal boosting.
A gateway bridges networks with different protocols, acting as a translator or security checkpoint, often integrating cloud services with on-premises systems for seamless communication.
A bridge filters traffic between network segments using MAC addresses, reducing congestion and enhancing efficiency, especially in busy LAN environments where traffic management is critical.
A switch offers targeted data delivery to specific devices, reducing network collisions and improving performance, unlike a hub that broadcasts to all, making it ideal for modern, high-speed LANs.
Yes, many modern routers support both wired and wireless connections, acting as a central hub with Wi-Fi capabilities, enabling flexible connectivity for homes and businesses alike.
A repeater only amplifies signals to extend range without routing data, while a router directs traffic between networks using IP addresses, offering more advanced functionality and network management.
A transparent bridge self-learns MAC addresses to filter traffic automatically between network segments, operating silently without user configuration, making it user-friendly for LAN segmentation.
A gateway is crucial for enterprise networks as it connects diverse systems with different protocols, ensuring secure data translation and integration, especially in hybrid cloud environments.
A switch can enhance security by supporting VLANs to segment traffic, reducing unauthorized access, and some models include port security features to block unknown devices.
A hub’s broadcast nature causes collisions and inefficiency in high-traffic scenarios, making it outdated compared to switches, and it lacks the intelligence to manage modern network demands.
Consider the repeater’s range, compatibility with your network type, and placement to avoid interference, ensuring it effectively boosts signals without creating dead zones.
Bridges filter traffic between two segments using MAC addresses, while switches offer multi-port connectivity with similar filtering, though switches are more scalable and suited for larger networks.
سماجی رابطے کی ویب سائٹ فیس بک نے پروپیگنڈے اور افواہوں سے بچاؤ اور اشتعال انگیزی کے پھیلاؤ کو روکنے کے لیے گزشتہ برس جو مواد اپنے سسٹم سے ڈیلیٹ کیا ان ممالک میں سال 2018 کے آخری 6 ماہ میں سب سے زیادہ بھارتی صارفین کے مواد کو ہٹایا اور دوسرے نمبر پر اس دوڑ میں پاکستان کی باری ہے جبکہ تیسرے نمبر پر برازیل براجمان ہے۔
فس بک انتظامیہ کے مطابق سال 2018 کے اخری چھ مہینوں میں 17 ہزار سے زیادہ پوسٹ 713; ایکٹیو اکاونٹ سے ڈیلیٹ کی گئیں جو کہ کسی بھی ملک سے زیاہ ہے۔ اس سے ظاہر ہوتا ہے; کہ ہندوستان منفی پروپیگنڈو،افواہوں اور اشتعال پھیلانے والے ممالک ; میں سے سے اوپر والا درجہ حاصل کر چکا ہے۔
جہاں پر ہندوستان نے پہلا نمبر حاصل کیا ہو وہاں پر پاکستان کیسے پیچھے رہ سکتا ہے ۔; پاکستان کے صارفین سے جڑے ہوئے 4 ہزار سے زائد پوسٹ فیس بک نے 2018 کے اخری چھ مہینے میں ہٹائے
برازیل اس فہرست میں میں تیسرے نمبر پر اتا ہے . جس کے صارفین کے 2 ہزار سے زائد پوسٹ 2018; کے اخری چھ مہینے میں فیس بک نے اپنے سسٹم سے ہٹائے۔
پاکستان کے بارے میں فیس بک نے مزید بتایا کہ پاکستان کے صارفین کے زیر استعمال 343 پیجز اور گروپ اور 10 ایسے پروفائل اور البم کو ہٹایا گیا جن کو دوسرے صارفین نے توہین مذہب، مقامی قوانین کے خلاف ورزی ، عدالت مخالف پوسٹس ;،اور ملک کی اذادی کا مذاق اڑانے کیلئے رپورٹ کئے تھے . حکومت پاکستان نے بھی گزشتہ برس ;؛متعدد شکایات نوٹ کرائی گئی جن کی تعداد 3593 بتائی جاتی ہیں۔
