Traceroute (or Tracert on Windows) is a diagnostic tool that maps the route of packets from a source to a destination using ICMP Echo Request packets. It displays each hop (router) along the path, helping network engineers troubleshoot connectivity issues. This guide is tailored for CCNA and CCNP students to master Traceroute for exams and real-world networking.
Understanding ICMP and TTL in Traceroute
What is ICMP?
The Internet Control Message Protocol (ICMP) is a network-layer protocol used for error messaging and diagnostics in IP networks. Traceroute relies on ICMP Echo Request (type 8) packets sent to the destination and ICMP Time Exceeded (type 11) or Echo Reply (type 0) messages returned by intermediate routers or the destination. For CCNA students, understanding ICMP is crucial for troubleshooting connectivity issues.
How TTL Works
The Time-to-Live (TTL) field in an IP packet header prevents packets from looping indefinitely. Each router decrements the TTL by at least 1 before forwarding the packet. When the TTL reaches 0, the router discards the packet and sends an ICMP Time Exceeded message back to the source. Traceroute exploits this by sending packets with incrementally increasing TTL values (starting at 1) to map the path to the destination.
How Traceroute Works
Traceroute sends packets with incrementally increasing TTL values (starting at 1). Each router decrements the TTL by at least 1. When the TTL reaches 0, the router sends an ICMP Time Exceeded message back to the source. This process repeats until the destination responds or the maximum TTL (default 30) is reached.

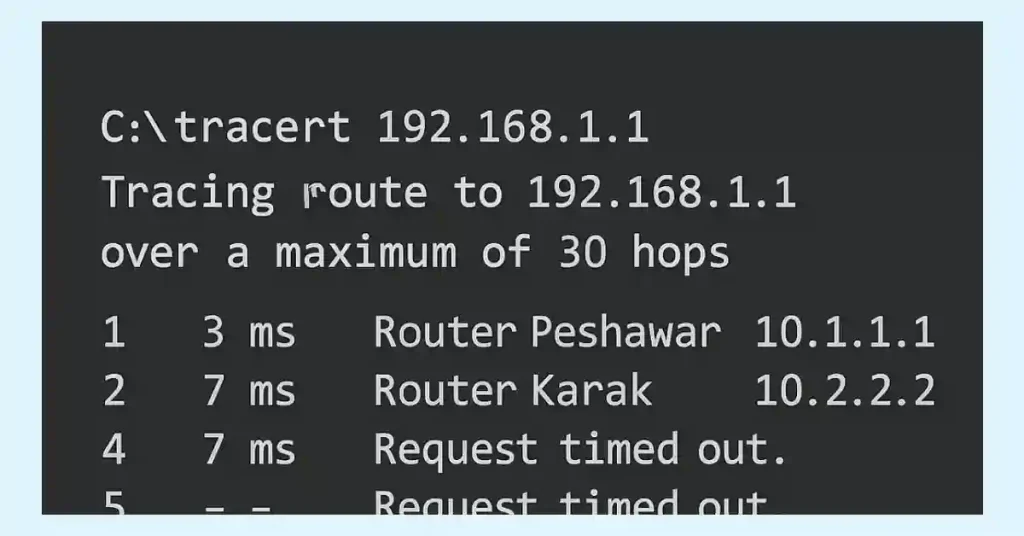

Figure 1 shows an example output of the tracert command entered on host 4 to trace the route to host 1. The only successful response was from the gateway on Router Peshawar and from router Karak.
Analyzing a Tracert Output
Below is a sample tracert output from a Windows host (Host 4) tracing the route to a destination (Host 1):
Tracing route to host1.example.com [192.168.10.10] over a maximum of 30 hops:
1 2 ms 1 ms 1 ms 192.168.1.1 [Router_Peshawar]
2 5 ms 4 ms 5 ms 172.16.0.1 [Router_Karak]
3 * * * Request timed out.
4 * * * Request timed out.
Interpretation
Hop 1 (192.168.1.1): The first hop is the default gateway (Router Peshawar), responding in 1-2 ms, indicating a healthy LAN connection.
Hop 2 (10.0.0.1): The second hop is Router Karak, with slightly higher latency (4-5 ms), suggesting it’s further in the network.
Hops 3-18 (Timeouts): The asterisks (*) indicate no response, likely due to:
A firewall blocking ICMP Echo Requests.
The destination (Host 1) not responding to ICMP.
A network failure beyond Router Karak.

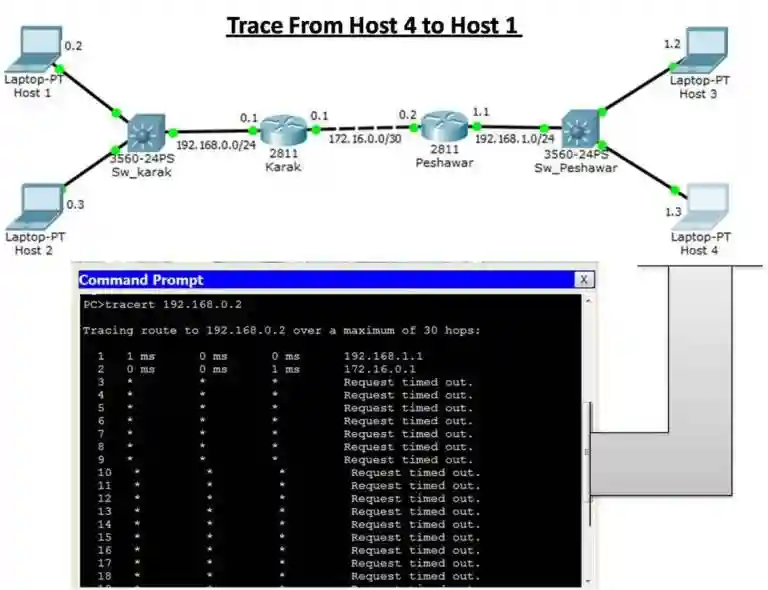

Network Topology for Traceroute Example
The Traceroute example involves a network with the following topology:
Host 4: A Windows PC (192.168.1.100) in a LAN.
Router Peshawar: The default gateway (192.168.1.1) connects the LAN to the WAN.
Router Karak: An intermediate router (10.0.0.1) in the WAN.
Host 1: The destination server (192.168.10.10), reachable via multiple hops.
Tracert Command Switches
The tracert command on Windows and traceroute on Cisco routers support several switches to customize behavior. Below are key switches for CCNA/CCNP students:
-d: Prevents resolving IP addresses to hostnames, speeding up the trace. Example: tracert -d 8.8.8.8.
-h maximum_hops: Sets the maximum number of hops (default is 30). Useful for limiting traces in large networks. Example: tracert -h 10 google.com.
-j host-list: Specifies a loose source route (IPv4 only), allowing you to influence the path. Example: tracert -j 10.0.0.1 8.8.8.8.
-w timeout: Sets the timeout (in milliseconds) for each reply. Useful for slow networks. Example: tracert -w 1000 networkustad.com.
Traceroute is a powerful tool for diagnosing network issues. Below are common scenarios:
Timeouts at All Hops:
Cause: A firewall is blocking ICMP Echo Requests.
Solution: Check firewall rules or use a different protocol (e.g., UDP-based traceroute on Linux with traceroute -U).
Unexpected High Latency:
Cause: Congestion or a suboptimal route.
Solution: Compare Traceroute outputs over time or use pathping for detailed statistics.
Destination Unreachable:
Cause: The destination doesn’t respond to ICMP or is offline.
Solution: Verify the destination’s status with ping or check routing tables.
Traceroute with IPv6
IPv6 Traceroute works similarly to IPv4 but uses ICMPv6 messages (Type 128 for Echo Request, Type 3 for Time Exceeded). Use the -6 switch on Windows or specify an IPv6 address on Cisco routers.
tracert is used on Windows, while traceroute is used on Cisco routers and Unix-based systems (e.g., Linux, macOS). Both perform the same function but differ in syntax and options.
Asterisks indicate a timeout, meaning a router or destination didn’t respond. This could be due to ICMP blocking, network congestion, or a device being offline.
Traceroute is used to troubleshoot connectivity issues and understand network paths, which are tested in labs and simulations. Practice with tools like Packet Tracer.
Do you know your standard network throughput volume and the types of traffic used in your network? You should require a network baseline if you don’t know the answers to the above questions. The network baseline is one of the most valuable tools for monitoring and troubleshooting network performance.
For an influential network, a baseline performance record is required over time. Measuring performance at varying times and loads will help in creating a better image of overall network performance
How to baseline a network
To baseline a network, you need to monitor the traffic for a long time because a more comprehensive time presents a more realistic picture of a traffic pattern. We can use the network baseline as listed below:
Evaluate network management policies agreement.
Understand network patterns and traffic trends.
Speed up troubleshooting network problems.
Understand network resource allocation.
Provide network up-gradation history statistics.
Provide data for decision-making as well as for network and security management.
Network administrators need the software Colasoft nChronos and Capsa to baseline a network. Both software listens to packet data from wires and generates various reports on the network. Further, the network administrator can copy, paste, and save the results from an executed ping, trace, and other related commands into a text file with time and date.
Then, the network administrator can use these text files to compare with other results, error messages, and response times from host to host. If response times massively increase, there may be a latency issue to address. The figures below illustrate the result of the ping command for the same IP address with different timings and the comparison of both.
Command Prompt Ping Test ResultsCommand Prompt Ping Results ScreenshotPing Command Results on Command-Line Interface
The output resulting from network commands can give data to the network baseline. Commercial networks should have widespread baselines. Professional-grade software tools are also available for storing and maintaining baseline information.
The ping command is a fundamental network troubleshooting tool that uses the Internet Control Message Protocol (ICMP), as defined in RFC 792, to test connectivity between devices. It is essential for CCNA (ICND1, ICND2) and CCNP (ROUTE, SWITCH, TSHOOT) exam preparation, helping students verify Layer 3 connectivity by the ping results. This utility has evolved with Cisco IOS, offering advanced features for modern networks.
Cisco IOS Ping Indicators
There are several ping results and indicators in IOS for the ICMP echo request that was sent. The common indicators for ICMP echo are the following:
. – Request timed out, indicating connectivity issues or no route (e.g., no route to 192.168.1.0/24).
U – Destination unreachable, due to no route or ping block.
& – Packet loss detected.
? – Unknown error.
Examples of IOS Ping Indicators

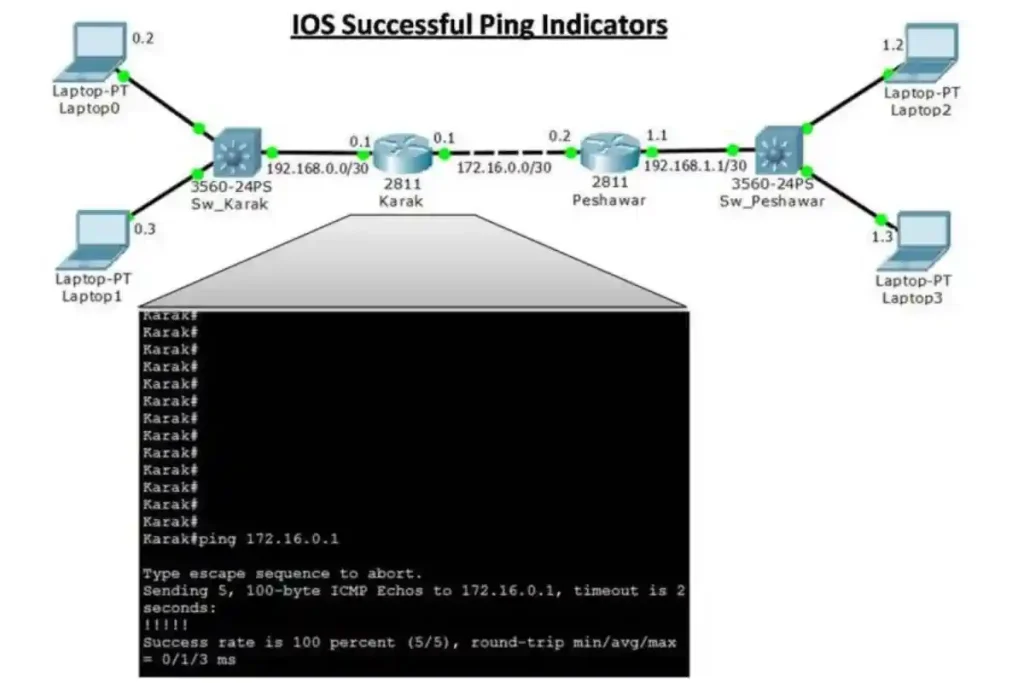

! – The mark of exclamation indicates that the ping was completed successfully and verifies Layer 3 connectivity along the network path. As shown in the Figure below, the Karak Router successfully pinged the Peshawar router, whose IP address is 172.16.0.1
“.” The period indicates that there is some problem in connectivity somewhere along the network path. It also indicates that a router along the network path does not configure a route to the destination. If the ping is not allowed in the device it should also give a reply with “.” Indicator. The first echo request timed out is common in the network If the arp process is required.
The figure below shows the ping result from Karak router to laptop 3, where “Karak router” has no route to the network 192.168.1.0/24, so its reply with request timed out “.” Indicators.
U – This indicator shows that a router along the network path responded with an ICMP unreachable message because the router did not have a route configured to the destination address. If the destination blocked the ping request it will also reply with this mark.

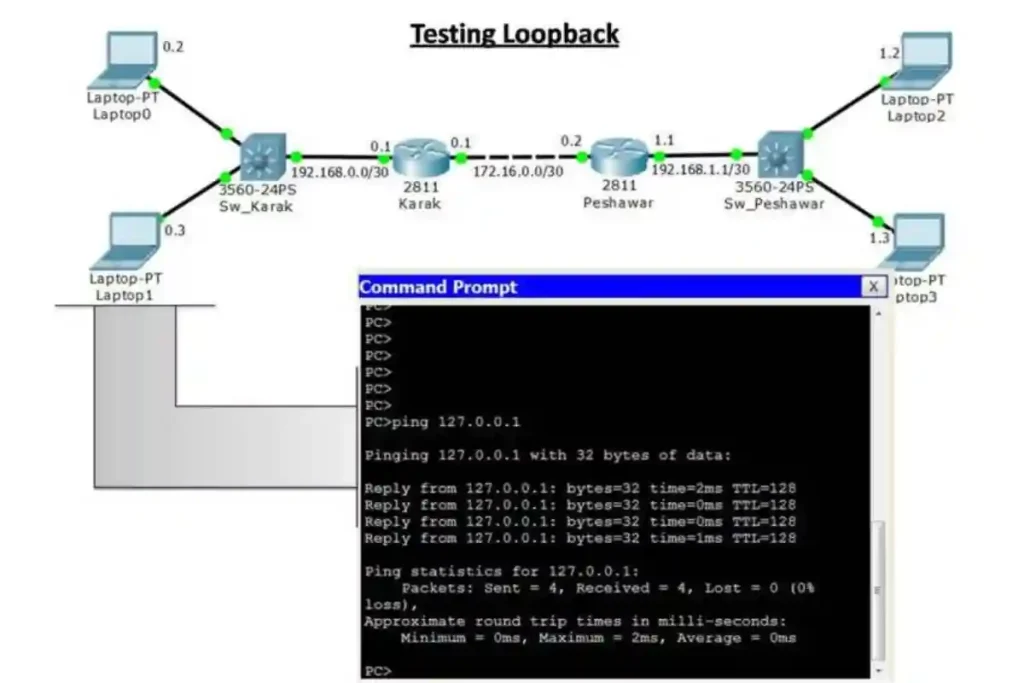

Testing the Loopback
To verify the internal IP configuration and protocol stack from the network layer to the physical layer the administrator can also use the ping command instead of putting a signal on the media. The Loopback IP addresses are 127.0.0.1 for IPv4 and ::1 for IPv6. We can examine the ping results for loop-back interfaces similar to other interfaces.

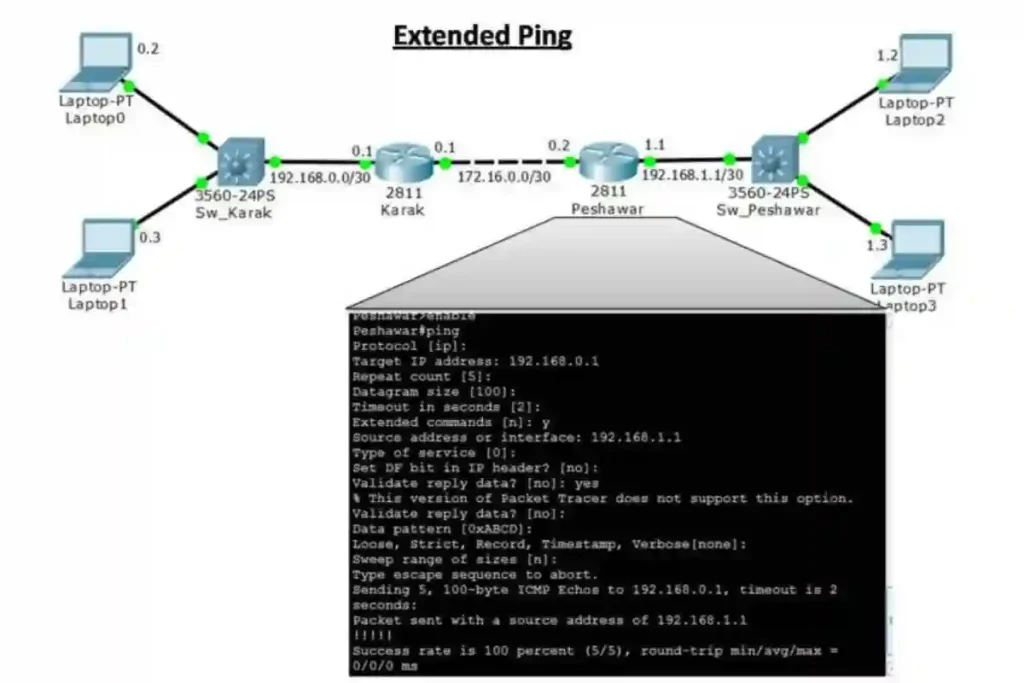

Extended Ping
The extended ping is one of the best commands offered by Cisco IOS. This is also the extended mode of the ping command. To execute and get extended ping results only enter ping command without destination address in privileged EXEC mode.
As shown in the figure below, a series of different prompts are then presented asking different parameters. Pressing Enter without writing something accepts the indicated default values.
The figure below illustrates how to force the source address for a ping to be 192.168.1.1(Router Peshawar); the source address far a standard ping would be 172.16.0.2. The network administrator can verify from the Peshawar Router that the Karak Router has a route to 192.168.1.0/24 network.

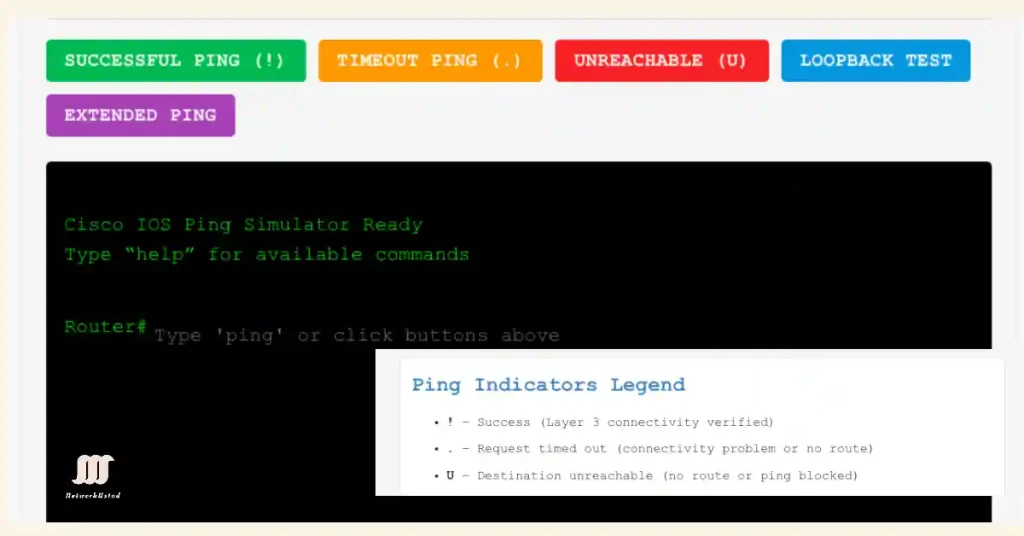

Cisco Devices Ping Simulator
Extended Ping Options
Cisco IOS Ping Simulator Ready
Type “help” for available commands
Router#
Ping Indicators Legend
! – Success (Layer 3 connectivity verified)
. – Request timed out (connectivity problem or no route)
U – Destination unreachable (no route or ping blocked)
The Cisco IOS File System (IFS) has different directories, depending on the device. The IFS also allows the creation of subdirectories in flash memory or on a disk. The figure below displays the output of the show file system command, which lists all of the available file systems on the router.
📂 File System Entries Explained
Prefix
Description
Type
Access Flags
Notes
flash:
Primary flash memory (internal storage)
disk
rw
Stores IOS image, configurations, and other essential files
nvram:
Non-volatile RAM
nvram
rw
Stores the startup-config file that loads during boot
system:
System-internal virtual file system
opaque
rw
Used internally by the IOS; users typically don’t interact directly
tmpsys:
Temporary system file system
opaque
ro
Read-only virtual file system used during runtime operations
null:
Bit bucket file system
opaque
rw
Used to discard unwanted output, similar to /dev/null in Linux
usbflash0:
USB storage device (if connected)
disk
rw
Useful for backups, software updates, and config transfers
Used for TFTP file transfers, often during upgrades
xmodem:/ymodem:
Serial-based file transfer protocols (rare, mostly fallback)
💡 You’ll notice switches, like routers, share many file system prefixes, though their internal flash size may vary depending on the model.
Backup and Restoring using Text files
Backup
Using Tera Term, we can also back up the Configuration file and restore the configuration from the text file when needed. The steps for backup and restoring using Tera Term is the following:-
On the File menu of Tera Term, click Log.
Then select the location where you want to save the file. Now Tera Term will start capturing.
Once the capture has been started, execute the show running-config or show startup-config command at the privileged EXEC prompt. The displayed text in the Tera Terminal will be directed to the chosen file.
After completing the capture, select Close in the Tera Term: Log window.
View the file at the chosen location to verify that it was not corrupted.
Restoring
When configuration is copied from a text file and pasted into a terminal window, the Inter Operating System executes each line of the text file as a command. So, the captured file will require editing to ensure that encrypted passwords are in plain text and that there is no non-command text.
Furthermore, the device must be set to the global configuration mode to receive the commands from the text file pasted into the terminal window. The following are the steps to restore the configuration using Tera Term.
On the File menu of Tera Term, click Send File.
Locate the configuration text file to be copied into the device and click Open.
Tera Term will paste the file into the device, and the text will be applied as a command.
Backup and Restoring Configurations with TFTP
Backup
Startup configuration or running configuration files can be stored on a TFTP (Trivial File Transfer Protocol) server and restored in the event of a problem. The configuration file should also be included in the network documentation.
To save the running configuration or the startup configuration file to a TFTP (Trivial File Transfer Protocol) server, use the copy running-config tftp or copy startup-config tftp command. Following are the steps to back up the running configuration to a TFTP server:
Enter the copy running-config tftp command in user exec mode and then enter the hostname or IP address where the configuration file will be stored.
Enter the name to assign to the configuration file.
Press Enter to confirm every choice.
The figure below illustrates the backup process to TFTP.
Restoring
To restore the running configuration or the startup configuration from a TFTP (Trivial File Transfer Protocol) server, use copy tftp running-config or copy tftp startup-config command. Following are the steps to restore the running configuration from a TFTP server:
Enter the copy tftp running-config command in user exec mode then enter the hostname orIP address where the configuration file is stored.
Enter the name to assign to the configuration file.
The Figure below illustrates the restore process from the TFTP server.
Backing Up and Restoring Using a USB
Backup
Before backing up to a USB port, it is important to verify that the USB drive is there and confirm the name of the drive using the show file systems command in the user exec mode. If the USB drive is there, use the copy run usbflash0:/ command to copy the configuration file to the USB flash drive. Be sure to use the name of the flash drive exactly, as indicated in the file system.
The slash indicates the root directory of the USB flash drive. Then the IOS will prompt for the filename. If the file is already copied and exists on the USB flash drive, the router will then prompt to overwrite. We can see files and directories in the USB using the dir command.
Restore
To copy the file back, use the command copy usbflash0:/Router-Config running-config to restore a running configuration where Router-Config is the backup file name in the USB.
Conclusion
Mastering the Cisco IOS File System is essential for CCNA and CCNP students to effectively manage router and switch configurations. This guide has explored key file systems like flash and NVRAM, provided detailed backup and restore methods using TFTP and USB, and offered troubleshooting tips. By applying these practices, network engineers can ensure system reliability and prepare for real-world challenges. Continuous learning and hands-on practice with commands like show file systems and copy running-config tftp will solidify your expertise.
Redundancy is a critical factor in network design, ensuring reliability and minimizing costly downtime in a business. It eliminates single points of failure, enhancing small network resilience. There are several ways to achieve redundancy in a small network.
Network redundancy can be achieved by installing standby and alternate network devices, e.g. routers and switches. However, it can also be achieved by installing duplicate network links for important areas within the network. In the case of a redundant network, when the primary path is not available, the redundant path can immediately start to ensure minimal downtime and continuity of network services.
Small networks often rely on a single default gateway (e.g., 192.168.1.1), risking total internet loss if it fails. Implement a second ISP with VRRP using vrrp 1 ip 192.168.1.1 on Cisco routers, illustrated in the figure below, ensuring connectivity. This diagram shows a small network with dual routers, switches, and backup ISP links, labeled with IP addresses.
Redundancy Configuration
Implement redundancy with HSRP on Cisco routers using standby 1 ip 192.168.1.1 and standby 1 priority 110 for the primary router. Verify with show standby and test failover with ping 8.8.8.8, ensuring minimal downtime
Traffic Management
Traffic management optimizes network performance by prioritizing data types. Configure QoS on Cisco routers with qos policy-map VOICE priority percent 30 for real-time traffic (e.g., voice, video), distinct from data. The table below outlines priorities, enhancing efficiency and minimizing downtime.
Traffic Priority Table
Priority
Traffic Type
Example
QoS Configuration
1
Voice
VoIP Calls
priority percent 30
2
Video
Video Streaming
bandwidth percent 20
3
Data
Email, Web
fair-queue
Case Study
A small retail business with 20 users implemented redundancy with a backup router using HSRP (standby 1 ip 192.168.1.1) and a second ISP. After a primary gateway failure, VRRP ensured 5 minutes of downtime, validated with ping 8.8.8.8, demonstrating resilience as of 2025.
Conclusion
Implementing redundancy in a small network is essential for ensuring reliability and minimizing costly downtime, making it a vital strategy for businesses as of 2025. By leveraging configurations like HSRP and VRRP, along with traffic management through QoS, network administrators can eliminate single points of failure and prioritize critical data. This approach, validated by real-world case studies, equips CCNA/CCNP students with the skills to design resilient and efficient networks for the future.
Network redundancy involves using multiple internet connections, like Comcast Xfinity and AT&T, to ensure continuous operation if one fails. It enhances reliability and uptime, critical for businesses and homes relying on stable internet access.
Traffic management optimizes data flow across the network by prioritizing critical applications, reducing latency. It ensures efficient use of bandwidth and prevents bottlenecks, improving overall performance.
Yes, you can set up redundancy using different providers like Comcast Xfinity and AT&T by connecting them through a dual WAN router. This setup provides failover support and load balancing for better reliability.
You’ll need a dual WAN router, modems from each provider, and a server or switch to manage connections. Additional configuration may be required to balance traffic and ensure seamless failover.
IP address planning is crucial for implementing a small network, ensuring all hosts have unique addresses. The network administrator must document the IP addressing scheme. The administrator should also maintain IP addresses based on the type of device to configure the addresses. The different types of devices that require IP addresses are:-
Servers: Host critical services (e.g., 192.168.1.10 – 192.168.1.30). End Devices: Include PCs and IP phones (e.g., 192.168.1.100 – 192.168.1.200). Intermediary Devices: Routers and switches (e.g., 192.168.1.50 – 192.168.1.70). Internet-Accessible Hosts: E-commerce servers with public IPs (e.g., 203.0.113.10)

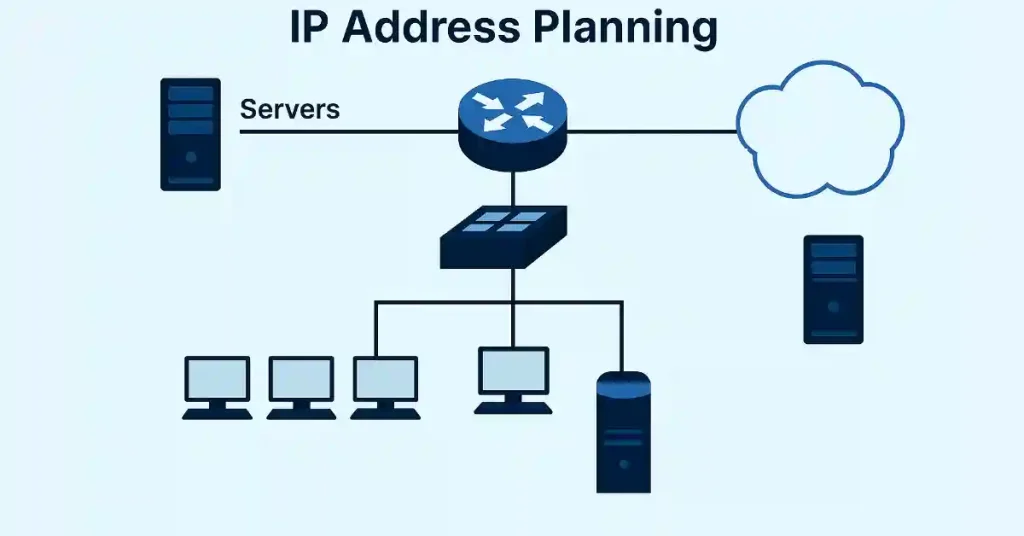

The figure above illustrates the devices that need IP address planning to assign an IPv4 address.
For a small network with 50 devices, use the 192.168.1.0/24 range. Subnet into /27 (32 addresses each) with 192.168.1.0 – 192.168.1.31 for servers, 192.168.1.32 – 192.168.1.63 for end devices, and 192.168.1.64 – 192.168.1.95 for intermediary devices. Configure a Cisco router with interface vlan 1 ip address 192.168.1.1 255.255.255.224, a key skill.
Proper IP address planning and documentation are necessary for helping the network administrator to track device types and troubleshoot. Usually, the network administrator knows the ranges of IP addresses assigned to devices.
For example, assign hosts 192.168.1.100 – 192.168.1.200 and servers 192.168.1.220 – 192.168.1.250. This segmentation simplifies traffic analysis with Wireshark, aiding CCNA/CCNP troubleshooting and resource control via documented ACLs.
The IP addressing scheme is necessary for hosts that provide resources to internal and external networks, such as e-commerce servers. Without proper planning, security and accessibility are not possible. If a host has a random address assigned from the address range, blocking access to this host is difficult. Different device types should assign their logical block of addresses within the network’s address range.
Proper IP planning boosts security. Enable DHCP snooping with ip dhcp snooping (Cisco) to block rogue servers. For internet-accessible hosts, use ACLs (e.g., access-list 101 permit tcp any host 192.168.1.10 eq 443) and NAT (e.g., ip nat inside source static 192.168.1.10 203.0.113.10), then monitor with show access-lists to ensure protection.
Conclusion – IP Address Planning
Effective IP address planning is the cornerstone of a robust and secure small network, ensuring every device—from servers to internet-accessible hosts—operates seamlessly with unique addresses. By leveraging subnetting, DHCP configuration, and security measures like ACLs and NAT, network administrators can optimize performance and troubleshoot issues efficiently
IP address planning ensures every host, like servers and end devices, has a unique address, preventing conflicts. It helps network administrators document schemes for troubleshooting and security, making management easier for small networks
Use the 192.168.1.0/24 range and subnet into /27 blocks, allocating 192.168.1.0 – 192.168.1.31 for servers and similar ranges for other devices. Configure on a Cisco router with interface vlan 1 ip address 192.168.1.1 255.255.255.224 and verify with show ip interface brief.
Enhance security with DHCP snooping using ip dhcp snooping (Cisco) to block rogue servers and ACLs (e.g., access-list 101 permit tcp any host 192.168.1.10 eq 443) with NAT for internet hosts, ensuring protection.
Assign private IPs (e.g., 192.168.1.96 – 192.168.1.127) and map them to public IPs (e.g., 203.0.113.10) from an ISP using NAT with ip nat inside source static. This setup secures e-commerce servers while enabling internet access.
This guide is designed for network professionals using Windows (e.g., 10/11) or Linux (e.g., Ubuntu 22.04) systems. Network configuration can be managed via Command Prompt (cmd) on Windows or terminal (Ctrl + Alt + T) on Linux, with tools like ipconfig (Windows) or ifconfig (Linux) for IP management. These OS platforms are essential for implementing and troubleshooting small networks as of 2025.
Small network topologies and techniques are vital for network professionals, as most businesses rely on these simple designs, typically comprising a single router and one or more switches.
Small networks may have access points (possibly built into the router) and IP phones. As for the internet requirement, small networks usually use only a single WAN connection provided by internet service providers. The internet connection may be DSL, cable, or Ethernet. The figure below illustrates a small network topology.
The small network also requires the same skills as managing a more extensive network. The main work in the small network is maintenance and troubleshooting after the one-time equipment installation. The network administrator must secure devices and information on the network.
Device Selection for a Small Network
Planning and designing a small network must align with user needs, balancing requirements, costs, and implementation feasibility. Key considerations include selecting intermediate devices like routers and switches. Use show version (Cisco CLI) on a router or lshw -class network (Linux) to assess device specs. Factors such as port speed, expandability, and OS features (e.g., QoS, NAT) are critical, guiding CCNA/CCNP students in effective network design as of 2025.
Type of Intermediate Devices
The initial design step for a small network involves choosing appropriate intermediate devices, such as routers and switches. Selection criteria include cost, port speed, expandability, and OS features. Use ip route (Linux) or route print (Windows) to verify routing capabilities, ensuring devices meet the performance needs of CCNA/CCNP learners.
Cost
The price of intermediate devices depends on their capacity (e.g., port count and types), features (e.g., network management, security, advanced switching), and cabling costs. Redundancy, such as dual power supplies, also increases expenses.
Ports/Interfaces Speed and Types
Selecting the right port and interface speeds on routers or switches is a critical decision. Many computers feature built-in 1 Gb/s NICs, while newer workstations and servers support 10 Gb/s ports for high-bandwidth tasks. Upgrading Layer 2 devices to support these speeds can be costly, but modular switches (e.g., Cisco Catalyst 9200) with 10 Gb/s uplink ports offer scalability. Check compatibility with ethtool (Linux) or Device Manager (Windows), a key consideration for 2025 networks
Expandability
Both fixed and modular types of network devices are available. Fixed devices have a fixed number and type of ports or interfaces available, which cannot be changed, while modular devices have expansion slots that give the flexibility to add new modules per requirements. Switches are also available with extra ports for high-speed links.
Operating System Features and Services
The features and services of a network device’s operating system vary by version, impacting functionality. Key services include Quality of Service (QoS) for bandwidth prioritization (e.g., qos policy on Cisco), security with ACLs (e.g., access-list 10 permit 192.168.1.0 0.0.0.255), VoIP for IP phones, DHCP for automatic IP assignment (e.g., ip dhcp pool LAN on Cisco), NAT for IP sharing (e.g., ip nat inside source), and Layer 3 switching for routing. Configure these on a Cisco router via CLI or a GUI, essential for CCNA/CCNP skills.
Other Requirements
Assess Requirements: Evaluate the number of users (e.g., 10-50) and devices (PCs, printers, IP phones) using arp -a (Windows) or arp -n (Linux) to map connections. Plan for scalability with modular switches.
Choose Networking Equipment: Select a router (e.g., Cisco RV340) with VPN, QoS, and firewall support, configurable via CLI (show running-config) or GUI. Use Ethernet for wired, Wi-Fi with access points (e.g., TP-Link EAP225) for wireless, and switches (e.g., Cisco SG250) for multiple devices.
Internet Connectivity: Partner with an ISP for DSL/cable, configure the modem with dhcpc (Linux) or router settings, and test with ping 8.8.8.8.
Network Security: Enforce WPA3 on Wi-Fi, set router firewalls with access-list 101 permit, and install clamav (Linux) or Windows Defender for antivirus, plus VPN for remote access.
Network Configuration: Assign IPs with ipconfig /setclassid (Windows) or dhclient (Linux), enable DHCP (ip dhcp pool LAN on Cisco), and set shares with Samba (Linux).
Backup and Data Storage: Use rsync (Linux) or Windows Backup for data, and deploy a NAS like Synology DS220+ for centralized storage.
Remote Access and Monitoring: Configure VPN with pptpd (Linux) or router GUI, and monitor with ntopng (Linux) or PRTG (Windows).
Documentation and Maintenance: Record configs with show tech-support (Cisco) or manual logs, schedule updates with cron (Linux), and train staff on security.
Testing and Troubleshooting: Test with ping and tracert, and prepare a checklist for issues.
Compliance and Regulations: Adhere to GDPR or HIPAA with encryption (e.g., openssl) and audit logs, critical for 2025 networks as of 05:10 PM PKT, July 05, 2025.”
Performance Tuning: Optimize small network performance for efficiency. On Linux, increase TCP buffer sizes with sysctl -w net.core.rmem_max=8388608 and enable QoS with tc qdisc add on the router. On Windows, use netsh int tcp set global autotuning=normal and adjust switch QoS settings. Test with iperf (Linux/Windows) to measure throughput, ensuring peak performance for 2025 networks
Security Configuration
Secure the small network by configuring the router’s firewall. On a Cisco router, enable access control lists (ACLs) with access-list 101 permit tcp any host 192.168.1.10 eq 22 to allow SSH, then apply with interface gig0/0 ip access-group 101 in. On Windows, use netsh advfirewall set allprofiles state on to enable the firewall. Set up WPA3 on the access point via its web interface, and install fail2ban on Linux (sudo apt install fail2ban) to block brute-force attacks, ensuring robust protection as of 2025.
Troubleshooting Tips
Address common small network issues effectively. If devices can’t connect, verify IP settings with ipconfig /all (Windows) or ip addr (Linux) and ping the gateway (e.g., ping 192.168.1.1). For slow performance, check bandwidth usage with netstat -s (Windows) or nload (Linux) and adjust QoS settings on the router. If the switch fails, reboot it or use show running-config (on Cisco devices via CLI) to diagnose, equipping CCNA/CCNP students with practical skills as of 2025.
Case Study
A small retail business with 15 employees upgraded its network. They installed a Cisco RV340 router, a Cisco SG250-26HP switch, and a TP-Link EAP225 access point, configuring DHCP and WPA3. After initial setup, they faced latency issues, resolved by tuning sysctl -w net.core.rmem_max=8388608 on their Linux server and monitoring with ntopng. This approach improved VoIP quality, demonstrating practical skills for CCNA/CCNP.
Network Growth
To scale a small network from 10 to 20 users, upgrade from a Cisco RV340 to a Cisco ISR 1100 router with SD-WAN support, add a second Cisco SG250-26HP switch, and deploy additional TP-Link EAP225 access points. Configure VLANs with vlan 10 and vlan 20 (Cisco CLI) for segmentation, enable inter-VLAN routing with ip routing, and test with ping 192.168.10.1 (VLAN 10) and ping 192.168.20.1 (VLAN 20) on Windows/Linux, preparing CCNA/CCNP students for growth as of 2025. Effective network growth involves strategic planning and device upgrades to accommodate increased users and traffic, ensuring seamless scalability.
As businesses expand, small networks must scale to support additional users and devices. Use SD-WAN for centralized management, upgrade WAN links to fiber if DSL/cable limits are reached, and use show ip interface brief to verify port status. Integrate cloud services (e.g., AWS Direct Connect) for redundancy, a critical skill.
Security for Growth
Scaling introduces security risks; segment networks with VLANs (e.g., interface vlan 10 ip address 192.168.10.1) and apply ACLs (e.g., access-list 101 deny ip 192.168.20.0 0.0.0.255 any). Enable 802.1X authentication on switches and use IPSec VPNs for remote sites. Monitor with snmpwalk (Linux) or SolarWinds (Windows), ensuring secure expansion.
Zero Trust Security
Implement zero-trust security for scaling networks using micro-segmentation. Configure Cisco TrustSec with cts manual policy-static sap pmk and enforce MFA via RADIUS. Monitor with snmpwalk (Linux) or SolarWinds (Windows), ensuring robust protection
Cloud Integration
Integrate cloud services to support growth, such as AWS Direct Connect for low-latency connectivity. Configure on a Cisco router with interface gig0/0/0 description AWS-DX and BGP peering. Use aws configure (Linux) to set up CLI access, and monitor with Amazon CloudWatch. This enhances scalability and redundancy for 2025 networks.
Performance Optimization for Growth
As networks grow, optimize performance by implementing load balancing on the router with ip load-sharing per-packet (Cisco) and upgrading switch ports to 10 Gb/s where feasible. On Linux, use tc qdisc add dev eth0 root htb for traffic shaping, and monitor with iftop to ensure bandwidth distribution. On Windows, adjust QoS via netsh advfirewall and use Resource Monitor, ensuring scalability for 2025 networks as of 2025.
Monitoring Tools
Deploy advanced monitoring for growing networks. Use ntopng (Linux) for real-time traffic analysis or PRTG (Windows) for comprehensive dashboards. Configure SNMP on routers with snmp-server community public RO (Cisco) and set alerts for bandwidth thresholds. This proactive approach supports CCNA/CCNP skill development.
IoT Integration
Incorporate IoT devices (e.g., smart cameras, sensors) into growing networks. Configure a dedicated VLAN (e.g., vlan 30 name IoT) on a Cisco switch and apply QoS with qos policy-map IoT priority. Secure with 802.1X and monitor with ntopng (Linux) or PRTG (Windows), enhancing smart network capabilities
Important Step for Growth
Network Documentation: Create diagrams using Visio or Dia (Linux) with physical and logical layouts, updated with show cdp neighbors (Cisco). Device Inventory: Maintain a list with lshw -class network (Linux) or Device Manager (Windows), tracking models and IPs. Budget: Develop an IT budget with Excel, allocating funds for 2025 equipment (e.g., $500 for switches). Traffic Analysis: Document protocols with Wireshark, capturing bandwidth needs (e.g., 1 Gb/s for VoIP) using tcpdump (Linux). Network Segmentation: Plan VLANs based on performance, security, management, and availability, verified with show vlan brief (Cisco).
Protocol Analysis
During network growth, analyze traffic types (e.g., HTTP, VoIP) using Wireshark or tcpdump -i eth0 (Linux). Capture data during peak hours (e.g., 9-11 AM) on segments with tcpdump -w capture.pcap, and review with tshark -r capture.pcap. The figure below illustrates the network analyzer for different segments. This image depicts Wireshark captures from VLAN 10 (Sales) and VLAN 20 (IT), highlighting HTTP and VoIP traffic.
Employee Network Utilization
During growth, assess changing usage with top (Linux) or Task Manager (Windows) snapshots, capturing OS versions, applications (e.g., Zoom, ERP), and resource use (CPU, RAM, disk). Schedule daily checks at 10 AM with cron (Linux) or Task Scheduler (Windows), correlating data with ntopng traffic trends. Adjust bandwidth or add servers based on findings
Conclusion
In summary, small network topologies are essential for businesses, leveraging simple designs with routers, switches, and access points. With proper device selection, security (e.g., WPA3, firewalls), and configuration (e.g., DHCP, VLANs), these networks meet current needs. As networks grow, scaling with VLANs, SD-WAN, and performance tuning (e.g., tc qdisc) ensures reliability. For CCNA/CCNP students, mastering these skills is vital for 2025 network management.
A router in a small network directs traffic between devices and the internet, as shown in the article’s diagram. It connects the network to external systems and manages data flow efficiently. Proper router placement is crucial for optimal performance.
A small network topology is the arrangement of devices like routers, switches, and servers to form a connected network. The article explains how it facilitates communication and data sharing in a compact setup. This design is ideal for small businesses or home networks.
A switch connects devices within the network, enabling data exchange between computers and servers, as depicted in the image. The article highlights its role in creating a centralized hub for connectivity. It enhances network efficiency and scalability.
Servers store data and manage network resources, supporting multiple devices as illustrated in the topology. The article notes their importance for file sharing and application access. They ensure reliable performance in a small network environment.
A router in a small network directs traffic between devices and the internet, as shown in the article’s diagram. It connects the network to external systems and manages data flow efficiently. Proper router placement is crucial for optimal performance.
A small network topology is the arrangement of devices like routers, switches, and servers to form a connected network. The article explains how it facilitates communication and data sharing in a compact setup. This design is ideal for small businesses or home networks.
A switch connects devices within the network, enabling data exchange between computers and servers, as depicted in the image. The article highlights its role in creating a centralized hub for connectivity. It enhances network efficiency and scalability.
Servers store data and manage network resources, supporting multiple devices as illustrated in the topology. The article notes their importance for file sharing and application access. They ensure reliable performance in a small network environment.
The Domain Name System (DNS) is the backbone of modern networking, translating human-readable domain names like networkustad.com into machine-readable IP addresses such as 64.91.237.241. For CCNA and CCNP students, understanding DNS is critical because it underpins how devices communicate in IP networks, including Cisco-based infrastructures. Think of DNS as the Internet’s phone book, enabling seamless connectivity for websites, servers, and network devices.
DNS simplifies network management by allowing administrators to use memorable domain names instead of complex IP addresses. Whether you’re configuring a Cisco router, troubleshooting connectivity, or securing a network, mastering DNS is essential for passing CCNA and CCNP exams and excelling in real-world networking roles. This article dives deep into DNS concepts, including its hierarchy, message formats, record types, and practical applications for Cisco networking.
The domain name system defines an automatic service that matches resource names with the required numeric IP address, including query format, responses, and data. The domain name system protocol uses a single format called a message for all types of client queries and server responses, error messages, and the transfer of resource record information bet]. Ween servers.
The domain name system is its complete network. If one domain name server doesn’t know how to translate a particular domain name, it asks for another domain name system, and so on, until the correct IP address is returned. The Figure below illustrates the steps involved in the domain name system resolution.
DNS Message Format
The Domain Name System (DNS) uses a standardized message format for all client queries, server responses, error messages, and resource record transfers between servers. This format, called a DNS message, consists of two types: query and response. Both share the same structure, which includes five sections: Header, Question, Answer, Authority, and Additional.
Header
The header is a 12-byte section that contains control fields defining the message type and structure. Key fields include:
ID (16 bits): A unique identifier for the query, copied in the response.
QR (1 bit): Query (0) or Response (1).
Opcode (4 bits): Type of query (e.g., 0 for standard query).
AA (1 bit): Authoritative Answer flag, indicating if the response is from an authoritative server.
TC (1 bit): Truncation flag, indicating if the message was truncated.
RD (1 bit): Recursion Desired, set by the client to request recursive resolution.
RA (1 bit): Recursion Available, indicating if the server supports recursion.
RCODE (4 bits): Response code (e.g., 0 for no error, 3 for name error).
QDCOUNT: Number of entries in the Question section.
ANCOUNT: Number of entries in the Answer section.
NSCOUNT: Number of entries in the Authority section.
ARCOUNT: Number of entries in the Additional section.
Question
The Question section contains the query details, including:
QNAME: The domain name being queried (e.g., networkustad.com).
QTYPE: The type of record requested (e.g., A, AAAA, MX).
QCLASS: The class of the query (typically IN for Internet).
Answer
The Answer section contains resource records (RRs) that resolve the query. For example, a query for networkustad.com might return an A record with the IP address 64.91.237.241.
Authority
The Authority section lists name servers authoritative for the queried domain, often including NS records.
Additional
The Additional section provides supplementary records related to the query, such as the IP address of an authoritative name server.
Example DNS Query and Response:
Field
Query Example
Response Example
Header
ID: 1234, QR: 0, RD: 1, QDCOUNT: 1
ID: 1234, QR: 1, AA: 1, ANCOUNT: 1
Question
QNAME: networkustad.com, QTYPE: A, QCLASS: IN
Same as query
Answer
–
A: 64.91.237.241
Authority
–
NS: ns1.networkustad.com
Additional
–
A: 192.0.2.1 (for ns1.networkustad.com)
This format ensures DNS communication is efficient and standardized across all network devices.
Common DNS Record Types
DNS servers store various record types to map domain names to resources. Below is a table of common DNS record types relevant to CCNA and CCNP studies:
Specifies an authoritative name server for a domain.
example.com → ns1.example.com
PTR
Maps an IP address to a hostname (used in reverse DNS lookups).
241.237.91.64.in-addr.arpa → networkustad.com
SRV
Specifies the location of services (e.g., port and hostname).
_sip._tcp.example.com → srv1.example.com
TXT
Stores arbitrary text, often for metadata or verification.
example.com → “v=spf1 mx -all”
MX
Specifies mail exchange servers for a domain.
example.com → mail.example.com
CNAME
Start of Authority contains administrative info about a domain.
www.example.com → example.com
SOA
Start of Authority contains administrative information about a domain.
example.com → (serial, refresh, retry, etc.)
Configuring DNS on Cisco Devices
For CCNA and CCNP students, understanding how to configure DNS on Cisco routers is essential for network administration. Below is an example of configuring a Cisco router to use DNS for name resolution.
Step-by-Step Configuration
Enable DNS Lookup: Enable the router to perform DNS queries.Router(config)# ip domain-lookup
Specify DNS Servers: Configure the router to use one or more DNS servers (e.g., Google’s public DNS servers). Router(config)# ip name-server 8.8.8.8 Router(config)# ip name-server 8.8.4.4
Set the Default Domain Name (Optional): Specify a default domain to append to unqualified hostnames.Router(config)# ip domain-name example.com
Test DNS Resolution: Use the ping or nslookup command to verify DNS resolution.Router# ping networkustad.com
Example Configuration
Router> enable
Router# configure terminal
Router(config)# ip domain-lookup
Router(config)# ip name-server 8.8.8.8
Router(config)# ip name-server 8.8.4.4
Router(config)# ip domain-name example.com
Router(config)# exit
Router# ping networkustad.com
This configuration enables the router to resolve domain names to IP addresses, which is critical for tasks like accessing remote devices by name.
DNS Security Considerations
DNS is a critical service, but it’s also a common target for attacks. CCNA and CCNP students should understand DNS security concepts to protect networks.
Common DNS Threats
DNS Spoofing/Cache Poisoning: Attackers inject false DNS records to redirect traffic to malicious sites.
Distributed Denial of Service (DDoS): Overwhelming DNS servers with queries to disrupt service.
DNS Tunneling: Using DNS queries to smuggle data past firewalls.
DNS Security Solutions
DNSSEC (DNS Security Extensions): Adds cryptographic signatures to DNS records to verify authenticity and integrity.
Example: A DNSSEC-enabled server signs A records, ensuring clients receive untampered data.
Rate Limiting: Restricts the number of queries to prevent DDoS attacks.
Firewall Rules: Block unauthorized DNS traffic to mitigate tunneling.
Configuring DNSSEC on Cisco Devices
While Cisco routers don’t directly implement DNSSEC, they can be configured to forward queries to DNSSEC-enabled servers:
Router(config)# ip name-server 1.1.1.1
Here, 1.1.1.1 (Cloudflare’s DNS) supports DNSSEC.
Understanding these concepts is vital for securing enterprise networks and preparing for CCNP exams.
Fully Qualified Domain Name (FQDN)
To understand the DNS hierarchy, knowing about a Fully Qualified Domain Name (FQDN) is essential. A fully qualified domain name (FQDN) consists of the hostname and domain name. The hostname is not case-sensitive and can also contain alphabetic and numeric letters.
An FQDN is the domain name that specifies its exact site in the DNS hierarchy. It specifies all domain levels, including root and top-level domains. The example of FQDN is “mail.networkustad.com,” where “mail” is the hostname and “networkustad.com” is the domain name.
DNS Hierarchy
The Domain Name System (DNS) uses a hierarchical structure to organize and resolve domain names, resembling an inverted tree. This hierarchy ensures efficient name resolution across the Internet. The five levels of the DNS hierarchy are:
Root Level: The root zone is the topmost level, managed by root name servers operated by 12 organizations (e.g., VeriSign, ICANN). These servers maintain a global list of Top-Level Domains (TLDs).
Top-Level Domains (TLDs): TLDs are the next level, categorized into:
Second-Level Domains: These are domains registered under TLDs, such as example in example.com. They are managed by registrars and can be purchased by individuals or organizations.
Subdomains: Subdomains are extensions of second-level domains, like mail in mail.example.com. They are managed by the domain owner and used to organize services.
Hosts: The hostname identifies a specific device, such as www in www.example.com.
DNS Hierarchy in Action
When resolving mail.example.com, the DNS client queries:
A root server to find the .com TLD server.
The .com TLD server to find the example.com authoritative server.
The example.com server to get the IP address for mail.example.com.
Diagram Description: A diagram of the DNS hierarchy would show an inverted tree with the root (.) at the top, branching to TLDs (e.g., .com, .org), then second-level domains (e.g., example.com), subdomains (e.g., mail.example.com), and hosts (e.g., www).
The nslookup Command
The domain name server addresses are essential for network device configuration. Generally, the ISPs provide the IP addresses for the DNS servers. The host usually requests to connect to a remote device by name; the requesting client queries the name server to resolve the name to the IP address.
Operating systems also have a utility called nslookup that allows users to manually query the name servers to resolve a given hostname. nslookup can also be used to troubleshoot name resolution issues and verify the current status of the name servers.
Conclusion
The Domain Name System (DNS) is a cornerstone of networking, enabling seamless communication by translating domain names into IP addresses. For CCNA and CCNP students, mastering DNS concepts—like hierarchy, message formats, record types, and Cisco configurations—is crucial for exams and real-world network management. By understanding DNS security and troubleshooting tools like nslookup, you’ll be well-prepared for Cisco certifications and enterprise networking challenges.
DNS caching stores resolved IP addresses locally to speed up future queries. For example, Windows caches DNS records (viewable with ipconfig /displaydns), and Cisco routers can cache using ip host commands.
DNS is critical for network configuration, troubleshooting, and security. CCNA exams test DNS basics, while CCNP covers advanced topics like DNSSEC and load balancing.
The Dynamic Host Configuration Protocol (DHCP) is a cornerstone of modern networking, automating IP address allocation to streamline network management. For CCNA and CCNP students, understanding DHCP is critical, as it simplifies the configuration of IP addresses, subnet masks, default gateways, and DNS servers in both small and large networks. Unlike static IP addressing, which requires manual configuration, DHCP dynamically assigns IP addresses from a predefined pool, making it ideal for dynamic environments like enterprise networks or home Wi-Fi setups. This article dives into DHCP’s operations, types (DHCPv4 and DHCPv6), server configurations, and practical Cisco examples to help you master this protocol for your certification exams.
Dynamic Host Configuration Protocol is an ideal and efficient system on a more extensive network to configure IP address settings where the client’s changes occur frequently. A New User may arrive and want a connection, and someone may want to leave the network. Static IP address configuration is too complicated in such a more extensive network.
Clients get IP addresses automatically from the DHCP server on a leased basis. If the client is connected to the network and the lease period has expired, the dynamic host configuration protocol automatically renews the lease period. If the client powers down his device or unplugs the network cable, the address is free for the pool to reuse.
DHCP Servers
We can use a variety of devices as DHCP servers. The Dynamic Host Configuration Protocol server in most networks is generally a local and dedicated PC-based server. The home user’s DHCP server is usually a local router that connects the home network to the ISP. Several networks use both static and DHCP address settings.
The network administrator uses static addressing for network devices, and DHCP is for general purposes. The figure below illustrates the types of Dynamic Host Configuration Protocol servers that can be used.
Types of Dynamic Host Configuration Protocol
Two types of Dynamic Host Configuration Protocols, DHCPv4 and DHCPv6, give similar services to their clients. The main difference between DHCPv4 and DHCPv6 is the gateway. DHCPv6 does not give a default gateway address. The gateway can only be obtained automatically from the router’s Router Advertisement message.
DHCP Operation: The DORA Process Explained
Step-by-Step DORA Process
The DHCP DORA process (Discover, Offer, Request, Acknowledge) is the core mechanism by which a client obtains an IP address from a DHCP server. Below is a detailed breakdown of each step, tailored for CCNA and CCNP students.
DHCPDISCOVER: When a client (e.g., a PC or smartphone) connects to a network, it broadcasts a DHCPDISCOVER message to locate available DHCP servers. This message is sent to the broadcast address255.255.255.255 (since the client has no IP address yet).
DHCPOFFER: DHCP servers on the network respond with a DHCPOFFER message, unicast to the client’s MAC address, offering an IP address, subnet mask, default gateway, DNS server, and lease duration.
DHCPREQUEST: The client selects one offer (if multiple servers respond) and broadcasts a DHCPREQUEST message to accept the chosen IP address and inform other servers of its decision.
DHCPACK/DHCPNAK: The selected server responds with a DHCPACK to confirm the lease, finalizing the IP assignment. If the offer is invalid (e.g., the IP is already in use), the server sends a DHCPNAK, prompting the client to restart the process.
DHCP Simulator
Client
Discover
Offer
Request
Acknowledge
DHCP Server
Simulation Details
DHCP Message Types
Message Type
Direction
Description
DHCPDISCOVER
Client → Server
Broadcast to find DHCP servers.
DHCPOFFER
Server → Client
Offers an IP address and configuration details.
DHCPREQUEST
Client → Server
Requests the offered IP address.
DHCPACK
server → Client
Confirms the IP lease.
DHCPNAK
Server → Client
Rejects the client’s request (e.g., IP no longer available).
DHCPRELEASE
Client → Server
Releases the IP address back to the pool when the client disconnects.
Practical Note
Use tools like Wireshark to capture and analyze DHCP packets. Look for the BootP protocol in Wireshark, as DHCP is built on it. This is a key skill for CCNP troubleshooting exams.
Multiple DHCP servers
The client may receive various DHCPOFFER messages if multiple DHCP servers exist on the network. So, the client should choose between them and send a DHCPREQUEST message. The DHCPREQUEST message identifies the exact server and lease offer the client accepts. A client can also request an address previously allocated to the client.
The server should allow the previously used IP address on a priority basis. Once the DHCP server has made an offer for the chosen IP address, the device responds to the DHCP server with a DHCPREQUEST packet to accept the offered IP address. Then, the server replies with an ack message to confirm the specific IP address for this device and define the lease time. If the server decides the device cannot have the IP address, it will send a NACK.
For example, if the client requests the IPv4 address or the server offers an address that is still available, the server returns a DHCPACK (DHCP Acknowledge) message. The message acknowledges to the client that the lease has been finalized. The server responds with a DHCP negative acknowledgment (DHCPNAK) message if the offer is no longer valid.
If the client received a DHCPNAK message, then the selection process should start again with a new DHCPDISCOVER message from the client. The client’s lease should be renewed before the lease expires through another DHCPREQUEST message. The DHCP server is responsible for assigning a unique IP address to the host. DHCPv6 has a similar set of messages: SOLICIT, ADVERTISE, INFORMATION REQUEST, and REPLY.
Updated DHCPv4 vs. DHCPv6
DHCPv4 and DHCPv6 serve similar purposes but cater to IPv4 and IPv6 networks, respectively. Below is an updated comparison for CCNA and CCNP students.
For CCNA and CCNP students, configuring DHCP on Cisco routers or switches is a critical skill. Below are step-by-step Cisco IOS commands to set up a DHCP server, client, and relay agent.
1. DHCP Server Configuration
Configure a Cisco router as a DHCP server to assign IP addresses to clients in a specific pool.
Configure a Cisco device interface to obtain an IP address via DHCP.
Router> enable
Router# configure terminal
Router(config)# interface GigabitEthernet0/0
Router(config-if)# ip address dhcp
Router(config-if)# no shutdown
Router(config-if)# exit
3. DHCP Relay Agent (Helper Address)
In multi-subnet networks, a DHCP relay agent forwards DHCP requests to a server on a different subnet.
Router> enable
Router# configure terminal
Router(config)# interface GigabitEthernet0/1
Router(config-if)# ip helper-address 192.168.2.10 # DHCP server IP
Router(config-if)# no shutdown
Router(config-if)# exit
Verification Commands
show ip dhcp binding: Displays leased IP addresses.
show ip dhcp pool: Shows pool configuration and usage.
show running-config | section dhcp: Verifies DHCP settings.
Troubleshooting DHCP Issues
DHCP issues can disrupt network connectivity. Below are common problems and Cisco IOS commands to diagnose them, essential for CCNA and CCNP troubleshooting.
Common DHCP Issues
IP Address Conflicts:
Cause: Two devices are assigned the same IP address.
Solution: Use show ip dhcp conflict to identify conflicts. Clear conflicts with clear ip dhcp conflict *.
Lease Exhaustion:
Cause: The DHCP pool runs out of IP addresses.
Solution: Check pool usage with show ip dhcp pool. Expand the pool or reduce lease duration.
DHCP Server Unreachable:
Cause: The server is down, or the relay agent is misconfigured.
Solution: Verify server status with ping and check relay configuration with show running-config | include helper-address.
Debugging Commands
debug ip dhcp server packet: Displays DHCP packet exchanges.
debug ip dhcp server events: Logs DHCP server events (e.g., lease assignments).
show ip dhcp binding: Lists current IP leases.
Example Scenario
If a client fails to obtain an IP address:
Verify the client’s interface is up: show ip interface brief.
Check DHCP server logs: show ip dhcp server statistics.
Use Wireshark to capture DHCP packets and ensure DORA messages are exchanged.
DHCP Security Considerations
For CCNP students, understanding DHCP security is crucial to protect networks from unauthorized access and attacks.
DHCP Snooping
Purpose: Prevents rogue DHCP servers from assigning malicious IP addresses.
How It Works: Switches filter DHCP messages, allowing only trusted servers to respond. Configure with:
Switch> enable
Switch# configure terminal
Switch(config)# ip dhcp snooping
Switch(config)# ip dhcp snooping vlan 10
Switch(config)# ip dhcp snooping trust # On the server-connected port
Switch(config)# exit
IP Source Guard
Purpose: Ensures devices use only their assigned DHCP IP addresses.
How It Works: Switch verifies source IP addresses against DHCP snooping database.
Switch(config-if)# ip verify source
Best Practices
Enable DHCP snooping on access switches.
Use port security to limit MAC addresses per port.
DHCP automatically assigns IP addresses from a pool, simplifying management in dynamic networks. Static IP addressing requires manual configuration, suitable for devices like servers that need consistent IPs.
The lease process follows the DORA cycle: Discover (client broadcasts request), Offer (server proposes IP), Request (client accepts), and Acknowledge (server confirms). The lease has a set duration, after which it can be renewed or released.
Clients may fail to obtain an IP address and use an APIPA address (169.254.x.x) in IPv4 networks, causing connectivity issues. DHCP relay agents can help by forwarding requests to a remote server.
DHCP snooping is a security feature on switches that filters unauthorized DHCP messages, preventing rogue servers from assigning malicious IPs. It’s critical for network security in enterprise environments.
Use commands like ip dhcp pool, network, default-router, and dns-server to set up a DHCP pool. Exclude reserved IPs with ip dhcp excluded-address. See the configuration section for details.
Stateless DHCPv6 provides configuration options (e.g., DNS) but not IP addresses, which are obtained via SLAAC. Stateful DHCPv6 assigns both IP addresses and options, similar to DHCPv4.
This guide is tailored for network administrators and students using Windows (e.g., versions 10 or 11) and Linux (e.g., Ubuntu 22.04 or CentOS 7) operating systems. FTP operations can be performed using the built-in ftp command on both platforms, accessible via the Command Prompt (cmd) on Windows or the terminal (Ctrl + Alt + T) on Linux. For advanced users, Linux offers lftp as a more robust FTP client with additional features like scripting and parallel downloads. Understanding these tools is crucial for configuring and managing FTP services in real-world network environments as of 2025.
File Transfer Protocol (FTP), an application layer protocol, is a standard for transferring files over TCP/IP networks, originally developed in 1971. It facilitates client-server data exchange using an FTP client application and a server daemon (FTPd), forming a cornerstone of network communication for CCNA/CCNP studies.
· Command channel for controlling the conversation between host and server
· Data channel for transmitting and receiving files between client and server
FTP operates as a client-server protocol utilizing two distinct channels: a command channel on port 21, which handles control messages including client commands (e.g., USER, PASS) and server replies (e.g., status codes), and a data channel on port 20, dedicated to transmitting and receiving files. The client initiates the command connection, and upon successful negotiation, establishes a data connection for each transfer. Network engineers can monitor these channels using netstat -a on Windows or ss -l on Linux to ensure proper port activity, a valuable skill for CCNA/CCNP certification.
Depending on user permissions, the FTP client can download, upload, delete, rename, move, and copy files on a server. Authentication is typically required, though some servers offer anonymous access with restricted privileges, a concept important for understanding access control in network security.
FTP supports two operational modes: active and passive, each affecting how data connections are established. In active mode, the client initiates a command channel request on port 21, and the server responds by opening a data connection from port 20 back to a client-specified port, which can be challenging with firewalls.
In passive mode, the server provides a dynamic port (e.g., 1024-65535) via the command channel, allowing the client to initiate the data connection, making it more compatible with NAT and firewall configurations. Use ftp -p on Windows or Linux to enable passive mode, or leverage FileZilla’s GUI for ease of use. Test connectivity with nc -l 2121 on Linux to simulate a passive port, a practical exercise for CCNA/CCNP students
Practical Example
To illustrate FTP in action, consider connecting to a test FTP server. On a Linux system, open the terminal and type ftp ftp.example.com, then log in with a username and password (e.g., anonymous for public servers). Use commands like dir or ls to list files, get filename to download, and put filename to upload. On Windows, create a script file (e.g., script.txt with open ftp.example.com, user username password, dir) and run ftp -s:script.txt from the Command Prompt. Verify the connection status with netstat -a to ensure port 21 is active, providing hands-on experience for CCNA/CCNP students as of 2025.
Security Configuration
Given FTP’s vulnerability to interception, securing file transfers is paramount for 2025 network environments. On a Linux system, install and configure vsftpd with SSL for FTPS by running sudo apt install vsftpd, then edit the configuration file at /etc/vsftpd.conf to enable SSL (e.g., add ssl_enable=YES and specify certificate paths). Restart the service with sudo systemctl restart vsftpd. On Windows, set up FileZilla Server, enable TLS 1.3 in the settings, and configure a self-signed certificate. Test the secure connection with ftp -p ftp.example.com (passive mode with FTPS) or sftp user@host for SFTP, ensuring compliance with modern security standards.
Troubleshooting Tips
Network issues can disrupt FTP operations, so effective troubleshooting is essential. If a connection to the FTP server fails, start by using ping ftp.example.com to check reachability on both Windows and Linux. For deeper analysis, run tracert ftp.example.com (Windows) or traceroute ftp.example.com (Linux) to identify latency or routing problems. If data transfer stalls, inspect active connections with netstat -a (Windows) or ss -l (Linux) to confirm ports 21 and 20 are open and responding. Adjust firewall rules (e.g., sudo ufw allow 21/tcp) if needed, equipping CCNA/CCNP students with practical skills.
Conclusion
FTP, an application layer protocol since 1971, uses command (port 21) and data (port 20) channels with active and passive modes. Its plain-text vulnerability requires FTPS or SFTP with TLS 1.3, configurable via vsftpd (Linux) or FileZilla (Windows). For CCNA/CCNP students, mastering setup (sudo apt install vsftpd), troubleshooting (netstat -a), and optimization (sysctl -w net.core.rmem_max=8388608) is key for 2025 networks.
It is a standard protocol created in 1971 to transmit files between computers over TCP/IP, operating at the application layer with a client-server model. It uses a command channel on port 21 and a data channel on port 20 to facilitate downloading, uploading, and managing files as of 2025.
In active mode, the server opens a data connection back to the client after a command channel request on port 21, while in passive mode, the client opens the data channel based on server information. Passive mode is preferred for firewall compatibility, enhancing accessibility in 2025 networks.
It transmits data in plain text, making it vulnerable to interception and lacking encryption by default. Modern alternatives like FTPS and SFTP with TLS 1.3 are recommended for secure file transfers as of 2025 to address these security concerns.
Some servers allow anonymous access, enabling users to download or view content without a login, such as on sites like https://www.goanywhere.com/solutions/secure-ftp. This feature is useful for public file sharing but requires careful security management in 2025.
