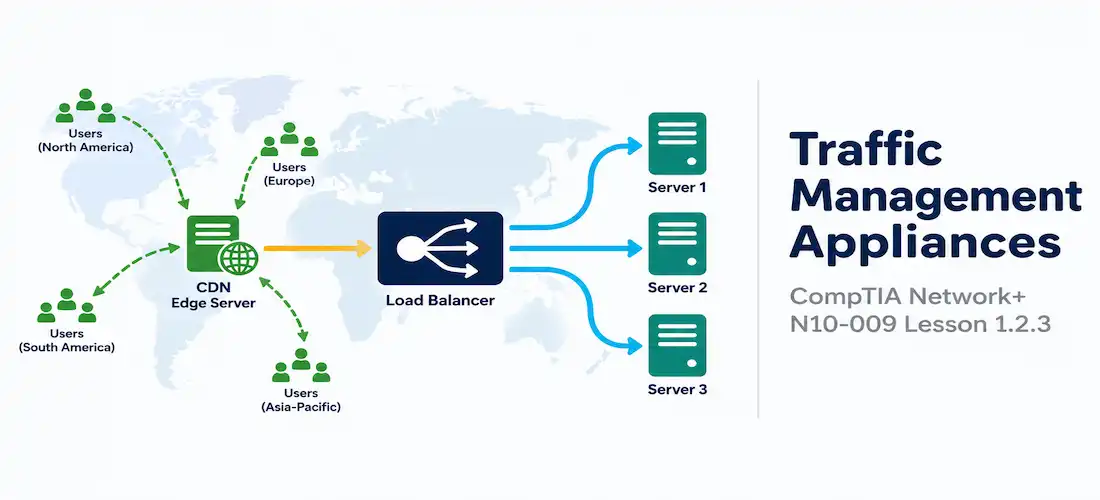

Lesson 1.2.3 — Traffic Management Appliances

Domain 1.0 | Networking Concepts — 23% of exam

Learning Objectives

By the end of this lesson, you will be able to:

• Describe the primary function of a load balancer and compare Layer 4 and Layer 7 load balancing
• Explain common load-balancing algorithms and the purpose of health checks and session persistence
• Distinguish a forward proxy from a reverse proxy based on which side of the connection each one serves
• Describe how a content delivery network (CDN) reduces latency by caching content at geographically distributed edge servers
• Compare load balancers, proxies, and CDNs side by side, and explain how they combine in a real traffic flow

Key Terms

Explanation

A Different Kind of Infrastructure Device

Lessons 1.2.1 and 1.2.2 covered devices focused on basic connectivity and security. This lesson covers a third category: traffic management appliances — devices whose job is to make traffic distribution and delivery more efficient, rather than simply forwarding it (like a switch or router) or filtering it for threats (like a firewall or IDS/IPS). The three devices covered here — load balancers, proxies, and CDNs — are what let a popular website handle millions of simultaneous users, stay online when individual servers fail, and load quickly for users anywhere in the world.

Load Balancers: Spreading the Load

A load balancer distributes incoming client requests across a pool of backend servers rather than sending all traffic to a single server. This serves two purposes simultaneously: it increases capacity (multiple servers together can handle far more traffic than one), and it increases reliability (if one backend server fails, the load balancer simply stops sending it traffic and redirects to the remaining healthy servers).

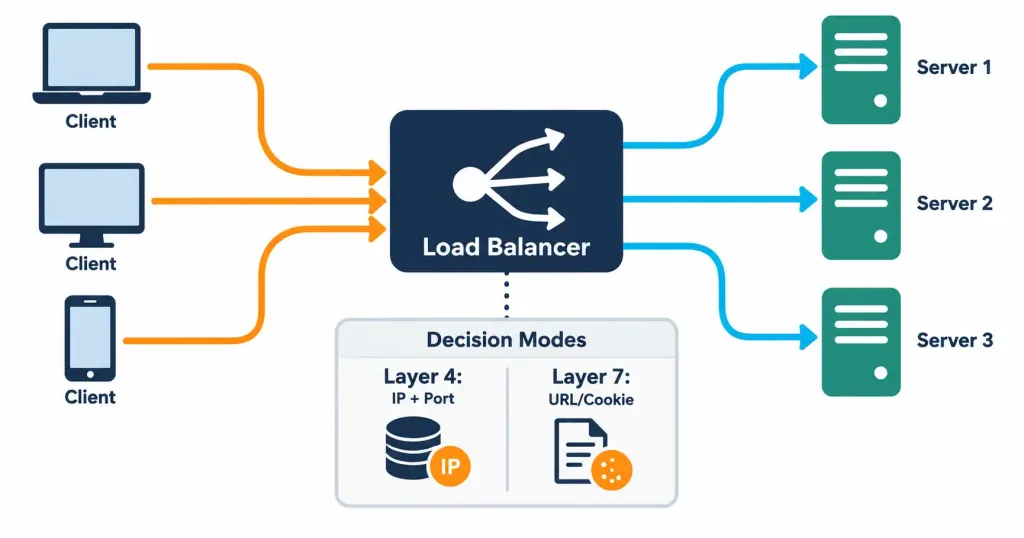

Load balancers operate at one of two levels, and distinguishing between them is a core exam concept:

• Layer 4 load balancing makes distribution decisions using only transport-layer information — source/destination IP address and port — without looking at the actual application content. It’s fast and protocol-agnostic, but it can’t make decisions based on what’s actually being requested.
• Layer 7 load balancing makes decisions using application-layer information, such as the URL path, HTTP headers, or cookies. This allows much more intelligent routing — for example, sending all requests for /images/ to one server pool and requests for /api/ to a different pool — at the cost of requiring more processing power to inspect that content.

To decide which backend server receives a given request, a load balancer uses an algorithm. Common approaches include round robin (cycling evenly through the list of servers in order), least connections (sending new requests to whichever server currently has the fewest active connections), and weighted variants of either (giving more powerful servers a proportionally larger share of traffic). Regardless of algorithm, a load balancer continuously performs health checks — periodic tests against each backend server — so that a failed or unresponsive server is automatically removed from rotation until it passes health checks again.

One more concept worth knowing: session persistence (also called sticky sessions). Some applications store session-specific data (like a shopping cart) on whichever server first handled a user’s request. If a later request from that same user gets routed to a different backend server, that session data might not be there. Session persistence solves this by ensuring a given client is consistently routed to the same backend server for the life of their session, typically using a cookie or the client’s source IP address to make that determination.

Proxies: Forward vs. Reverse

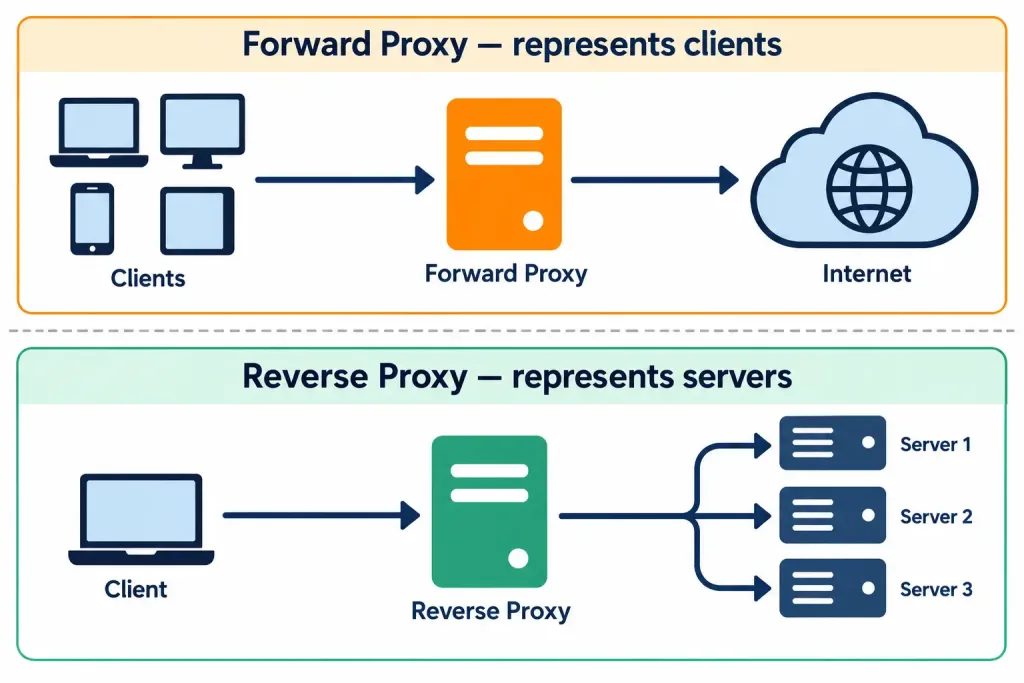

The word “proxy” simply means something acting on behalf of something else — and in networking, the critical question is always: on behalf of which side of the connection?

• A forward proxy sits in front of clients and makes requests to the internet on their behalf. When a client is configured to use a forward proxy, its outbound requests go to the proxy first, and the proxy forwards them out to the destination server, often applying content filtering, caching, or logging along the way, and potentially hiding the client’s actual IP address from the destination. This is the model behind corporate web filtering — an organization routes all employee web traffic through a forward proxy that enforces browsing policy.
• A reverse proxy sits in front of servers and handles requests on their behalf. From a client’s perspective, they appear to be talking directly to the destination server, but the reverse proxy is actually intercepting the request first, and may then forward it to one of several backend servers, terminate TLS encryption, cache responses, or apply security filtering — all before the request (or a cached response) reaches the client.

The directionality is the entire distinction: a forward proxy protects/represents the client side of a connection; a reverse proxy protects/represents the server side. In practice, the line between a reverse proxy and a load balancer has blurred considerably — many reverse proxy products include load-balancing features, and many load balancers include reverse-proxy-style capabilities like TLS offloading and caching. For the exam, focus on the conceptual distinction (which side each type serves) rather than assuming any one vendor’s product cleanly fits only one category.

CDNs: Bringing Content Closer to Users

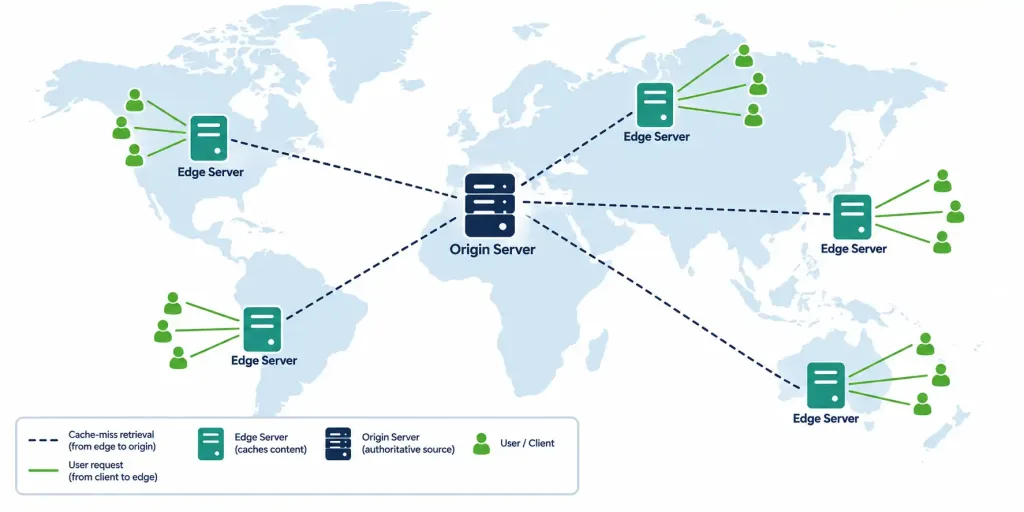

A content delivery network (CDN) solves a different problem: even with a powerful, well-load-balanced set of origin servers, a user located far from those servers will experience latency simply due to the physical distance data has to travel. A CDN addresses this by distributing edge servers geographically close to end users, and caching content on those edge servers so that repeat requests can be served locally instead of traveling all the way back to the origin server.

When a user requests content served through a CDN, the request is routed to the nearest edge server. If that edge server already has a cached copy of the requested content, this is a cache hit, and the content is served immediately with minimal latency. If it doesn’t yet have a cached copy, this is a cache miss — the edge server retrieves the content from the origin server once, serves it to the user, and typically caches it for subsequent requests from other nearby users. This dramatically reduces both latency (content travels a much shorter physical distance) and load on the origin server (which no longer has to handle every single request directly).

CDNs are especially valuable for static content — images, videos, stylesheets, downloadable files — that doesn’t change per-user, though modern CDNs increasingly cache dynamic content as well using short cache lifetimes and smart invalidation. Beyond raw performance, CDNs commonly provide additional benefits like DDoS traffic absorption (since a distributed edge network can absorb and filter attack traffic before it ever reaches the origin) and improved availability during traffic spikes.

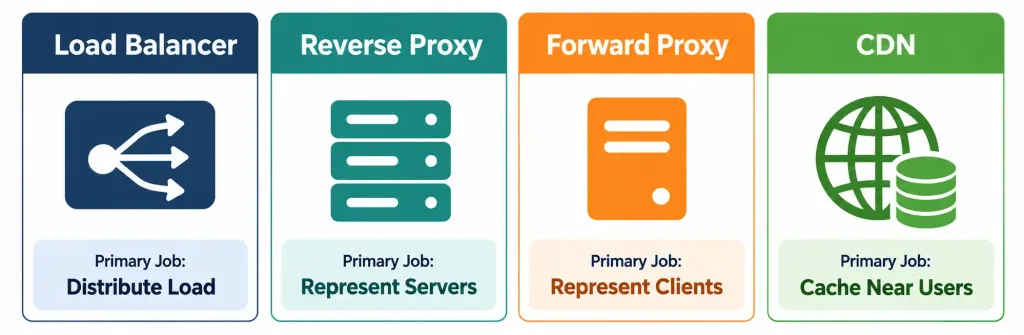

Side-by-Side Comparison

How These Devices Combine in a Real Deployment

These four technologies aren’t competing alternatives — they typically stack together in a single traffic path. Consider a popular website: a user’s request first reaches the CDN, which may serve it immediately from a cached edge copy (fastest possible path) or, on a cache miss, forward the request toward the origin infrastructure.

That request may pass through a reverse proxy, which terminates TLS and applies security policy, before reaching a load balancer, which distributes the request across a pool of application servers using Layer 7 rules and session persistence as needed. If any employees inside the organization need outbound internet access, their own traffic might separately pass through a forward proxy for content filtering — a completely different traffic flow serving a completely different purpose.

Understanding this layered flow helps make sense of scenario questions: a question describing slow load times for globally distributed users points toward a CDN gap; a question describing one server being overwhelmed while others sit idle points toward a load balancing problem; a question describing inconsistent user sessions points toward missing session persistence.

Recognition-Level Verification Concepts

This objective is descriptive/comparative, so there’s no hands-on configuration expected yet. It’s worth recognizing, conceptually, a few things you might observe when verifying these systems:

• An HTTP response header such as X-Cache: HIT or X-Cache: MISS is a common (though vendor-specific) way a CDN or reverse proxy indicates whether a given response was served from cache.
• A load balancer’s health check log typically shows each backend server’s status (healthy/unhealthy) and the timestamp of its last successful check.

You’ll work with actual configuration and troubleshooting for these systems in later domains as the course progresses into hands-on service configuration.

Common Exam Traps

• Forward vs. reverse is about which side is represented, not which “direction” traffic physically flows. A forward proxy serves clients reaching out to the internet; a reverse proxy serves servers being reached by clients. If you remember nothing else, remember this pairing.
• A CDN reduces latency through geographic caching; a load balancer increases capacity through traffic distribution. These solve genuinely different problems, even though both involve “spreading out” traffic in some sense — don’t conflate the two just because they sound similar.
• Layer 4 vs. Layer 7 load balancing is about what information is used to make the decision — transport-layer addressing only (Layer 4) versus application-layer content like URLs and cookies (Layer 7) — not about which layer the traffic itself is “at.”
• Session persistence exists because of statefulness in the application, not because of anything inherent to load balancing itself. A stateless application generally doesn’t need sticky sessions at all.
• Modern products blur these categories — a single appliance or cloud service may simultaneously act as a reverse proxy, load balancer, and TLS terminator. Focus on the conceptual function being described in a question rather than assuming a one-to-one mapping between device categories and physical products.
